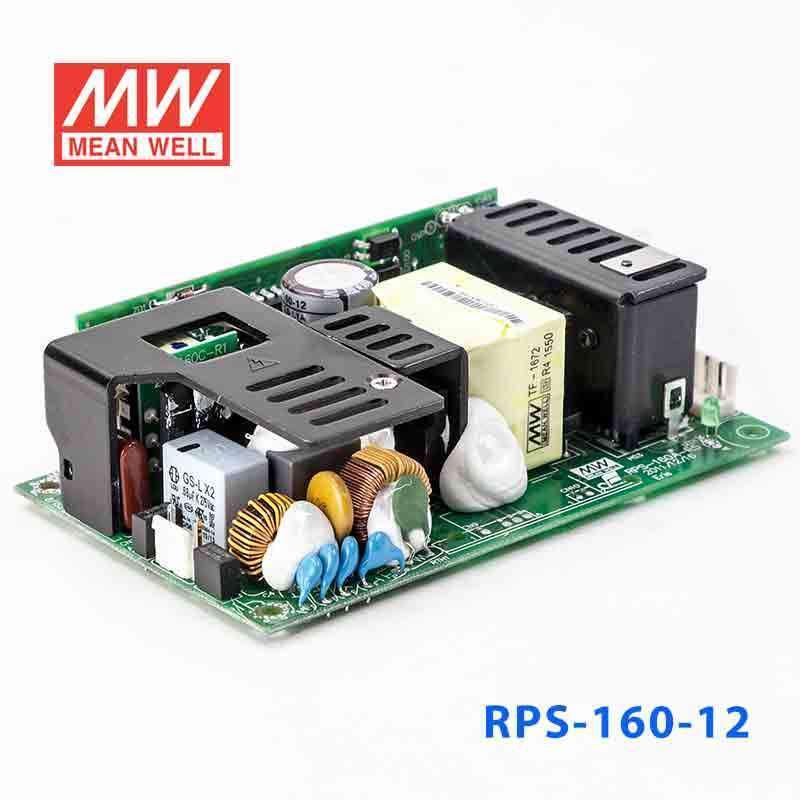

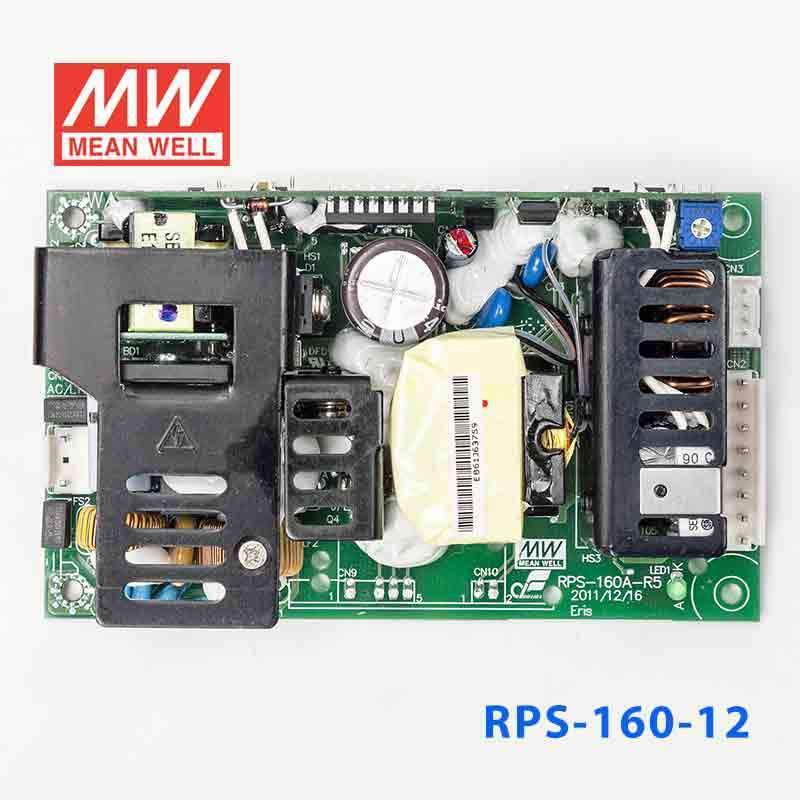

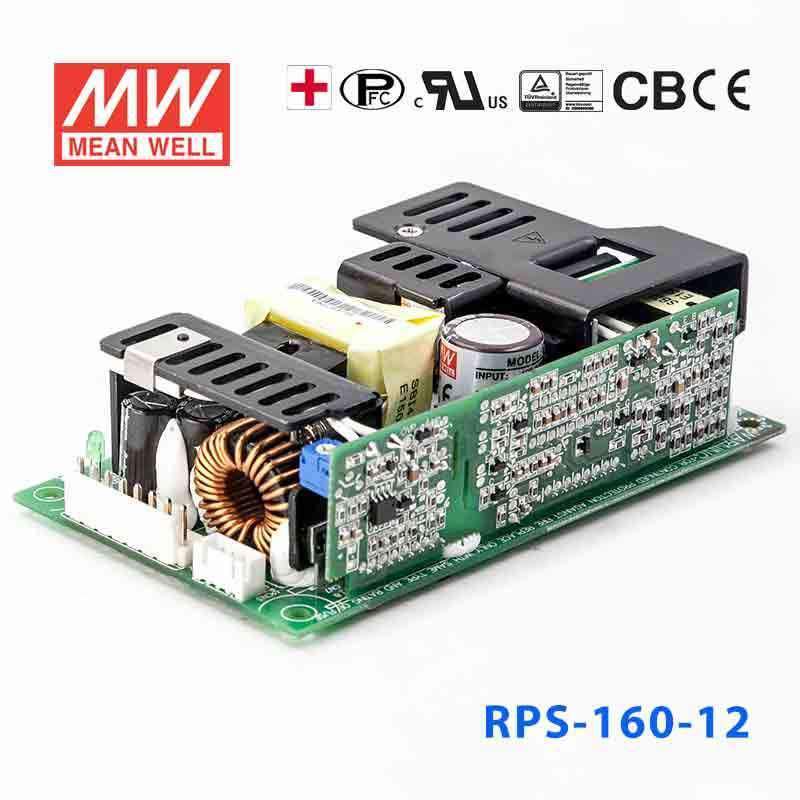

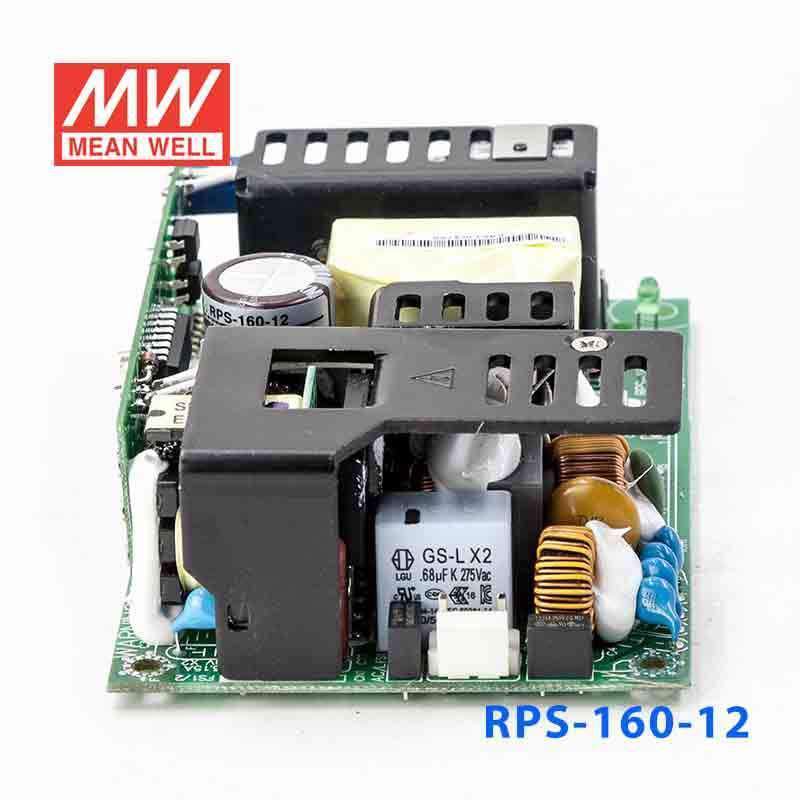

Mean Well RPS-160-12 Green Power Supply W 12V 9.1A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-160-12 Green Power Supply W 12V 9.1A - Medical Power ...
Description
Description
Features
| Universal AC input / Full range |
| Medical safety approved (2xMOPP) |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| Built-in active PFC function |
| Low leakage current <200uA |
| Free air convection for 110W and 160W with 20.5 CFM forced air |
| 5""x3"" compact size |
| With power good and fail signal output |
| Built-in remote sense function for 5~15V |
| Standby 5V@0.8A (G model) |
| No load power consumption under 0.75W by PS-ON control (G model) |
| Suitable for medical & IT applications |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current | Cold start, 35A at 115VAC, 70A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection | 105%~135% hiccup mode, auto-recovery |
| Over voltage protection | CH1: 115%~135% shut off, re-power on to recovery |
| Withstand voltage | I/P-O/P: 4kVAC, I/P-FG: 2kVAC, 1 minute |
| Working temperature | -20~+70°C (refer to output derating curve) |
| Leakage current | Less than 200uA at 264VAC |
| Safety standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved |
| EMC standards | EN55011/EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN60601-1-2, EN61000-6-2 (RPS(G)-160) |
| Connection | 3+8+2(4)P/3.96mm pitch JST B3P / B8P-VH, B2B (B4B)-XH |
| Setup, rise, hold up time | 1800ms, 30ms, 16ms at full load and 230VAC |
| Dimension (LxWxH) | 127x 76.2x 34.6mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating112.2 Watt
-
Output Voltage12 Volt
-
Rated Current9.1 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.36 in
-
Weight0.71 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the RPS-160-12 power a 12V industrial control panel or automation assembly?
Yes, it is a constant voltage 12V supply rated for 9.1A and 112.2W. That makes it suitable for 12V control electronics, monitoring hardware, or automation assemblies that stay within those limits.
Is the RPS-160-12 a fit for embedded systems with higher 12V current demand?
It can be a good match for embedded systems that need more current on a 12V rail, because it provides up to 9.1A. The 127.0 x 76.2 x 34.6 mm form factor is larger than the smaller RPS-120S units, but still compact for enclosed equipment.
Can I use this power supply for 12V medical or laboratory equipment?
It is medical safety approved, so it can be considered for 12V medical or lab equipment that requires that approval class and fits within 112.2W. Its no load power consumption is specified at less than 0.5W, which can also matter in low-idle systems.
Is the RPS-160-12 suitable for outdoor installations or unsealed enclosures?
No IP rating is listed, so this model is better suited to indoor equipment or protected housings instead of exposed outdoor locations. The operating temperature range is -20°C to +70°C, so temperature capability should be considered along with enclosure protection.
How does the RPS-160-12 compare with the other RPS-160 models?
The RPS-160 family includes 5V at 20A and 103W, 12V at 9.1A and 112.2W, 15V at 7.3A and 112.5W, 24V at 4.6A and 113.4W, and 48V at 2.3A and 113.4W. The family keeps a similar power class while changing output voltage and current for different DC bus requirements.
