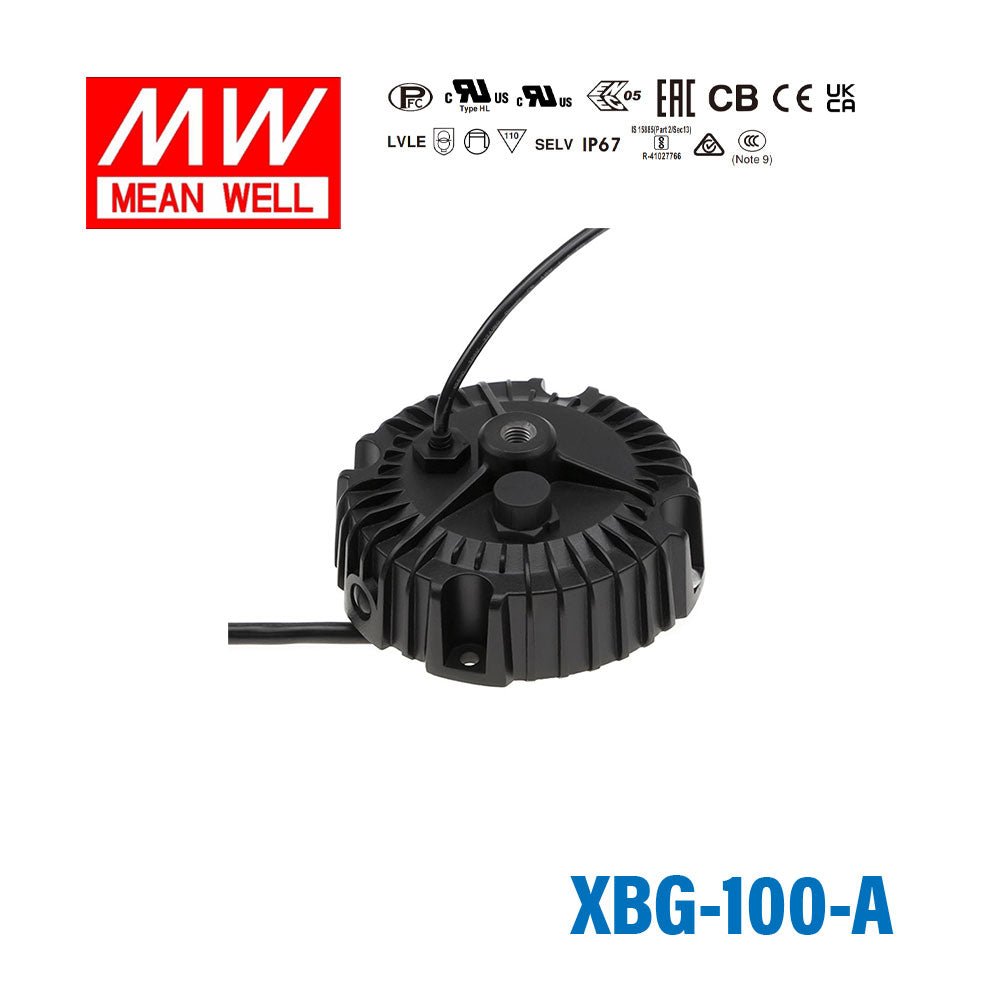

Mean Well XBG-100-A Power Supply 100W - Adjustable

100~305VAC wide range input with waterproof connector, liffe time >50,000hrs

SKU:

XBG-100-A

$63.02 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Full power output at 70~100% constant current range operation

Wide input range 90~305VAC with active PFC function

Metal housing design with IP67

Multiple dimming functions: 3 in 1(0-10V/PWM/Resistor)

Dimming circuit with isolated for latest safety regulation

Surge protection with 6KV/4KV

Typical lifetime>50000 hours and 5 years warranty

AC input cable with connector for flexible installation

General Specification

AC input voltage range	90~305VAC 127~431VDC
AC inrush current (max.)	Cold start, 50A at 230VAC
DC adjustment range	83%~130% rated current
Over power protection	105%~150%
Over-voltage protection	up to 130% rated voltage
Short circuit protection	Hiccup mode or Constant current limiting
Withstand voltage	I/P - O/P: 3.75kVAC, I/P - FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+85°C
Safety standards	BS EN/EN61347-1, BS EN/EN61347-2-13
EMC standards	EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11,
Connection	SJOW 17AWG
Dimension (DxH)	φ130x56
Packing	16pcs/14.8Kg

Specifications

Brand

Mean Well
Series

MeanWell XBG Seroes
Power Rating

100 Watt
Output Voltage

60 Volt
Rated Current

2.1 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

5.12 in
Width

5.12 in
Height

2.2 in
Weight

1.76 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the XBG-100-A for LED downlights that need a constant current driver?

Yes, if the downlight array is designed for a constant current driver at 2100mA and the total LED forward voltage stays within the 27-56V constant current range. This is a 100W constant current model, so it is not the right choice for constant voltage LED products.

Is the XBG-100-A suitable for signage modules or small LED arrays?

It can be suitable for signage modules or small LED arrays when the load is built for constant current operation at 2100mA and falls within the 27-56V CC range. Because it is IP67 rated, it can also be used in locations where a waterproof driver is needed.

Can this driver power a compact outdoor LED lighting assembly?

Yes, for compact outdoor LED assemblies that require a constant current source of 2100mA and operate within 27-56V. Its IP67 waterproof rating and -40°C to +80°C operating temperature range make it suitable for demanding indoor or outdoor environments.

How do I know if my LEDs are compatible with the XBG-100-A?

Compatibility depends on whether your LED load is a constant current design that needs 2100mA and has a combined forward voltage within 27-56V. The number of LEDs depends on each LED's forward voltage, so this driver should be matched by current and total forward voltage rather than by a fixed LED count.

What conditions is the XBG-100-A designed to handle?

This model is rated IP67 and operates from -40°C to +80°C, so it is designed for wet or dusty environments as well as wide temperature swings. It also accepts 90-305VAC input, which supports use across a broad AC input range.

How does the XBG-100-A compare with other XBG series models?

Within the listed siblings, XBG-100-A-C, XBG-100-AB, and XBG-100-AB-C are all 100W, 2100mA models with a 27-56V CC range. XBG-160-A, XBG-160-A-C, XBG-160-AB, and XBG-160-AB-C are 160W, 3300mA models with a 34-56V CC range, while XBG-240-A, XBG-240-A-C, XBG-240-AB, and XBG-240-AB-C are 240W, 4900mA models with a 30-60V CC range.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well XBG-100-AB-C Power Supply 100W - Adjustable	100W	60V	2.1A	IP67	$71.67	View
Mean Well XBG-100-AB Power Supply 100W - Adjustable	100W	60V	2.1A	IP67	$71.58	View
Mean Well XBG-100-A-C Power Supply 100W - Adjustable	100W	60V	2.1A	IP67	$65.97	View
