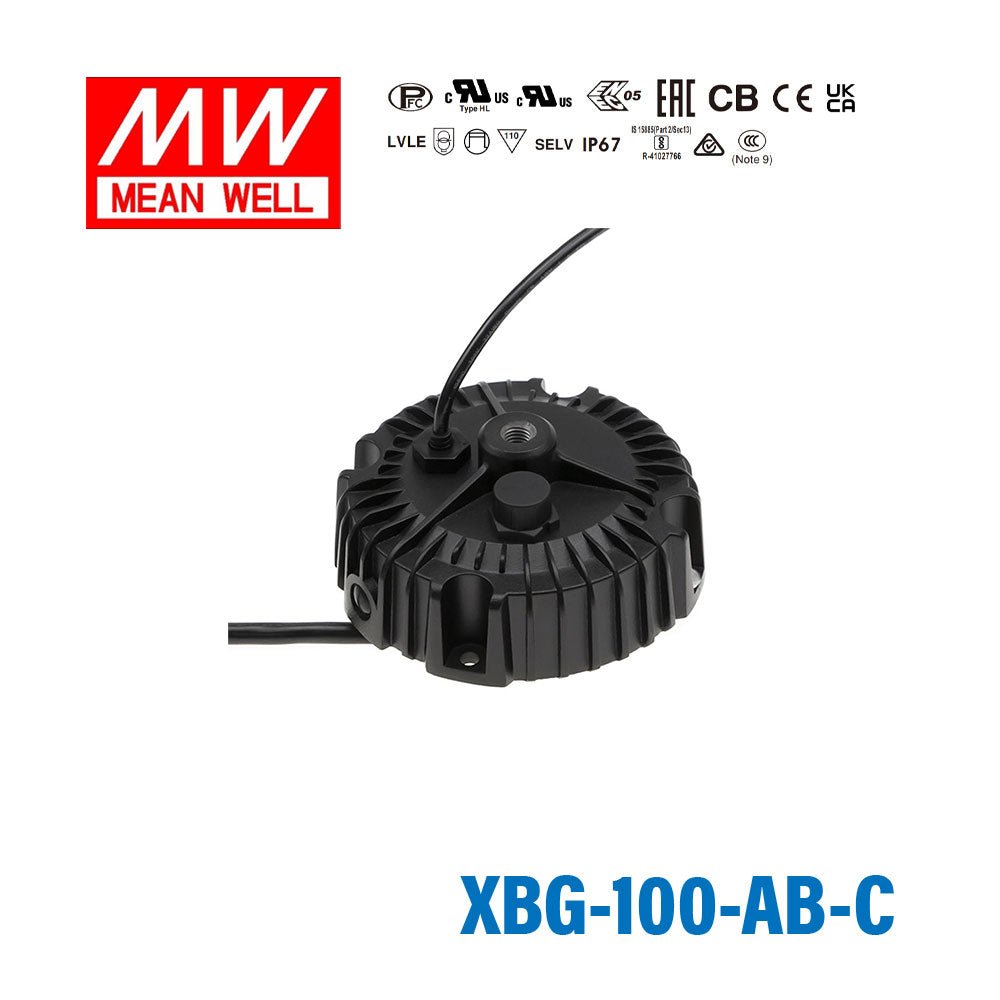

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well XBG-100-AB-C Power Supply 100W - Adjustable

100~305VAC wide range input with waterproof connector, liffe time >50,000hrs

SKU:

XBG-100-AB-C

$71.67 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Full power output at 70~100% constant current range operation

Wide input range 90~305VAC with active PFC function

Metal housing design with IP67

Multiple dimming functions: 3 in 1(0-10V/PWM/Resistor)

Dimming circuit with isolated for latest safety regulation

Surge protection with 6KV/4KV

Typical lifetime>50000 hours and 5 years warranty

AC input cable with connector for flexible installation

General Specification

AC input voltage range	90~305VAC 127~431VDC
AC inrush current (max.)	Cold start, 50A at 230VAC
DC adjustment range	83%~130% rated current
Over power protection	105%~150%
Over-voltage protection	up to 130% rated voltage
Short circuit protection	Hiccup mode or Constant current limiting
Withstand voltage	I/P - O/P: 3.75kVAC, I/P - FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+85°C
Safety standards	BS EN/EN61347-1, BS EN/EN61347-2-13
EMC standards	EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11,
Connection	SJOW 17AWG
Dimension (DxH)	φ130x56
Packing	16pcs/14.8Kg

Specifications

Brand

Mean Well
Series

MeanWell XBG Seroes
Power Rating

100 Watt
Output Voltage

60 Volt
Rated Current

2.1 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

0-10V,10V PWM,Built-in Potentiometer
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

5.12 in
Width

5.12 in
Height

2.2 in
Weight

1.76 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the main electrical specifications of the Mean Well XBG-100-AB-C?

The XBG-100-AB-C is a 100 W AC/DC LED driver with a 60 V output rating and 2100 mA rated current. It supports a wide input range of 90~305 VAC and includes active PFC.

What dimming controls does the XBG-100-AB-C support?

This model supports 3-in-1 dimming: 0-10 V, 10 V PWM, and potentiometer control. The product description also notes an isolated dimming circuit for current safety regulation requirements.

Can the XBG-100-AB-C be used in harsh environments?

The XBG-100-AB-C has a metal housing with an IP67 rating. Its specified operating temperature range is -40 °C to 80 °C, making it suitable for demanding LED driver environments within those limits.

What type of application is the XBG-100-AB-C intended for?

The XBG-100-AB-C is an AC/DC LED driver power supply intended for constant-current LED power applications. It is listed in LED driver and AC/DC power supply categories for both B2B and Power Supply Mall product groupings.

Does the XBG-100-AB-C provide full power across its adjustable current range?

Yes. The product description states that it provides full power output across a 70~100% constant current range operation.

What differentiates the XBG-100-AB-C from a basic LED driver?

This model combines 100 W output capacity, wide 90~305 VAC input, active PFC, IP67 metal housing, and 3-in-1 dimming support. It also includes 6 kV/4 kV surge protection, a typical lifetime above 50,000 hours, and a 5-year warranty.

What is the warranty period and weight of the XBG-100-AB-C?

The XBG-100-AB-C has a 5-year warranty period. Its listed weight is 0.8000 kg.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well XBG-100-AB Power Supply 100W - Adjustable	100W	60V	2.1A	IP67	$71.58	View
Mean Well XBG-100-A-C Power Supply 100W - Adjustable	100W	60V	2.1A	IP67	$65.97	View
Mean Well XBG-100-A Power Supply 100W - Adjustable	100W	60V	2.1A	IP67	$63.02	View
