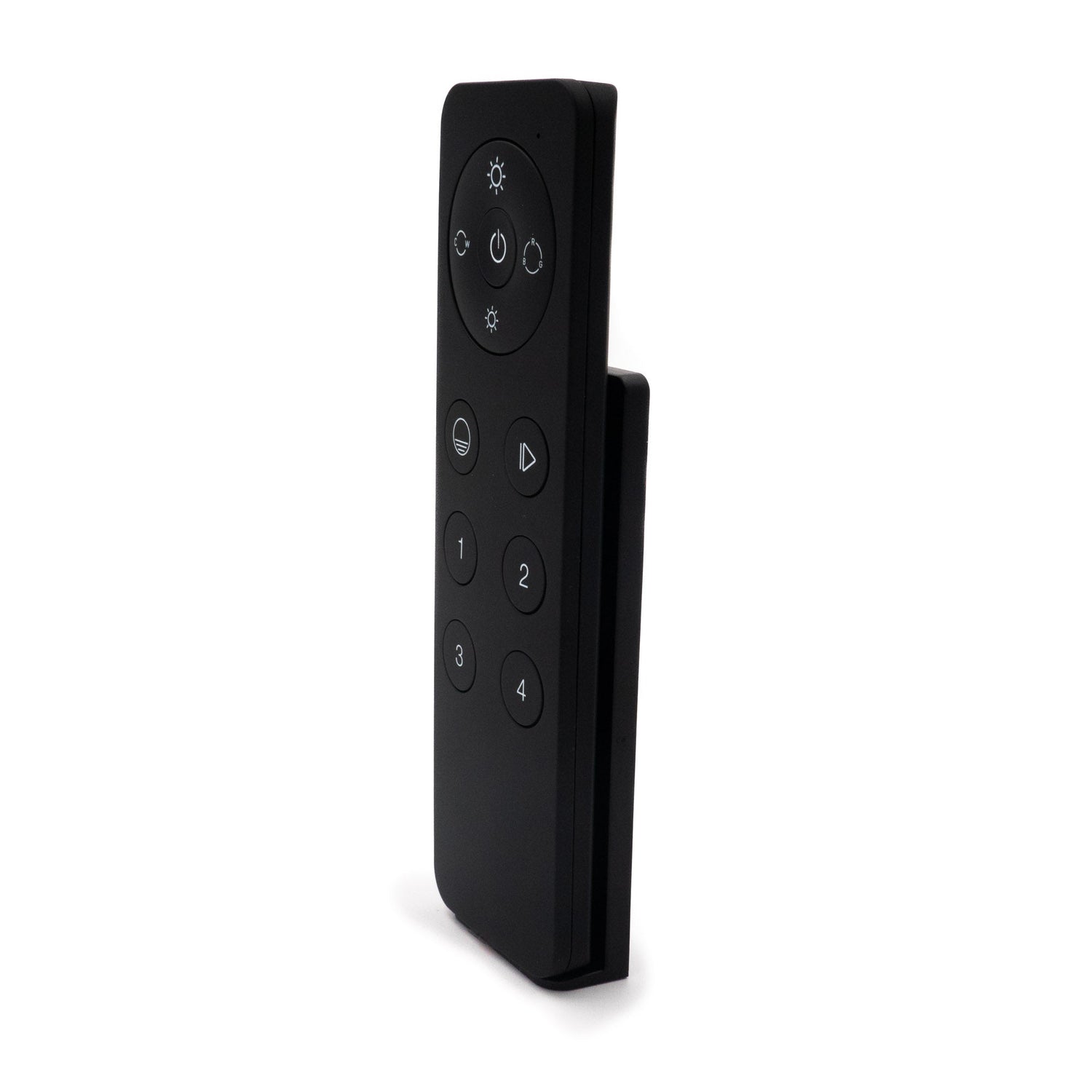

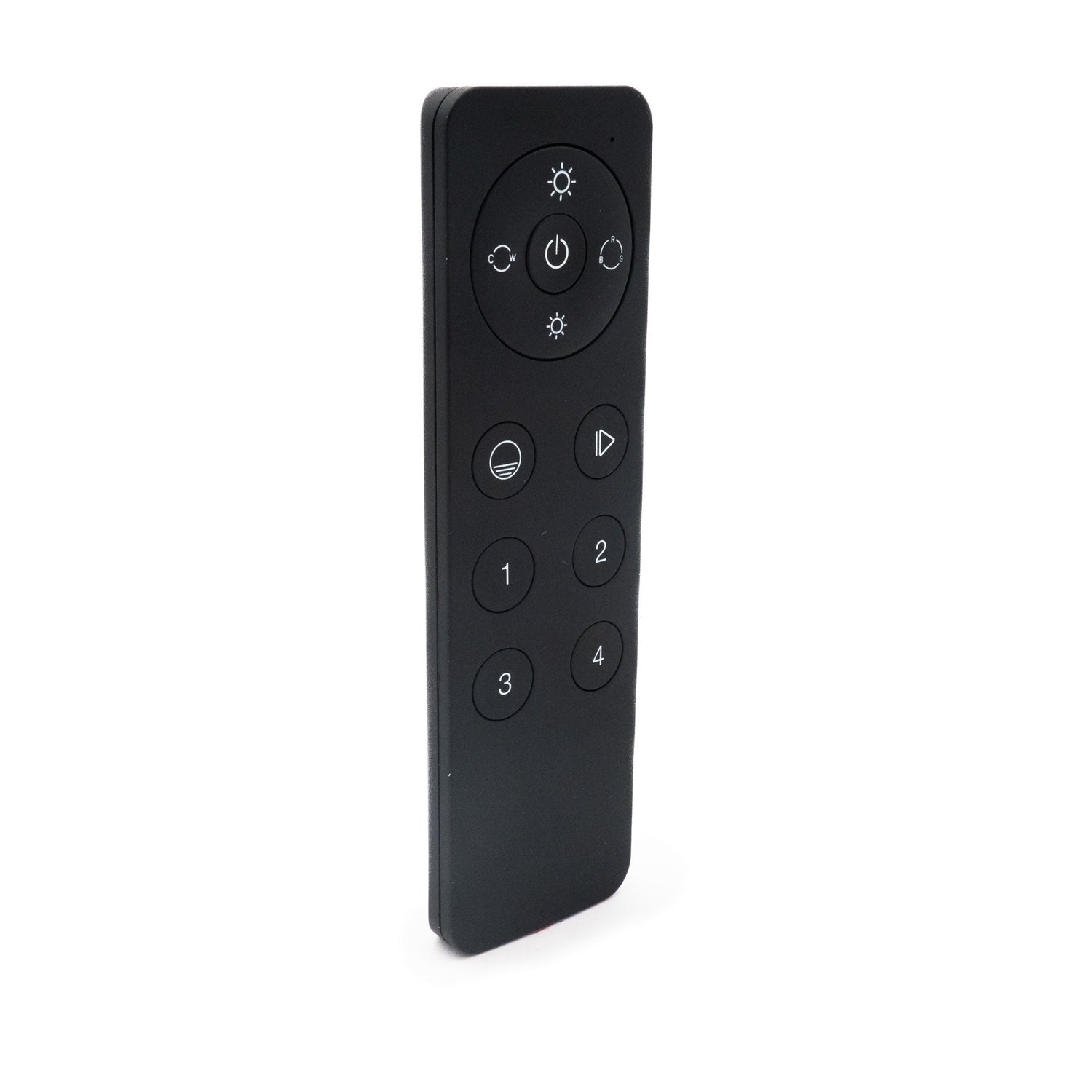

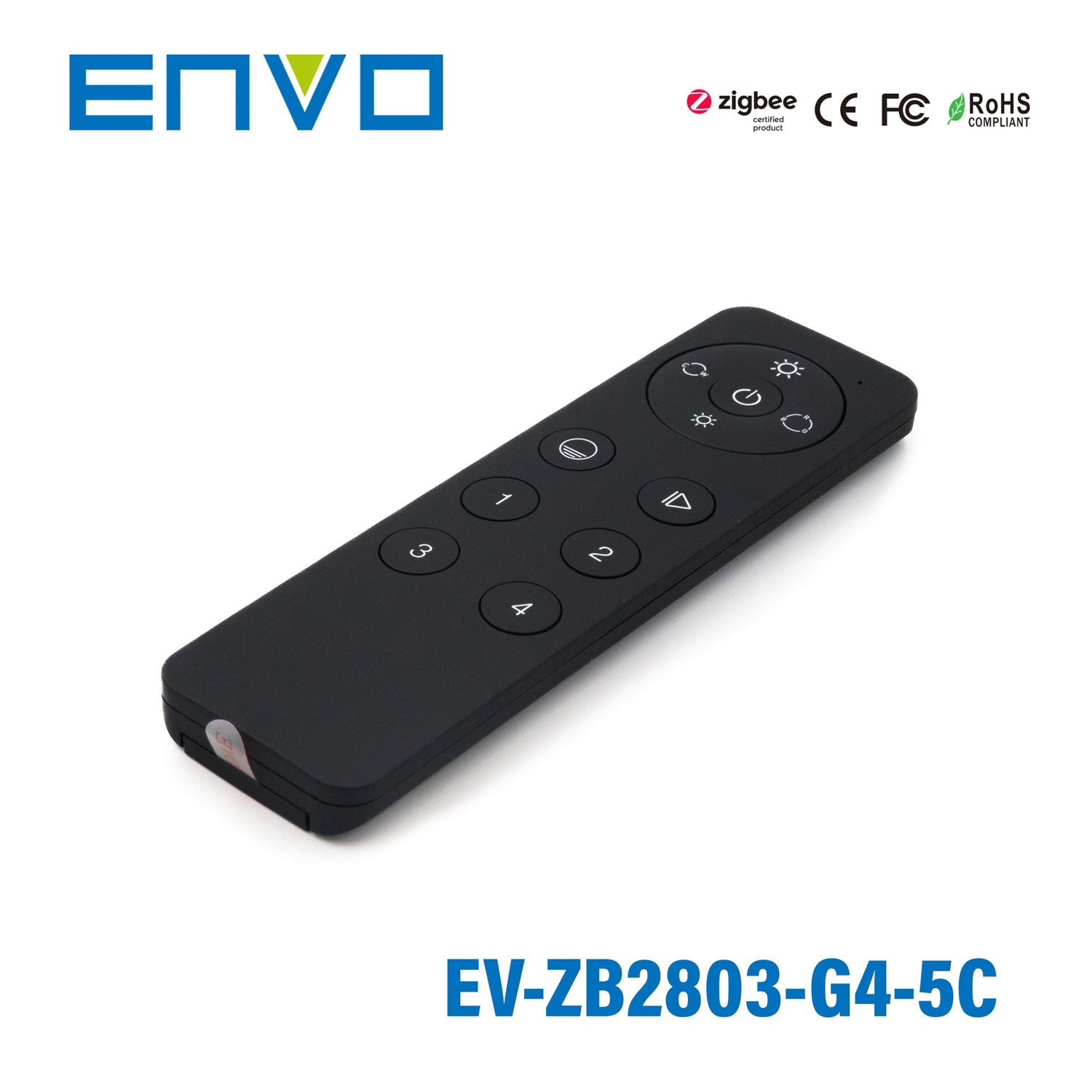

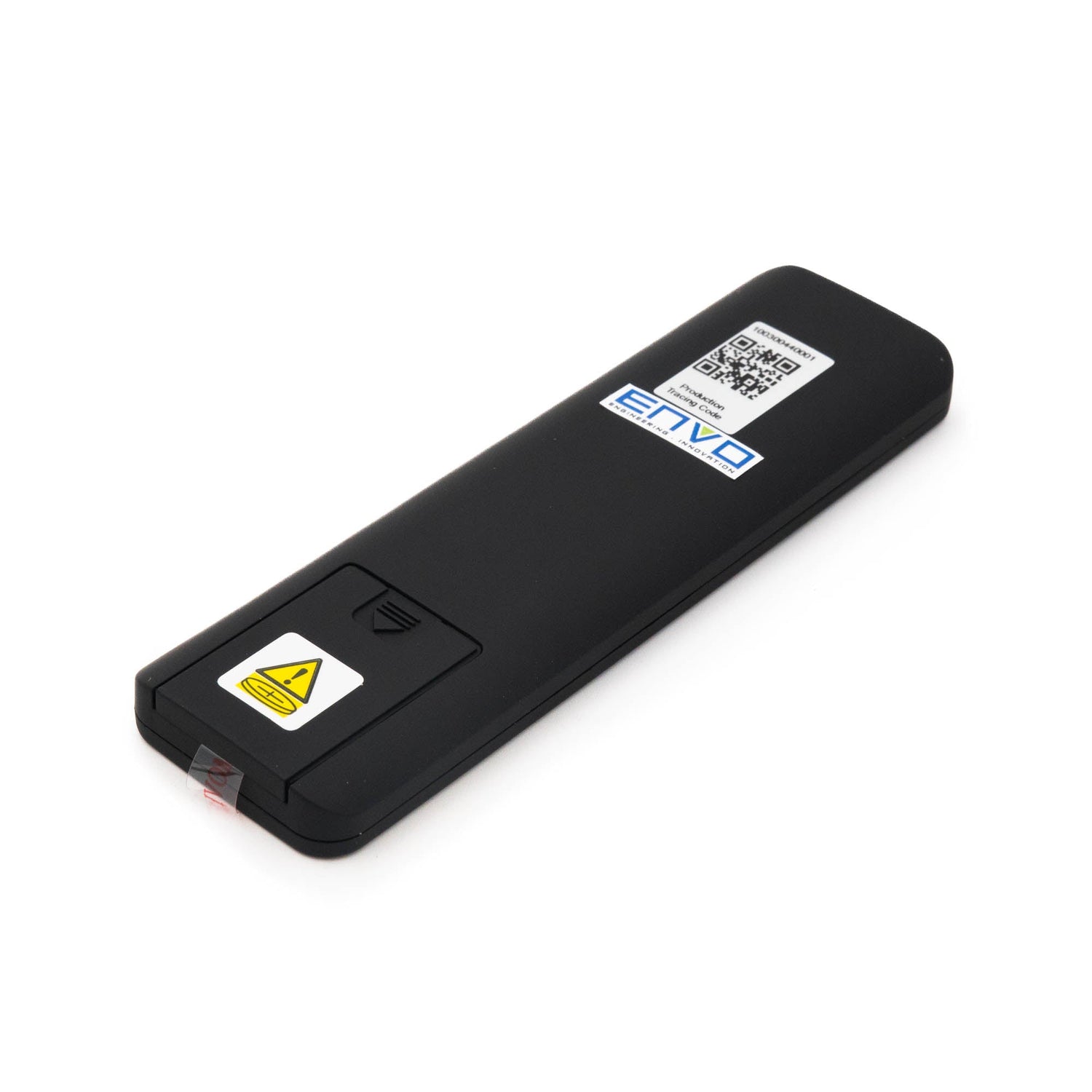

ENVO ZigBee Classic Remote 3-in-1 - 4 Zones
$39.63 USD
Unit price /
Unavailable
Description
Description
Features:
- ZigBee RGB+CCT+DIM remote based on ZigBee 3.0
- Enables to control both RGB and CCT lighting devices
- Battery powered remote with low power consumption
- Enables to pair ZigBee lighting devices via touchlink commissioning without coordinator
- Supports find and bind mode to pair with ZigBee lighting devices
- Supports 4 groups for binding max. 30 lighting devices
- 2.4 GHz global operation
- Transmission range up to 30m
- Compatible with universal ZigBee Gateway products
- Enables to bind and control universal DIM, CCT, RGB, RGBW and RGB+CCT zigbee lighting devices
General Specification
Protocol
ZigBee 3.0
Operation Voltage

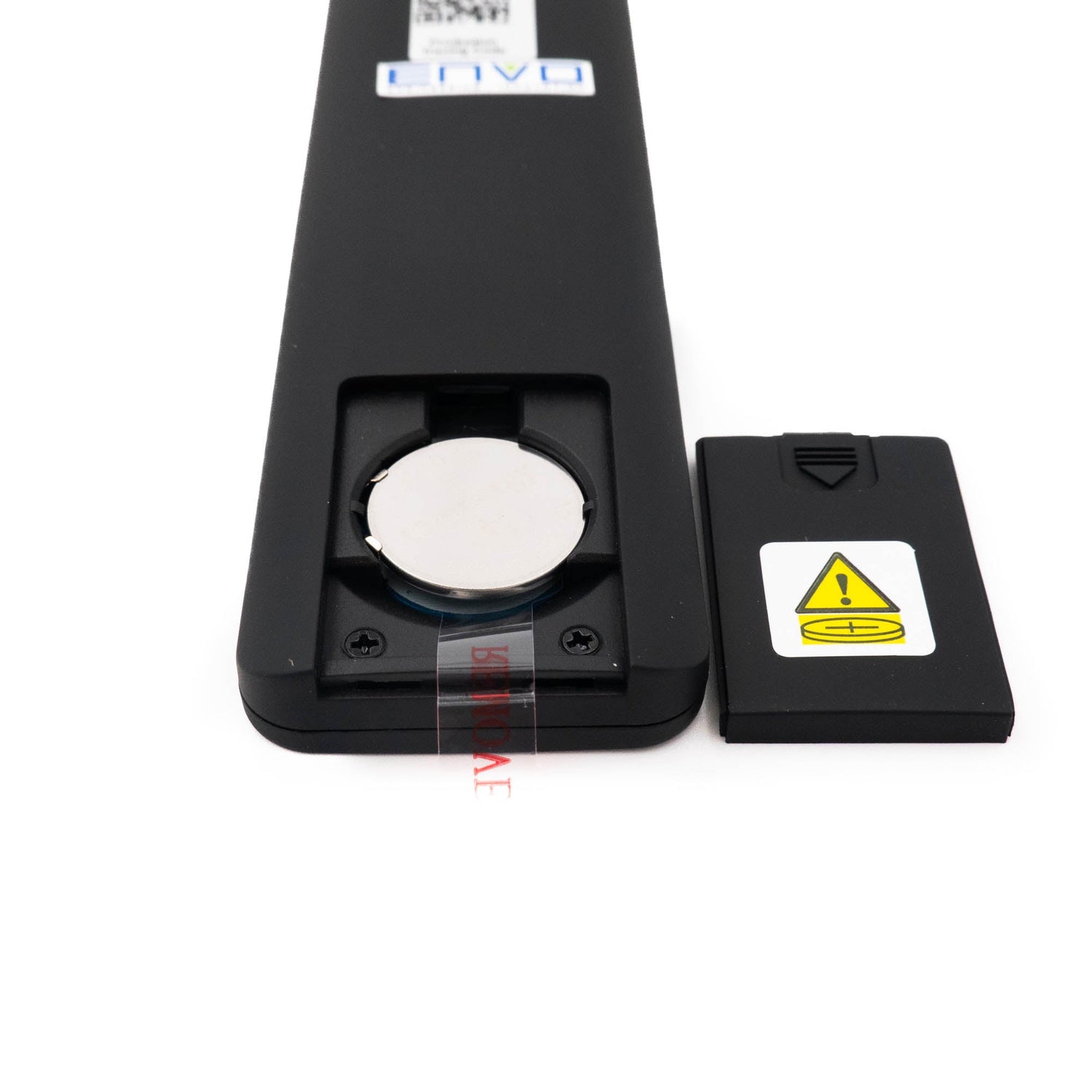

3VDC (CR2025)
Transmission Frequency
2.4GHz
Transmission Range (free field)
30m
Protection Type
IP20
Dimming Range
0.1%-100%
Dimension (LxWxH)
136.3x38.9x10.7mm
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Output Voltage3 Volt
-
No of Output1
-
Dimming ControlZigbee
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length5.37 in
-
Width1.53 in
-
Height0.42 in
