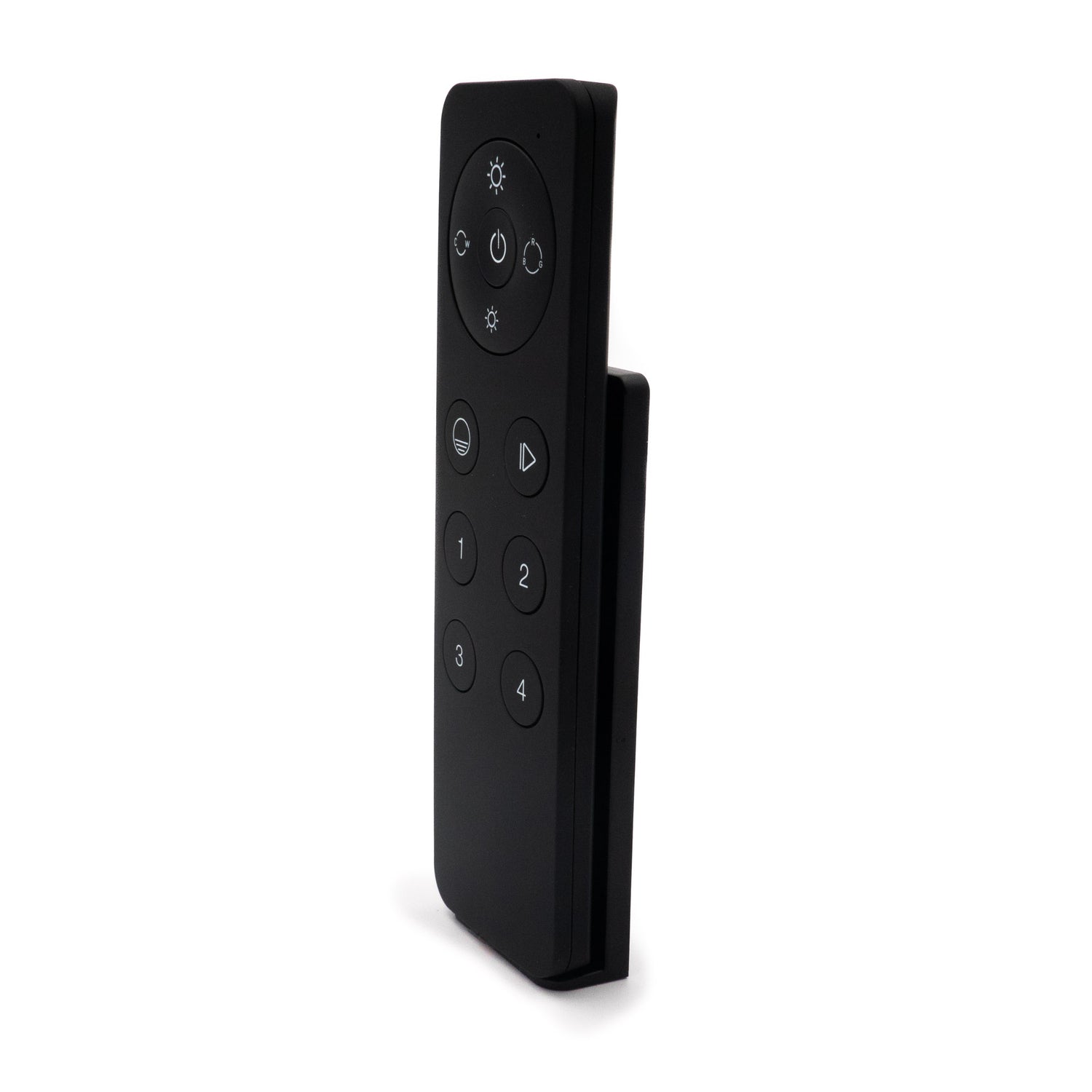

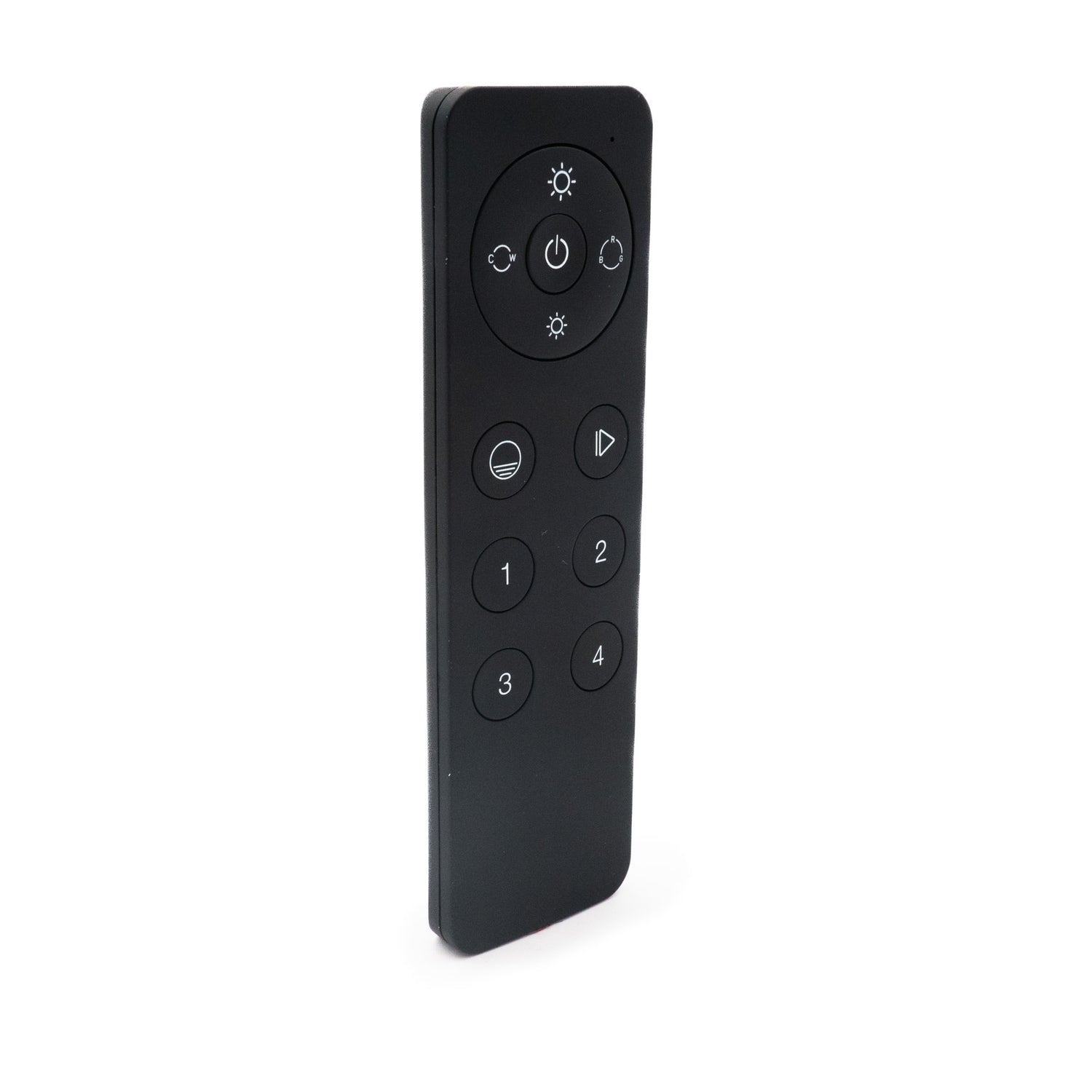

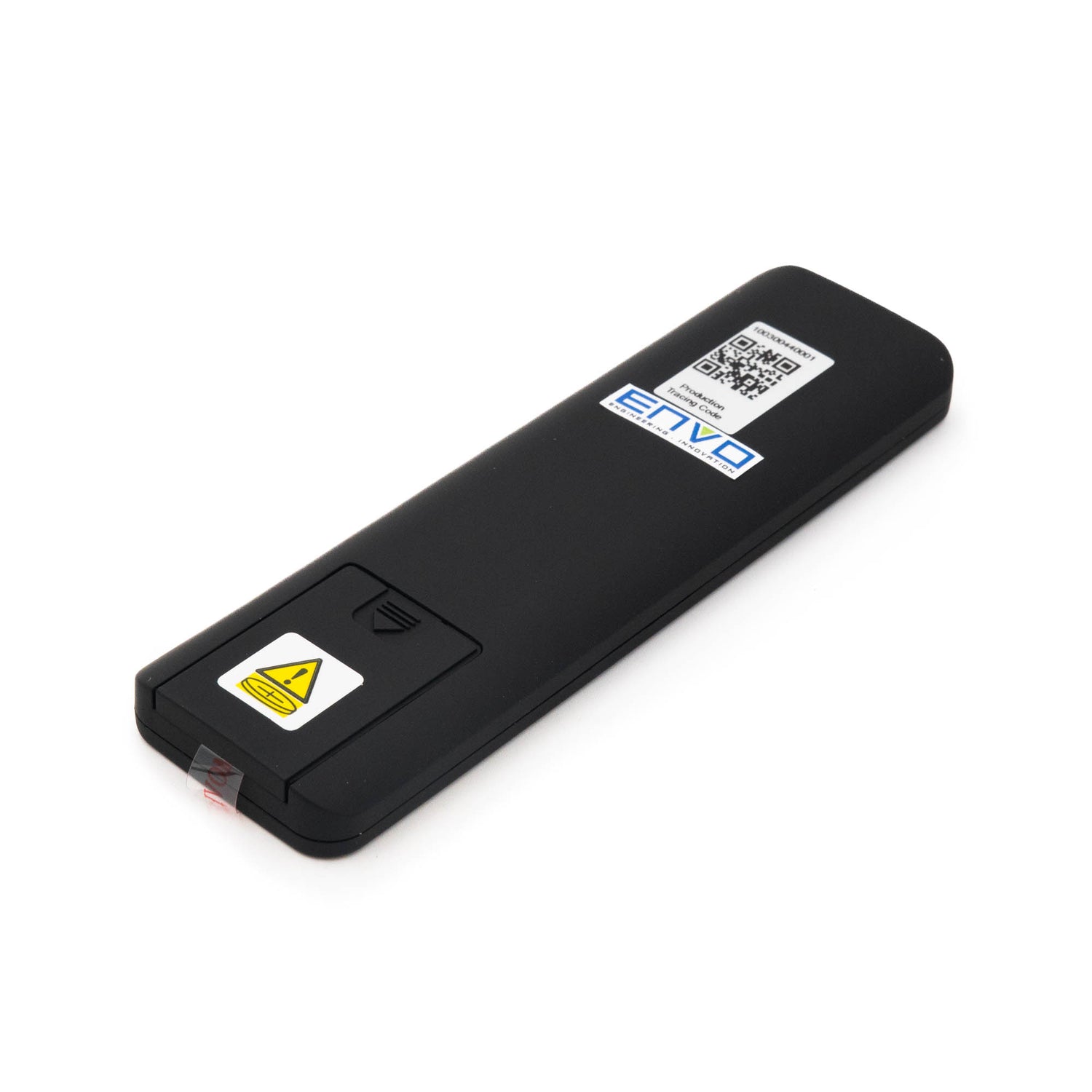

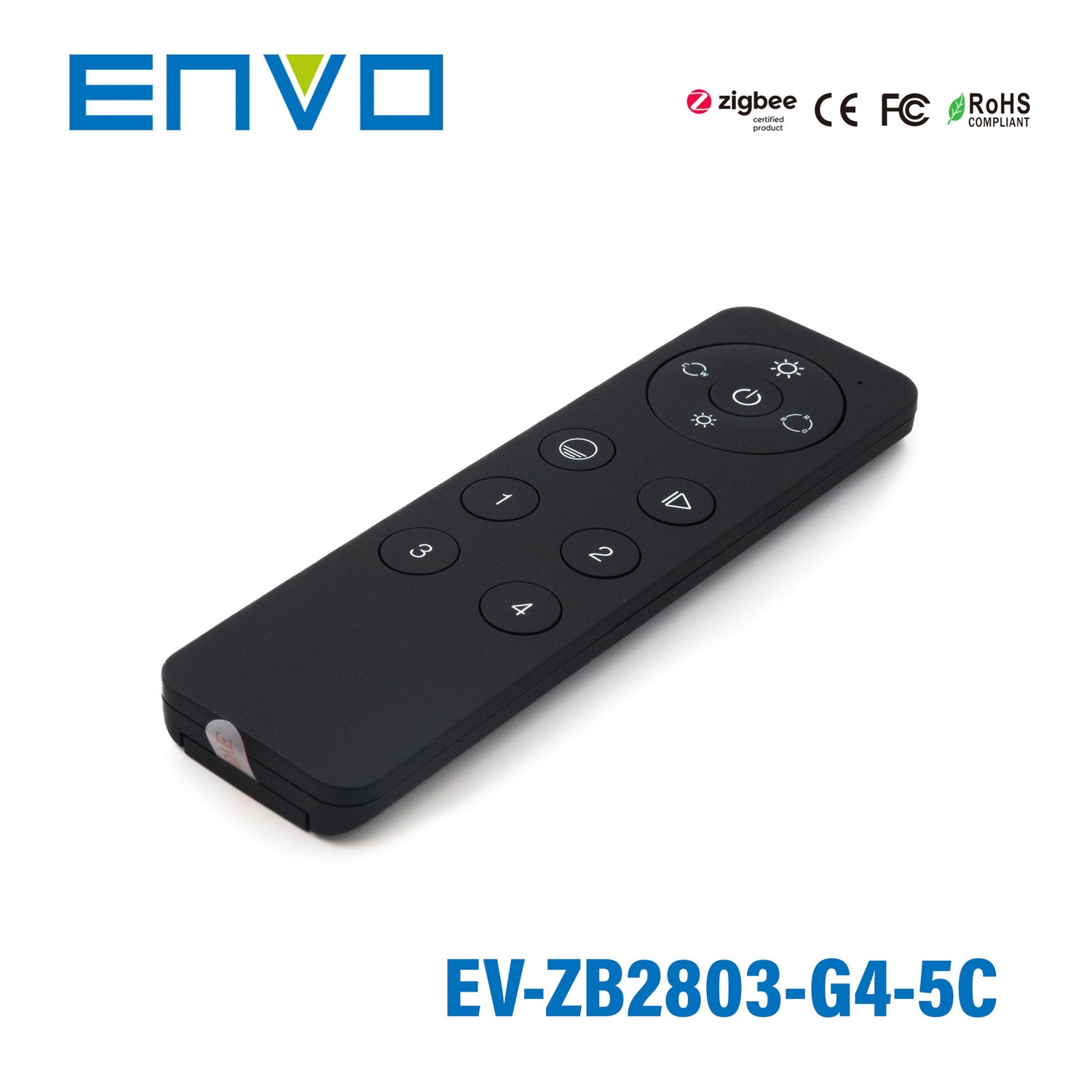

ENVO ZigBee Classic Remote 3-in-1 - 4 Zones
Description
Description
Features:
- ZigBee RGB+CCT+DIM remote based on ZigBee 3.0
- Enables to control both RGB and CCT lighting devices
- Battery powered remote with low power consumption
- Enables to pair ZigBee lighting devices via touchlink commissioning without coordinator
- Supports find and bind mode to pair with ZigBee lighting devices
- Supports 4 groups for binding max. 30 lighting devices
- 2.4 GHz global operation
- Transmission range up to 30m
- Compatible with universal ZigBee Gateway products
- Enables to bind and control universal DIM, CCT, RGB, RGBW and RGB+CCT zigbee lighting devices
General Specification
Protocol
ZigBee 3.0
Operation Voltage
3VDC (CR2025)
Transmission Frequency
2.4GHz
Transmission Range (free field)
30m
Protection Type
IP20
Dimming Range
0.1%-100%
Dimension (LxWxH)
136.3x38.9x10.7mm
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Output Voltage3 Volt
-
No of Output1
-
Dimming ControlZigbee
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length5.37 in
-
Width1.53 in
-
Height0.42 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What types of lighting devices can the ENVO ZigBee Classic Remote 3-in-1 - 4 Zones control?
This model is designed to control ZigBee lighting devices that use DIM, CCT, RGB, RGBW, and RGB+CCT control modes. It is specifically intended for buyers who need one remote that can work across multiple compatible ZigBee lighting types.
How many zones does this remote support?
The ENVO ZigBee Classic Remote 3-in-1 supports 4 zones. It also supports 4 groups for binding and can control up to 30 lighting devices across those groups.
Is this remote compatible with standard ZigBee gateways?
Yes, this remote is listed as compatible with universal ZigBee Gateway products. It is based on ZigBee 3.0, which helps it fit into broader ZigBee lighting control environments.
Can this remote be used without a ZigBee coordinator?
Yes, this model supports touchlink commissioning, which allows pairing with ZigBee lighting devices without a coordinator. It also supports find and bind mode for pairing with compatible ZigBee lighting devices.
What is the wireless range of the ENVO ZigBee Classic Remote 3-in-1?
The specified transmission range is up to 30 meters in free-field conditions. Actual range can vary depending on walls, interference, and the installation environment.

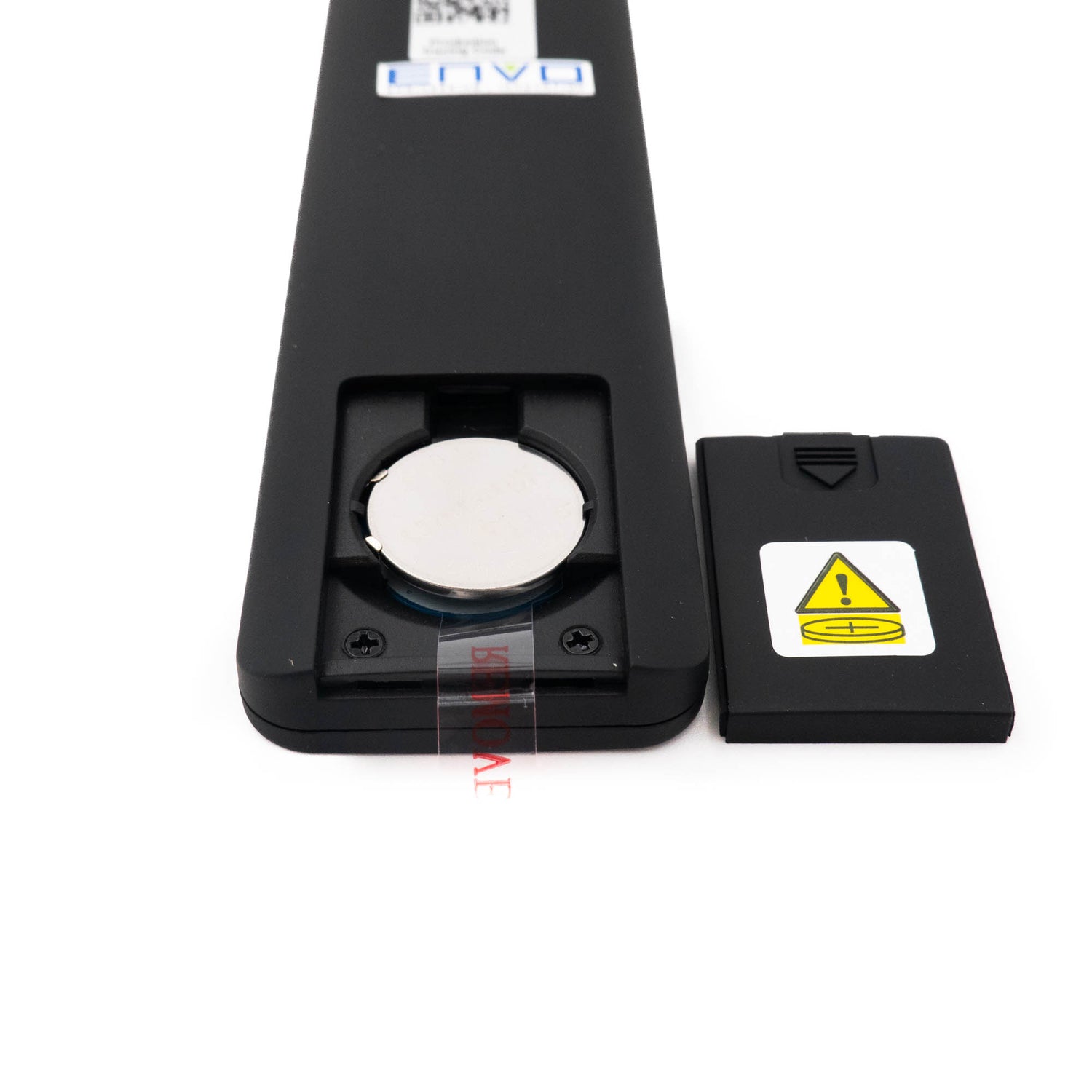

What power source does this remote use?
This remote operates at 3VDC and uses a CR2025 battery. It is battery powered and described as having low power consumption.
Is this remote suitable for indoor or outdoor use?
This model has an IP20 protection rating, so it is intended for indoor use in dry environments. Its operating temperature range is -20°C to 50°C.
