Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

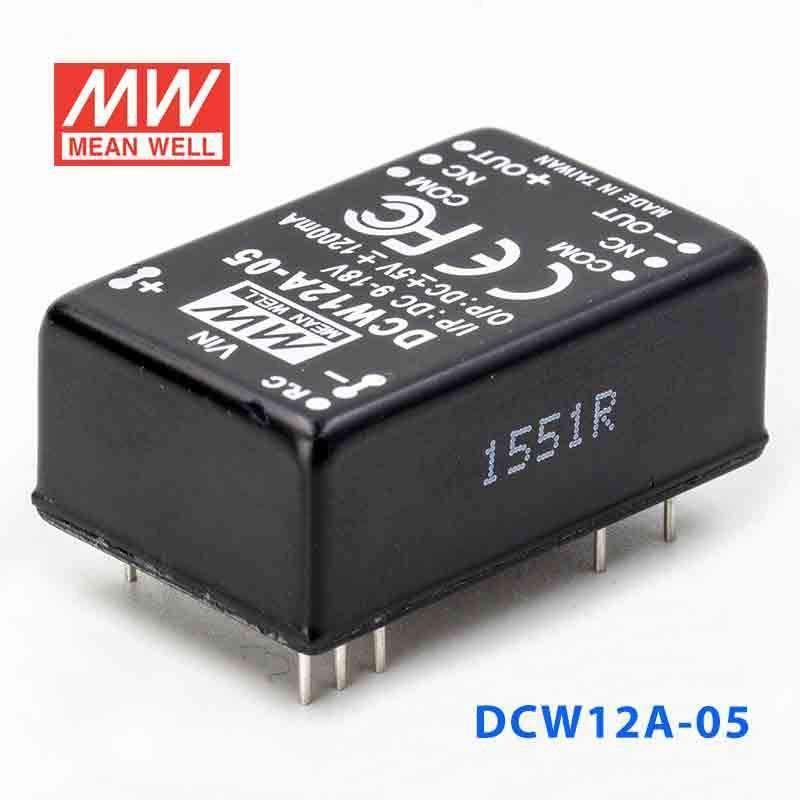

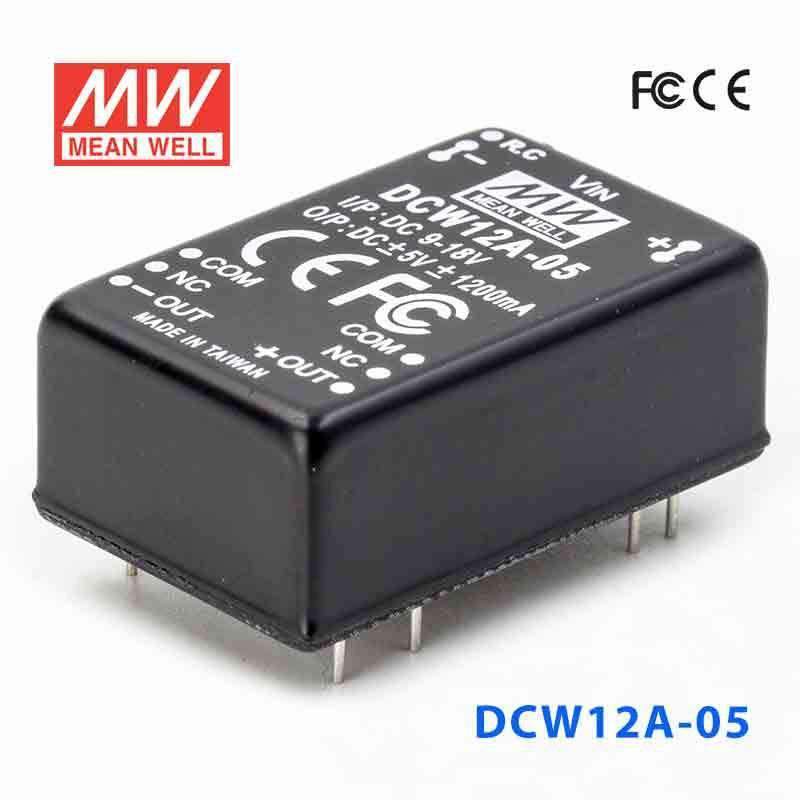

Mean Well DCW12A-05 DC-DC Converter - 12W - 9~18V in ±5V out
$10.21 USD
Unit price /
Unavailable
Description
Description
Features
| 2: 1 wide input range |
| 1500VDC I / O isolation |
| Built-in remote ON/OFF control |
| Built-in EMI filter |
| Protection: Short circuit / Overload |
| Cooling by free air convection |
| Five-sided shield metal case |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ±2.0% (max.) |
| Line regulation | ± 0.5% (max.) |
| Load regulation | ± 0.5% (max.) @ 10 ~ 100% load |
| Overload protection | 110% ~ 180%, auto-recovery |
| Efficiency | 80% - 80% - 81% | 84% - 84% - 84% | 83% - 84% - 83% |
| Short circuit protection | All output equipped with over current protection | Protection type: Hiccup mode recovers automatically after fault condition is removed |
| I / O isolation voltage | I/P-O/P:1.5KVDC |
| I / O isolation resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH |
| Isolation capacitance | 2200pF max |
| Working temperature | -40 ~ + 71°C (refer to output derating curve) |
| Storage temperature | -40°C to + 105°C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ±0.05% / ℃ (0 ~ 50℃) |
| Dimension (LxWxH) (mm) | 31.8 x 20.3 x 12.2mm or 1.25" x 0.80" x 0.48" inch |
| Case material | Five-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesDCW Series
-
Power Rating12 Watt
-
Output Voltage5 Volt
-
Rated Current1.2 Ampere
-
Input Voltage9V~18V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
