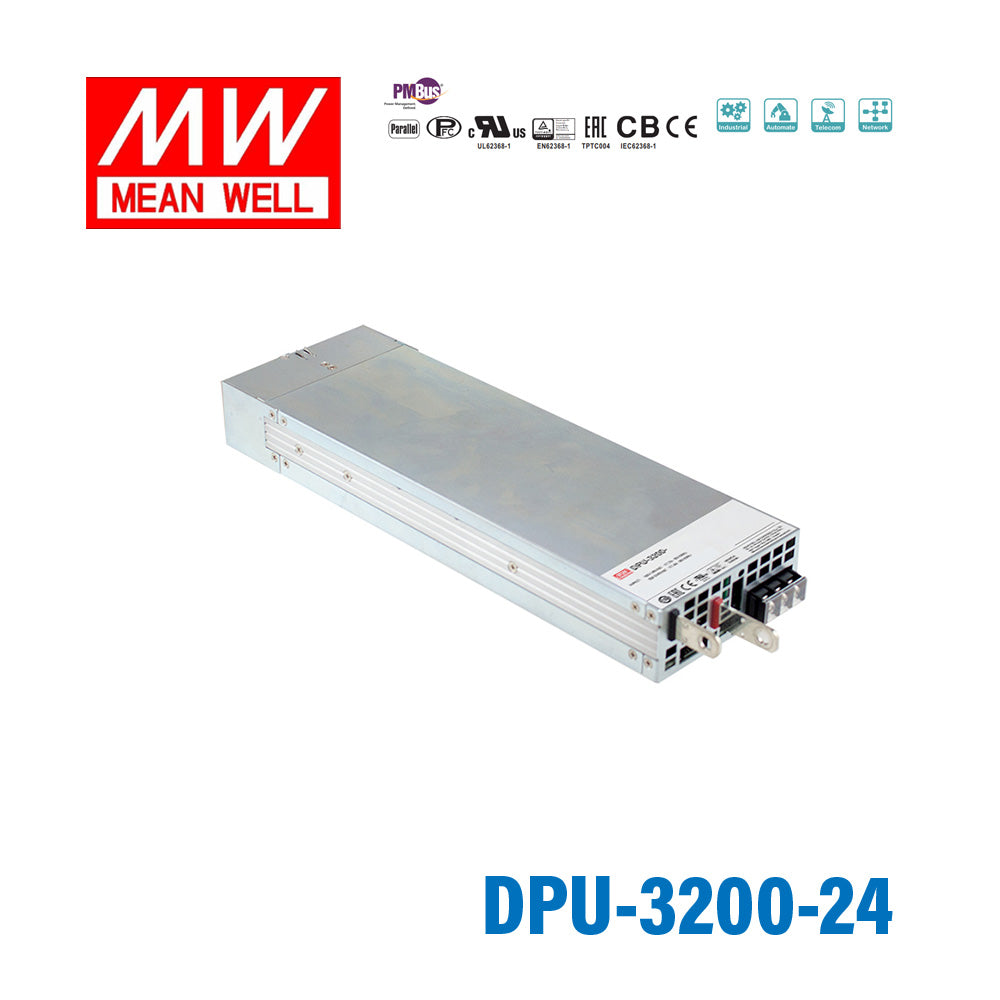

Mean Well DPU-3200-24 power supply 3200W 24V 133A

high efficiency up to 94.5%, output voltage and current level programmable, active current sharing up to 16000W(4+1)

SKU:

DPU-3200-24

$676.11 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Built-in active PFC function

High efficiency up to 94.5%

Forced air cooling by built-in DC fan

Output voltage and constant current level programmable

Active current sharing up to 16000W (4+1)

Protections: Short circuit / Overload / Over voltage / Over temperature

Optional conformal coating

Optional PMBus or CANBus protocol

5 years warranty

General Specification

AC input voltage range	90~264VAC, 127~370VDC
AC inrush current (max.)	COLD START 55A/230VAC
DC adjustment range	±15% by potentiometer
Overload protection	105%~115%
Over-voltage protection	131%~156% rated output voltage, auto-recovery
Withstand voltage	I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 1.5KVAC
Working temperature	-30~+70°C
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, and Z axes
Safety standards	UL62368-1, CSA C22.2 , TUV EN62368-1, EAC TP TC 004 approved
EMC standards	EN55032 class B, EN61000-3-2,3
Connection	Terminal block for input and output
Dimension (LxWxH)	325.810741mm
Case No.	256C
Packing	4pcs /12kg

Specifications

Brand

Mean Well
Series

DPU Series
Power Rating

3192 Watt
Output Voltage

24 Volt
Rated Current

133 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

12.83 in
Width

4.21 in
Height

1.61 in
Weight

6.08 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DPU-3200-24 for a high-current 24V industrial control cabinet?

Yes, this model is a constant-voltage 24V supply rated for 3192W and 133A, which fits high-current 24V control and automation systems. Its programmable output voltage and current level can also help where system-level control is required.

Is the DPU-3200-24 suitable for 24V DC bus power in factory automation equipment?

It is designed for constant-voltage 24V output and can deliver up to 133A, so it fits large 24V DC bus applications that need substantial power. The wide 90-264VAC input range also supports use in varied AC supply environments.

Can this power supply be used for 24V industrial loads that need scalable power capacity?

Yes, the DPU-3200-24 supports active current sharing up to 16000W(4+1), which is relevant for systems that may need higher total capacity than a single unit provides. On its own, the unit is rated at 3192W with 24V constant-voltage output.

Would the DPU-3200-24 fit a 24V embedded or telecom-style rack power application?

It can be suitable where a compact, high-power 24V source is needed, since it provides 3192W in a 325.8 × 107.0 × 41.0 mm housing. The high efficiency up to 94.5% is also relevant in dense equipment environments where power loss matters.

How does the DPU-3200-24 compare with the DPU-3200-48?

The DPU-3200-24 is rated at 3192W with 24V output and 133A output current. The sibling DPU-3200-48 is rated at 3216W with 48V output and 67A output current.

Is the DPU-3200-24 appropriate for outdoor or harsh-temperature installations?

The operating temperature range is -30°C to +70°C, so it is intended for demanding temperature conditions within that range. No IP rating is listed in the provided specs, so the product data does not establish suitability for exposed outdoor or washdown environments.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well DPU-3200-48 power supply 3200W 48V 67A	3216W	48V	67A	Indoor	$676.11	View
