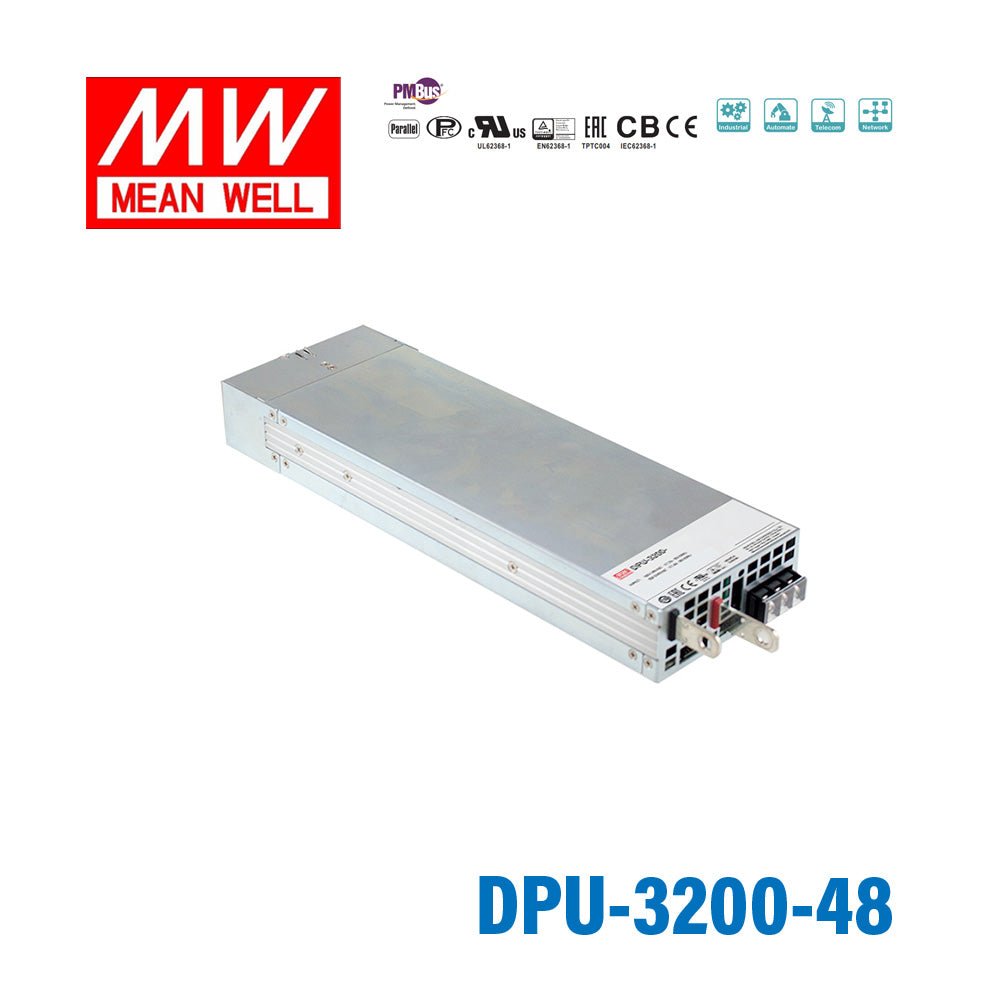

Mean Well DPU-3200-48 power supply 3200W 48V 67A
high efficiency up to 94.5%, output voltage and current level programmable, active current sharing up to 16000W(4+1)
SKU:
DPU-3200-48
$676.11 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DPU-3200-48 power supply 3200W 48V 67A
$676.11 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| High efficiency up to 94.5% |
| Forced air cooling by built-in DC fan |
| Output voltage and constant current level programmable |
| Active current sharing up to 16000W (4+1) |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Optional conformal coating |
| Optional PMBus or CANBus protocol |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC, 127~370VDC |
| AC inrush current (max.) | COLD START 55A/230VAC |
| DC adjustment range | ±15% by potentiometer |
| Overload protection | 105%~115% |
| Over-voltage protection | 131%~156% rated output voltage, auto-recovery |
| Withstand voltage | I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 1.5KVAC |
| Working temperature | -30~+70°C |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, and Z axes |
| Safety standards | UL62368-1, CSA C22.2 , TUV EN62368-1, EAC TP TC 004 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3 |
| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 325.8*107*41mm |
| Case No. | 256C |
| Packing | 4pcs /12kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesDPU Series
-
Power Rating3216 Watt
-
Output Voltage48 Volt
-
Rated Current67 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length12.83 in
-
Width4.21 in
-
Height1.61 in
-
Weight6.08 lb
