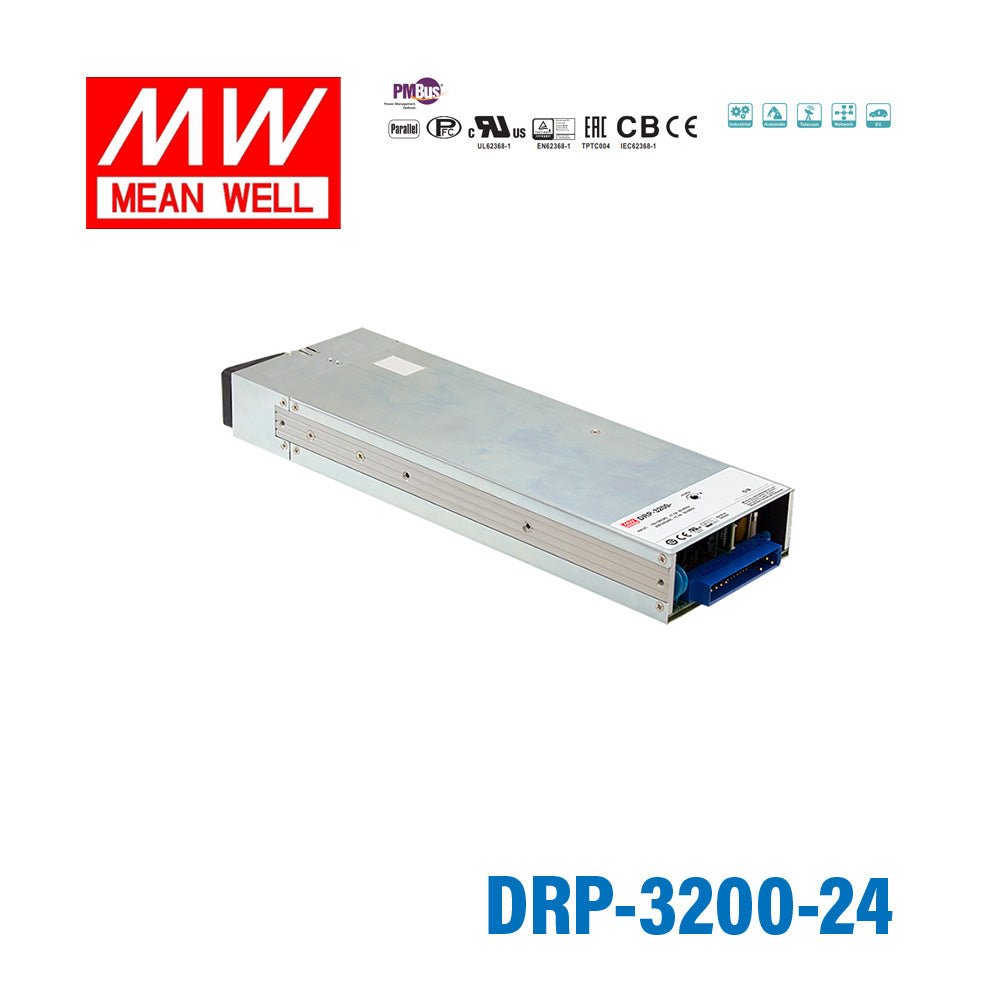

Mean Well DRP-3200-24 Power Supply 3200W 24V
high efficiency up to 94.5%, built-in OR-ing FET, support hot swap, active current sharing up to 12800W for one 19" rack shelf
SKU:
DRP-3200-24
$801.83 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DRP-3200-24 Power Supply 3200W 24V
$801.83 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| High efficiency up to 94.5% |
| Forced air cooling by built-in DC fan |
| Output voltage and constant current level programmable/td> |
| Active current sharing up to 12800W for one 19" rack shelf |
| Built-in I²C interface, support PMBus protocol (Optional CANBus protocol) |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Optional conformal coating |
| 5 years warranty |
General Specification
| AC input voltage range | 90 ~ 264VAC | 127 ~ 370VDC |
| AC inrush current (230VAC) | COLD START 55A/230VAC |
| DC adjustment range | 12V: 12~14V, 24V: 24~28V, 48V: 48~53V% |
| Overload protection | 105 ~ 115% rated current | Protection type: Constant current limiting shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover |
| Over-voltage protection Range | 131% ~ 156% |
| Over-voltage protection Type | Protection type: Shut down o/p voltage, re-power on to recover |
| Over temp. protection | Shut down o/p voltage, recovers automatically after temperature goes down |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC, 1 minute |
| Working temperature | -30~+70°C |
| Safety standards | UL62368-1, CSA C22.2 , TUV EN62368-1, EAC TP TC 004 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level |
| Connection | I/P: 3 poles, O/P: 4 poles screw DIN terminal |
| Dimension (LxWxH) | 325 x 107 x 41mm |
| Case No. | 256 |
| Packing | 2.65Kg;4pcs/11.6Kg/0.87CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesDRP Series
-
Power Rating3192 Watt
-
Output Voltage24 Volt
-
Rated Current133 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length12.8 in
-
Width4.21 in
-
Height1.61 in
-
Weight5.84 lb
