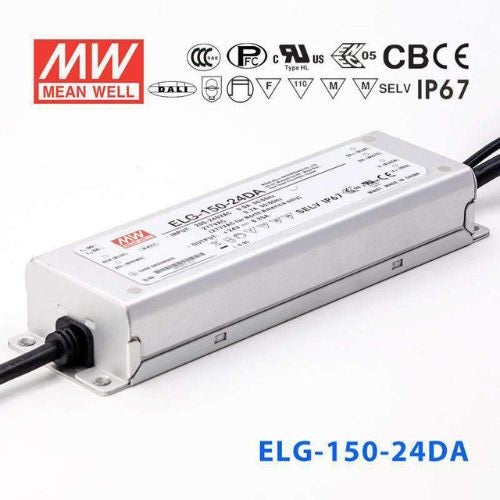

Mean Well ELG-150-24DA Power Supply 150W 24V - DALI

Q: What is the DALI interface on the ELG-150-24DA and what systems is it compatible with?

The DA suffix indicates this driver has a DALI (Digital Addressable Lighting Interface) input compliant with IEC 62386. DALI is a two-wire digital bus used in commercial building lighting control systems, allowing each driver on the bus to be individually addressed and dimmed from a DALI controller without additional analog wiring.

Q: Can the ELG-150-24DA be used to retrofit DALI-controlled LED strip lighting in a commercial office?

Yes. The ELG-150-24DA is designed for this use case. It accepts DALI commands to smoothly dim 24V LED strips and can be individually addressed on a shared DALI bus, enabling scene control and occupancy-based dimming as expected in commercial office environments.

Q: Is the ELG-150-24DA suitable for outdoor DALI-controlled signage or facade lighting?

Yes. The IP67 waterproof rating allows the ELG-150-24DA to be placed in outdoor enclosures subject to rain and moisture. Combined with its -40°C to +90°C operating range, it is appropriate for outdoor DALI lighting networks controlling facade strips or illuminated outdoor signs.

Q: How much 24V LED strip can the ELG-150-24DA support?

The driver delivers up to 150W at 24V (6.25A maximum). For a 9.6 W/m strip, that supports approximately 15.6 m (150 ÷ 9.6). For a 20 W/m high-output strip, about 7.5 m (150 ÷ 20). Confirm your strip's rated wattage per meter before sizing the installation.

Q: Can the ELG-150-24DA replace a non-dimmable 24V driver in an existing LED strip installation if DALI control is added later?

Yes. The ELG-150-24DA is electrically compatible with 24V LED loads and operates as a standard 24V driver when no DALI signal is present (typically defaults to full output). Adding a DALI controller and bus wiring later enables dimming without replacing the driver again.

Q: Does the ELG-150-24DA work across a wide mains input range, including 277V?

Yes. The input range is 100–305VAC, accommodating all common single-phase supply voltages from 120V to 277V without any selector switch. This makes it suitable for North American commercial buildings wired at 277V as well as international 230V installations.

Description

Features

100~305VAC wide input range

Built-in active PFC

Protections: Short circuit / Over voltage/Over temperature

No load power consumption <0.5W

High efficiency up to 92%

Suitable for LED lighting and street lighting applications

Cooling by free air convection

100% full load burn-in test

5 years warranty

General Specification

AC input voltage range	100~305VAC;142~431VDC
AC inrush current	Cold start, 65 at 230VAC
DC adjustment range	±10% rated output voltage
Over voltage protection	110%~140% rated output voltage
Setup, rise, hold up time	500ms
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+80°C (refer to output derating curve)
Safety standards	UL8750 approved
EMC standards	EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1
Dimension (LxWxH)	219x63x35.5
Packing	16pcs / 16.0kg

Specifications

Brand

Mean Well
Series

ELG Series
Power Rating

150 Watt
Output Voltage

24 Volt
Rated Current

6.25 Ampere
Input Voltage

100V~305V
No of Output

1
Dimming Control

DALI
Standards Met

BSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

8.62 in
Width

2.48 in
Height

1.4 in
Weight

2.09 lb

File Downloads

::specification::
