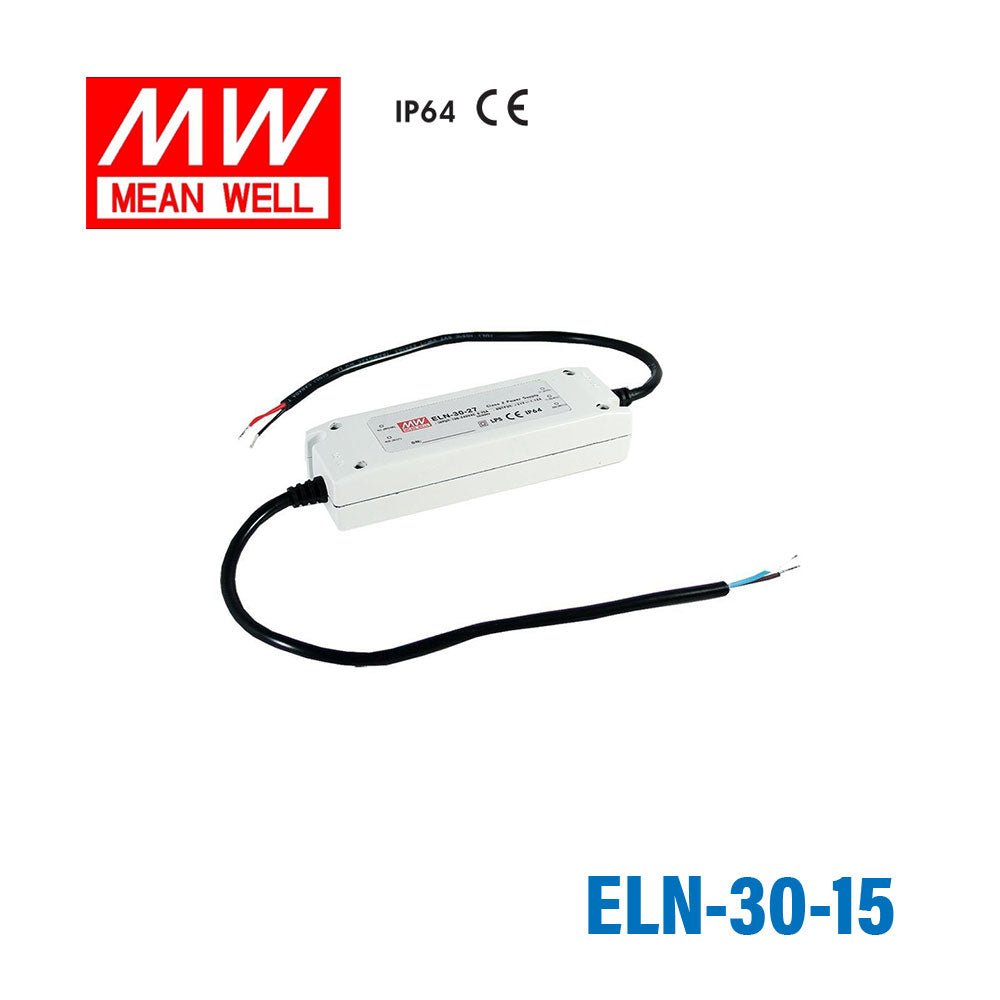

Mean Well ELN-30-15 LED Power Supplies 30W 15V 2A
$26.34 USD
Unit price /
Unavailable
Overview
ELN-30-15 is the 15V output model of this series: rated current 2A, rated power 30W, typical efficiency 82%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Over current / Over voltage
- Cooling by free air convection
- Built-in constant current limiting circuit with adjustable OCP level
- Optional dimming function : 1.1~10VDC (D type) or PWM (P type) controlled
- Fully isolated plastic case with IP64 level
- Class Ⅱ power unit, no FG
- Class 2 power unit
- Pass LPS
- Suitable for LED lighting and moving sign applications (Note.8)
- 100% full load burn-in test
- Low cost
- 2 years warranty
Specifications
ELN-30-15Specifications from the official datasheet (2017-07-14 edition)Download datasheet PDF
OUTPUT
- DC VOLTAGE
- 15V
- LED OPERATION VOLTAGENote.7
- 3 ~ 15V
- RATED CURRENT
- 2A
- CURRENT RANGE
- 0 ~ 2A
- RATED POWER
- 30W
- RIPPLE & NOISE (max.)Note.2
- 120mVp-p
- VOLTAGE ADJ. RANGE
- 13.5 ~ 16.5V
- VOLTAGE ADJ. RANGE
- Can be adjusted by internal potentiometer SVR1
- CURRENT ADJ. RANGE
- -25% ~ 3%. Can be adjusted by internal potentiometer SVR2
- VOLTAGE TOLERANCENote.3
- ±5.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±2.0%
- SETUP, RISE TIMENote.6
- 500ms, 80ms / 230VAC 1000ms, 80ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 50ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 82%
- AC CURRENT (Typ.)
- 0.75A/115VAC 0.48A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 55A(twidth=465μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- 0.25mA / 240VAC
PROTECTION
- OVER CURRENT
- 95 ~ 110%
- OVER CURRENT
- Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 17.5 ~ 21V
- OVER VOLTAGE
- Protection type : Shut down o/p voltage, re-power on to recover
FUNCTION
- DIMMING CONTROL (OPTIONAL)
- 1.1 ~ 10VDC or PWM signal : 100Hz ~ 3KHz
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL1310, CAN/CSA C22.2 No. 223-M91(except for 48V), IP64 approved ; design refer to TUV EN60950-1
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55032 (CISPR32) Class B, EN61000-3-2 Class A, EN61000-3-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
OTHERS
- MTBF
- 628.3Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 145*47*30mm (L*W*H)
- PACKING
- 0.26Kg; 60pcs/16.6Kg/1.25CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. Constant current operation region is within the specified output voltage range above. This is the suitable operation region for LED related applications.
- 8. The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit.
