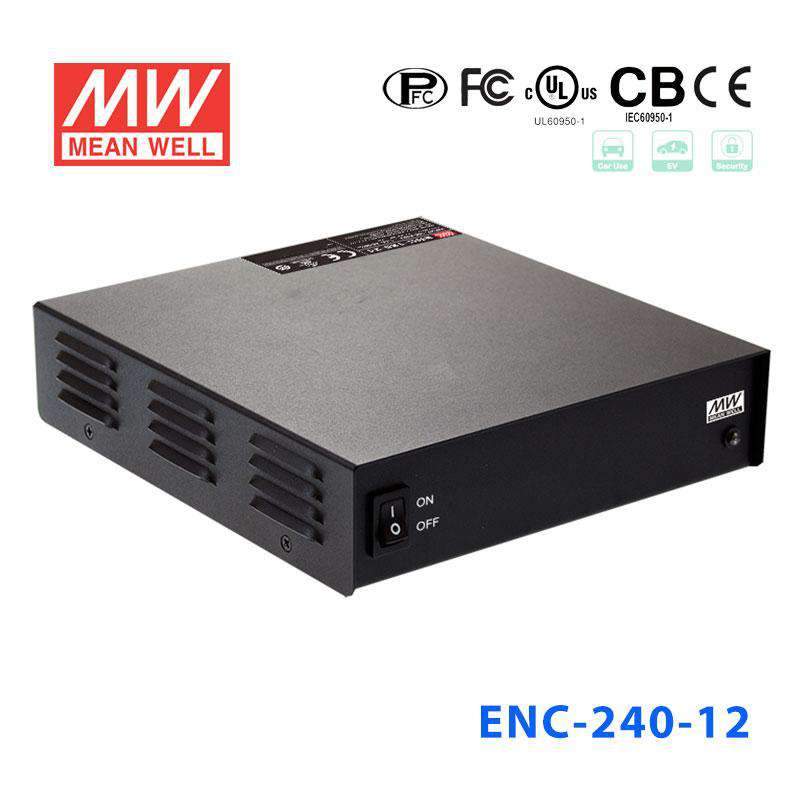

Mean Well ENC-240-12 Desktop Type Chargers 240W 14.4V 16A - 3-stage programmable charger
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ENC-240-12 Desktop Type Chargers 240W 14.4V 16A - 3-stage...
EN55032 Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11
Key Features
- ✓✓Charger for lead-acid batteries(flooded, Gel and AGM) and li-ion batteries
- ✓✓Built-in 3-stage programmable charging curve
- ✓✓Universal AC input/Full range
- ✓✓Built-in active PFC function
- ✓✓Fanless design, cooling by free air convection
- ✓✓Built-in temperature compensation function
- ✓✓Protection: Short circuit / Over voltage / Over temperature / Battery under voltage / Battery over voltage / Battery reverse polarity protection
- ✓✓3 years warranty
-
BrandMean Well
-
SeriesENC Series
-
Power Rating240 Watt
-
Output Voltage14.4 Volt
-
Rated Current16 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.56 in
-
Width7.01 in
-
Height1.79 in
-
Weight2.71 lb
::specification::
Frequently Asked Questions
What kind of batteries is the Mean Well ENC-240-12 designed to charge?
The ENC-240-12 is designed for lead-acid batteries, including flooded, Gel, and AGM types, as well as lithium-ion batteries. It includes a built-in 3-stage programmable charging curve, which makes it suitable for applications that need charger behavior matched to the battery chemistry.
What are the main output specifications of the ENC-240-12?
This model is rated at 240W with a 14.4V output and 16A rated current. Those specifications make it a desktop-type charger intended for higher-current 12V-class battery charging applications where stable output matters.
What makes the ENC-240-12 different from a basic battery charger?
The ENC-240-12 combines a 3-stage programmable charging curve with active PFC, temperature compensation, and multiple built-in protection functions. Compared with simpler chargers, it is better suited to professional use where charging performance, protection coverage, and broader battery compatibility are important.
Can the ENC-240-12 be used in demanding industrial or commercial environments?
Yes. It has a wide operating temperature range of -30°C to +70°C and includes protections for short circuit, over voltage, over temperature, battery under voltage, battery over voltage, and reverse polarity. Its fanless free-air convection design can also be useful in environments where lower maintenance and quieter operation are preferred.
What input range and compliance standards does the ENC-240-12 support?
The charger accepts a universal AC input range of 90 to 264VAC and also supports 127 to 370VDC input. It is approved to IEC62368-1, UL62368-1, EAC TP TC 004, and BSMI CNS14336-1, and it meets BS EN/EN62368-1 and listed EMC standards including EN55032 Class B.
What types of applications is the ENC-240-12 best suited for?
This model is best suited for B2B battery charging applications that need a 14.4V, 16A desktop charger with broad battery chemistry support. Its 240W rating and programmable 3-stage charging make it a fit for professional equipment, backup systems, and other battery-based applications where a more capable charger is preferred over an entry-level unit.
