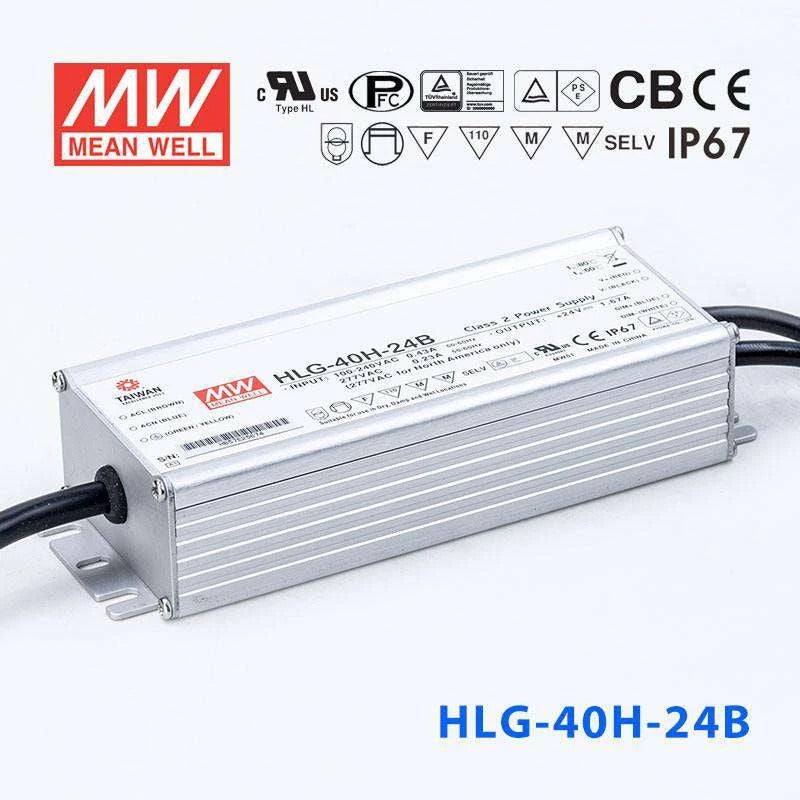

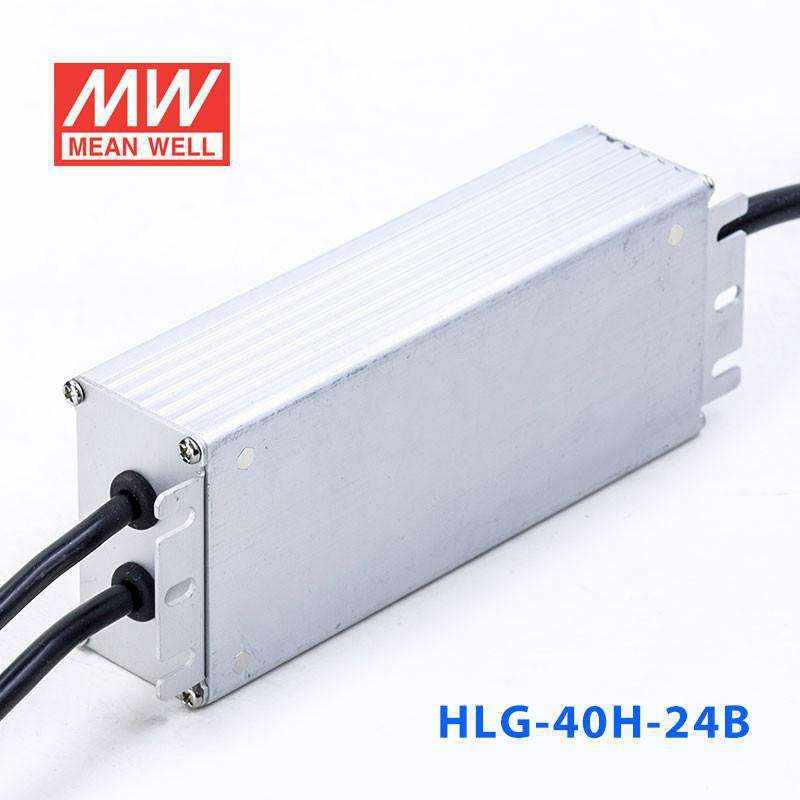

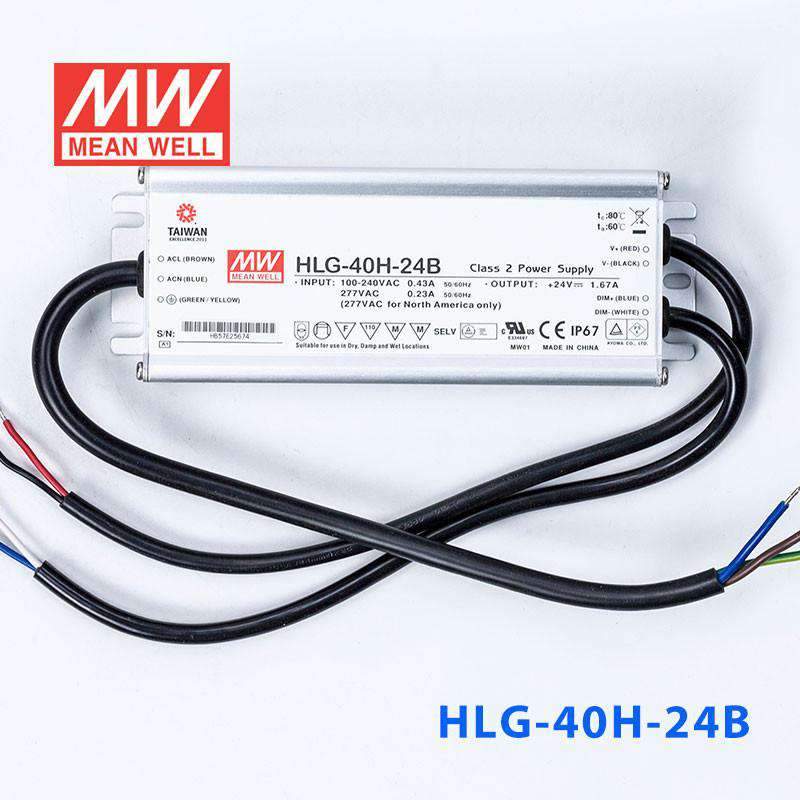

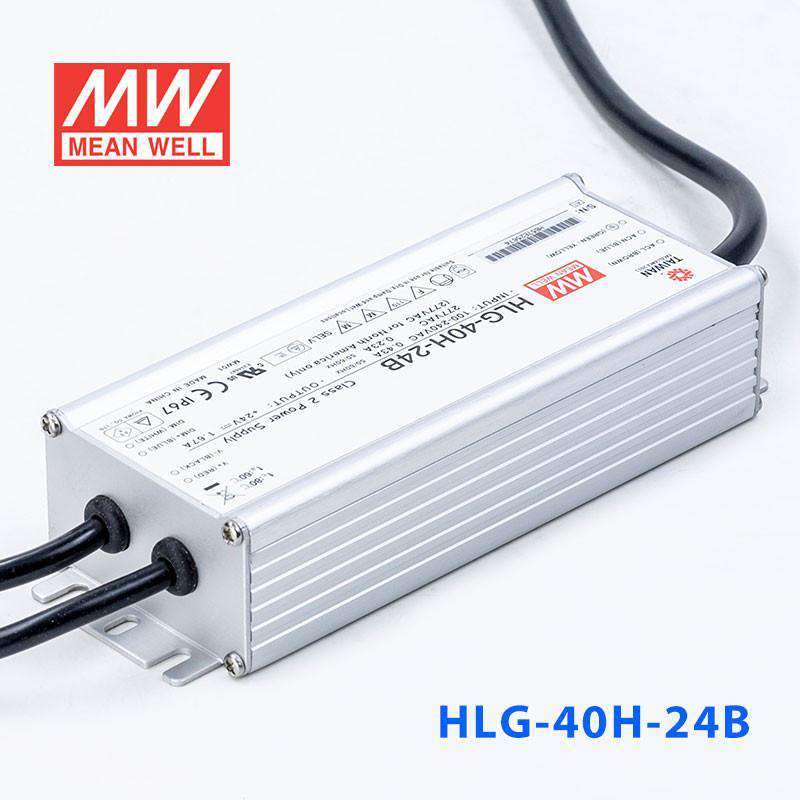

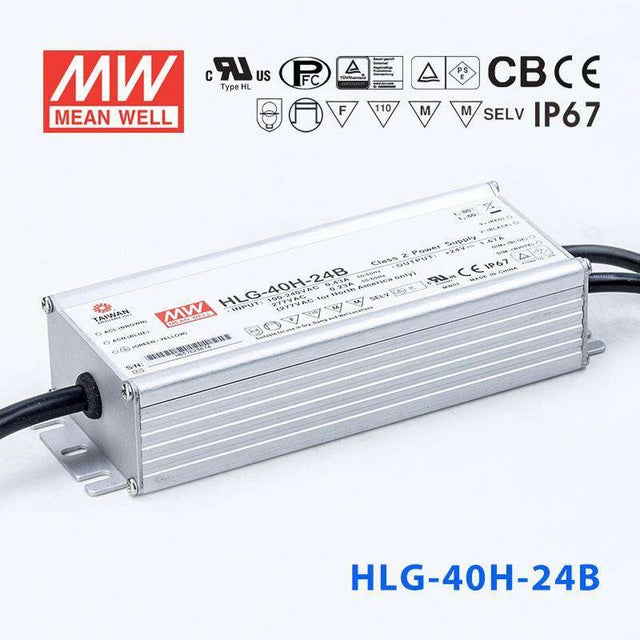

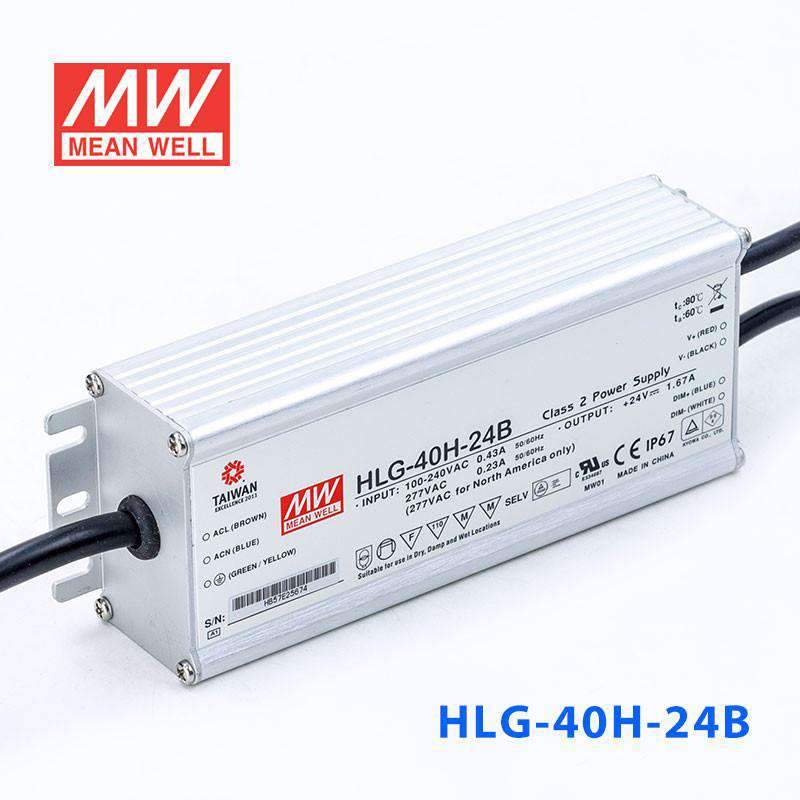

Mean Well HLG-40H-24B Power Supply 40W 24V - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| High efficiency up to 90.5% |
| Built-in active PFC function, PF> 0.9 for 60% of load or higher |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| IP67 / IP65 design for indoor or outdoor installations |
| Class 2 power unit |
| Output current adjustable through output cable or internal potentiometer |
| Cooling by free air convection |
| Suitable for dry, damp and wet location |
| Suitable for LED lighting and street lighting applications |
| Meet 4kV surge immunity level (IEC61000-4-5) |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details. |
| 7 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| DC adjustment range | ±10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% rated output current adjustable by internal potentiometer (A-Type only) |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 109%~145% rated output voltage, shut off, re-power on to recover |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | A/D/Blank-Type: SVT 18AWGx2C (30cm); B-Type: SVT 18AWGx2C (30cm)+UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 171x 61.5x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating40 Watt
-
Output Voltage24 Volt
-
Rated Current1.67 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length6.73 in
-
Width2.42 in
-
Height1.45 in
-
Weight1.61 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-40H-24B to power 24V LED strip lighting outdoors?
Yes. The HLG-40H-24B outputs 24V at up to 1.67A (40W) and carries an IP67 waterproof rating, so it can be mounted in locations exposed to rain, snow, or temporary water pooling. Its aluminium casing and -40°C to +80°C operating range handle harsh outdoor conditions year-round.
Is the HLG-40H-24B suitable for dimmable 24V landscape lighting?
Yes. The HLG-40H-24B includes a 1-10V/PWM dimming input, allowing you to pair with a compatible dimmer to adjust brightness for garden path lights, accent lighting, or other 24V landscape fixtures. Its IP67 waterproof rating makes it reliable for in-ground or exposed mounting.
Can I use the HLG-40H-24B to drive a small 24V LED channel-letter sign?
Yes, as long as the sign modules draw no more than 40W total at 24V. The HLG-40H-24B operates in constant-current mode with a CC voltage range of 14-24V, so it accommodates modules that may run at slightly lower voltages. The IP67 rating is well-suited for exterior-mounted signs.
How many meters of 24V LED strip can the HLG-40H-24B drive?
It depends on your strip's power consumption per meter. The HLG-40H-24B provides up to 40W at 24V. For a strip rated at 10W/m, you could run 4 meters (40W / 10W per meter = 4m). For a 5W/m strip, up to 8 meters. Always check your strip's rated power per meter and stay within 40W total.
Can the HLG-40H-24B handle being installed in a wet underground junction box?
Yes. IP67 means the enclosure can withstand temporary immersion in water up to 1 meter deep. It is suitable for underground vaults, wet junction boxes, or any location where standing water may occasionally occur. The -40°C to +80°C operating range also covers extreme temperature environments.
