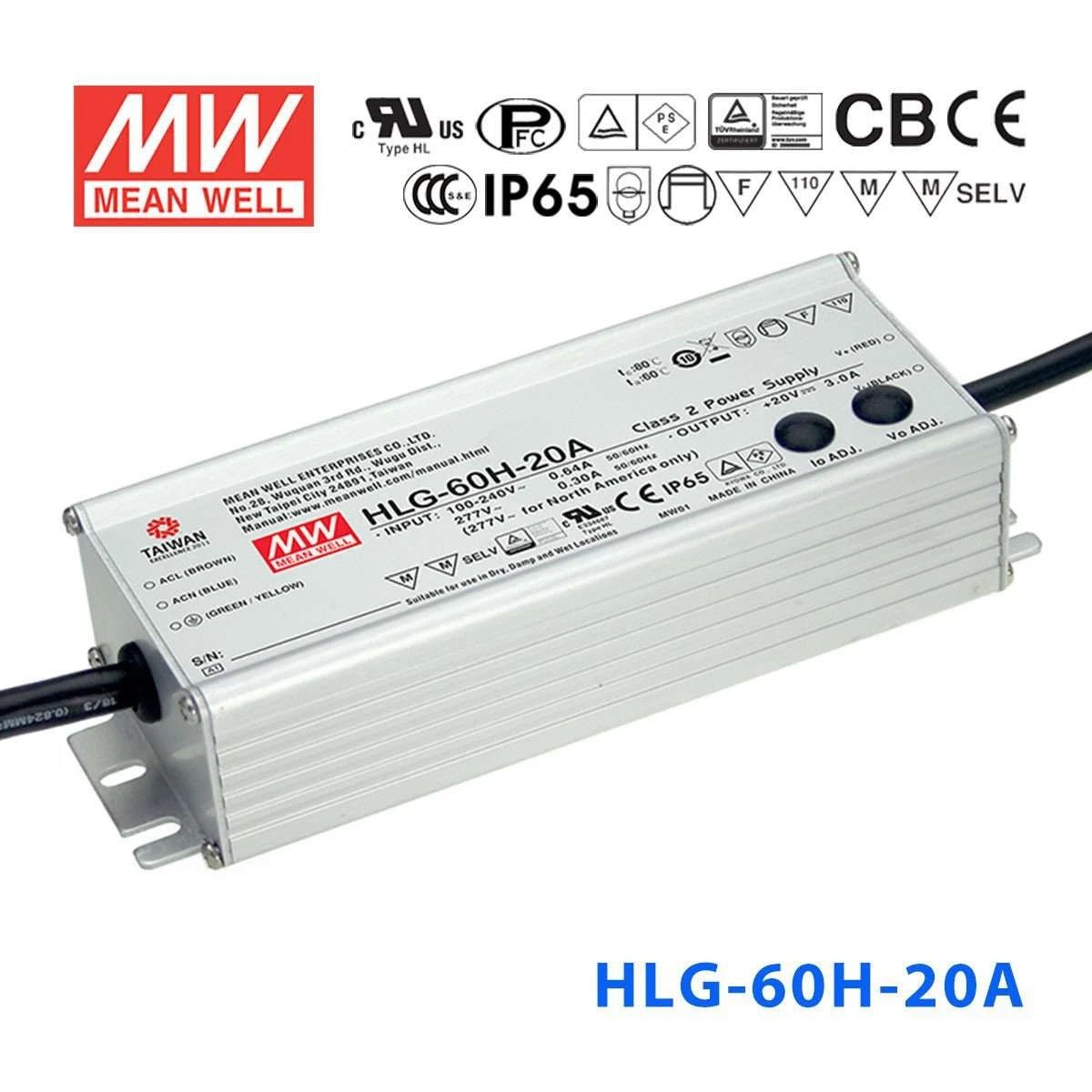

Mean Well HLG-60H-20A Power Supply 60W 20V - Adjustable

premium quality, 7 years warranty, aluminium casing, high efficiency

SKU:

HLG-60H-20A

$35.82 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The HLG-60H is a 60W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY &
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

60 Watt
Output Voltage

20 Volt
Rated Current

3 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

7 Year
Length

6.73 in
Width

2.42 in
Height

1.45 in
Weight

1.61 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-60H-20A to power 20V LED strips with output voltage fine-tuning?

Yes. The HLG-60H-20A delivers 60W at 20V and includes a built-in potentiometer to adjust the output voltage and current. This lets you trim the drive level to match your specific 20V LED strip's optimal operating point, which can improve colour uniformity and reduce excess heat in the strip.

Is the HLG-60H-20A suitable for 20V LED accent lighting in a commercial display?

Yes. At 60W and 20V with adjustable output, it handles moderate accent lighting runs in retail displays, museum cases, or trade-show booths. The adjustment potentiometer lets you set precise brightness without an external dimmer, and the compact 171 × 61.5 × 36.8 mm body fits inside standard display housings.

Can the HLG-60H-20A power 20V LED modules inside a small backlit sign?

Yes, as long as the total module load stays within 60W. The 20V output with up to 3A suits small LED sign module strings, and the adjustable output lets you lower the drive voltage slightly if your modules run more efficiently below the full 20V. This reduces heat inside the sign enclosure.

How many meters of 20V LED strip can the HLG-60H-20A drive?

It depends on the strip's wattage per meter. The HLG-60H-20A provides up to 60W at 20V. If your strip uses 12W/m, you could power up to 5 meters (60W / 12W per meter = 5m). Check your strip's rated power per meter and keep the combined load at or below 60W.

Can the HLG-60H-20A be installed in a damp location like an indoor car wash or commercial kitchen?

Its IP65 water-resistant rating protects against dust and low-pressure water jets, which is suitable for damp indoor environments like commercial kitchens, car wash ceilings, or covered loading docks. For locations with direct hose-down or standing water, the IP67-rated HLG-60H-20 or HLG-60H-20B offers stronger water protection.
