Over 15 years experience of providing support of MEAN WELL Power Supplies

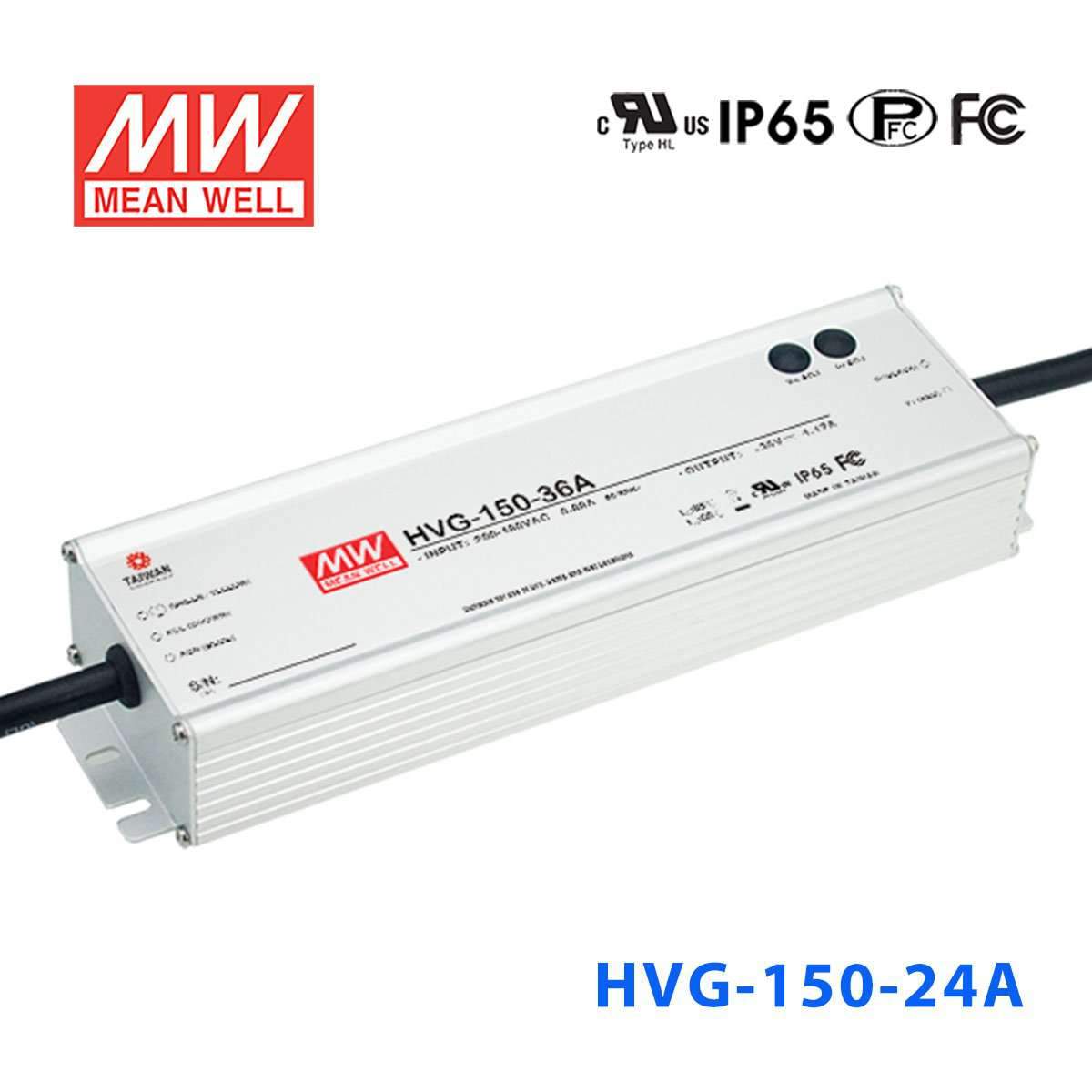

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well HVG-150-24A Power Supply 150W 24V - Adjustable
Description
Description
Features
| 180~528VAC wide input range |
| IP67 / IP65 design |
| Built-in active PFC |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| C.V. +C.C. mode design |
| Class 2 power unit |
| High efficiency up to 91.5% |
| Cooling by free air convection |
| Suitable for dry, damp. and wet location |
| Suitable for LED lighting and street lighting applications |
| Output current adjustable through output cable or internal potentiometer |
| Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC (single phase); 254~747VDC |
| AC inrush current (max.) | Cold start, 35A at 480VAC |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 245x 68x 38.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.25 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-150-24A for a 24V LED strip lighting project?
Yes, if the strip is designed for 24V operation and the total load does not exceed 150W. This driver outputs 24V at up to 6.25A and has a 13-24V constant current range, so the strip or fixture needs to be compatible with that output profile.
Is the HVG-150-24A suitable for 24V LED signage or lightbox lighting?
It can be used for 24V LED signage or lightbox systems that stay within the 150W rating. The 24V output and 6.25A maximum current make it suitable for medium-power signage loads that match the driver's constant current operation.
Can this driver power 24V linear lighting or cabinet lighting runs?
Yes, for 24V linear lighting loads that do not exceed 150W total. The driver provides up to 6.25A at 24V, so it is better suited to longer or higher-power 24V runs than lower-wattage models in the same family.
Is the HVG-150-24A OK for damp or semi-exposed locations?
It is rated IP65, so it is water-resistant rather than fully waterproof. That makes it suitable for indoor use and for locations where dust and water spray are concerns, but it is not the same enclosure level as the IP67 versions in the series.
How do I estimate the maximum 24V LED strip length this driver can support?
Calculate it as 150W divided by the strip's rated watts per meter. The formula is maximum length = 150W / strip W per meter, and you should check your strip rated power per meter and confirm it is designed for 24V operation.
