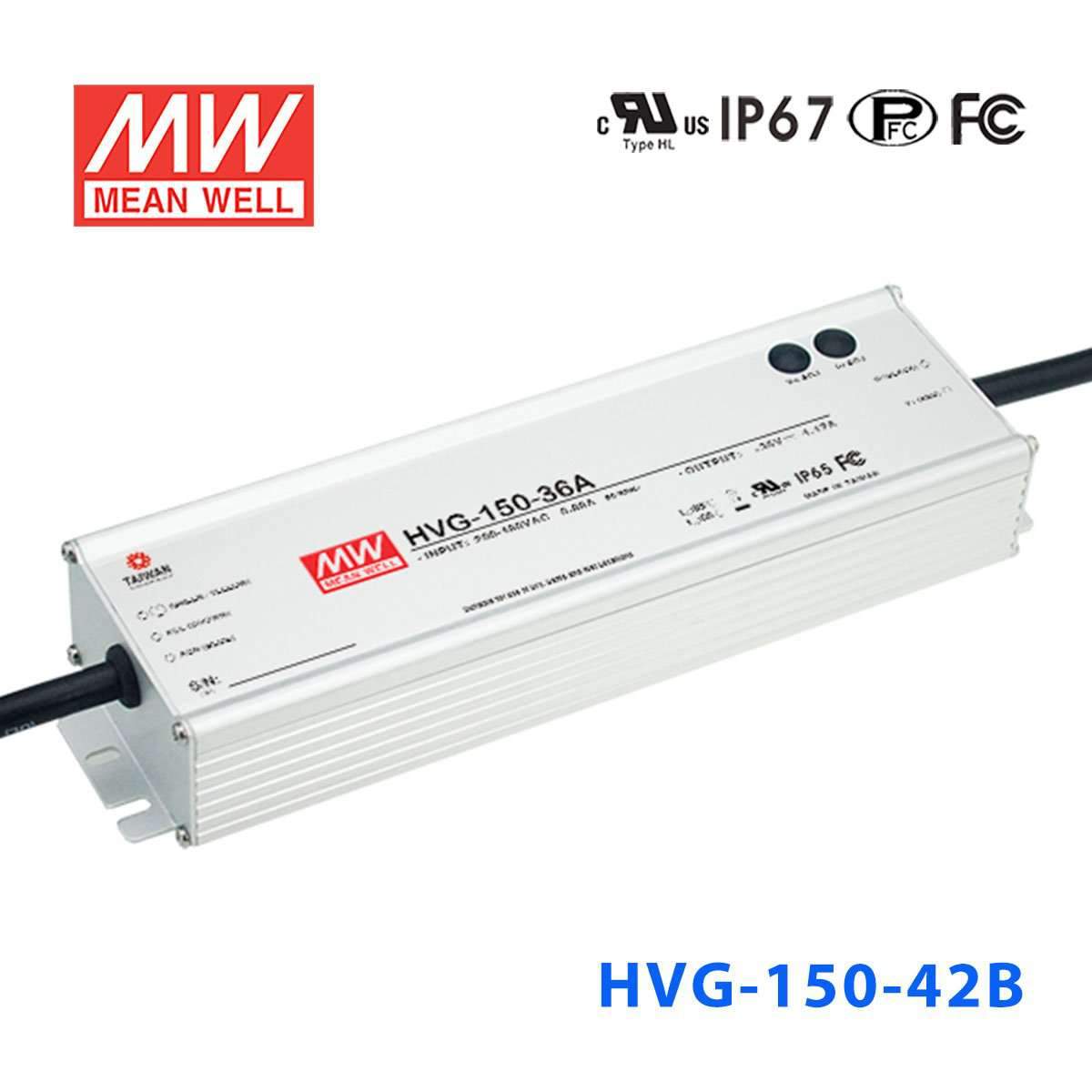

Mean Well HVG-150-42B Power Supply 150W 42V - Dimmable
Description
Description
The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating150.36 Watt
-
Output Voltage42 Volt
-
Rated Current3.58 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.65 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.73 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-150-42B for a 42V outdoor sign lighting project?
Yes, if the sign uses a 42V constant current lighting load within the 23-42V range. This driver provides up to 150.36W and 3.58A, and the IP67 waterproof housing is better suited to wet outdoor locations than IP65 versions.
Is this driver suitable for wet-location 42V LED strip lighting?
It can be used with a compatible 42V constant current strip or fixture where wet-location protection matters. The electrical load must remain within 150.36W and 3.58A, and the IP67 rating supports harsher outdoor exposure.
Can the HVG-150-42B power landscape or facade lighting?
Yes, for 42V constant current landscape or facade fixtures operating within 23-42V. Its -40°C to +85°C operating temperature range and IP67 waterproof construction make it appropriate for exposed exterior lighting conditions.
Is IP67 better for outdoor lighting than IP65?
For outdoor and wet conditions, this model's IP67 waterproof rating offers a higher level of environmental protection than IP65 water-resistant models in the same series. That makes it the better fit when the driver will face heavier water exposure.
How much 42V LED strip can the HVG-150-42B run?
Base the estimate on the 150.36W maximum output. If your strip is rated at 14W per meter, the calculation is 150.36 ÷ 14 = 10.74 meters; check your strip rated power per meter and confirm that the strip is compatible with 42V constant current output.
How does the HVG-150-42B compare with other 42V HVG drivers?
The HVG-150-42B is rated at 150.36W, 42V, and 3.58A. In the same 42V family, HVG-100-42A/AB/B are 95.76W and 2.28A, HVG-240-42A/AB/B are 239.4W and 5.7A, HVG-320-42A/AB/B are 319.2W and 7.6A, and HVG-480-42A/AB/B are 478.8W and 11.4A.
