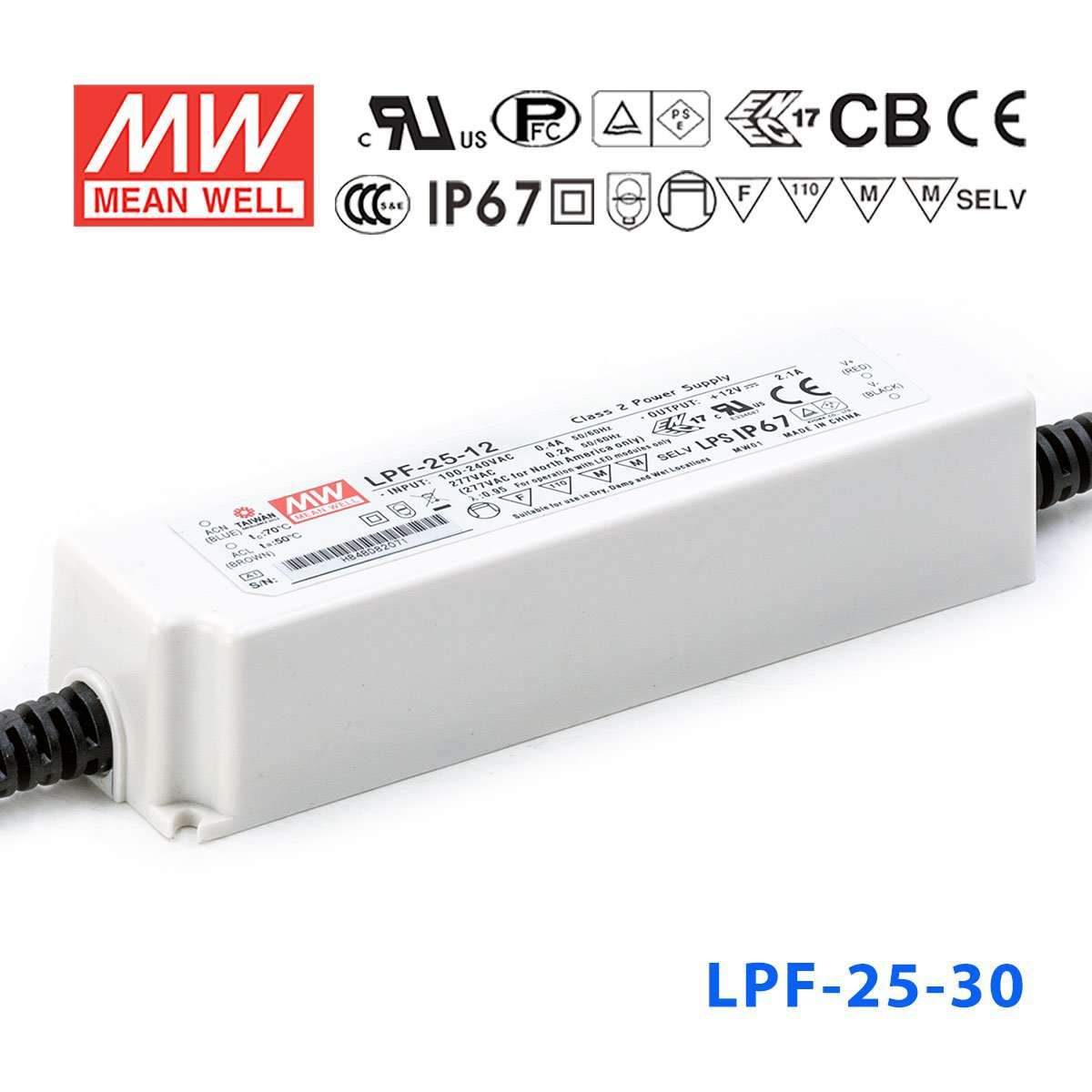

Mean Well LPF-25-30 Power Supply 25W 30V
Description
Description
The LPF-25 is a 25W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating25.2 Watt
-
Output Voltage30 Volt
-
Rated Current0.84 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.79 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-25-30 for a 30V LED sign module?
Yes, if the sign module is designed for constant-current operation at 0.84A and works within the 16-30V constant-current range. The total connected load also needs to stay within the 25.2W output rating.
Is this driver a good fit for compact 30V display lighting?
It is suitable for compact 30V display lighting when the fixture requires a constant-current 0.84A driver and falls inside the 16-30V range. This model provides up to 25.2W output, so it is intended for lower-power loads within that limit.
Can the LPF-25-30 power outdoor 30V accent lighting?
Yes, for outdoor accent lighting the IP67 rating supports use in wet and dusty conditions, and the operating range is -35°C to +70°C. The light itself still needs to match 30V class constant-current operation at 0.84A and stay within 25.2W.
Would this work for a 30V linear lighting fixture?
It can, as long as the linear fixture is designed for constant-current input at 0.84A and operates within 16-30V. The driver’s maximum output power is 25.2W, so the fixture load cannot exceed 25.2W.
How do I estimate the maximum 30V LED strip length for this driver?
Use the driver’s 25.2W maximum output and divide it by your strip’s rated watts per meter: 25.2W / strip W per meter = approximate maximum length. Check your strip rated power per meter and keep the total load at or below 25.2W.
Is the LPF-25-30 suitable for wet or exposed environments?
Yes, the driver has an IP67 waterproof rating for wet and dusty locations. It is also specified for operation from -35°C to +70°C.
Other LPF-25 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-25-12 Power Supply 25W 12V | 25.2W | 12V | 2.1A | IP67 | $25.79 | View |
