Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

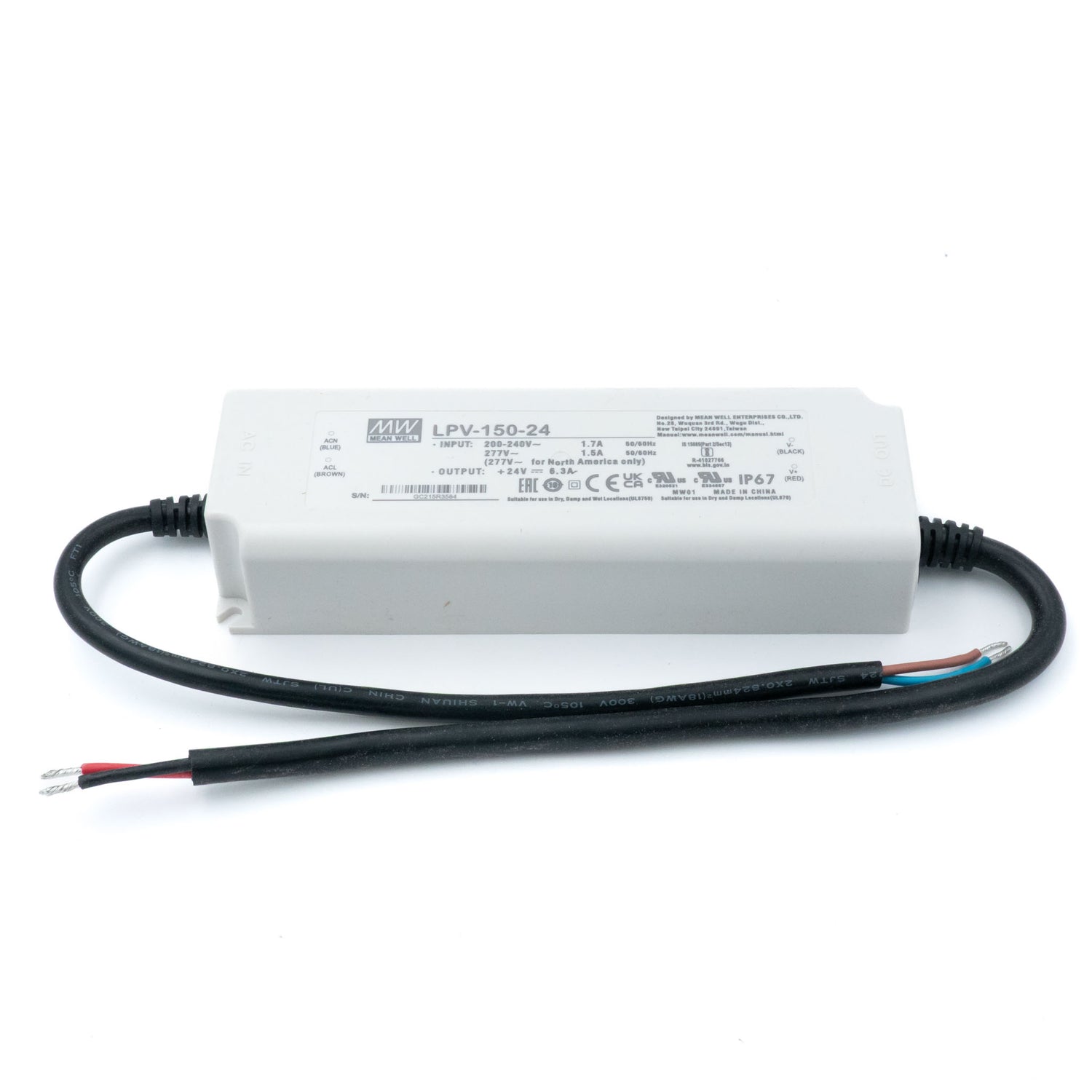

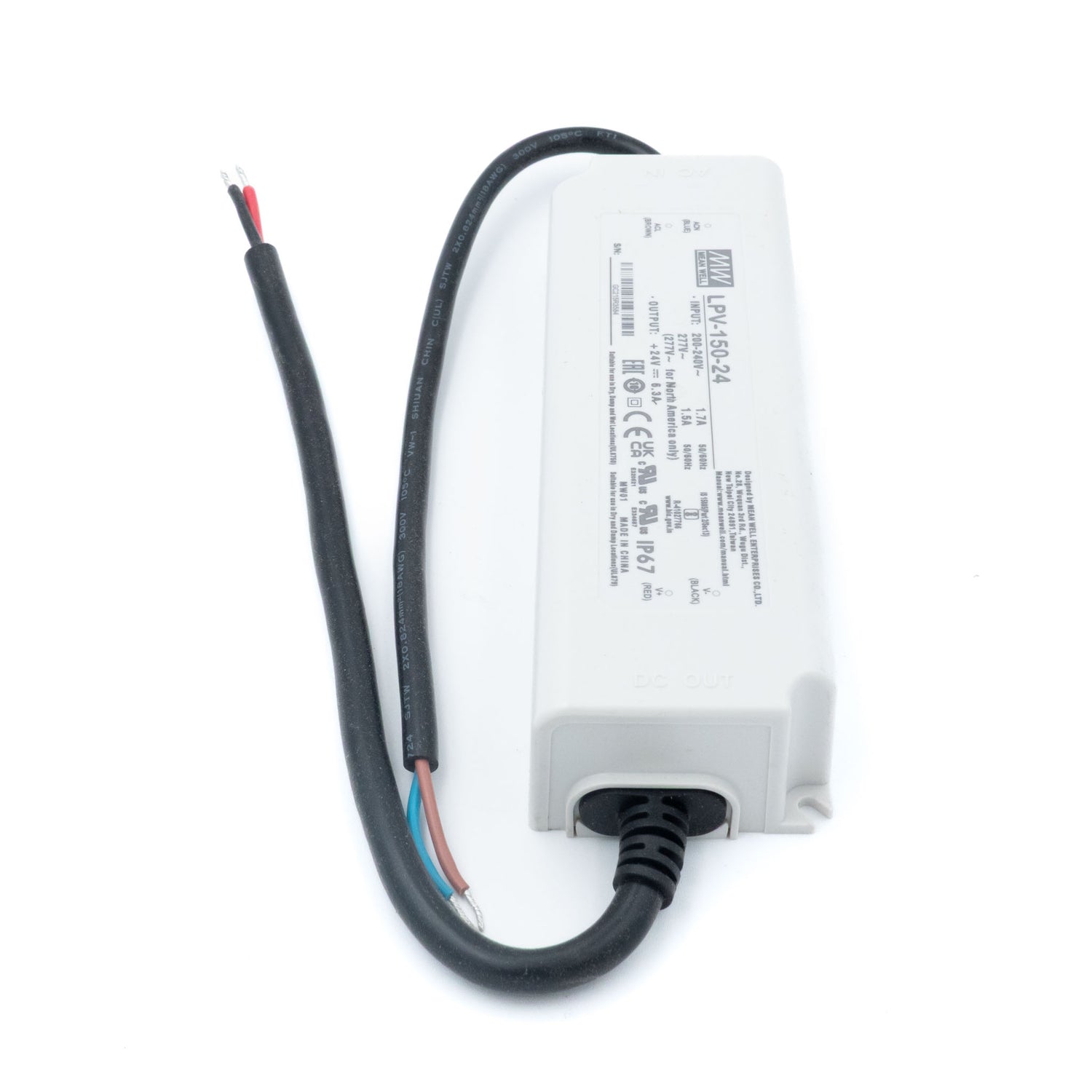

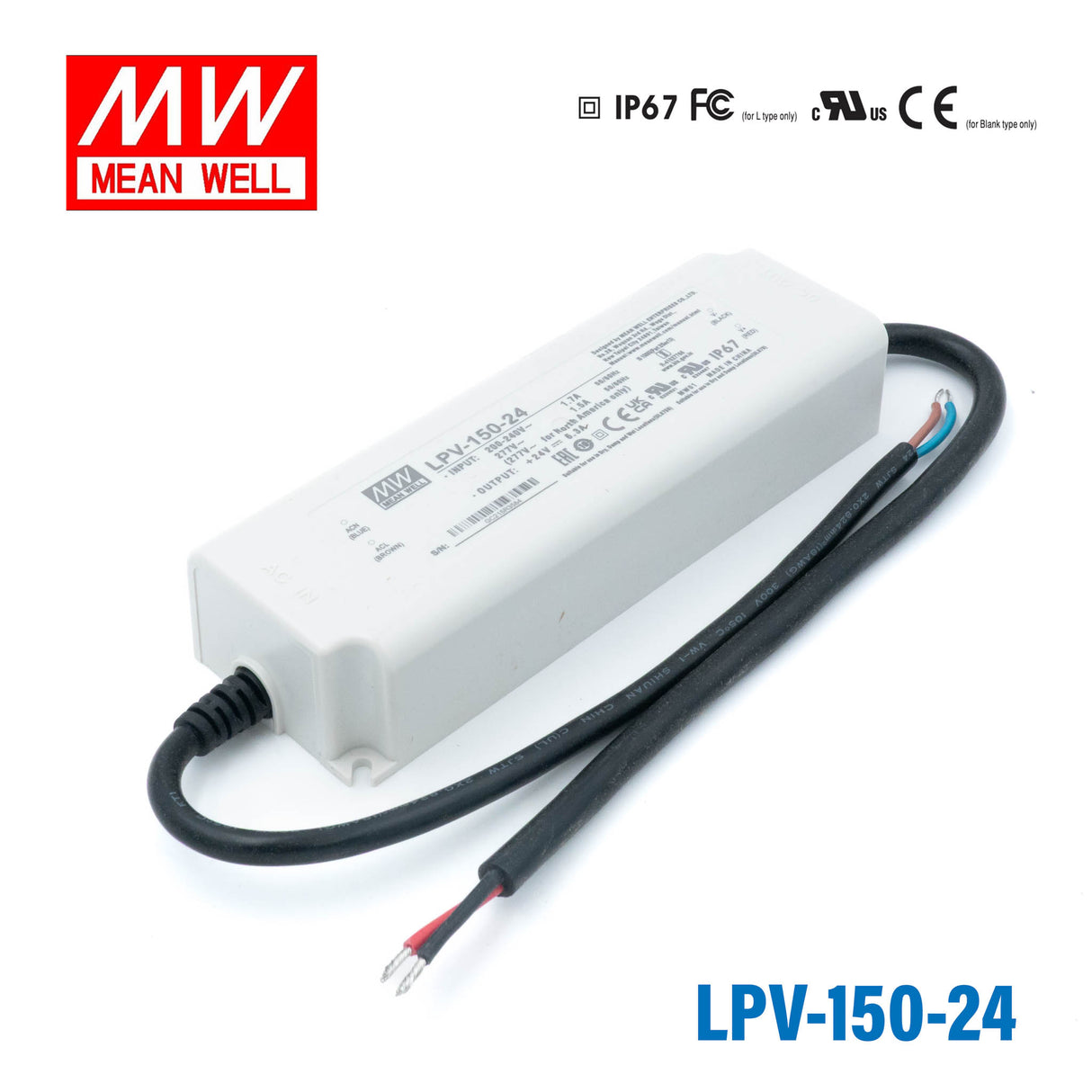

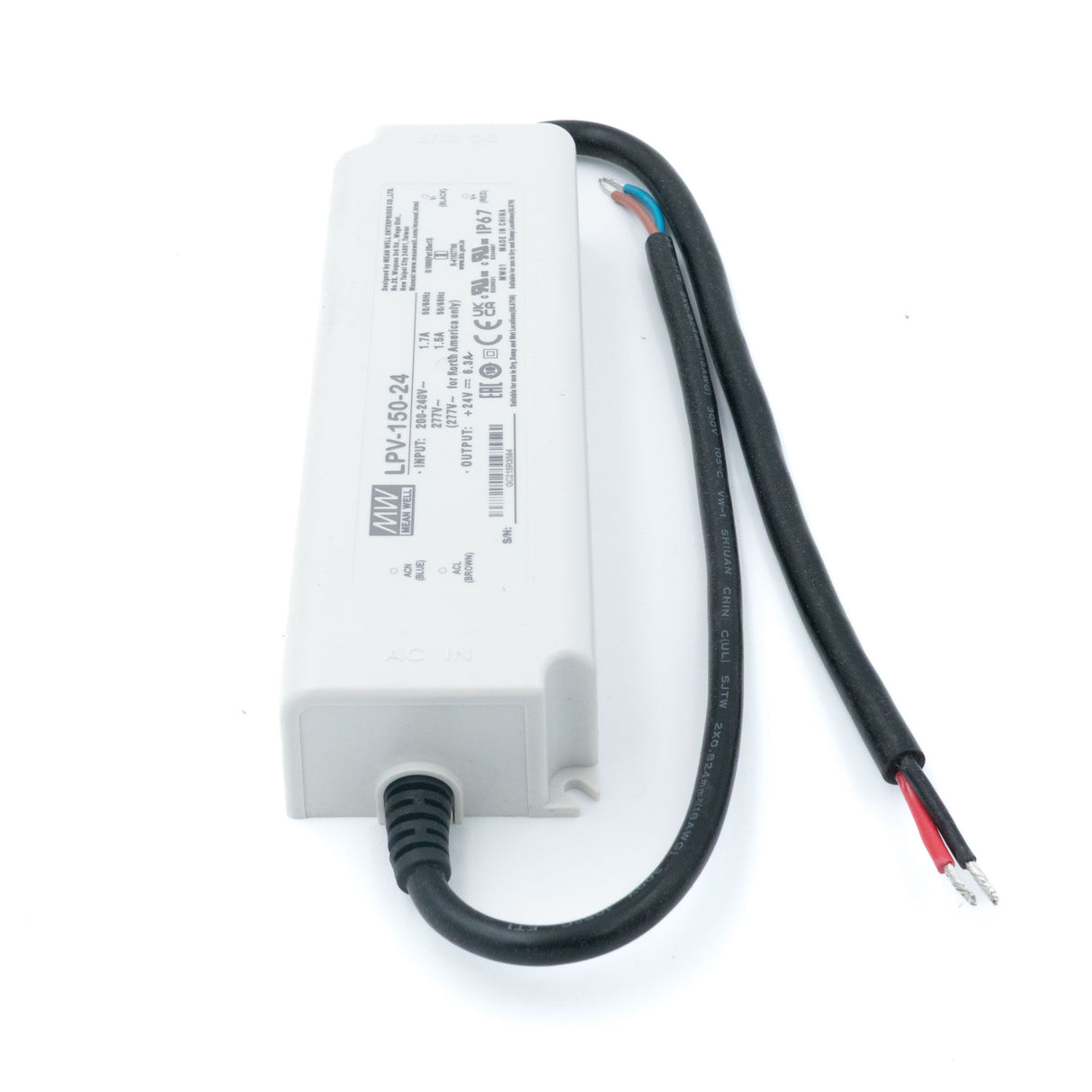

Mean Well LPV-150-24 AC-DC Single output LED Driver Constant Voltage 24Vdc 6.3A
slim plastic case, economical, IP67, 180~305V input only
SKU:
LPV-150-24
$34.24 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPV-150-24 AC-DC Single output LED Driver Constant Voltag...
$34.24 USD
Unit price /
Unavailable
Description
Description
Features
| 180~305VAC input only |
| Fully encapsulated with IP67 level |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Constant voltage design (C.V. mode) |
| Class 2 power unit |
| Isolation class II, no F.G. |
| Withstand 300VAC surge input for 5 seconds |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays |
| 2 years warranty |
General Specification
| AC input voltage range | 180~305VAC; 254~431VDC |
| AC inrush current | Cold start, 60A at 230VAC |
| Overload protection | 110%~150% hiccup mode, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -25~+70°C (refer to output derating curve) |
| Vibration | 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes |
| Safety standards | Design refer to IEC60950-1 |
| EMC standards | EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SJTW 14AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 191x 63x 37.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLP Series
-
Power Rating151.2 Watt
-
Output Voltage24 Volt
-
Rated Current6.3 Ampere
-
Input Voltage180V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~65°C
-
Warranty2 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.63 lb
