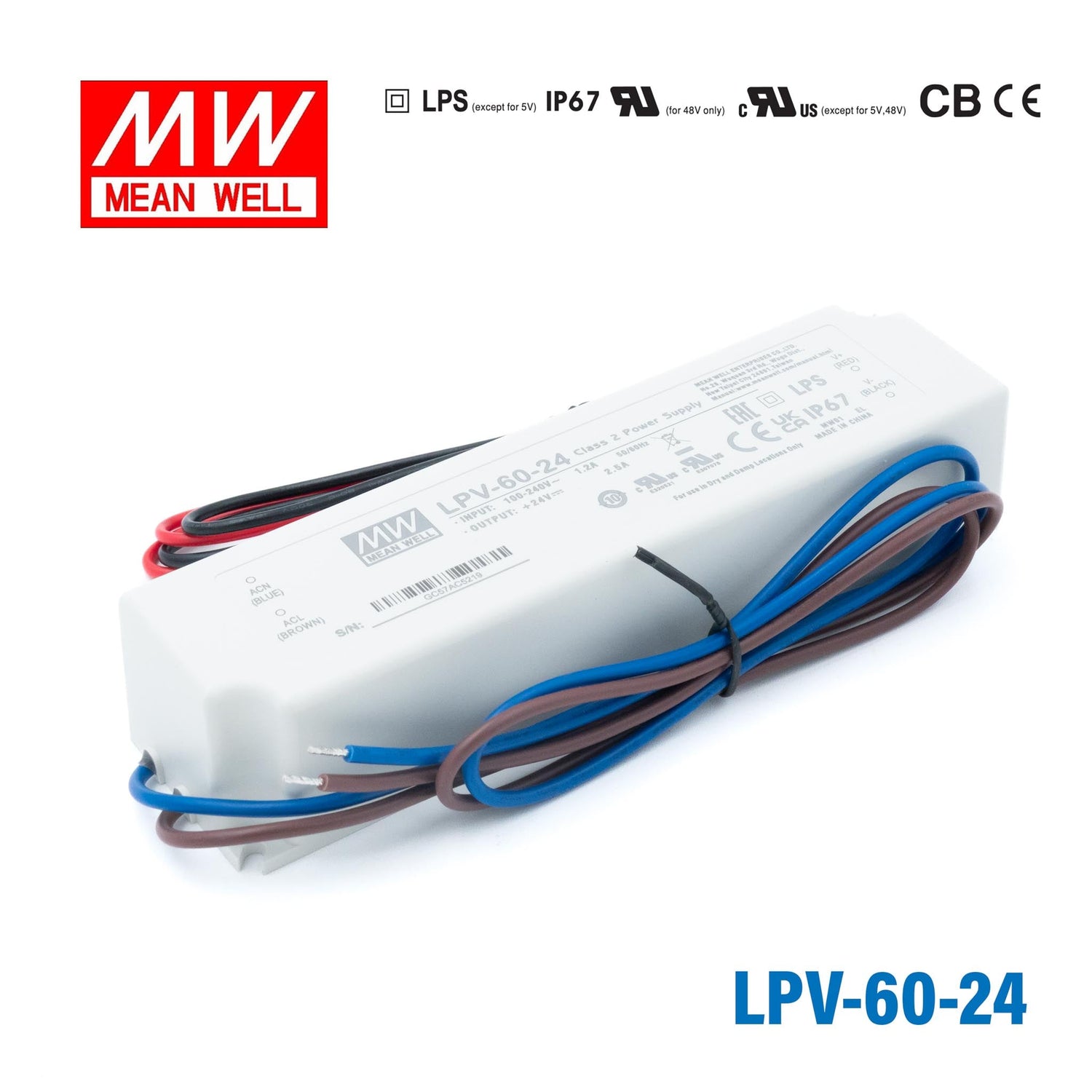

Mean Well LPV-60-24 LED Driver — 60W 24V 2.5A IP67 Waterproof
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPV-60-24 LED Driver — 60W 24V 2.5A IP67 Waterproof
Description
Description
Mean Well LPV-60-24 LED Driver — 60W 24V 2.5A IP67 Waterproof
The Mean Well LPV-60-24 is a 60W, 24V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 24V DC output at up to 2.5A and carries CB, CE, EAC, UL certifications for global compliance.
Accepting 90-264VAC universal AC input, the LPV-60-24 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +70°C making it suitable for outdoor and harsh-environment installations.
Key Features
- Constant voltage output: 24V DC at up to 2.5A (60W max)
- IP67 waterproof and dustproof — suitable for outdoor installations
- Universal AC input: 90-264VAC
- Certifications: CB, CE, EAC, UL
- Wide operating temperature: -30°C to +70°C
- Built-in protections: short circuit, overload, over-voltage
- Compact, lightweight enclosure: 162.5 × 42.5 × 32.0 mm, 0.4 kg
- 2-year Mean Well warranty
Specifications
| Model | LPV-60-24 |
| Output Power | 60W |
| Output Voltage | 24V DC |
| Output Current | 2.5A |
| Operation Mode | Constant Voltage |
| Input Voltage Range | 90-264VAC |
| IP Rating | IP67 Waterproof |
| Certifications | CB, CE, EAC, UL |
| Operating Temperature | -30°C to +70°C |
| Dimensions (L × W × H) | 162.5 × 42.5 × 32.0 mm |
| Weight | 0.4 kg |
| Warranty | 2 Years |
Applications
- LED signage and electronic displays
- Architectural and decorative LED lighting
- Outdoor and landscape LED installations
- Stage and theater LED lighting
- Commercial LED lighting installations
Specifications
Specifications
-
BrandMean Well
-
SeriesLP Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length6.4 in
-
Width1.67 in
-
Height1.26 in
-
Weight0.88 lb
