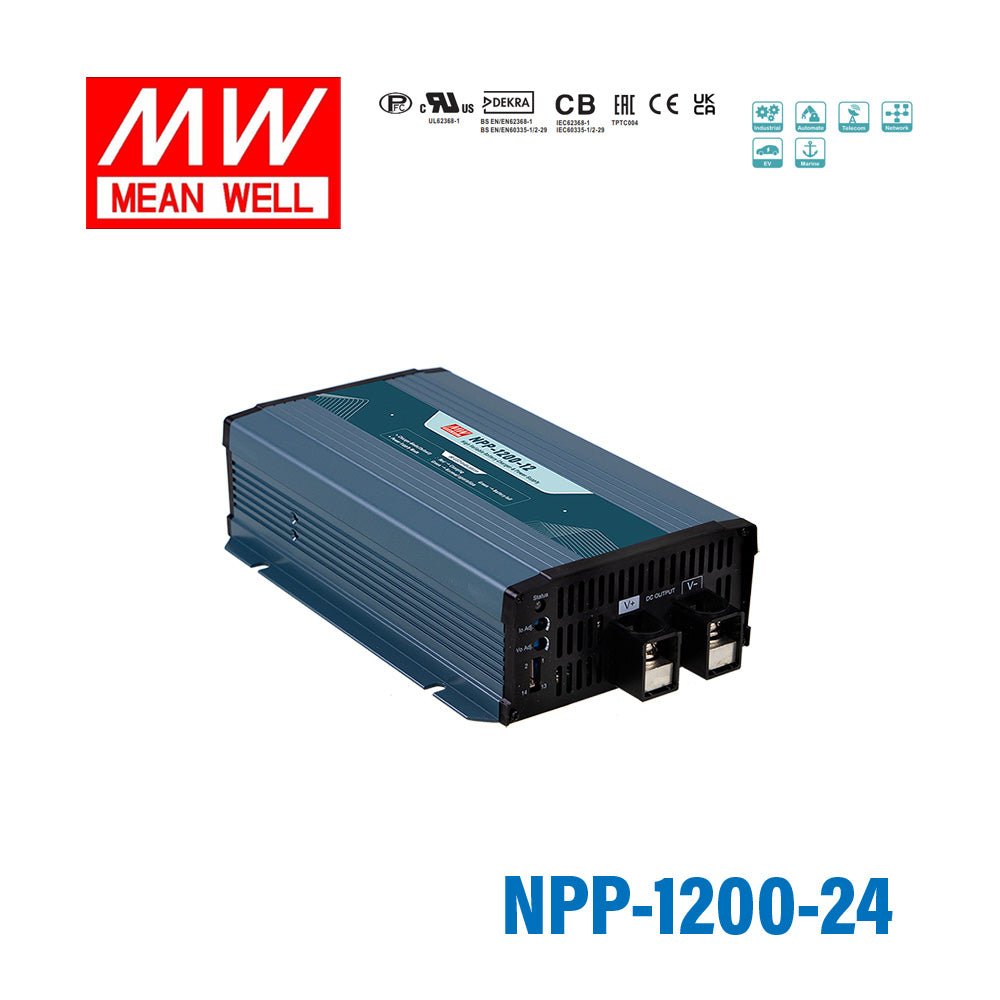

Mean Well NPP-1200-24 1209.6W 24V Battery Charge& Power Supply 2-in-1, Selectable via Jumper
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPP-1200-24 1209.6W 24V Battery Charge& Power Supply ...
Description
Description
NPP-1200's key features include ultra-wide output voltage, adjustable output voltage via VR on front panel (10.5~21V, 21~42V, 42~80V), adjust output current from 50~100%, built-in thermal controlled cooling fan to reduce noise, -30~+70°C operating temperature, built-in remote ON/OFF control, compliance to ITE IEC/EN/UL62368-1 and household appliances EN60335-1/-2-29 dual safety, multiple built-in intelligent protection functions, and 3 years warranty.
FEATURES
Specifications
Specifications
-
BrandMean Well
-
SeriesNPP Series
-
Power Rating1200 Watt
-
Output Voltage28.8 Volt
-
Rated Current36 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.84 in
-
Width6.22 in
-
Height2.64 in
-
Weight4.25 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well NPP-1200-24 designed for?
The NPP-1200-24 is a 2-in-1 unit that can operate as either a battery charger or a power supply, with the mode selectable via jumper. It is intended for lead-acid battery applications and also suits systems that need a high-power 24V-class DC output from a single compact unit.
What are the main electrical ratings of the NPP-1200-24?
This model is rated at 1209.6W with a nominal output voltage of 28.8V and a rated current of 36A. It also supports adjustable output voltage and adjustable output current from 50% to 100%, which gives buyers more flexibility within the product's supported range.
Can the NPP-1200-24 be adjusted for different output voltage ranges?
Yes. The NPP-1200 series supports ultra-wide output voltage adjustment ranges of 10.5 to 21V, 21 to 42V, and 42 to 80V, with adjustment available from the front panel. For this specific 24V model, the listed nominal output voltage is 28.8V.
What battery type is this model suitable for?
The NPP-1200-24 is specified as suitable for lead-acid batteries. It also includes a 3-stage charging curve in charging mode, which is a key feature buyers often look for in lead-acid charging applications.
Is the NPP-1200-24 suitable for demanding industrial or commercial environments?
Yes. It has a wide operating temperature range of -30°C to +70°C and includes a thermal-controlled cooling fan to help reduce noise while managing heat. The unit also includes built-in protections for short circuit, overload, overvoltage, and overtemperature conditions.
What safety approvals and warranty does the NPP-1200-24 have?
This model is listed with CB, UL, DEKRA, EAC, CE, and UKCA approvals, including compliance with IEC/EN/UL62368-1 and EN60335-1/-2-29. It is backed by a 3-year warranty.
How does the NPP-1200-24 differ from a standard fixed-output power supply?
Unlike a standard fixed-output power supply, the NPP-1200-24 can serve as either a battery charger or a power supply in one unit. It also offers adjustable voltage and current, plus a 3-stage charging function for lead-acid battery applications, which makes it more versatile than a basic DC supply.
