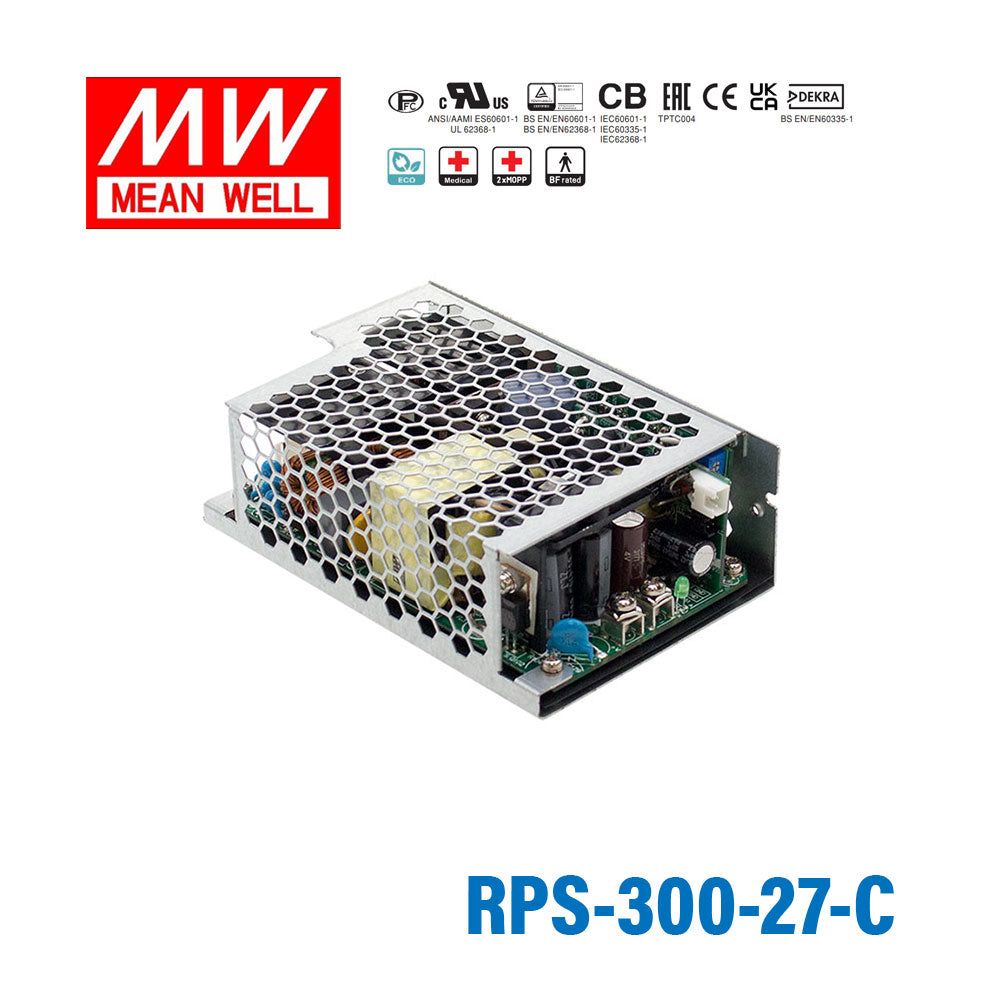

Mean Well RPS-300-27-C Green Power Supply W 27V 7.4A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-300-27-C Green Power Supply W 27V 7.4A - Medical Powe...
Description
Description
Features
| 5"x3" compact size |
| 320W convection, 500W force air |
| 550W peak power (3 sec.)/td> |
| Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 |
| MEMI for both Class I & Class II configuration |
| -30~+70°C wide range operating temperature |
| No load power consumption under 0.5W by PS-ON control |
| High efficiency up to 94% |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| 5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail, and remote sense |
| Operating altitude up to 4000 meters (Note.5) |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 80 ~ 264VAC | 113 ~ 370VDC |
| AC inrush current | COLD START 40A/115VAC 80A/230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection | 105%~135% hiccup mode, auto-recovery |
| Over-voltage protection | CH1: 115%~135% shut off, re-power on to recovery |
| Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Leakage current | Earth leakage current <220 A/264VAC 50Hz, Touch current < 100 A/264VAC |
| Safety standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved |
| EMC standards | EN55011/EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN60601-1-2, EN61000-6-2 (RPS(G)-160) |
| Connection | 3+8+2(4)P/3.96mm pitch JST B3P / B8P-VH, B2B (B4B)-XH |
| Setup, rise, hold up time | 1000ms, 30ms, 10ms at full load and 230VAC |
| Dimension (LxWxH) | 127 x 76.2 x 41mm | 5 x 3 x 1.61 inch |
Specifications
Specifications
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating200 Watt
-
Output Voltage27 Volt
-
Rated Current7.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.12 in
-
Width3.39 in
-
Height1.69 in
-
Weight1.24 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the RPS-300-27-C power a 27V medical cart or diagnostic subsystem?
Yes, if the subsystem needs constant-voltage 27V DC and its load stays within 7.4A and 200W. This model is specified as a medical power supply and includes medical safety approval with extreme low leakage current.
Is the RPS-300-27-C a fit for industrial test equipment with a 27V DC input?
It can be a fit for industrial test equipment designed for constant 27V input, as long as the equipment does not exceed 7.4A or 200W. The wide 90-264VAC input also supports use across varied AC mains conditions.
Can I use this model in an embedded control assembly that needs more headroom than a smaller 27V supply?
Yes, this version provides 27V at up to 7.4A for a total of 200W, which gives more output capacity than lower-power 27V siblings. Its 130.0 x 86.0 x 43.0 mm dimensions are larger than the non-C version, so the enclosure space should match that footprint.
Will the RPS-300-27-C work for a 27V automation device that runs continuously in a wide temperature range?
It is rated for operation from -30°C to +70°C, so the published temperature range is broad for indoor equipment applications. The connected 27V load still needs to remain within the 7.4A and 200W output rating.
How does the RPS-300-27-C compare with the other 27V RPS models?
The listed 27V siblings are RPS-120-27 and RPS-120-27-C at 85W and 4.5A, RPS-120S-27 at 119.9W and 4.44A, RPS-200-27 and RPS-200-27-C at 143.1W and 5.3A, RPS-300-27 and RPS-300-27-C at 200W and 7.4A, RPS-400-27 variants at 251.1W and 9.3A, and RPS-500-27 variants from 310.5W at 11.5A up to 499.5W at 18.5A. This model is the 200W, 7.4A option in that 27V ladder.
Can the RPS-300-27-C be used outdoors or in washdown areas?
No IP rating is provided in the listed specs, so outdoor-exposed or washdown use is not supported by the published data. The stated operating temperature range is -30°C to +70°C, but that does not replace an IP rating.
