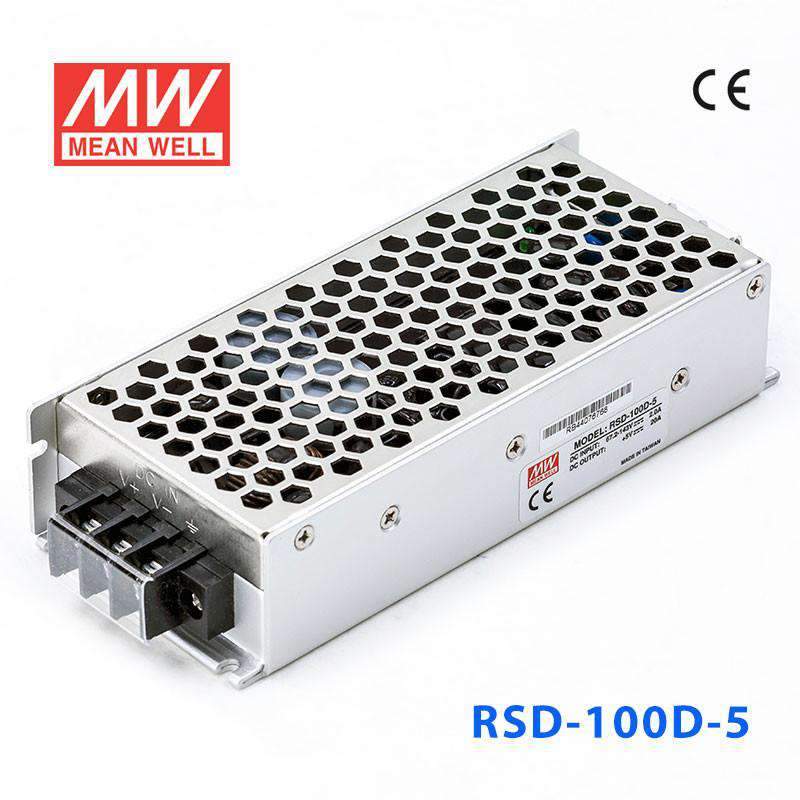

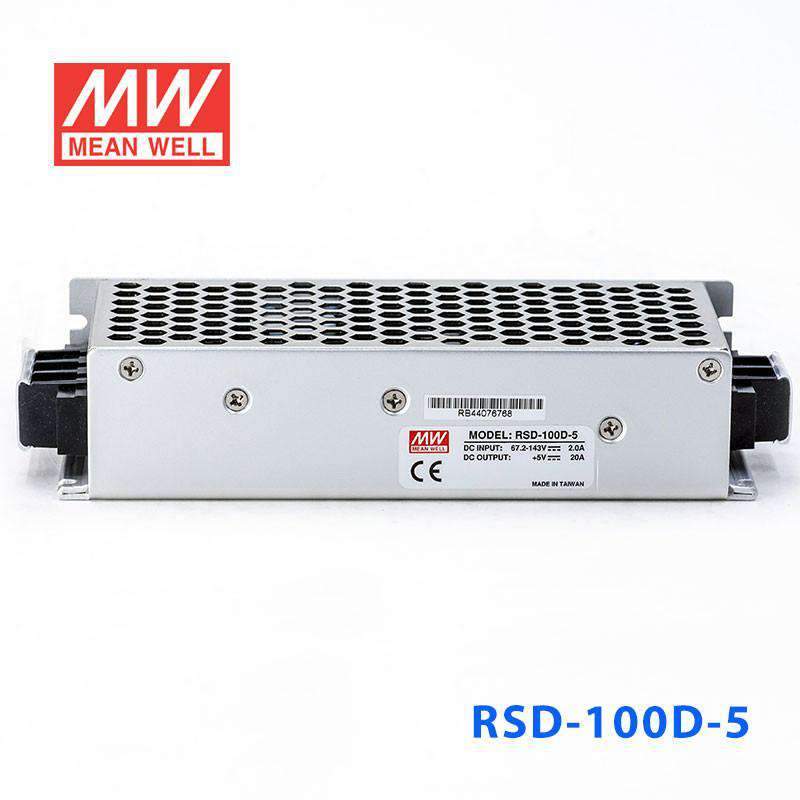

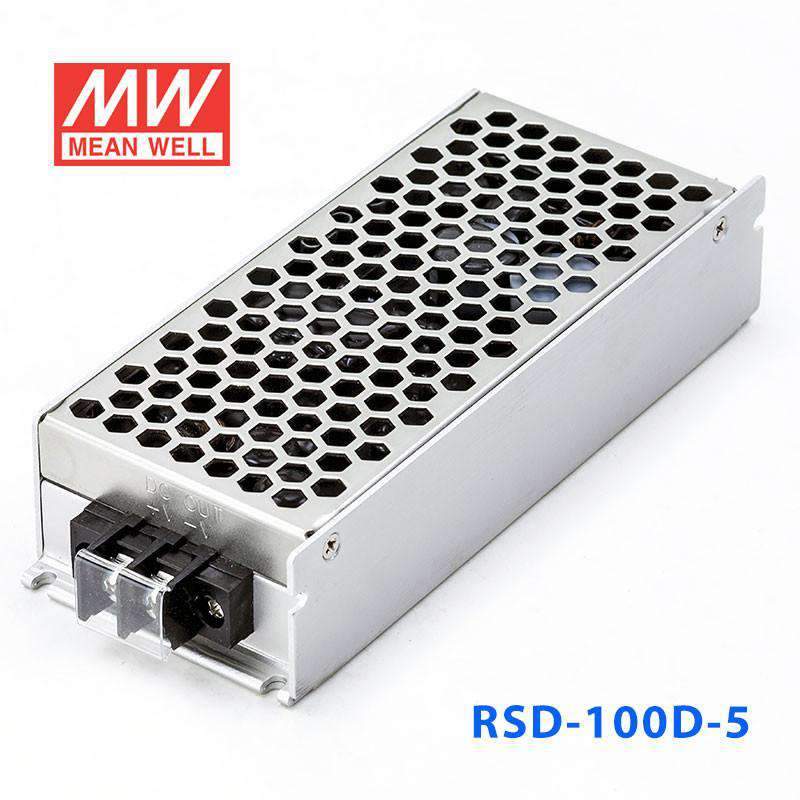

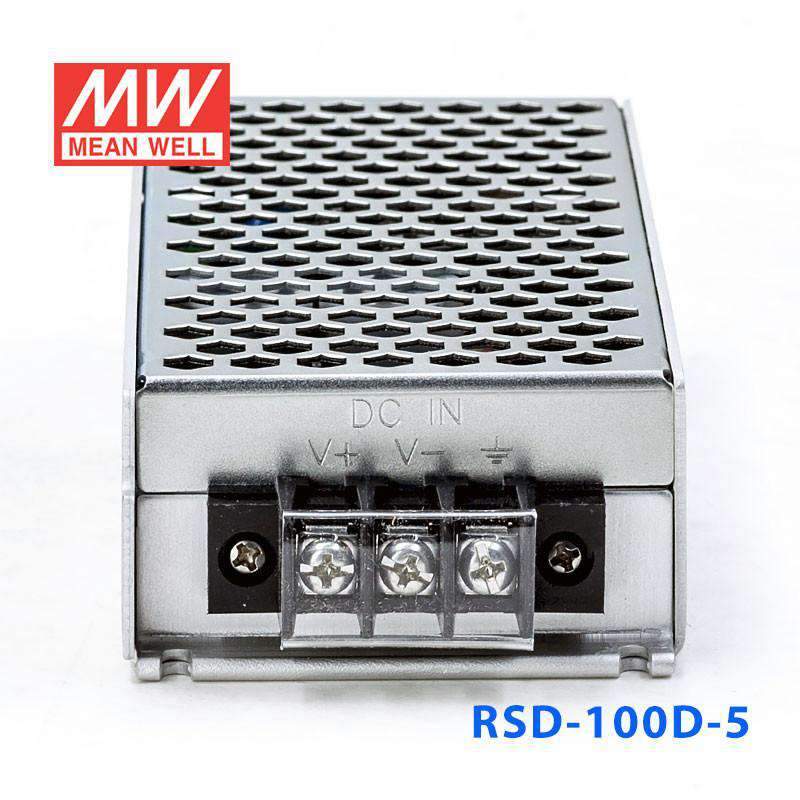

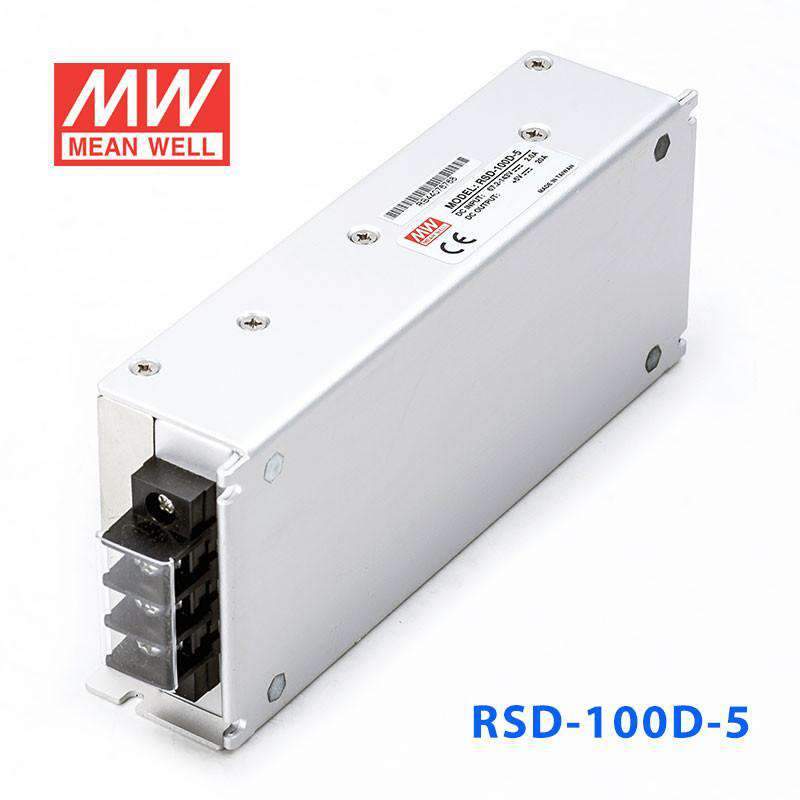

Mean Well RSD-100D-5 DC-DC Converter - 100W - 67.2~143V in 5V out 20A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSD-100D-5 DC-DC Converter - 100W - 67.2~143V in 5V out 20A
Overview
RSD-100D-5 is the 5V output model of this series: rated current 20A, rated power 100W, typical efficiency 89.5%.
Features
- Compliance to EN50155 and EN45545-2 railway standard
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage / Input reverse polarity
- 4000VDC I/O isolation
- Cooling by free air convection
- Half encapsulated
- Built-in constant current limiting circuit
- 1U low profile 36mm
- All using 105℃ long life electrolytic capacitors
- LED indicator for power on
- 100% full load burn-in test
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- RATED CURRENT
- 20A
- CURRENT RANGE
- 0 ~ 20A
- RATED POWER
- 100W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 800ms, 50ms at full load
- HOLD UP TIME (Typ.)
- Please refer to page 3 Hold up Time( Load de-rating curve )
INPUT
- VOLTAGE RANGE CONTINUOUS
- 67.2 ~ 143VDC
- VOLTAGE RANGE 1 SEC.
- 57.6 ~ 154VDC
- EFFICIENCY (Typ.)
- 89.5%
- DC CURRENT (Typ.)
- 1.2A/110V
- INRUSH CURRENT (Typ.)
- 30A/110VDC
- INTERRUPTION OF VOLTAGE SUPPLY
- EN50155:2007-B/C- type comply with S1 level @ full load, comply with S2 level @ 70% load ; D-type comply with S2 level @ full load EN50155:2017-Comply with S1 level
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.75 ~ 7V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +55℃ (no derating) ; +70℃ @ 60% load by free air convection ; +70℃ no derating with external base plate, TX class compliance
- WORKING HUMIDITY
- 5 ~ 95% RH non-condensing
- STORAGE TEMP.
- -40 ~ +85℃
- TEMP. COEFFICIENT
- ± 0.03%/℃ (0 ~ 50℃ )
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
- OPERATING ALTITUDE
- 5000 meters
SAFETY & EMC (Note 5)
- SAFETY STANDARDS
- IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020
- RAILWAY STANDARD
- EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC ; EN45545-2 for fire protection
OTHERS
- MTBF
- 254.1K hrs min. MIL-HDBK-217F (25℃ )
- DIMENSION
- 161*68*36mm (L*W*H)
- PACKING
- 0.563Kg; 24pcs/14.5Kg/0.91CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 24,48,110VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSD-100-5 / -12)
- 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the RSD-100D-5 for 5V industrial single-board computers or embedded controllers?
Yes, if the equipment needs a constant 5V supply and the total load stays within 20A. This model provides up to 100W, so it suits higher-current 5V embedded electronics better than lower-current 12V or 24V outputs.
Is the RSD-100D-5 a fit for 5V USB-style logic, gateways, or communications electronics in an equipment enclosure?
It can fit 5V logic and communications hardware when the combined draw does not exceed 20A or 100W. The constant-voltage output makes it appropriate for electronics that expect a regulated 5V rail rather than a constant-current source.
Can this model support a 5V PLC accessory or industrial I/O subsystem?
It is suitable for 5V automation electronics that require stable constant-voltage power up to 20A. That gives more current headroom for dense 5V control loads than the 24V version, which is limited to 4.2A.
Is the RSD-100D-5 suitable for outdoor cabinets or temperature-extreme environments?
The specified operating range is -40°C to +85°C, which supports use across a wide temperature span. No IP rating is shown in the provided specs, so the product data does not confirm outdoor exposure resistance.
What are the main differences between the RSD-100D-5 and the other 100W RSD outputs?
Among the listed 100W-class outputs, the 5V models are 100W at 20A, the 12V models are 100.8W at 8.4A, and the 24V models are 100.8W at 4.2A. In the D versions, RSD-100D-5 is 100W 5V 20A, RSD-100D-12 is 100.8W 12V 8.4A, and RSD-100D-24 is 100.8W 24V 4.2A.
