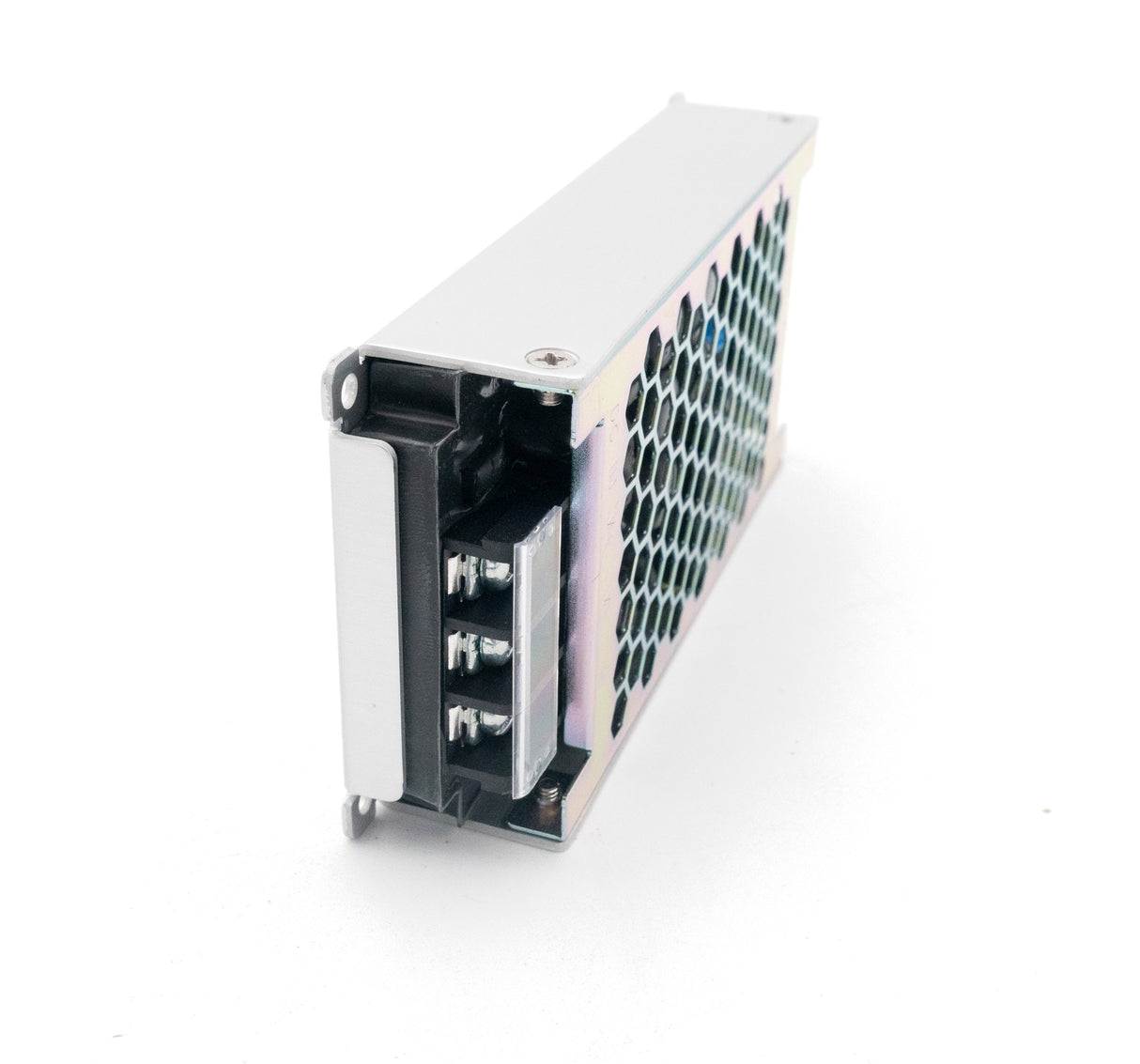

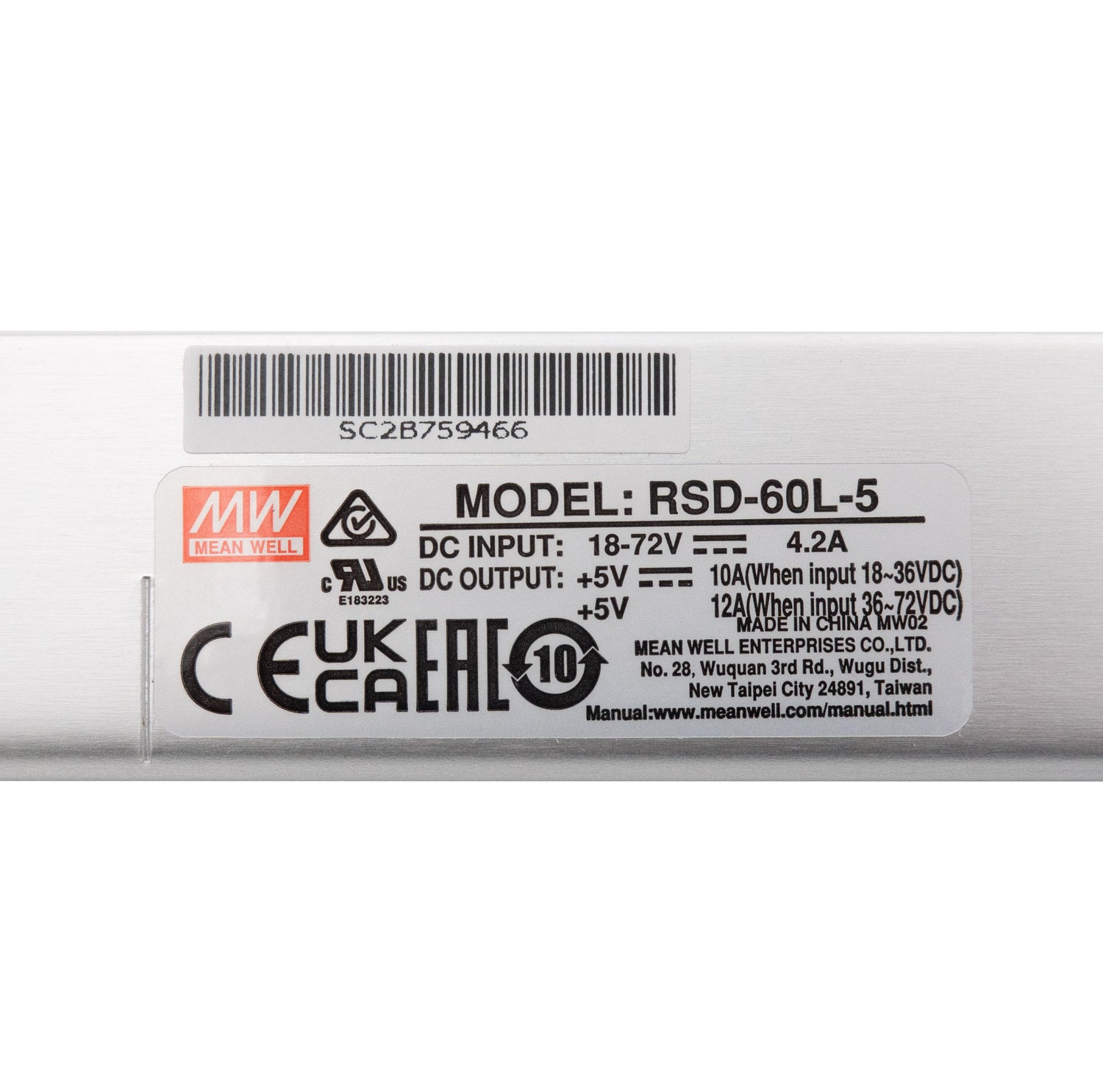

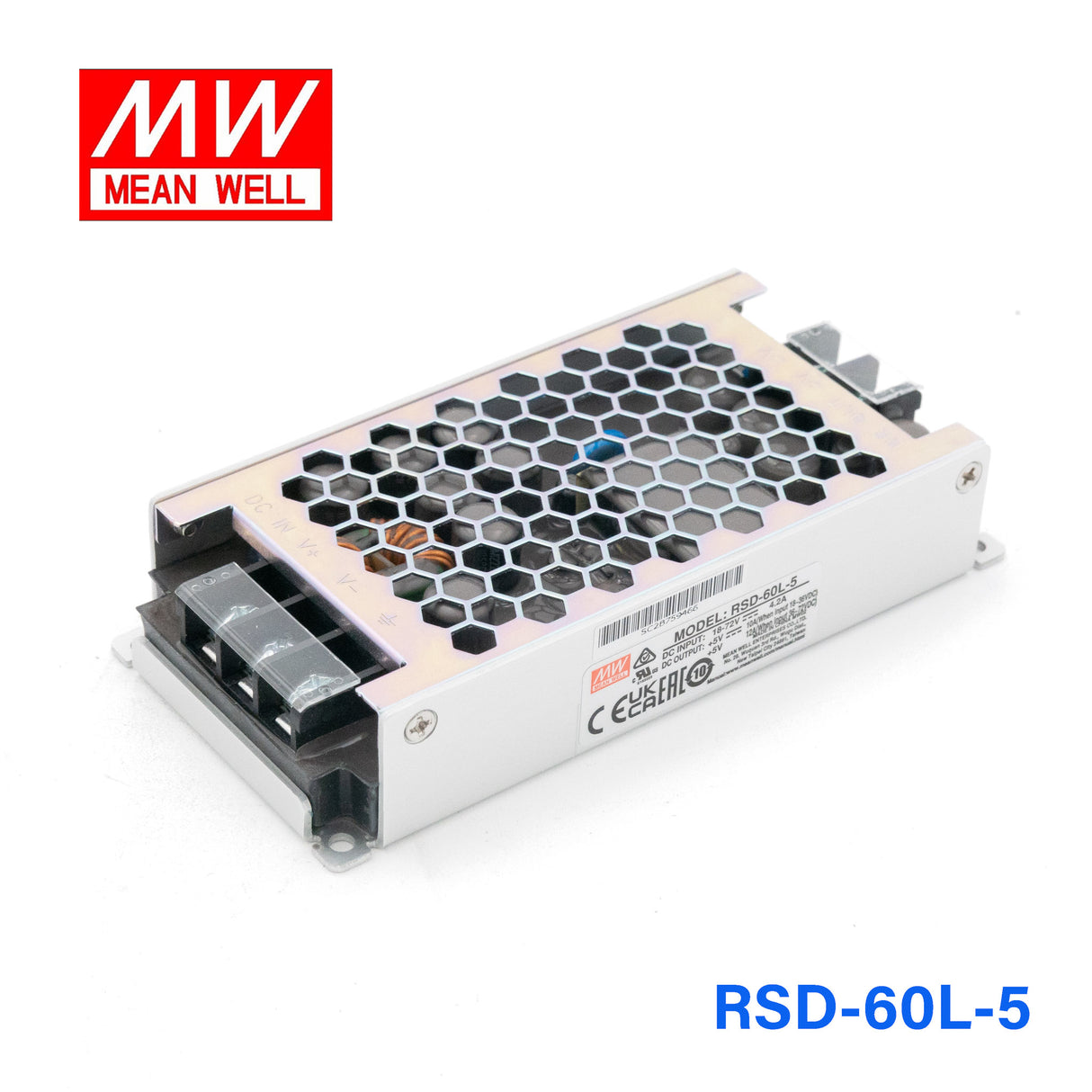

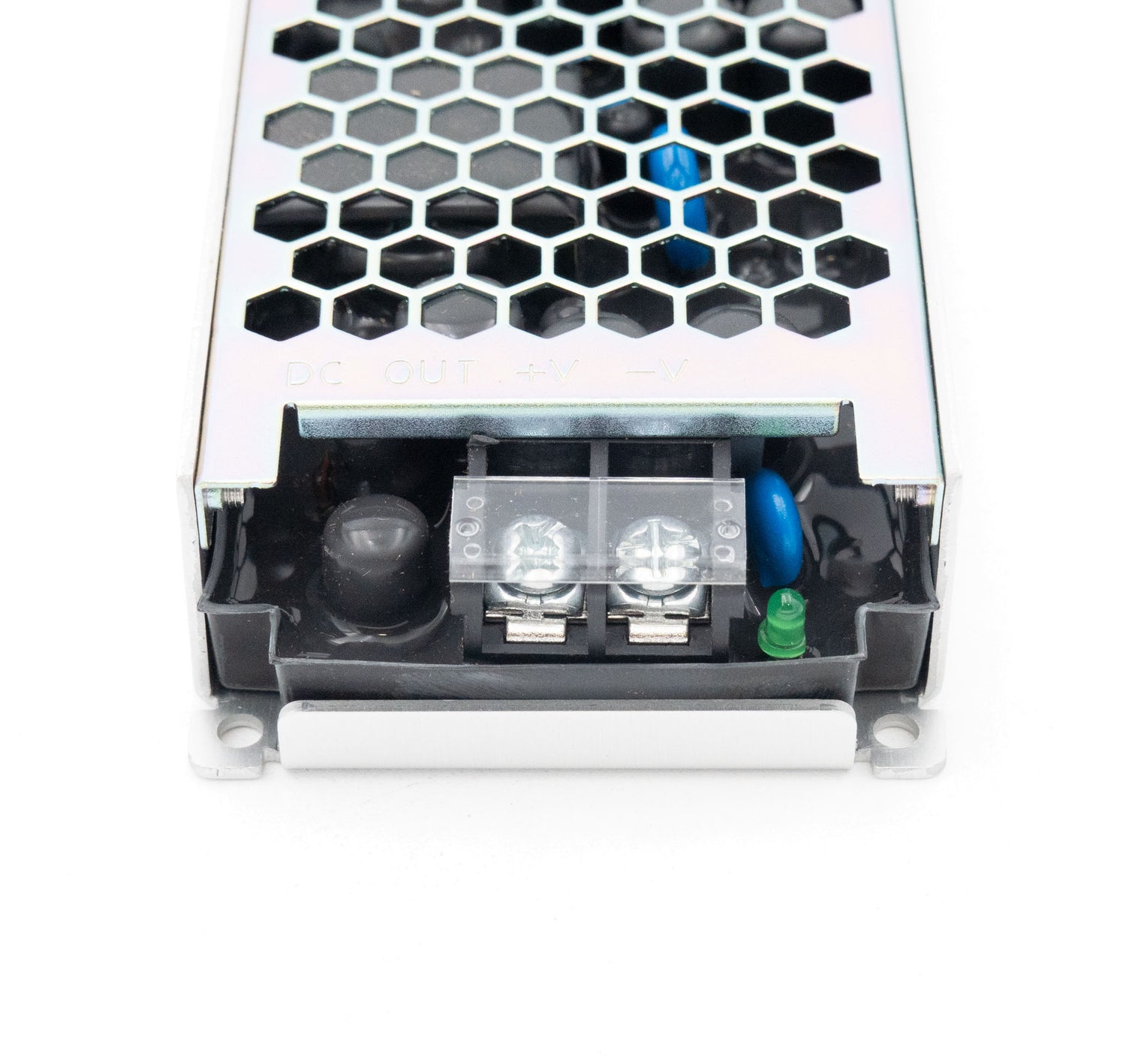

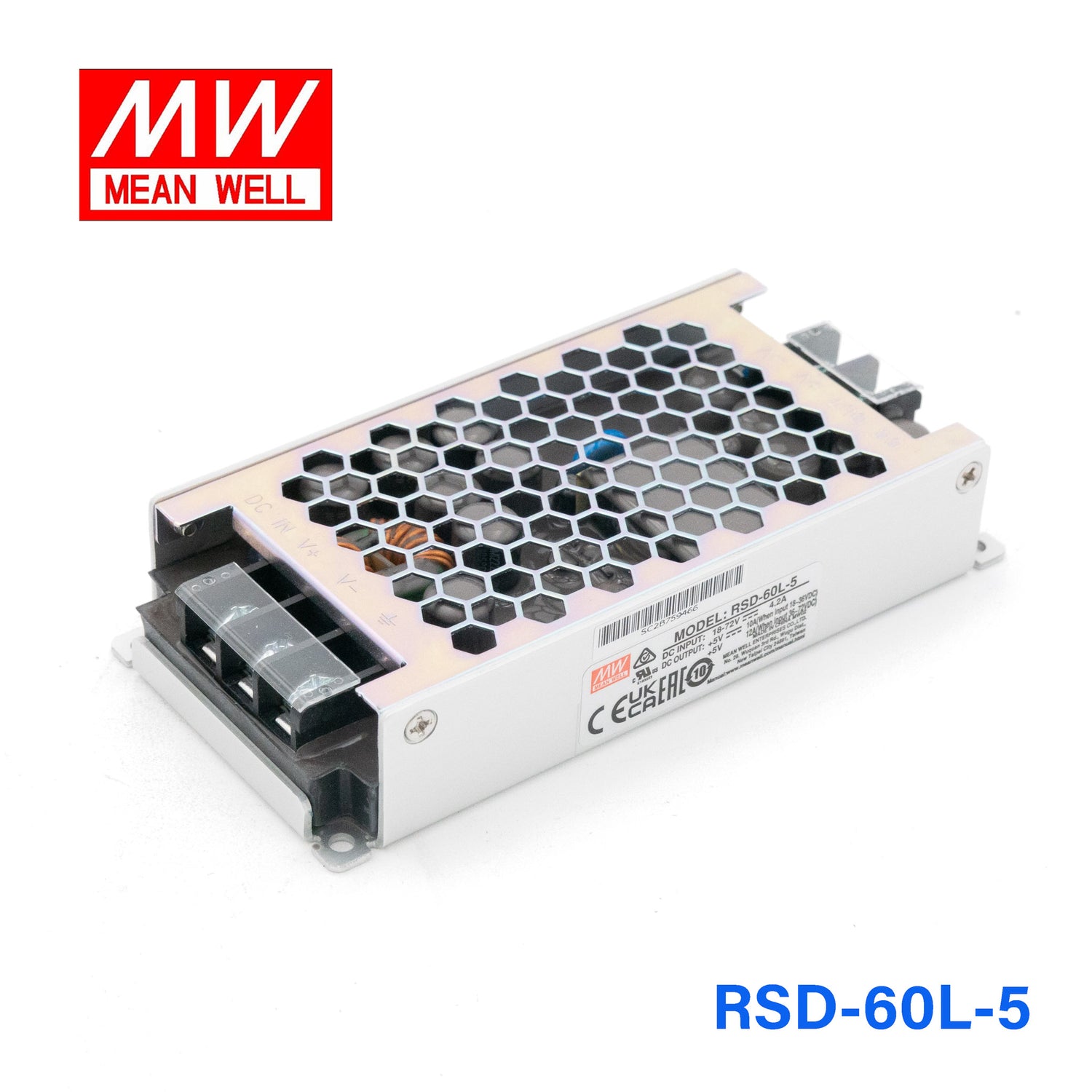

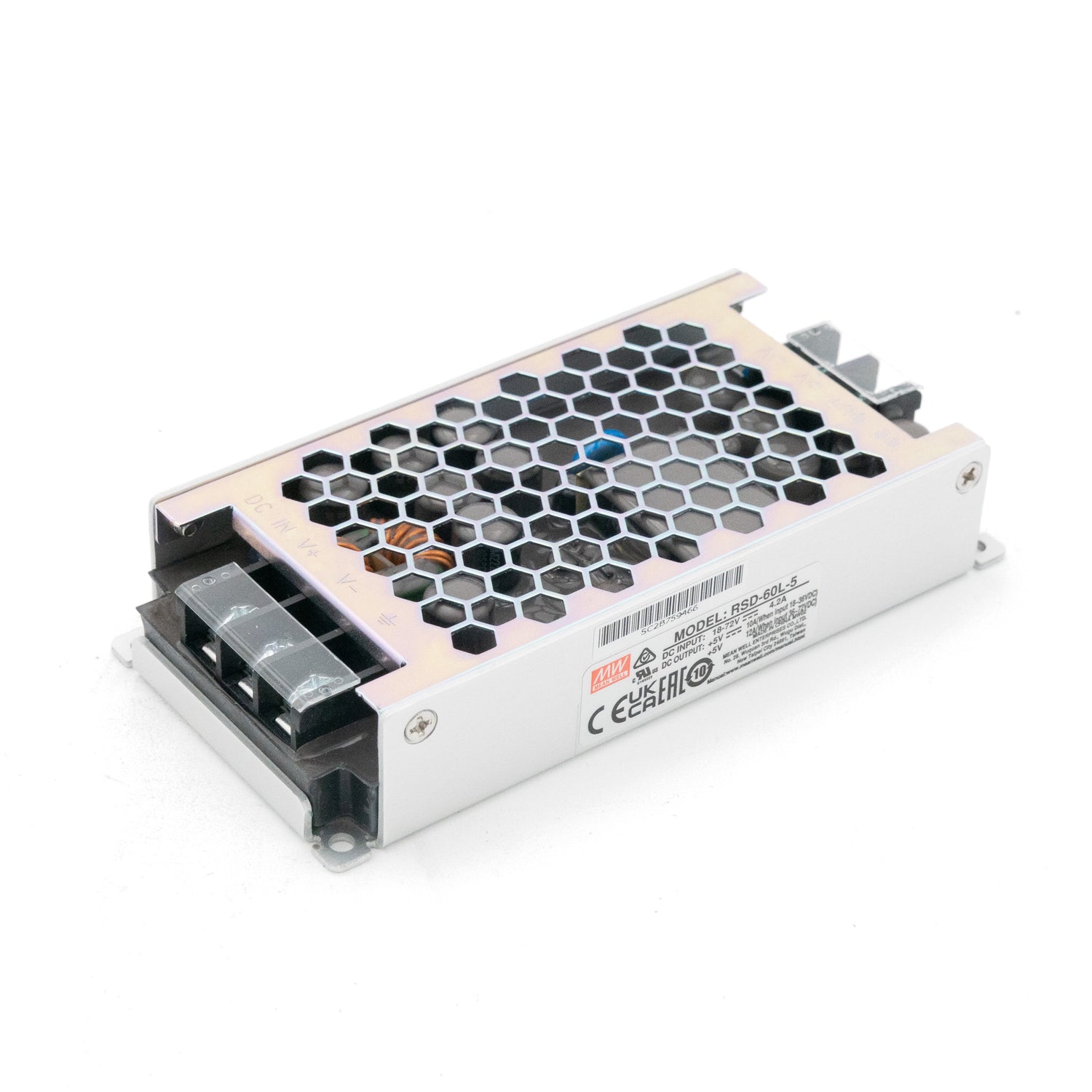

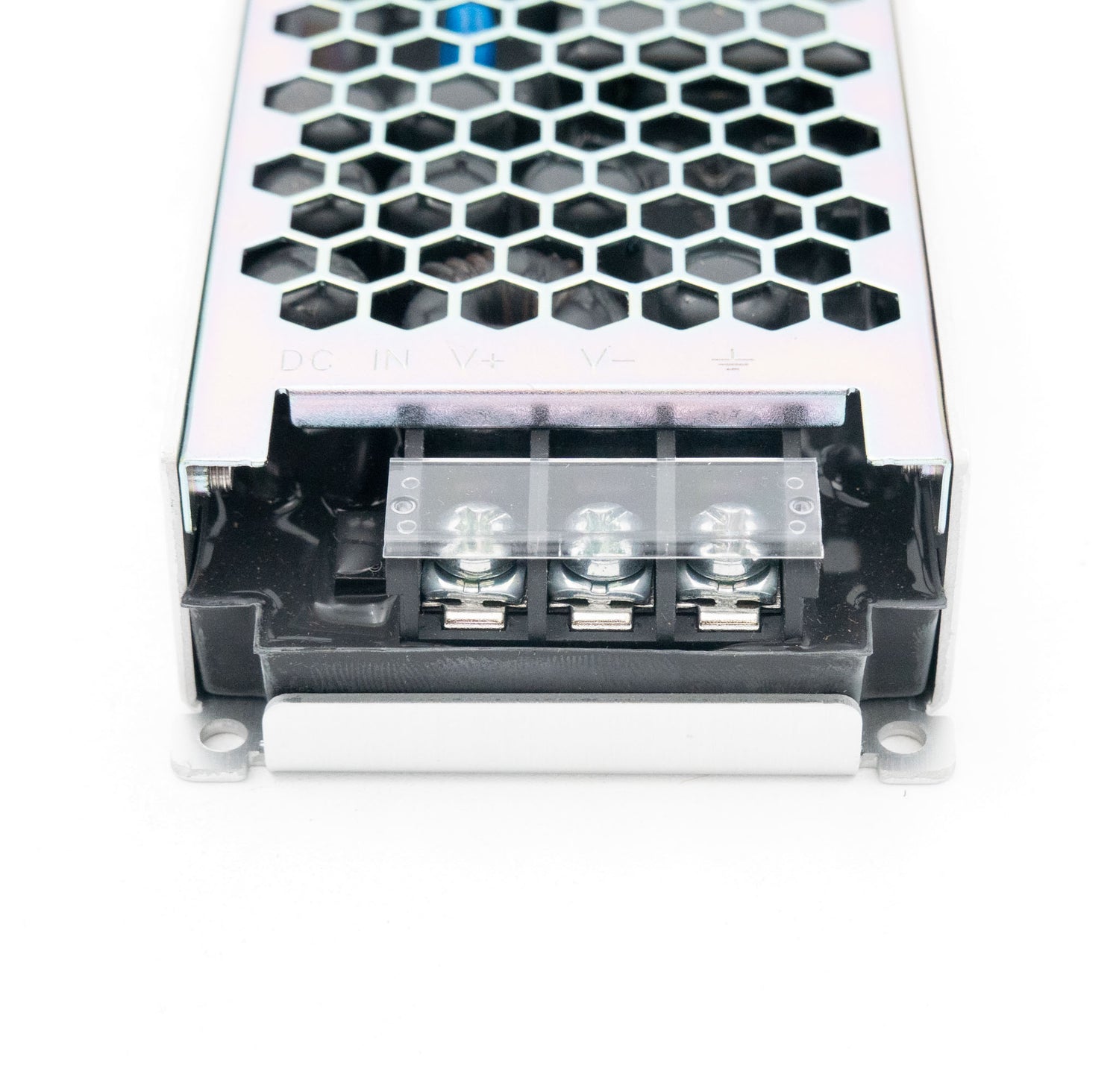

Mean Well RSD-60L-5 DC-DC Converter - 30W - 18~72V in 5V out

miniature size, economical, withstand 5G vibration and 70°C operation

SKU:

RSD-60L-5

$39.67 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Compliance with BS EN/EN50155 and BS EN/EN45545-2 railway standard

Ultra compact and 1U low profile(25mm

4:1 wide input range

No minimum load required

Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp.

4000VDC I / O isolation

Half encapsulated, cooling by free air convection

-40~+70℃ wide working temperature

The built-in constant current limiting circuit

LED indicator for power on

100% full load burn-in test

3 years warranty

General Specification

Line regulation (max.)	± 0.5%
Load regulation (max.)	± 0.5%
Overload protection Range	105% ~ 135%
Overload protection Type	Constant current limiting recovers automatically after the fault condition is removed
Over-voltage protection	115% to 135% Shutdown O / P voltage, re-power on to recover
Withstand voltage	I / PO / P: 4kVDC, I / P-FG: 2.5kVDC, O / P-FG: 2.5kVDC, 1 minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working temperature	-40 ~ + 85°C (refer to output derating curve)
Safety standards	IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
EMC standards	EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,5,6,8
Railway standard	EN50155 / IEC60571
Dimension (LxWxH) (mm)	128 x 60 x 25mm
Packing	0.29Kg; 48pcs/14.9Kg/0.75CUFT

Specifications

Brand

Mean Well
Series

RSD Series
Power Rating

30 Watt
Output Voltage

5 Volt
Rated Current

12 Ampere
Input Voltage

18V~72V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,EMC,RCM
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

3 Year
Length

5.04 in
Width

2.36 in
Height

0.98 in
Weight

0.64 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the RSD-60L-5 to power a 5V single-board computer, controller, or industrial USB-class electronics?

This converter provides constant-voltage 5V output at up to 12A, with a 30W total rating. It is suitable for 5V embedded or industrial electronics when the source is within the specified 18-72VAC input range and the load remains within 30W.

Is the RSD-60L-5 suitable for 5V automation peripherals or control electronics in industrial equipment?

It can support regulated 5V loads used in automation, monitoring, or embedded control systems. The published output limits are 5V, 12A, and 30W, so the connected equipment needs to stay within those figures.

Can this model be used in moving equipment or industrial systems with vibration?

The features specify 5G vibration resistance, and the operating temperature range is -40°C to +70°C. That makes it a reasonable fit for 5V embedded power conversion in industrial or mobile equipment where those environmental limits matter.

Is the RSD-60L-5 intended for outdoor environments?

The available environmental specs are -40°C to +70°C operation and 5G vibration resistance. Because no IP rating is listed, the provided data does not confirm outdoor, wet-location, or sealed-enclosure suitability.

How does the RSD-60L-5 compare with the other RSD-60L variants?

The RSD-60L-5 is rated for 30W and outputs 5V at 12A. The related RSD-60L models listed are RSD-60L-3.3 at 19.8W, 3.3V, 12A; RSD-60L-12 at 30W, 12V, 5A; and RSD-60L-24 at 30W, 24V, 2.5A.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well RSD-60L-24 DC-DC Converter - 30W - 18~72V in 24V out	30W	24V	2.5A	Indoor	$39.67	View
Mean Well RSD-60L-12 DC-DC Converter - 30W - 18~72V in 12V out	30W	12V	5A	Indoor	$39.67	View
Mean Well RSD-60L-3.3 DC-DC Converter - 19.8W - 18~72V in 3.3V out	19.8W	3.3V	12A	Indoor	$39.66	View
