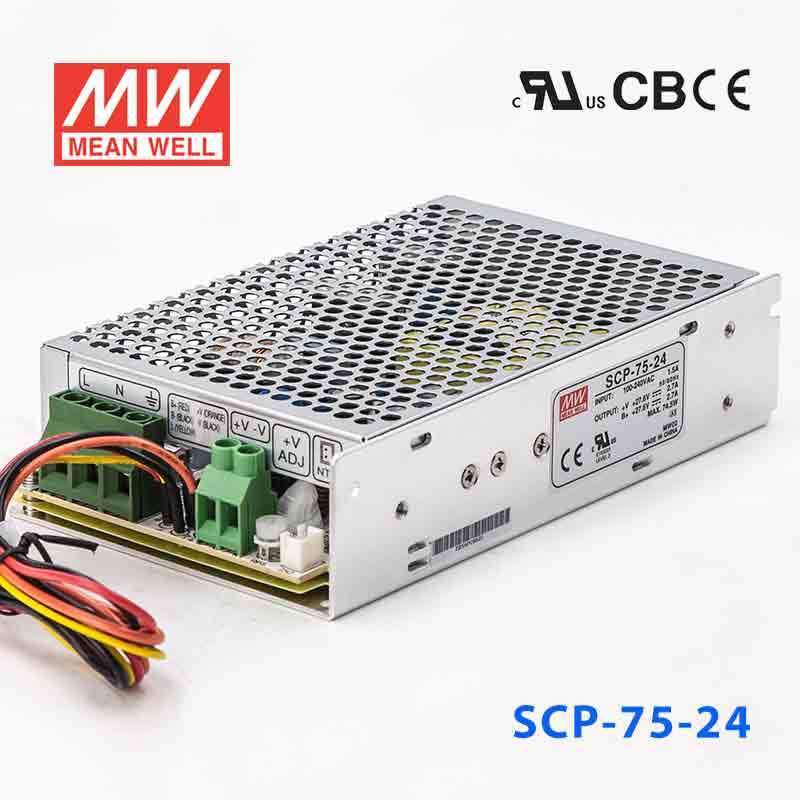

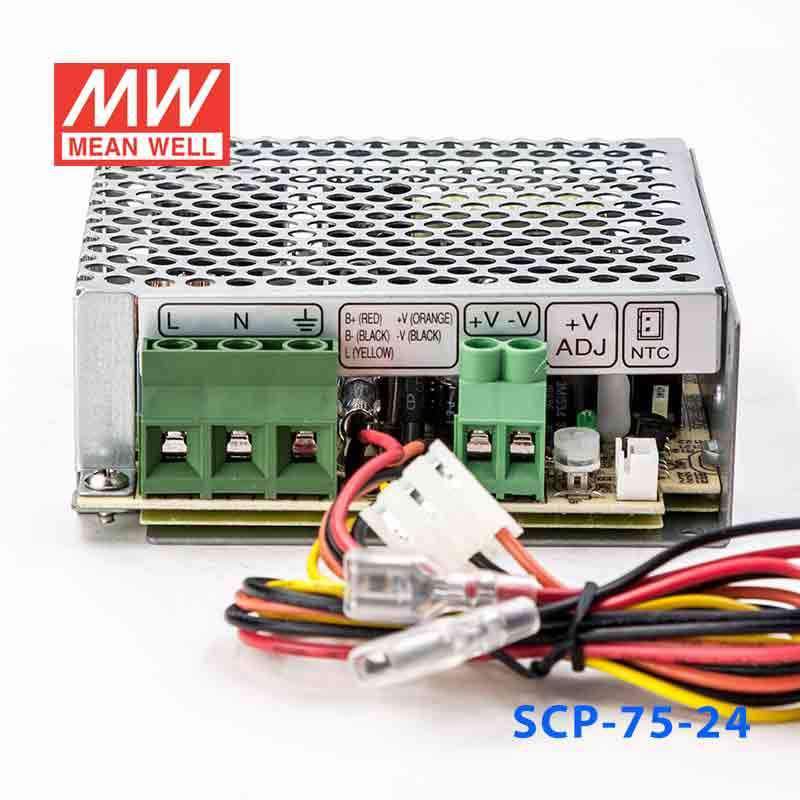

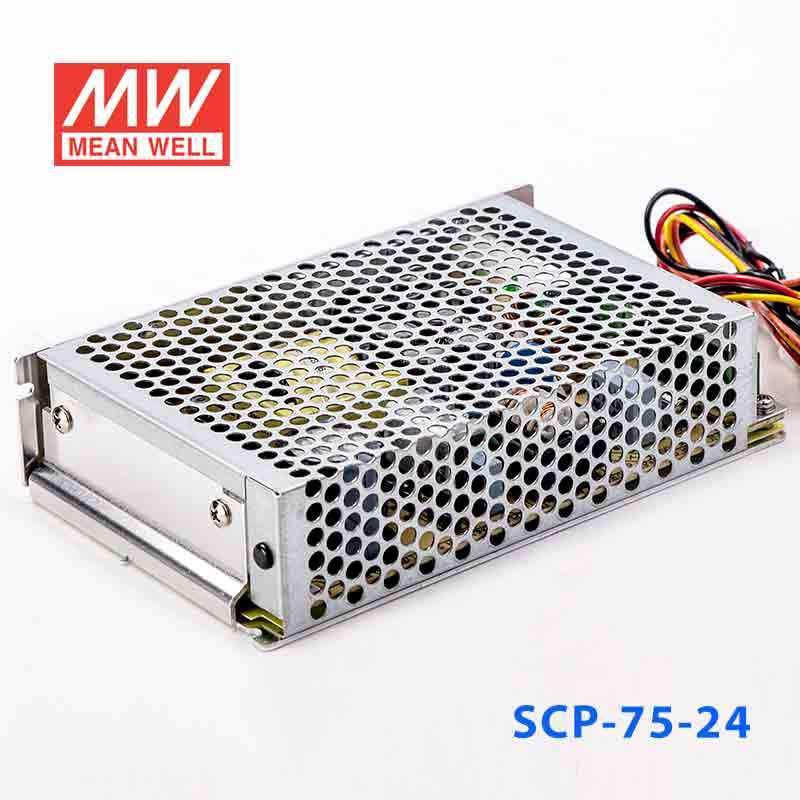

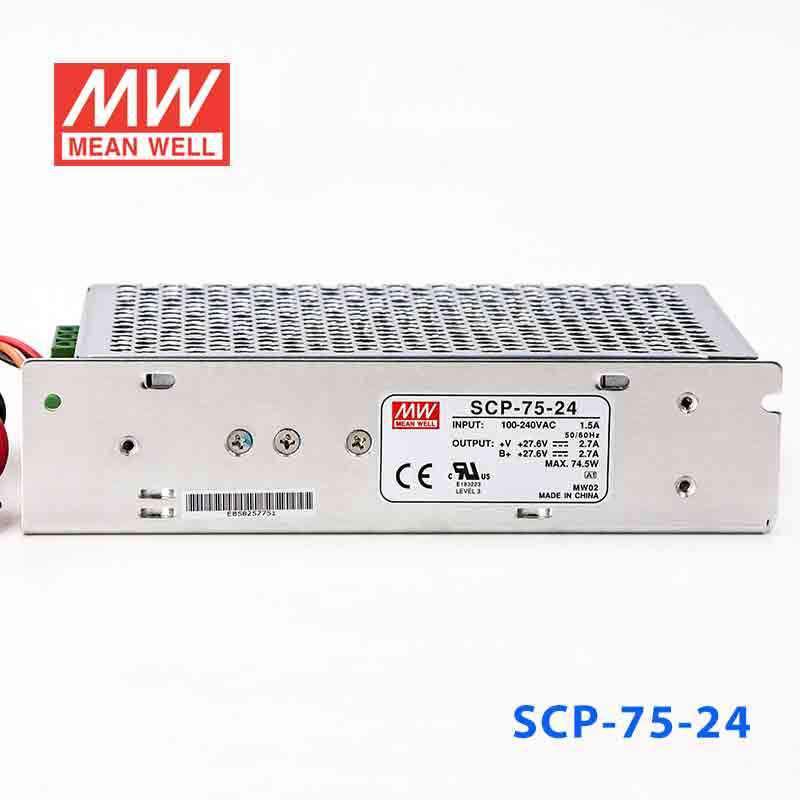

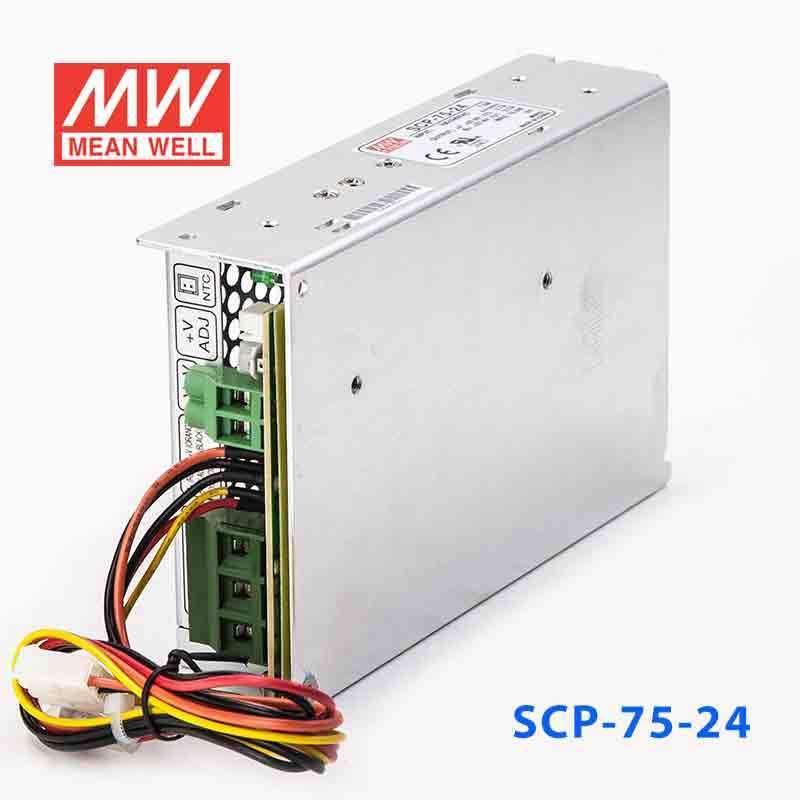

Mean Well SCP-75-24 Power supply 74.5W 27.6V 2.7A
Description
Description
Features
| Universal AC input / Full range |
| LED indicator for power on |
| No load power consumption <0.75W |
| Protections: Short circuit / Over current / Over voltage / Battery polarity (by fuse) |
| Temperature compensation function (by external thermistor) |
| Cooling by free air convection |
| 100% full load burn-in test |
| 2 years warranty |
General Specification
| AC input voltage range | 85~264VAC/ 120~370VDC |
| AC inrush current | Cold start, 45A |
| DC adjustment range | 95%~115% rated output voltage |
| Overload protection | 120%~165%, hiccup mode, auto-recovery |
| Over voltage protection | 120%~140%, rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, 1minute |
| Working temperature | -20~+60°C (refer to output derating curve) |
| Safety standards | UL60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1 |
| Connection | I/P: 3 poles, O/P: 2 poles screw terminal |
| Packing | 0.5kg ; 30pcs / 16.0kg / 1CUFT |
| Dimension (LxWxH) (mm) | 159x 97x 38 mm |
| Setup, rise, hold up time | 500ms, 30ms, 50ms at full load and 230VAC |
Specifications
Specifications
-
BrandMean Well
-
SeriesSCP Series
-
Power Rating74.5 Watt
-
Output Voltage27.6 Volt
-
Rated Current2.7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the Mean Well SCP-75-24 for a 24V industrial control panel?
It can fit 24V-class control systems that are designed to accept a regulated 27.6V constant-voltage supply. This model provides 74.5W and up to 2.7A, so it is better suited to control panels, relays, sensors, and similar automation loads that stay within that output.
Is the SCP-75-24 suitable for PLC, HMI, and automation equipment?
Yes, it is generally suited to automation equipment that uses a constant-voltage 27.6V DC supply and stays within 74.5W and 2.7A. The 85-264VAC input range also makes it practical for industrial and control environments where AC input flexibility is needed.
Can this power supply be used for embedded or industrial electronics that need stable DC output?
It is intended for constant-voltage applications that need 27.6V output, which can make it a fit for embedded and industrial electronics designed around that voltage. Buyers should confirm the equipment stays within the 2.7A and 74.5W limits before selecting it.
Is the SCP-75-24 a good choice for systems that benefit from temperature-compensated output behavior?
This model includes a built-in temperature compensation function, so it can be relevant for systems where that feature is required as part of the power design. It still remains a 27.6V constant-voltage supply rated for 74.5W and 2.7A, so the connected load needs to match those limits.
How does the SCP-75-24 compare with the other Mean Well SCP series models?
Within the same series, the sibling models are SCP-35-12 at 35.9W, 13.8V, 2.6A; SCP-35-24 at 38.6W, 27.6V, 1.4A; SCP-50-12 at 49.7W, 13.8V, 3.6A; SCP-50-24 at 49.7W, 27.6V, 1.8A; and SCP-75-12 at 74.5W, 13.8V, 5.4A. The SCP-75-24 is the 27.6V, 74.5W, 2.7A option in that group.
Can the SCP-75-24 be used outdoors or in harsh temperature conditions?
The operating temperature range is -20°C to +60°C, so it is specified for a fairly broad temperature range. No IP rating is provided in the product specs, so it should be treated as a supply for protected indoor use or for installation inside an enclosure that provides the needed environmental protection.
Other SCP-75 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SCP-75-12 Power supply 74.5W 13.8V 5.4A | 74.5W | 13.8V | 5.4A | Indoor | $28.53 | View |
