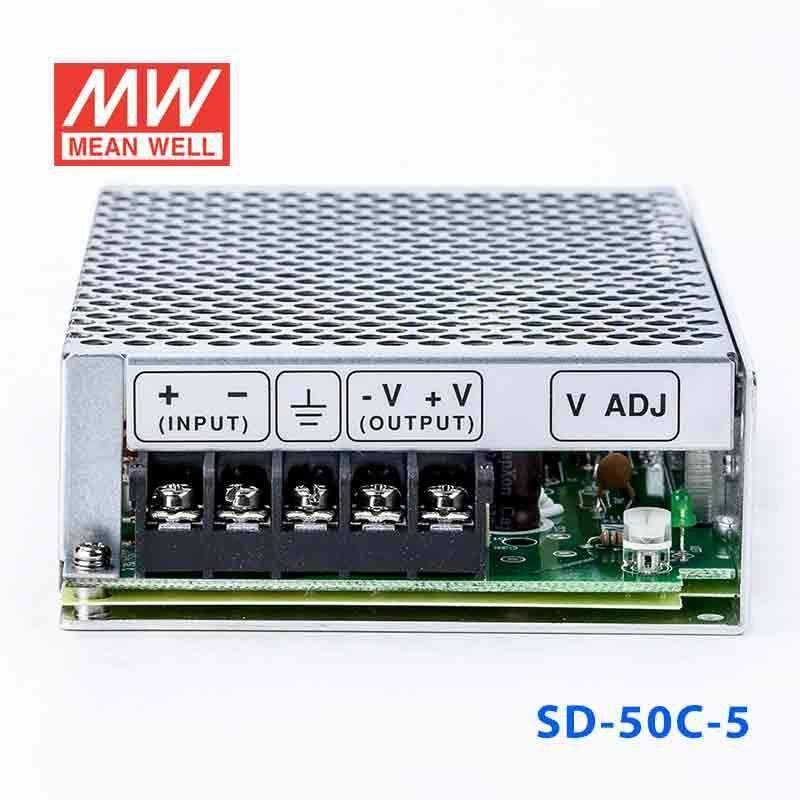

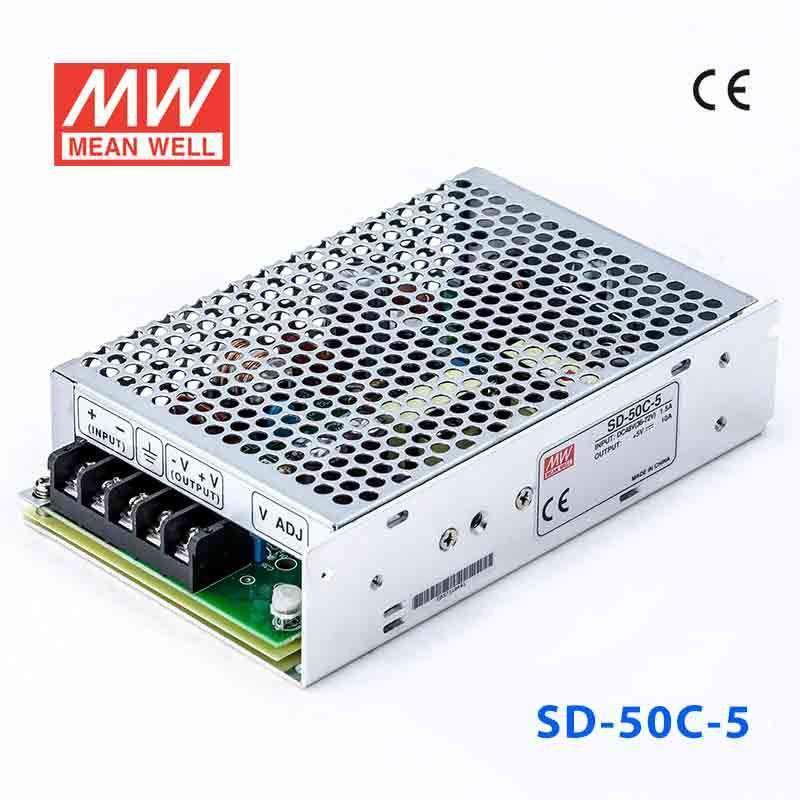

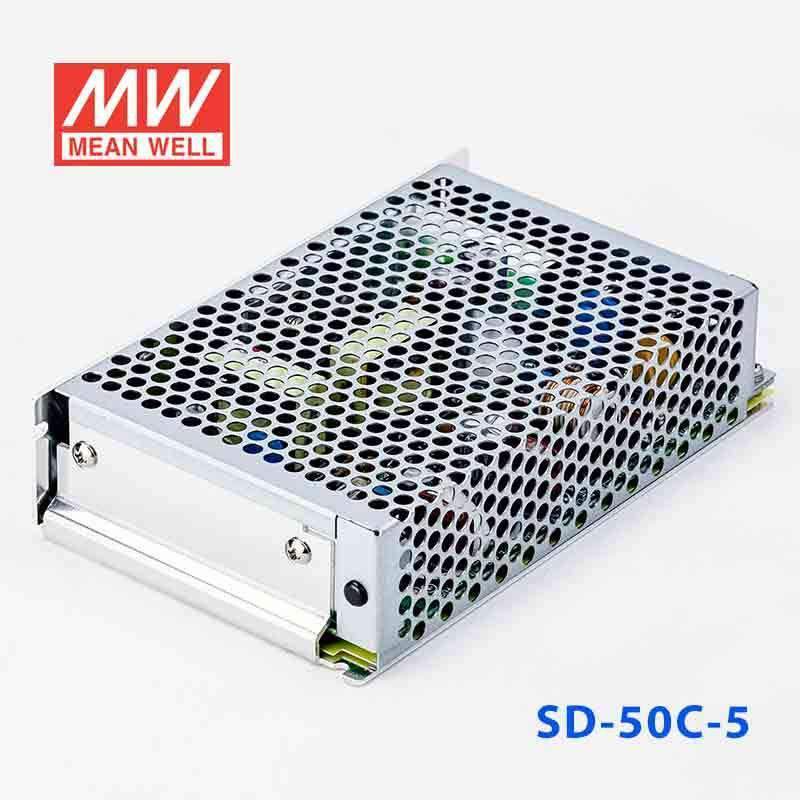

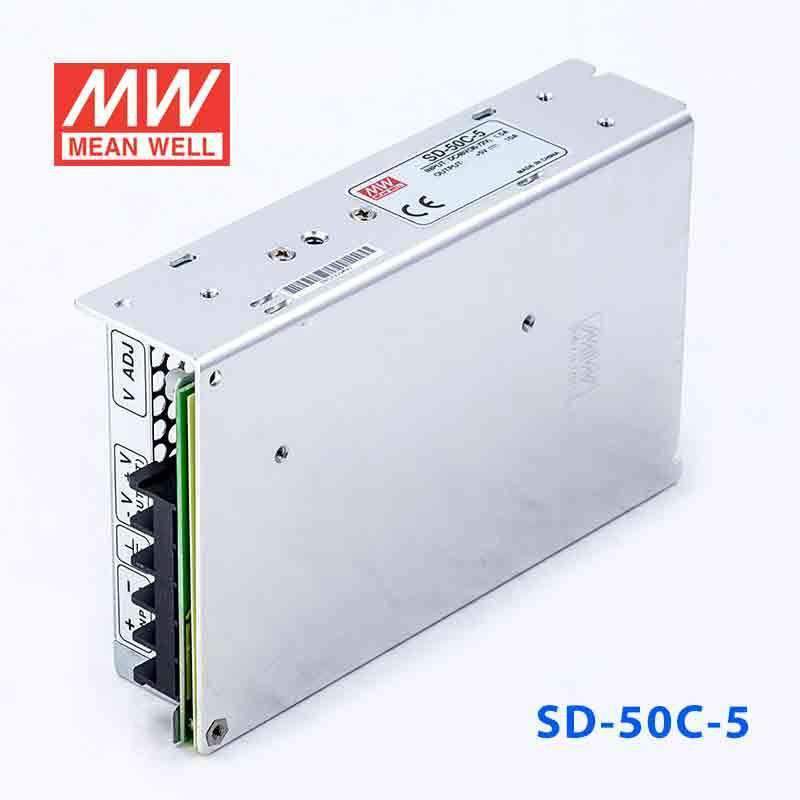

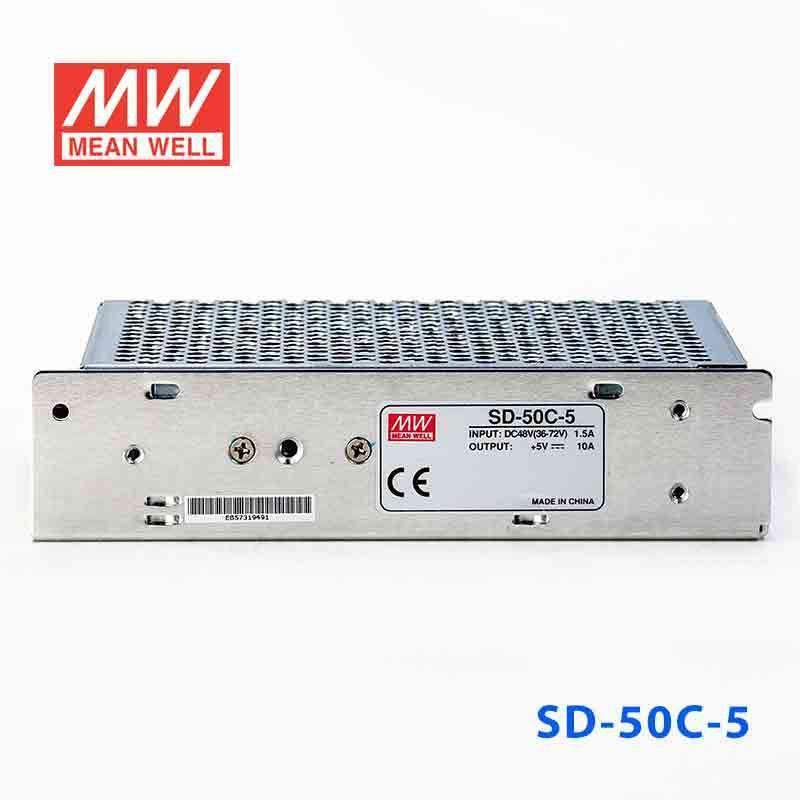

Mean Well SD-50C-5 DC-DC Converter - 50W - 36~72V in 5V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-50C-5 DC-DC Converter - 50W - 36~72V in 5V out
Description
Description
Specifications
Specifications
-
BrandMean Well
-
SeriesSD Series
-
Power Rating504 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.06 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SD-50C-5 to power a 5V embedded computer or industrial SBC from a 36-72V source?
Yes, it is suited to constant-voltage 5V electronics when the source feeding it is within 36-72V. The available output current is 10A, so the total 5V load needs to stay within that limit.
Is this converter appropriate for 5V logic boards, I/O modules, or communication hardware in automation equipment?
It can fit 5V control and interface hardware that requires a regulated constant-voltage rail. As long as the combined load stays at or below 10A, it can serve as a 5V bus converter inside industrial or embedded systems.
Can the SD-50C-5 run several 5V peripherals from one converter?
It can power multiple 5V devices if their combined draw does not exceed 10A. That makes it suitable for grouped low-voltage loads such as controllers, communication modules, and other 5V constant-voltage electronics.
How do I know if this 5V converter is large enough for my load?
The sizing limit to check is the 10A output current at 5V. If the full 5V load stays within those output specs, this model is a match; if it exceeds them, it is not.
Can I use the SD-50C-5 in outdoor or unsealed equipment?
The specified operating range is -10°C to +60°C, so temperature should stay within that window. No IP rating is listed in the provided specs, so outdoor exposure, water, and dust protection need to be handled by the enclosure.
Other SD-50C Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SD-50C-24 DC-DC Converter - 50W - 36~72V in 24V out | 50W | 24V | 2.1A | Indoor | $31.00 | View |
| Mean Well SD-50C-12 DC-DC Converter - 50W - 36~72V in 12V out | 504W | 12V | 4.2A | Indoor | $31.00 | View |
