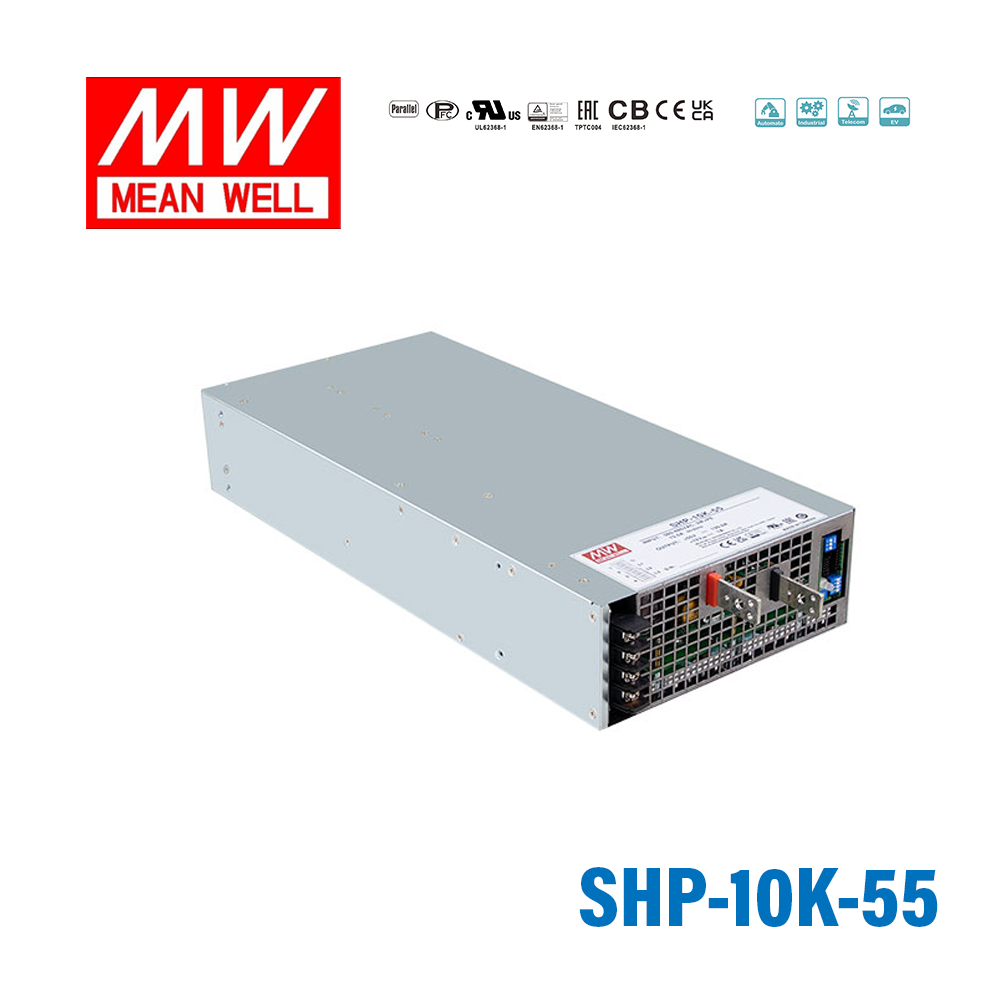

Mean Well SHP-10K-55 7000W High Efficiency Power Supply 55V Out 131A

Features:

• 3ψ 3-wire / △ or Y 340~530VAC or 3ψ 4-wire / Y 340-530VAC
• High efficiency up to 97%
• Water / forced air cooling selectable
• Built-in CANBus/Optional PMBus/MODBus-RTU/RS-485 protocol
• Output voltage and constant current level programmable
• Active current sharing up to 4 units (40KW)
• Built-in remote ON-OFF control / Auxiliary power / Alarm signal
• Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
• 5 years warranty

General Specification

AC Input Voltage Range

3ψ 3-wire or 3ψ 4-wire / 340 ~ 530VAC

AC Inrush Current (max.)

40A/400VAC 65A/480VAC

Overload Protection

100 ~ 105% of rated current

Protection type : Constant current limiting, unit will shutdown after 5 sec. re-power on to recover

Over-Voltage Protection

60.5-69.1V | 145-166V | 273-312V | 420-480V

Protection type : Shut down o/p voltage, re-power on to recover

Over Temperature Protection

Shut down o/p voltage, recovers automatically after temperature goes down

Withstand Voltage

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC

Working Temperature

-30 ~ +70℃ (Refer to "Derating Curve")

Safety Standards

UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

Dimension (LxWxH)

460x211x83.5mm
