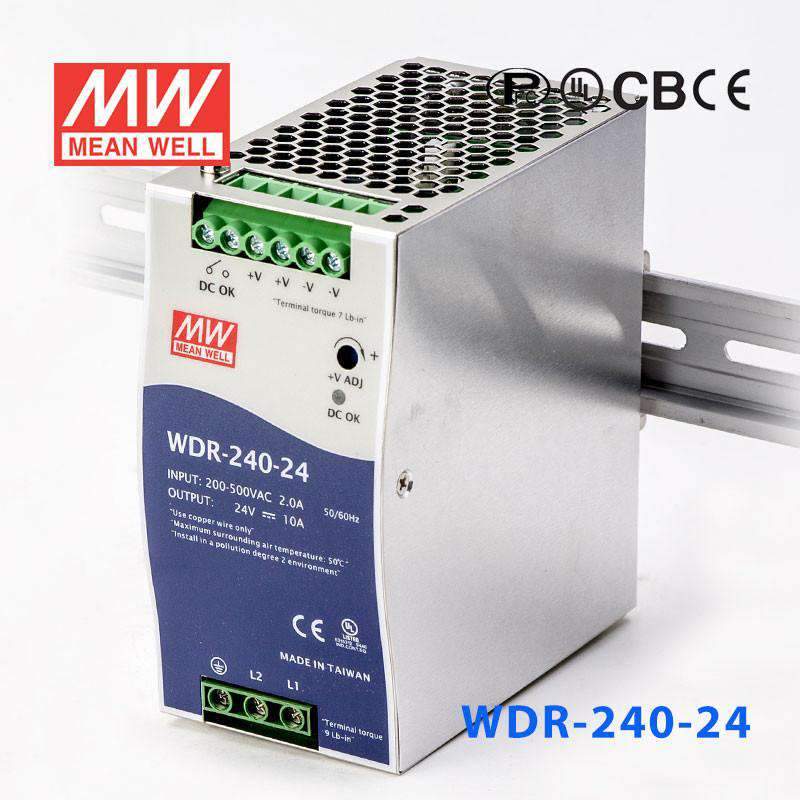

Mean Well WDR-240-24 Single Output Industrial Power Supply 240W 24V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well WDR-240-24 Single Output Industrial Power Supply 240W 24V...
Description
Description
Features
| Single and two phase wide input range 180~550VAC |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Cooling by free air convection |
| Built-in constant current limiting circuit |
| Can be installed on DIN rail TS-35 / 7.5 or 15 |
| UL508(industrial control equipment) approved |
| EN61000-6-2(EN50082-2) industrial immunity level |
| Built-in DC OK relay contact |
| 100% full load burn-in test |
| Built-in active PFC |
| 3 years warranty |
General Specification
| AC input voltage range | 180~550VAC(single and two phase); 254~780VDC |
| AC input current | 1A / 400VAC, 2A / 230VAC |
| AC inrush current (max.) | Cold start, 50A at 400VAC |
| DC adjustment range | 24V: 24~28V, 48V: 48~55V |
| Overload protection | 105%~130% rated output power, constant current limiting, unit will shut down after 3 sec.; auto-recovery after 1 minute if the fault condiction is removed. |
| Over voltage protection Range | 16~18V for 12V model (only for WDR-120), 29~33V for 24V model, 56~65V for 48V model |
| Over voltage protection Type | Shut down o/p voltage, auto-recovery after 1 minute if the fault condition is removed |
| Setup, rise, hold up time | 1500ms, 150ms, 18ms at full load and 230VAC; 800ms, 150ms, 18ms at full load and 400VAC |
| Over temp. protection | Shut down output voltage, recovers automatically after temperature goes down |
| Withstand voltage | I/P-O/P:3kVAC, I/P-FG:1.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVAC, 1 minute |
| Working temperature | -30~+70°C (refer to output derating curve) |
| DC OK signal | Relay Contact |
| Leakage current | <3.5mA at 530VAC |
| Vibration | 10~500Hz, 2G 10 minutes / 1 cycle, period of 60 minutes each along X, Y, Z axes |
| Safety standards | UL508 approved ; IEC60950-1 CB approved by SIQ ; Design refer to GL |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level |
| Connection | I/P: 3 poles, O/P: 6 poles screw DIN terminal |
| Dimension (LxWxH) | 63x125.2x113.5 |
| Packing | 12pcs / 13.7kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesWDR Series
-
Power Rating240 Watt
-
Output Voltage24 Volt
-
Rated Current10 Ampere
-
Input Voltage180V~550V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.93 in
-
Width4.47 in
-
Height2.48 in
-
Weight2.34 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the WDR-240-24 for a larger 24V PLC control cabinet?
Yes, this model is designed for 24V control panels that need more capacity, with a 240W output rating and 10A output current. It mounts on DIN rail and uses a 63.0 mm slim body relative to higher-capacity cabinet power supplies.
Is the WDR-240-24 suitable for 24V industrial automation loads in one enclosure?
It is a good fit for 24V industrial automation cabinets where multiple 24V loads are grouped and the total demand stays within 240W. The 180-550VAC wide input supports use with 1 phase and 2 phase input systems.
Can this be used in a 24V building management panel with several control devices?
Yes, this power supply can serve 24V building management and control enclosures that require up to 10A at 24V DC. Compared with the 120W version, it provides more output current while keeping the same 125.2 × 113.5 mm footprint.
Is the WDR-240-24 appropriate when cabinet temperatures drop below -25°C?
Yes, this model is rated for -30°C to +70°C operation, which extends lower than the 120W versions. That makes it suitable for protected control enclosures that may experience colder ambient conditions while still staying within the specified range.
What is the difference between the WDR-240-24 and other WDR DIN rail models?
The WDR family includes WDR-120-12 at 120W, 12V, 10A, WDR-120-24 at 120W, 24V, 5A, WDR-120-48 at 120W, 48V, 2.5A, WDR-240-24 at 240W, 24V, 10A, and WDR-240-48 at 240W, 48V, 5A. Larger models are WDR-480-24 at 480W, 24V, 20A and WDR-480-48 at 480W, 48V, 10A. Smaller models are WDR-60-12 at 60W, 12V, 5A, WDR-60-24 at 60W, 24V, 2.5A, WDR-60-48 at 60W, 48V, 1.25A, and WDR-60-5 at 50W, 5V, 10A.
Other WDR-240 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well WDR-240-48 Single Output Industrial Power Supply 240W 48V - DIN Rail | 240W | 48V | 5A | Indoor | $99.88 | View |
