Powering Next-Gen Industrial, Telecom, and Distributed Systems with High Power Density

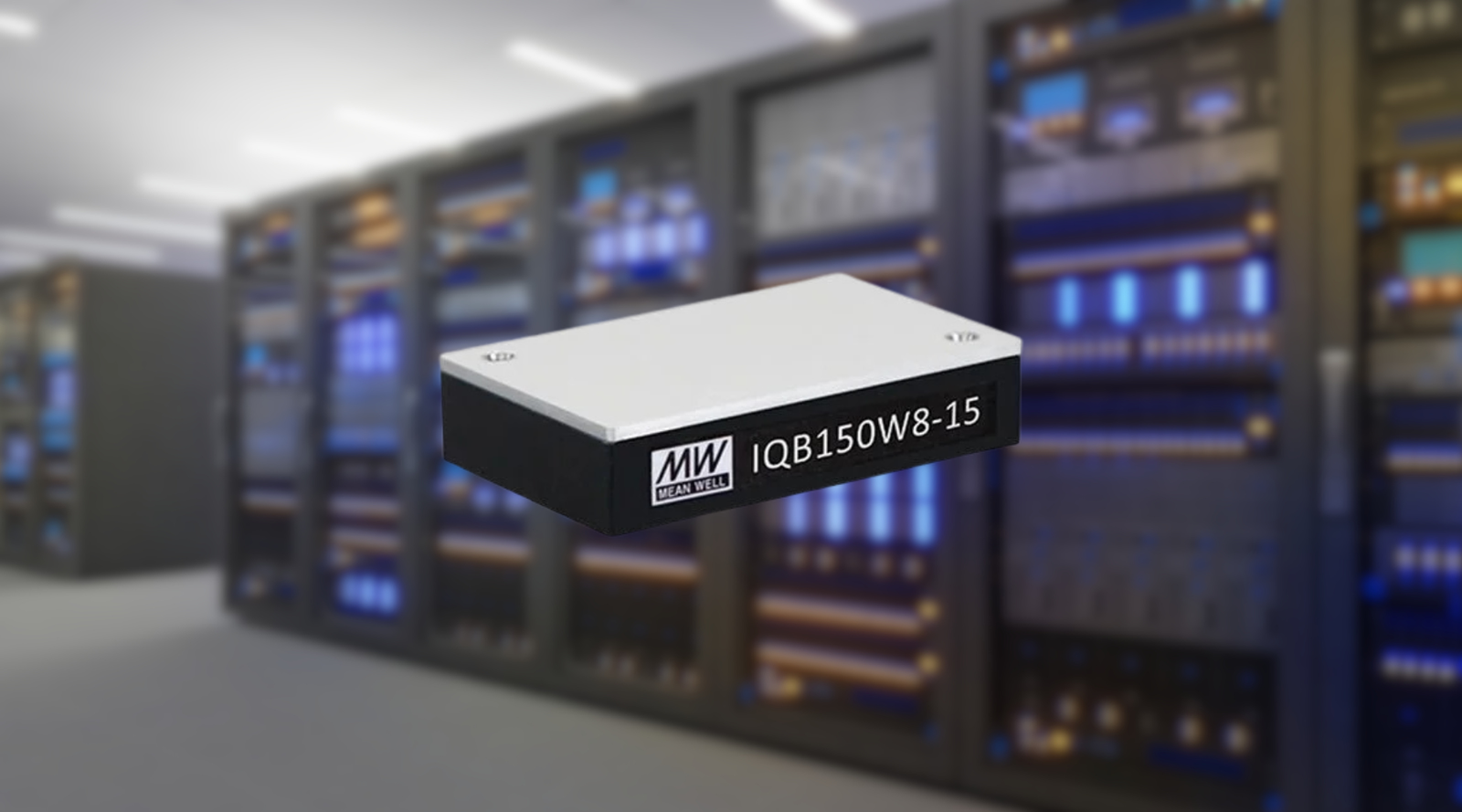

To keep pace with the growing demand for flexible, high-density power solutions, MEAN WELL is expanding its 8:1 ultra-wide input DC-DC lineup. Building on the success of our SIP (1W–9W), DIP (3W–20W), 1” x 1” (10W–30W), and 2” x 1” (10W–50W) series, we are proud to introduce the IQB150W8 Series—a 150W DC-DC converter in an industry-standard Quarter-Brick package.
With this addition, MEAN WELL is one of the few power manufacturers worldwide offering a complete 8:1 ultra-wide input module portfolio spanning 1W to 150W, providing a seamless, one-stop solution for low-, medium-, and high-power applications.
Massive 8:1 Input Range: Slash Inventory SKUs by up to 67%
The IQB150W8 Series features an ultra-wide 9~75Vdc (8:1) input range. A single converter model natively supports multiple standard system DC bus voltages, including 12V, 24V, 36V, 48V, and 72V.
Compared to traditional design setups that require separate 2:1 or 4:1 models (such as 9–18V, 18–36V, and 36–75V units), standardizing on the IQB150W8 allows you to:
- Reduce inventory SKUs by approximately 67%, dramatically simplifying supply chain logistics.
- Lower procurement overhead by consolidating component purchasing.
-
Streamline the design process, shortening development cycles across multiple system platforms.
Built Tough for Extreme Conditions
Housed in a ruggedized, fully encapsulated Quarter-Brick package, the IQB150W8 is engineered to thrive in harsh operating environments:
- Environmental Protection: Exceptional resistance against dust, moisture, and high-vibration stress.
- Wide Thermal Window: Reliable operation from -40°C to +90°C.
- Precision Tuning: Features built-in Remote ON/OFF Control (RC), Remote Sense (RS) to compensate for line loss, and a +/- 10% Output Voltage Trim for fine-tuning system loads.
Key Specifications & Features
- Form Factor: Encapsulated Quarter-Brick package with global standard pinout
- Input Voltage: Ultra-wide 8:1 range (9~75Vdc)
- Power Rating: 150W continuous output
- Operating Temp: -40°C to +90°C
- Ruggedization: Fully potted PCB for dust, moisture, and vibration resistance
- Control Features: Remote ON/OFF (RC), Remote Sense (RS), and Output Trim (+/- 10%)
- Full Protection: Short circuit, overload, overvoltage, over-temperature, and input UVLO
- Warranty: 3-Year Factory Warranty
Application
Product Information
If you have any technical issues, feel free to contact our team at contact@powersupplymall.com. We provide professional support and a wide range of DC-DC solutions.
