High-Power Enclosed Versatility for Extreme Environments and Precision Equipment

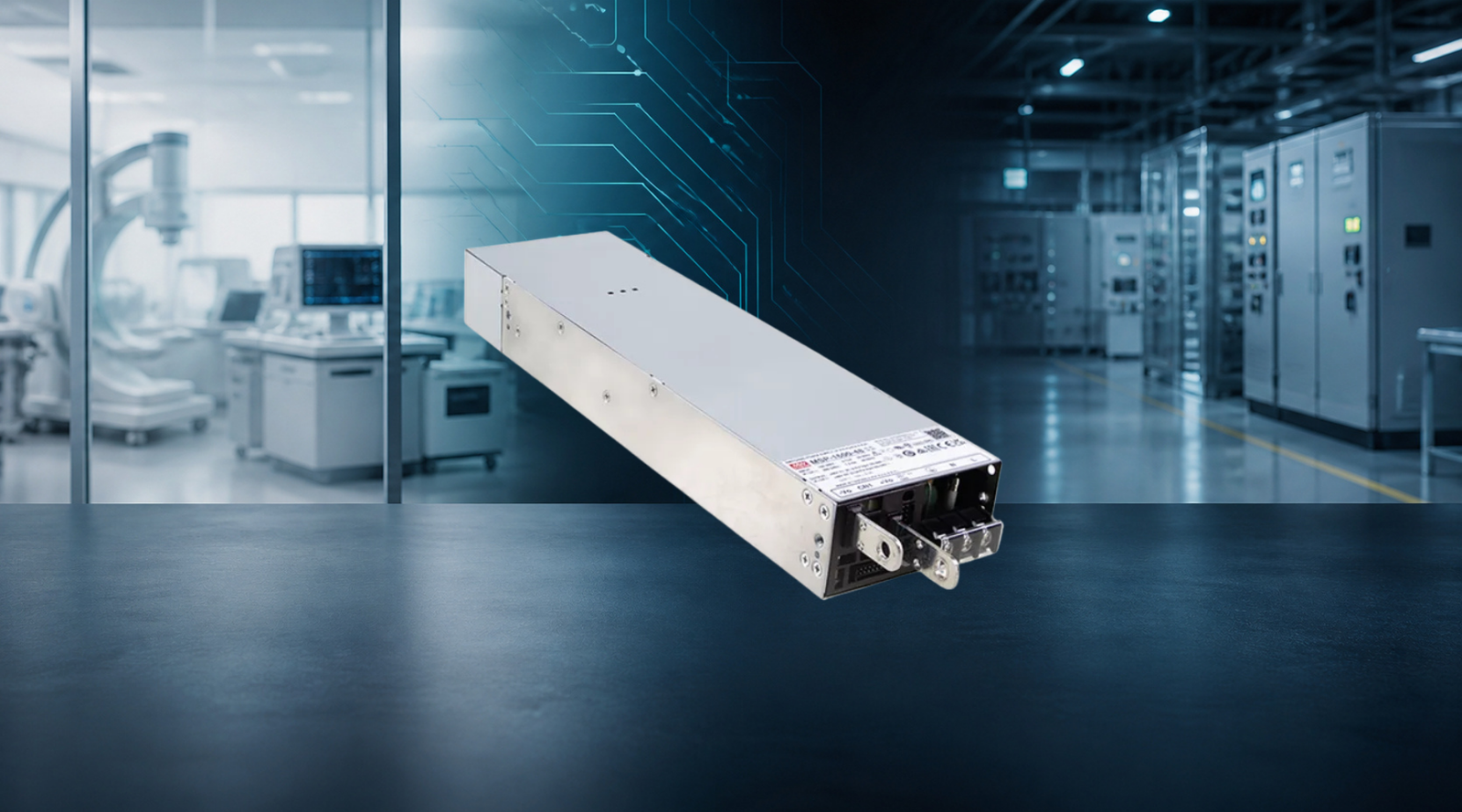

To meet growing market demand for medical-grade power supplies exceeding 1000W, MEAN WELL is expanding its proven MSP family. Building on the success of the 100W–1000W models, the new MSP-1600 Series packs 1600W of reliable power into a compact enclosure.
Designed on the robust NSP-1600 platform, the MSP-1600 brings enhanced capabilities: broader global safety certifications, ultra-low leakage current (<500uA), an extended operating temperature range (-40°C to +85°C), and programmable output voltage adjustment (15% to 115%).
Cross-Industry Compliance and Advanced Controls
While engineered for medical standards, the MSP-1600 carries certifications across multiple industrial domains, eliminating the need to source different power units for complex setups:
- 2xMOPP Medical Isolation: Features ultra-low leakage current (<500uA), fully compliant with BF-rated medical devices under IEC/EN 60601-1.
- Global Multi-Field Compliance: Certified for ITE (62368-1), Industrial (61558-1/61010-1), Household (60335-1), Renewable Energy Converters (62477-1), and Semiconductor Manufacturing (SEMI F47).
- Smart System Control: Equipped with built-in CANBus protocol, Remote ON/OFF, Remote Sense, DC OK signals, an Over-Temperature Protection (OTP) alarm, and a 12V Auxiliary output.
- Ruggedized Construction: Features conformal-coated PCBs for moisture and dust protection, an operating altitude capability of up to 5,000 meters, and OVC III compliance for direct grid connections.
- Quiet Thermal Management: Built-in smart fans maintain low acoustic noise levels (<39-43 dB depending on the model), making it suitable for noise-sensitive clinical or laboratory settings.
MSP-1600 vs. NSP-1600 Series Comparison Table
Key Specifications & Features
- Input Voltage Range: 85~264Vac with built-in Active PFC
- Efficiency: High efficiency up to 92%
- Programmable Output: Wide output voltage trim range (15%~115%)
- Medical Rating: 2xMOPP isolation, <500uA leakage, suitable for BF applications
- Thermal Range: -40°C to +85°C (derating above +50°C)
- Communication: Built-in CANBus digital interface
- Acoustic Noise: Low-noise smart fan (<39-43 dB)
- Protections: Short circuit, overload, over-voltage, over-temperature
- Warranty: Premium 5-Year Factory Warranty
Application
Product Information
