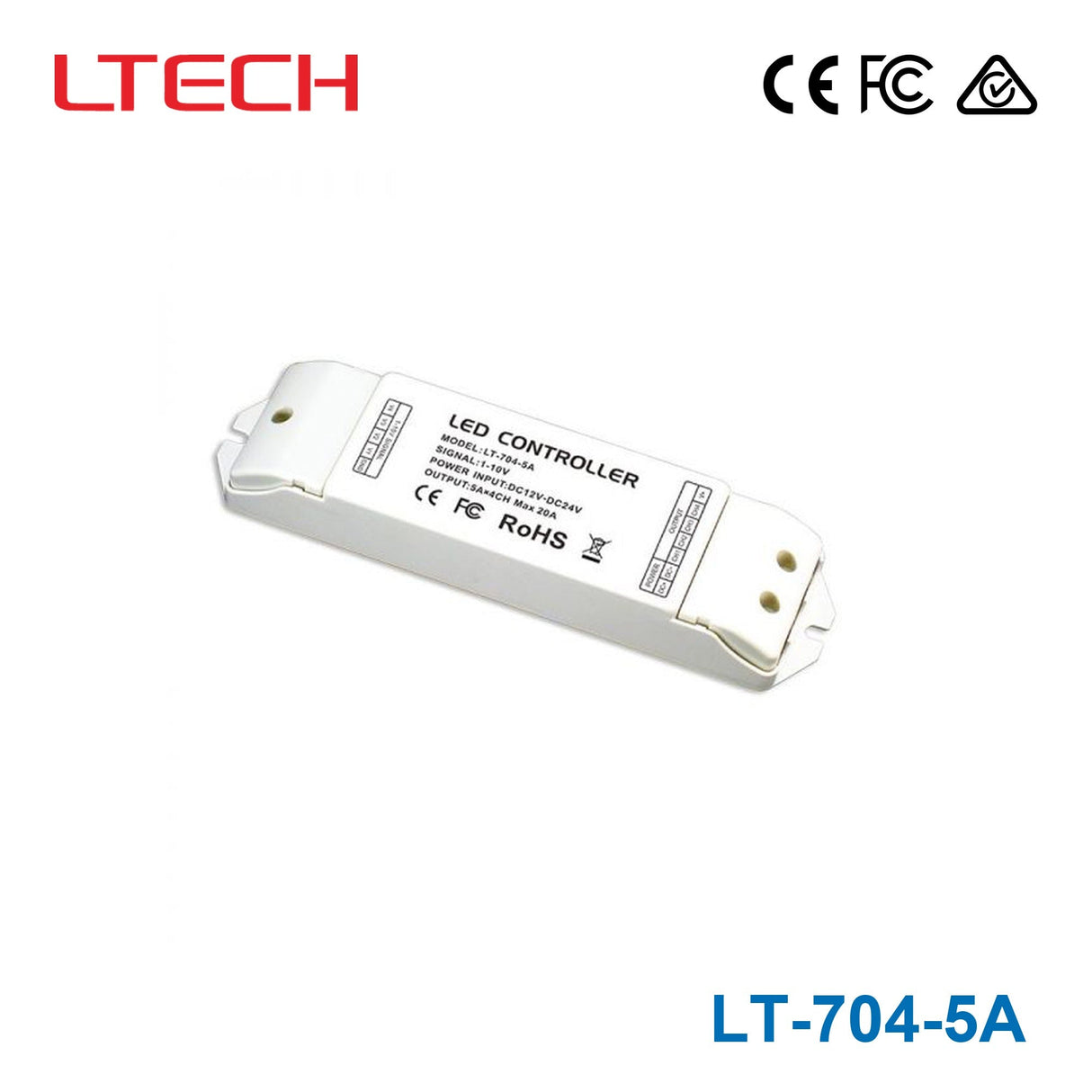

Ltech LT-704-5A Constant Voltage Controller - 0-10V/Push Dimmable
- Dimming interface: 0 -10V
- 1 -101/ PWM
- push button.
- PWM digital dimming
- no alter LED color rendering index.
- Dimming range: 0-100%
- LED start at 0.1% possible.
- Max. current output: 20A. • Short circuit / Over load protection.
- Full protective plastic housing.
- Suitable for indoor environments.
-
BrandLtech
-
SeriesLtech 0/1-10V Series
-
Power Rating480 Watt
-
Output Voltage12 Volt
-
Rated Current24 Ampere
-
Input Voltage12V~24V
-
No of Output4
-
Dimming Control0-10V,10V PWM,1-10V,Push Dimming
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
What type of LED lighting is the Ltech LT-704-5A designed for?
The LT-704-5A is a constant voltage LED controller intended for low-voltage lighting systems that need dimming control. It is best suited to applications where a 12V constant voltage setup is already being used and dimming is required at the controller level.
What dimming control methods does the LT-704-5A support?
This model supports multiple dimming inputs, including 0-10V, 1-10V/PWM, and push dimming. That makes it useful for projects that need flexibility in how brightness is controlled without changing to a different controller model.
Does this controller dim smoothly at very low light levels?
Yes. The product data states a 0-100% dimming range and notes that LED startup at 0.1% is possible. It also uses PWM digital dimming, which is intended to provide controlled brightness adjustment across the range.
Is the LT-704-5A meant for indoor or outdoor use?
This controller is specified for indoor environments. The listed operating temperature range is -30°C to 55°C, so it is intended for indoor applications that may still experience demanding ambient conditions.
Will this controller affect LED color quality when dimming?
The product description states that its PWM digital dimming does not alter the LED color rendering index. For buyers comparing dimming options, that means this model is positioned to reduce visible color-quality changes during dimming.
What are the main physical and product specs buyers usually ask about?
For this model, the listed output voltage is 12V, the power rating is 480W, and the housing is full protective plastic. The product data also lists a 5-year warranty and a weight of 0.15 kg, which helps when evaluating it for commercial lighting control projects.
