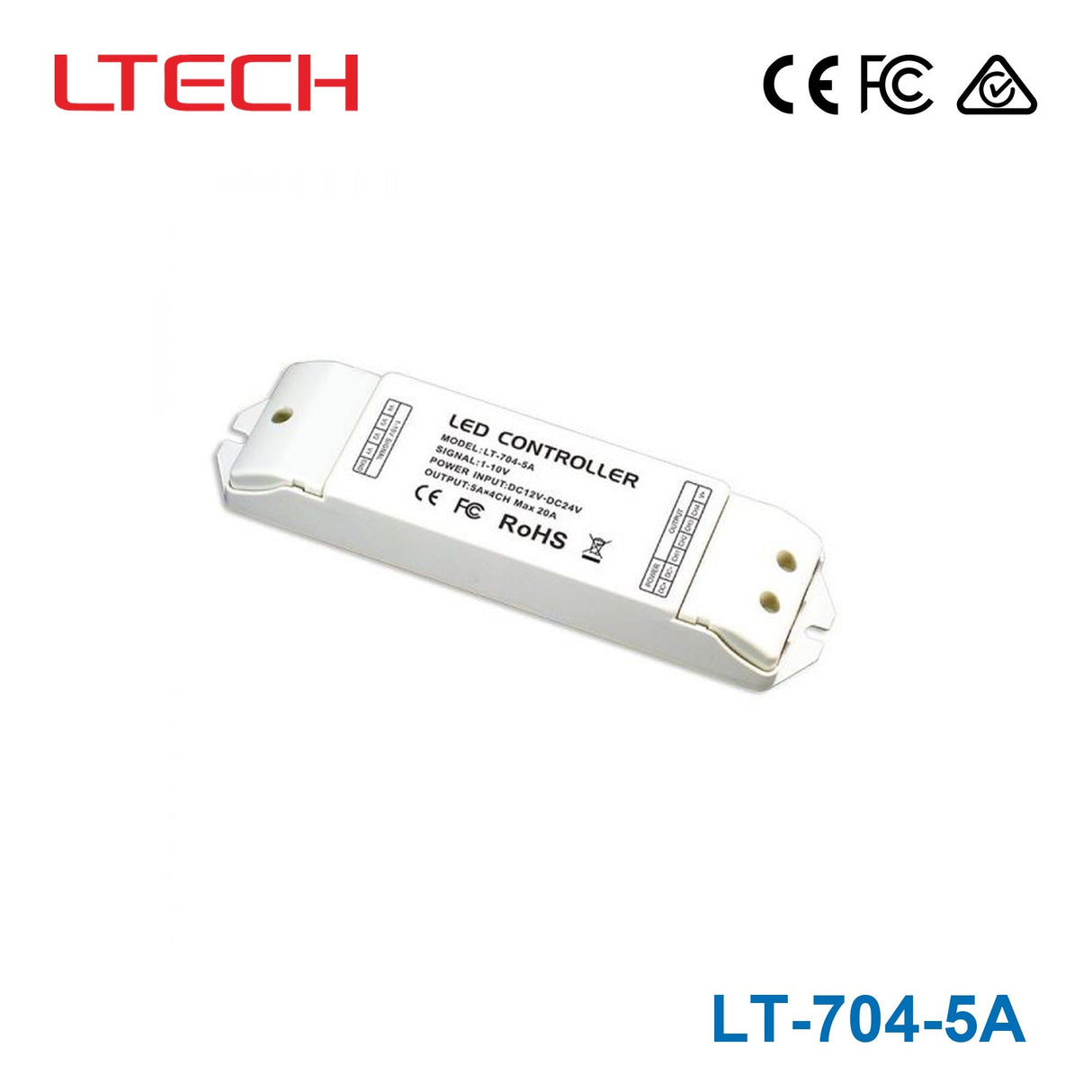

Ltech LT-704-5A Constant Voltage Controller - 0-10V/Push Dimmable
Overview
LT-704-5A is the 12~24Vdc output model of this series.
Features
- Dimming interface: 0-10V 1-10V 10V PWM push button.
- PWM digital dimming, no alter LED color rendering index.
- Dimming range: 0~100%, LED start at 0.1% possible.
- Max. current output: 20A.
- Short circuit / Over current protection, recover automatically.
- Full protective plastic housing.
- Suitable for indoor environments.
Specifications
Main Characteristics
- Dimming Interface
- 0-10V, 1-10V, 10V PWM, push button
- Input Voltage
- 12~24Vdc
- Output Voltage
- 12~24Vdc
- Output
- 5A×4CH Max. 20A
- Max. Output Power
- 0-240W...480W
- Protection
- Short circuit / Over current, recover automatically
- Dimming Range
- 0~100%, LED start at 0.1% possible.
- Working Temperature
- -30℃~55℃
- Product Size
- L175×W44×H30(mm)
- Package Size
- L178×W48×H33(mm)
- Weight(G.W.)
- 150g
Certifications & ratings
- warranty
- 5 years
- Certification marks
- FCC, CE, RoHS, SGS
Technical drawings
Downloads
FAQ
What type of LED lighting is the Ltech LT-704-5A designed for?
The LT-704-5A is a constant voltage LED controller intended for low-voltage lighting systems that need dimming control. It is best suited to applications where a 12~24Vdc setup is already being used and dimming is required at the controller level.
What dimming control methods does the LT-704-5A support?
This model supports multiple dimming inputs, including 0-10V, 1-10V, 10V PWM, and push button dimming. That makes it useful for projects that need flexibility in how brightness is controlled without changing to a different controller model.
Does this controller dim smoothly at very low light levels?
Yes. The product data states a 0-100% dimming range and notes that LED startup at 0.1% is possible. It supports 10V PWM dimming, which is intended to provide controlled brightness adjustment across the range.
Is the LT-704-5A meant for indoor or outdoor use?
This controller is specified for indoor environments. The listed operating temperature range is -30°C to 55°C, so it is intended for indoor applications that may still experience demanding ambient conditions.
Will this controller affect LED color quality when dimming?
The product supports 10V PWM dimming. For buyers comparing dimming options, that means this model is positioned to provide controlled brightness adjustment across the range.
What are the main physical and product specs buyers usually ask about?
For this model, the listed output voltage is 12~24Vdc, the power rating is 240-480W, and the housing is full protective plastic. The product data also lists a 5-year warranty and a weight of 0.15 kg, which helps when evaluating it for commercial lighting control projects.
