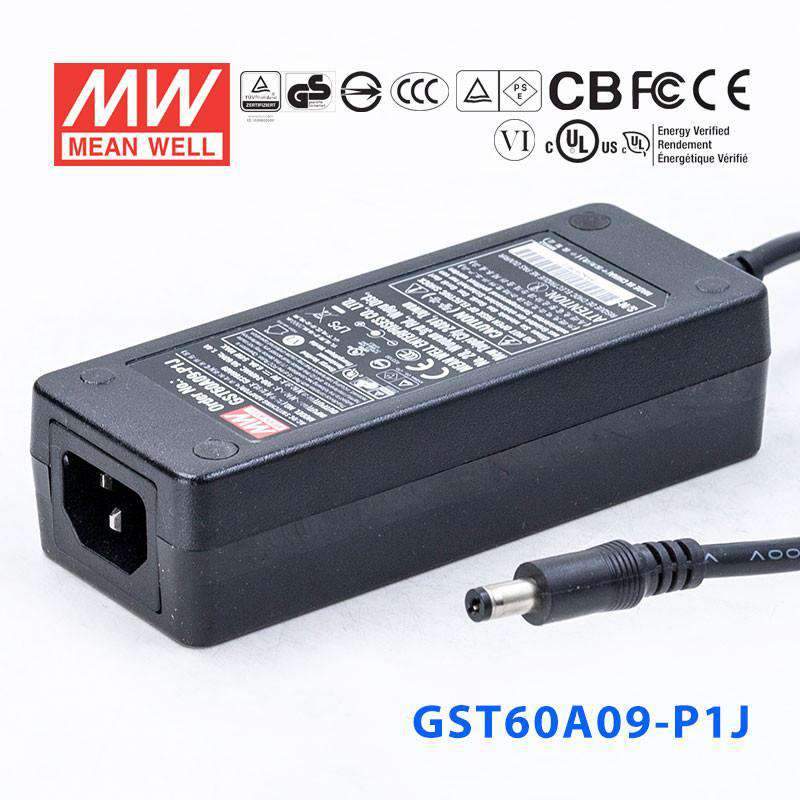

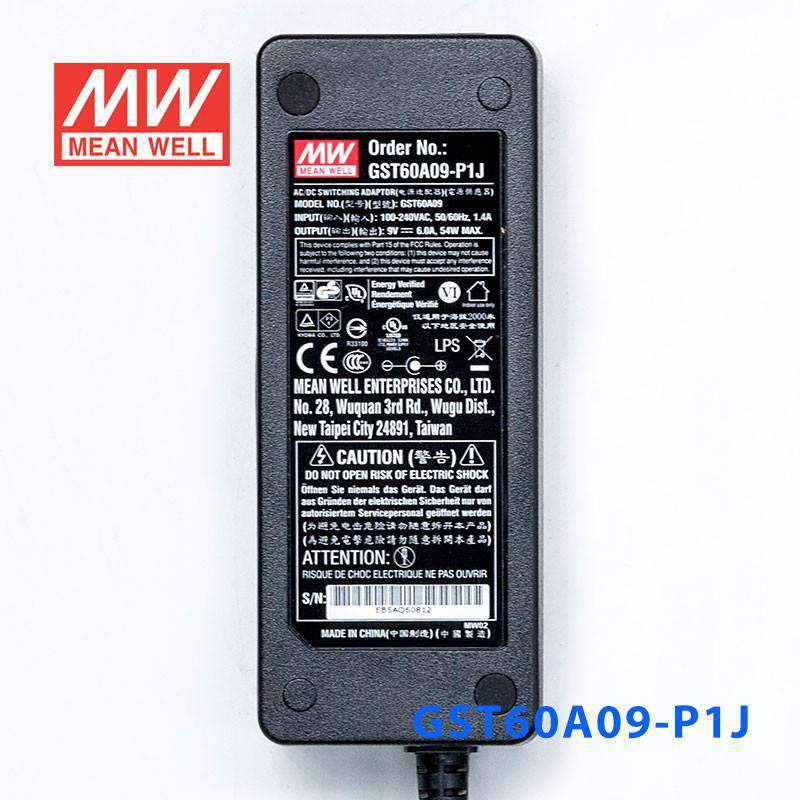

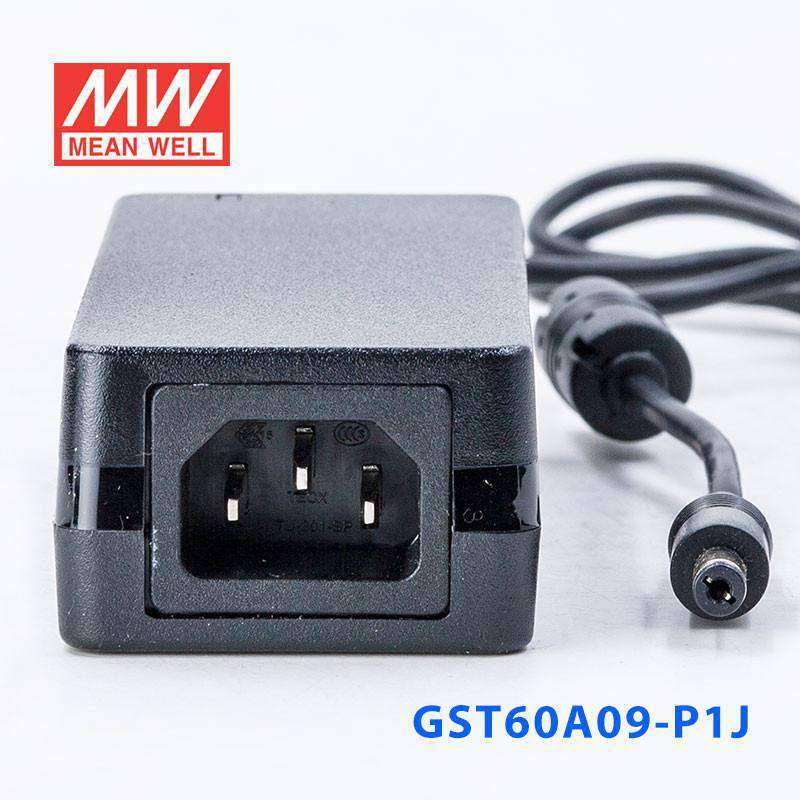

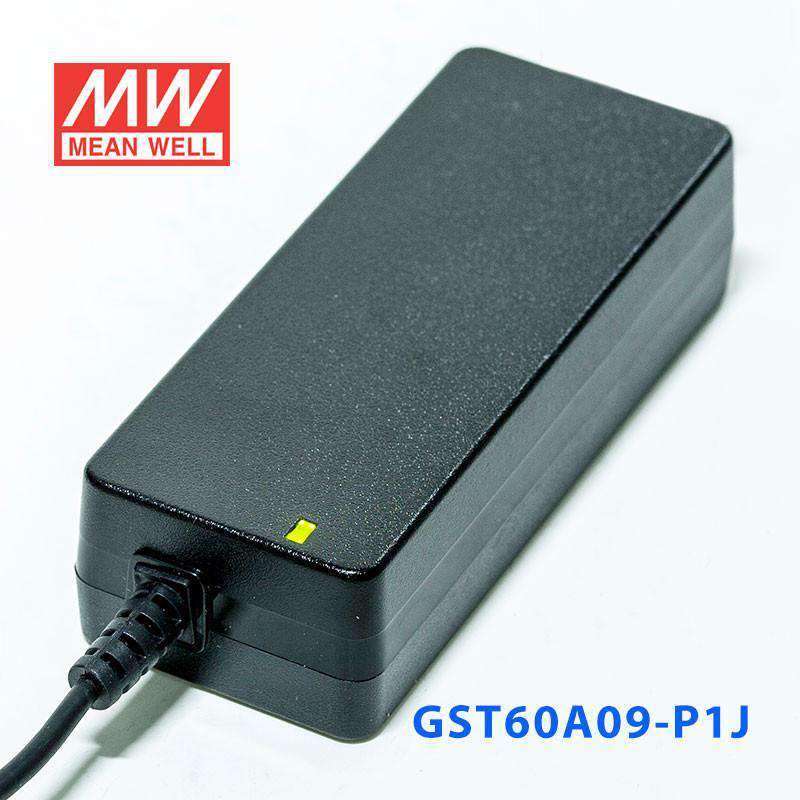

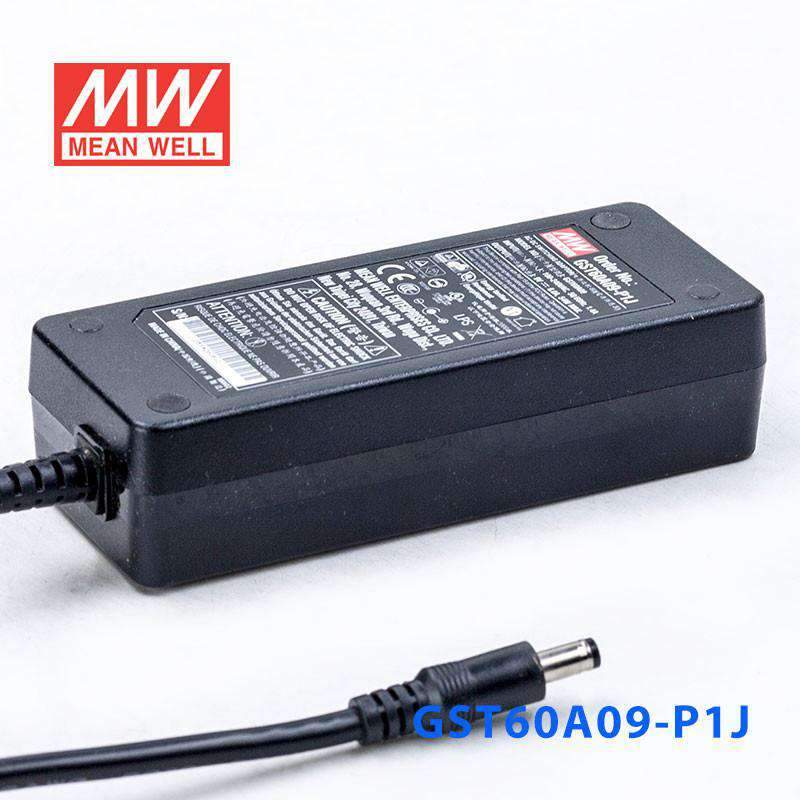

Mean Well GST60A09-P1J Power Supply 54W 9V 6A
The GST60A09 is a 54W Mean Well power supply (input: 90~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage (max): 9V
- ✓ Rated output current: 6A
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: BSI, BSMI, CB, CCC, CE, EAC, FCC, KC, PSE, RCM, TÜV, UL
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating54 Watt
-
Output Voltage9 Volt
-
Rated Current6 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.92 in
-
Width1.97 in
-
Height1.24 in
-
Weight0.67 lb
::specification::
Frequently Asked Questions
Can I use the GST60A09-P1J for a 9V embedded system or industrial electronics project?
Yes, if the device is designed for constant 9V DC input and its demand stays within 54W and 6A. That makes it a practical option for 9V embedded assemblies, industrial electronics, and fixed-voltage control hardware.
Is this 9V power supply appropriate for communication or data interface equipment that needs 9V DC?
It can be appropriate when the equipment requires a regulated 9V supply rather than another DC voltage. The load must stay at or below 54W total and 6A maximum current.
Can the GST60A09-P1J support a 9V test instrument or industrial accessory?
It is suitable for 9V test gear, measurement accessories, or peripheral equipment that expects constant-voltage input and does not exceed 54W. Buyers should confirm the exact input voltage requirement first, because this model is dedicated to 9V output.
Is the GST60A09-P1J meant for outdoor use?
The specs include an operating temperature range of -30°C to +70°C, which addresses thermal range. No IP rating is shown in the provided data, so the specifications do not establish outdoor, wet, or dust-exposed suitability.
What kind of 9V load capacity does this model provide?
This power supply delivers constant-voltage 9V output with up to 6A available, for a maximum of 54W. It is intended for equipment whose 9V demand fits within those limits.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other GST60 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GST60A24-P1J Power Supply 60W 24V 2.5A | 60W | 24V | 2.5A | Indoor | $18.83 | View |
| Mean Well GST60A12-P1J Power Supply 60W 12V 5A | 60W | 12V | 5A | Indoor | $19.83 | View |
| Mean Well GST60A18-P1J Power Supply 60W 18V 3.33A | 60W | 18V | 3.33A | Indoor | $19.83 | View |
| Mean Well GST60A48-P1J Power Supply 60W 48V 1.25A | 60W | 48V | 1.25A | Indoor | $19.83 | View |
| Mean Well GST60A15-P1JPower Supply 60W 15V 4A | 60W | 15V | 4A | Indoor | $19.83 | View |
| Mean Well GST60A07-P1J Power Supply 45W 7.5V 6A | 45W | 7.5V | 6A | Indoor | $19.83 | View |
| Mean Well GST60A05-P1J Power Supply 30W 5V 6A | 30W | 5V | 6A | Indoor | $19.83 | View |
