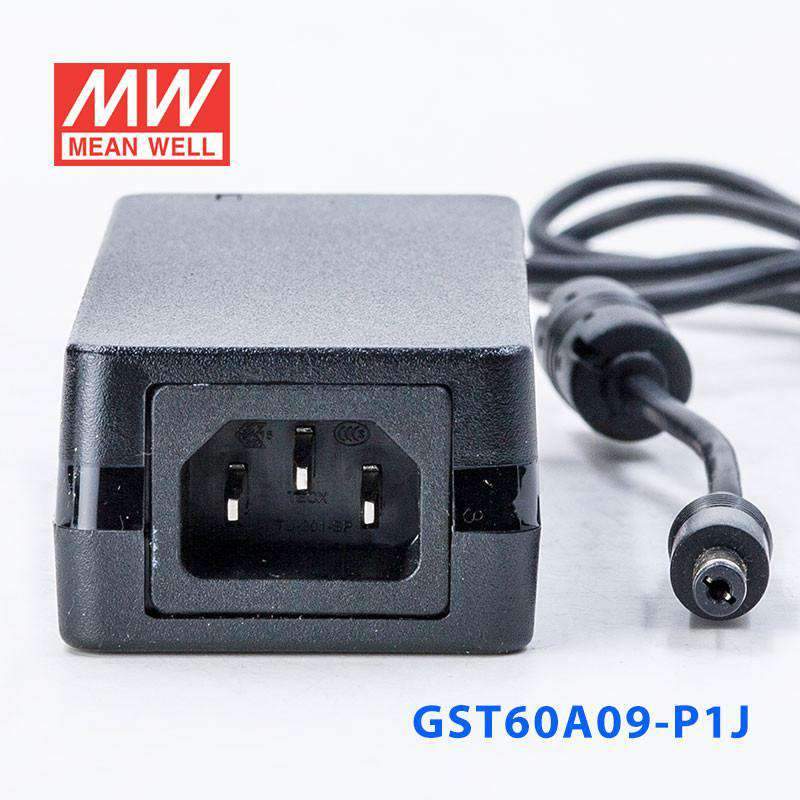

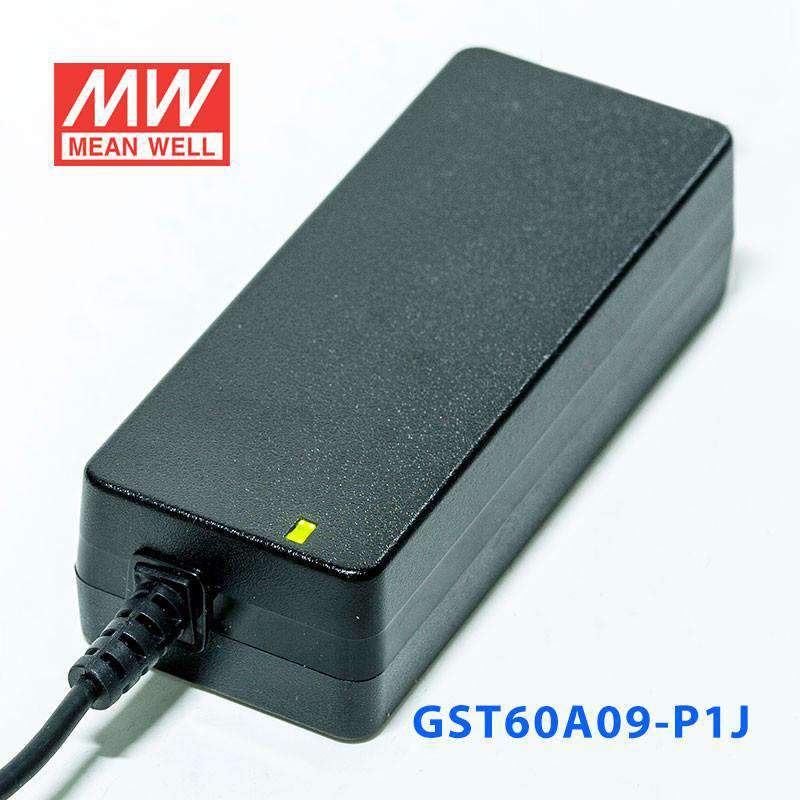

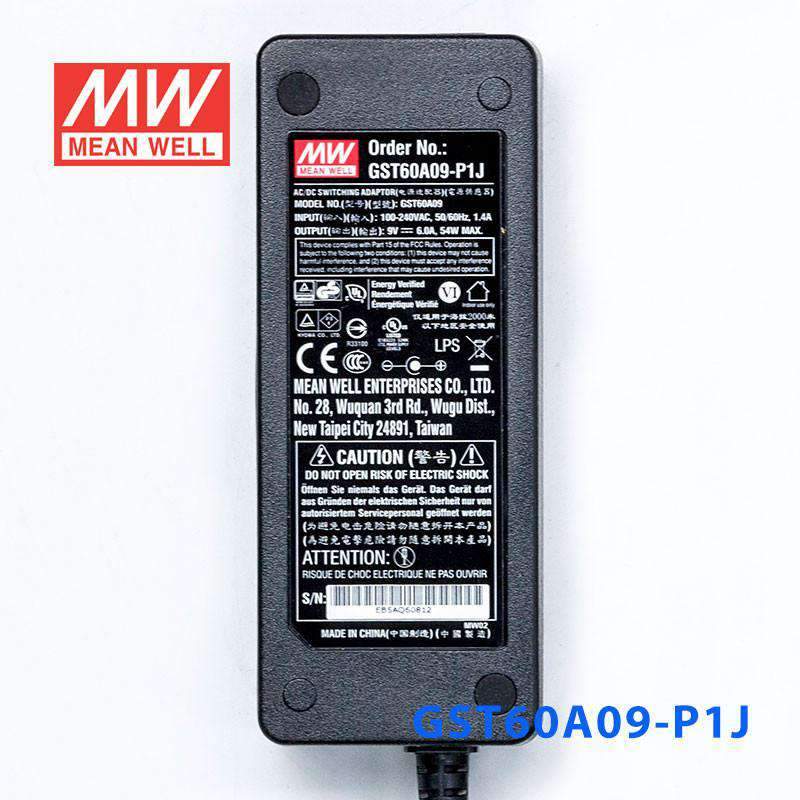

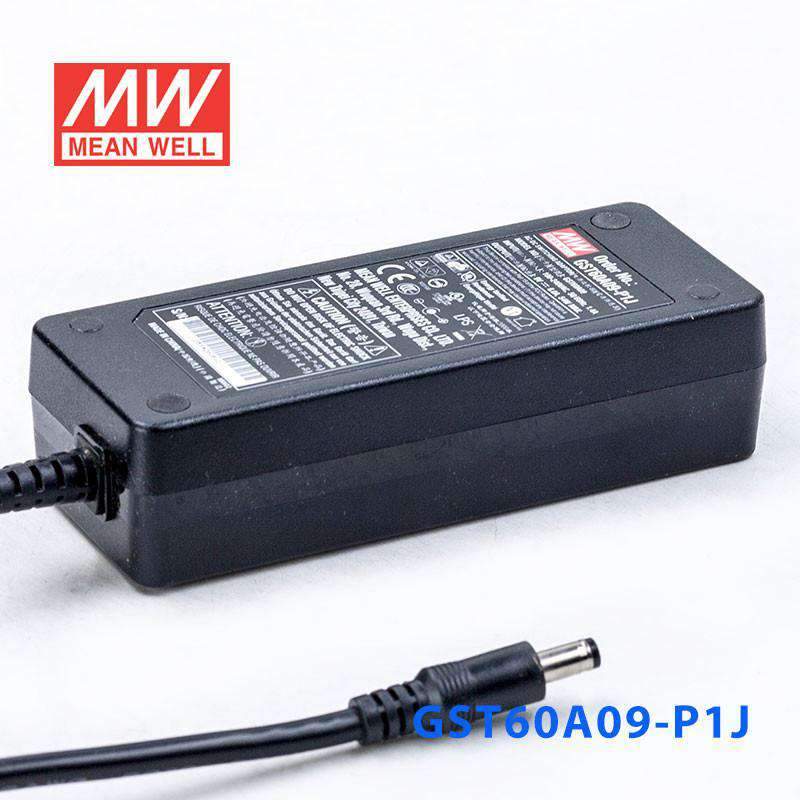

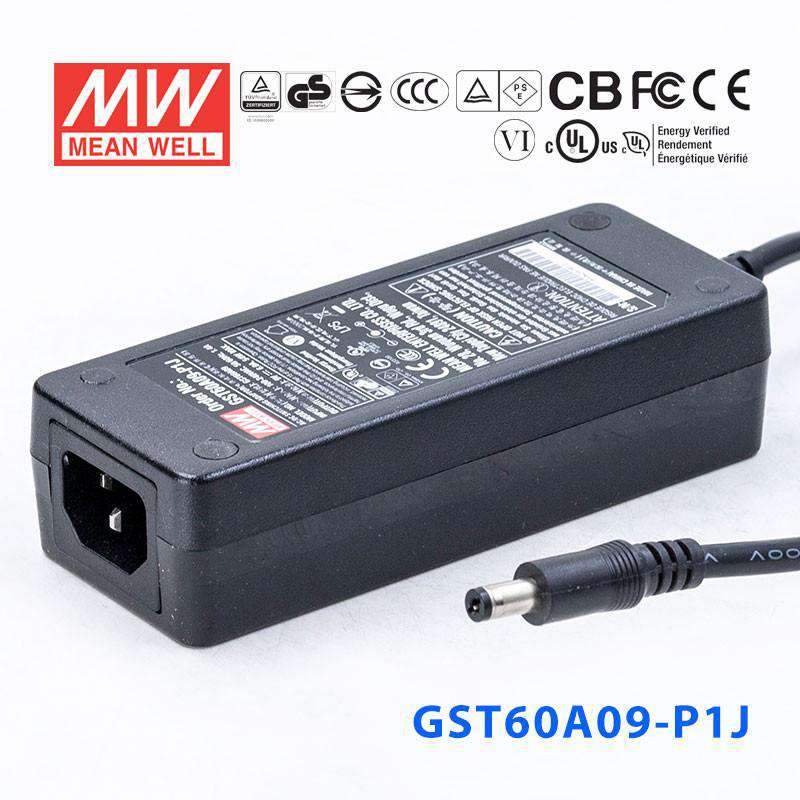

Mean Well GST60A09-P1J Power Supply 54W 9V 6A
Overview
GST60A09-P1J is the 9V output model of this series: rated current 6A, typical efficiency 89%.
GST60A is a highly reliable, 60W desktop style single-output green adaptor series. This product is a classⅠ power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 90VAC to 264VAC. The entire series supplies different models with output voltages ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 92% and the extremely low no-load power consumption below 0.075W, GST60A is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS,Korea K-MEPS,EU ErP and Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case.GST60A is certified for the international safety regulations.
Features
- Global certificates
- Universal AC input / Full range
- 3 pole AC inlet IEC320-C14,ClassⅠpower unit
- No load power consumption< 0.075W
- Energy efficiency Level Ⅵ
- Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP and CoC Version 5
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Fully enclosed plastic case
- Pass LPS
- -30~+70℃ wide range working temperature
- LED indicator for power on
- Various DC plug quick adapter accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
- 3 years warranty
Specifications
ORDER NO.
- SAFETY MODEL NO.
- GST60A09
OUTPUT
- DC VOLTAGENote.2
- 9V
- RATED CURRENT
- 6A
- CURRENT RANGE
- 0 ~ 6A
- RATED POWER (max.)
- 54W
- RIPPLE & NOISE (max.)Note.3
- 120mVp-p
- VOLTAGE TOLERANCENote.4
- ±5.0%
- LINE REGULATIONNote.5
- ±1.0%
- LOAD REGULATION
- ±5.0%
- SETUP, RISE TIMENote.6
- 1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 50ms / 230VAC 15ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.7
- 90 ~ 264VAC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 89%
- AC CURRENT (Typ.)
- 1.4A / 115VAC 1A / 230VAC
- INRUSH CURRENT (max.)
- Cold start 35A / 115AC 65A / 230VAC
- LEAKAGE CURRENT(max.)
- 0.75mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 9.4 ~ 12.2V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note. 10)
- SAFETY STANDARDSNote. 8
- UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS 15598-1 , CCC GB4943.1, PSE J62368-1, AS/NZS 62368.1，BIS IS13252, KC K60950-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B Harmonic current BS EN/EN61000-3-2,GB9254 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN55035
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m EFT bursts BS EN/EN61000-4-4 Level 2, 1KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line , 2KV/Line-FG Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
OTHERS
- MTBF
- 3620.0K hrs min. Telcordia SR-332 (Bellcore) ; 709.7K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 125*50*31.5mm (L*W*H)
- PACKING
- 0.305Kg; 40pcs/13.02Kg/1.04CUFT
CONNECTOR
- PLUG
- See page 4~5 ; Other type available by customer requested
- CABLE
- See page 4~5 ; Other type available by customer requested
Test conditions and notes9
- 1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
- 4. Tolerance: includes set up tolerance, line regulation, load regulation.
- 5. Line regulation is measured from low line to high line at rated load.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. Derating may be needed under low input voltages. Pleas check the derating curve for more details.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipments
Downloads
Certificates9
Test reports1
FAQ
Can I use the GST60A09-P1J for a 9V embedded system or industrial electronics project?
Yes, if the device is designed for constant 9V DC input and its demand stays within 54W and 6A. That makes it a practical option for 9V embedded assemblies, industrial electronics, and fixed-voltage control hardware.
Is this 9V power supply appropriate for communication or data interface equipment that needs 9V DC?
It can be appropriate when the equipment requires a regulated 9V supply rather than another DC voltage. The load must stay at or below 54W total and 6A maximum current.
Can the GST60A09-P1J support a 9V test instrument or industrial accessory?
It is suitable for 9V test gear, measurement accessories, or peripheral equipment that expects constant-voltage input and does not exceed 54W. Buyers should confirm the exact input voltage requirement first, because this model is dedicated to 9V output.
Is the GST60A09-P1J meant for outdoor use?
The specs include an operating temperature range of -30°C to +70°C, which addresses thermal range. No IP rating is shown in the provided data, so the specifications do not establish outdoor, wet, or dust-exposed suitability.
What kind of 9V load capacity does this model provide?
This power supply delivers constant-voltage 9V output with up to 6A available, for a maximum of 54W. It is intended for equipment whose 9V demand fits within those limits.
