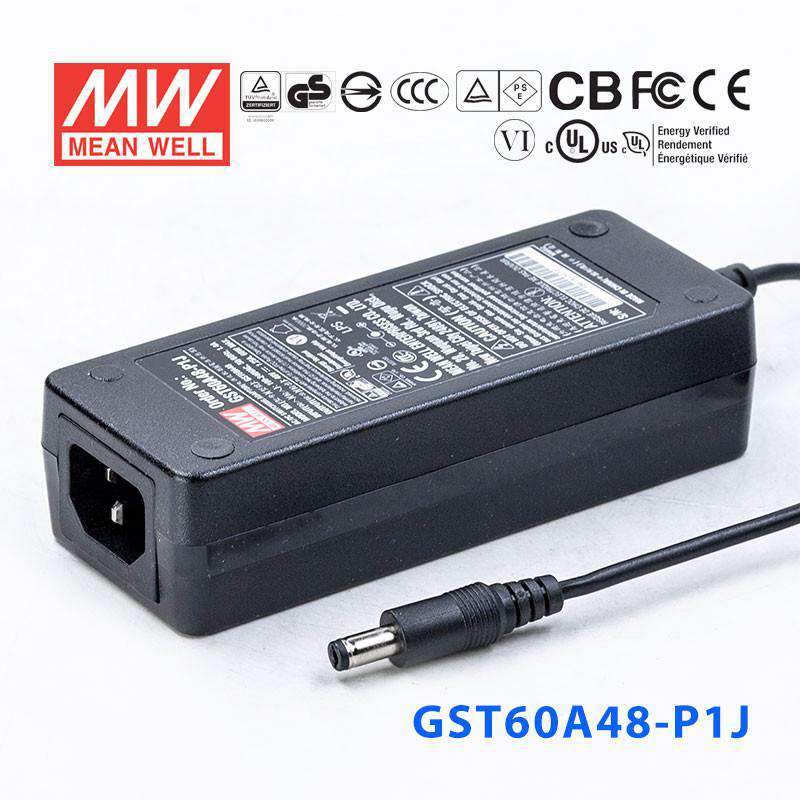

Mean Well GST60A48-P1J Power Supply 60W 48V
Description
Description
The GST60A48 is a 60W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1,AS/NZS 60950.1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.92 in
-
Width1.97 in
-
Height1.24 in
-
Weight0.67 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GST60A48-P1J for 48V telecom or network equipment?
Yes, if the equipment is designed for constant 48V DC and the total demand does not exceed 1.25A or 60W. That makes it suitable for lower-power 48V telecom, communications, or network-support devices within that load range.
Is this 48V power supply appropriate for industrial communication or control hardware?
It can be used with 48V constant-voltage industrial electronics when the load remains within 1.25A and 60W. For compact communication, signaling, or control gear built around 48V DC, those limits define whether it is a fit.
Can the GST60A48-P1J power a small embedded or test setup that needs 48V DC?
Yes, for bench, validation, or embedded systems that require regulated 48V constant voltage and draw no more than 1.25A or 60W. The 90-264VAC input range is also useful where the AC source may vary by region or facility.
Is the GST60A48-P1J suitable for outdoor environments?
The operating temperature range is -30°C to +70°C, but the specs do not include an IP rating. Without a stated IP level, this model should be treated as an indoor power supply or used only inside equipment that provides the needed environmental protection.
How do I size this 48V adapter correctly for my equipment?
Your load should require constant 48V output, with total current at 1.25A or less and total power at 60W or less. Those values are the core compatibility check for this model.
Other GST60 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GST60A24-P1J Power Supply 60W 24V | 60W | 24V | 2.5A | Indoor | $18.83 | View |
| Mean Well GST60A12-P1J Power Supply 60W 12V | 60W | 12V | 5A | Indoor | $19.83 | View |
| Mean Well GST60A18-P1J Power Supply 60W 18V | 60W | 18V | 3.33A | Indoor | $19.83 | View |
| Mean Well GST60A15-P1JPower Supply 60W 15V | 60W | 15V | 4A | Indoor | $17.73 | View |
| Mean Well GST60A09-P1J Power Supply 54W 9V | 54W | 9V | 6A | Indoor | $19.83 | View |
| Mean Well GST60A07-P1J Power Supply 45W 7.5V | 45W | 7.5V | 6A | Indoor | $19.83 | View |
| Mean Well GST60A05-P1J Power Supply 30W 5V | 30W | 5V | 6A | Indoor | $19.83 | View |
