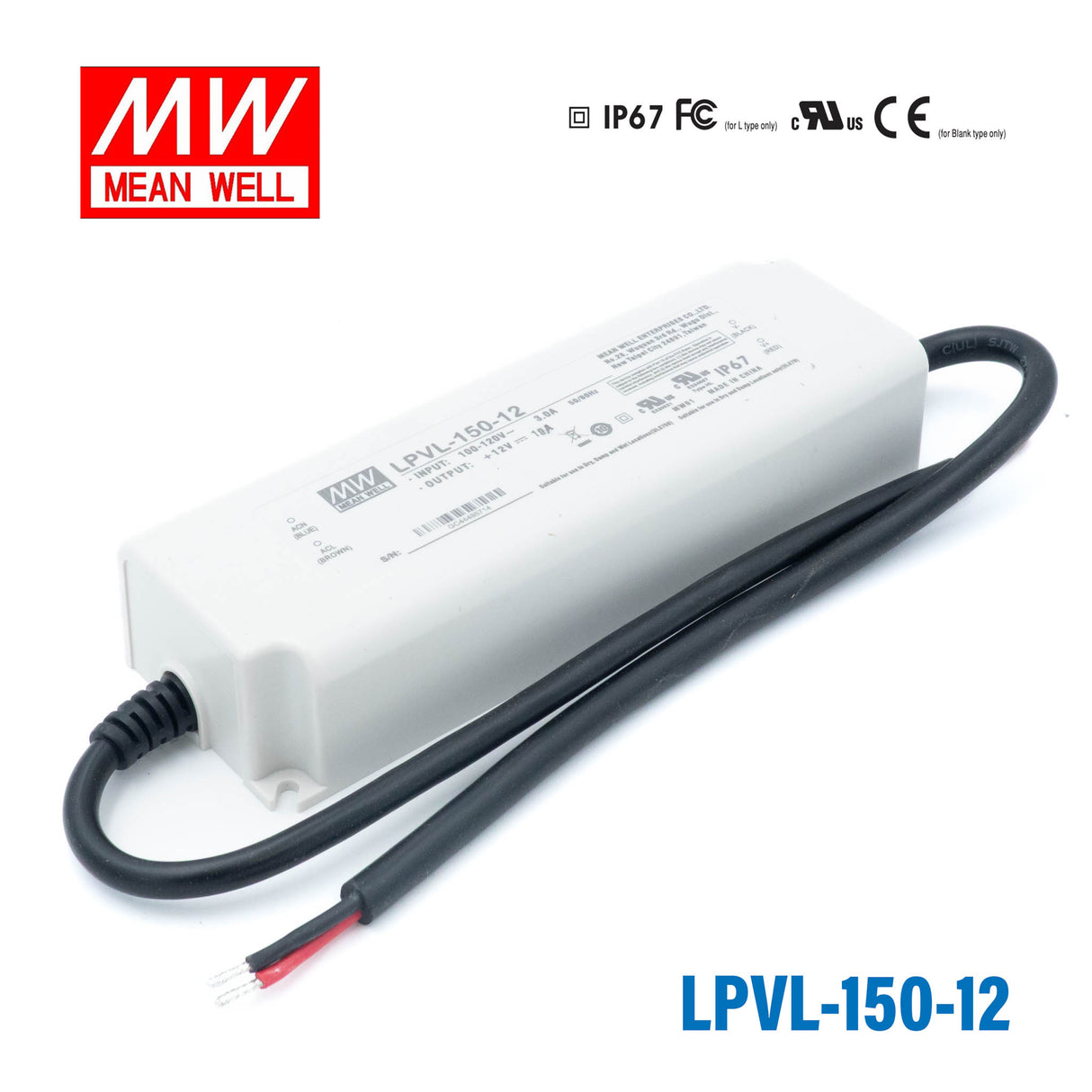

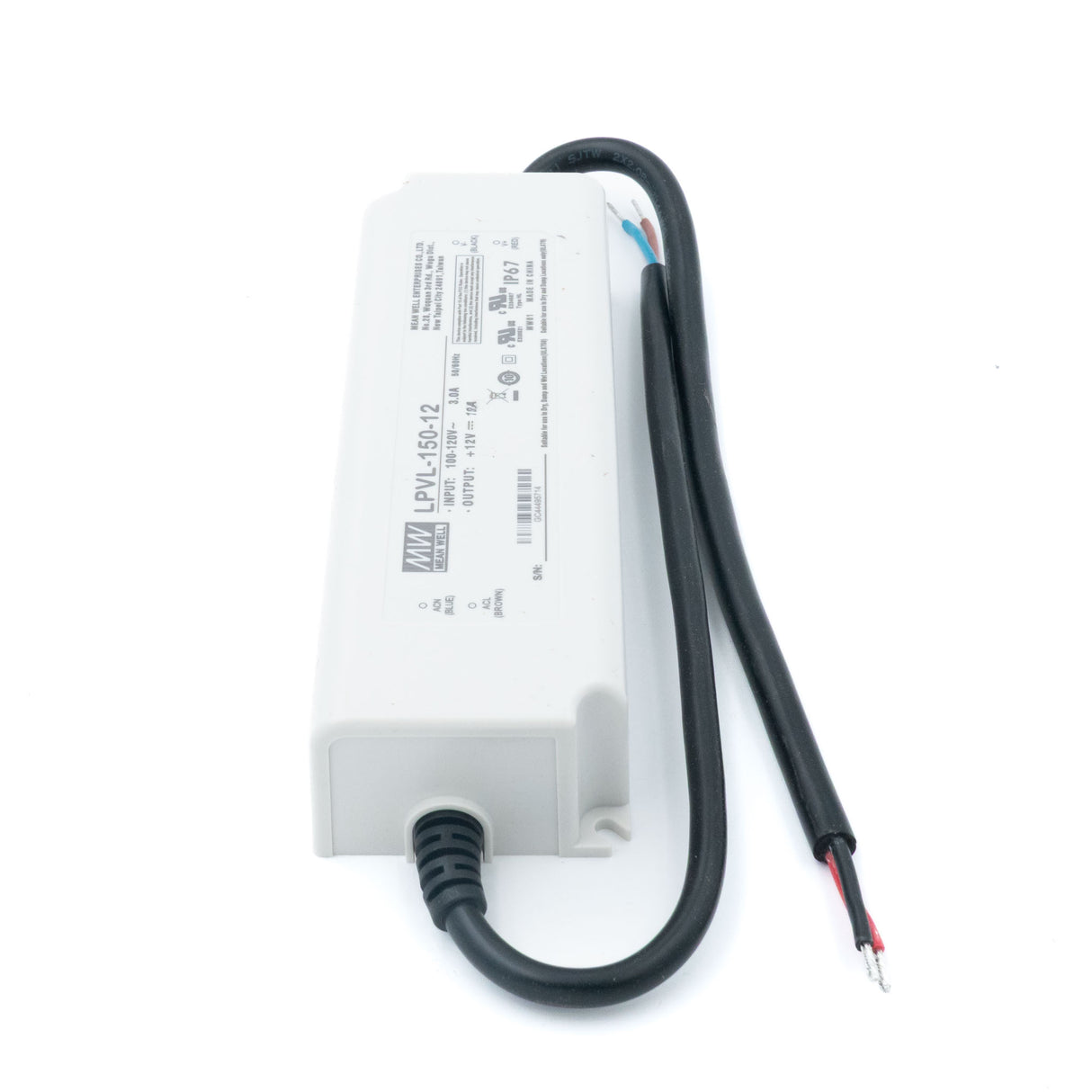

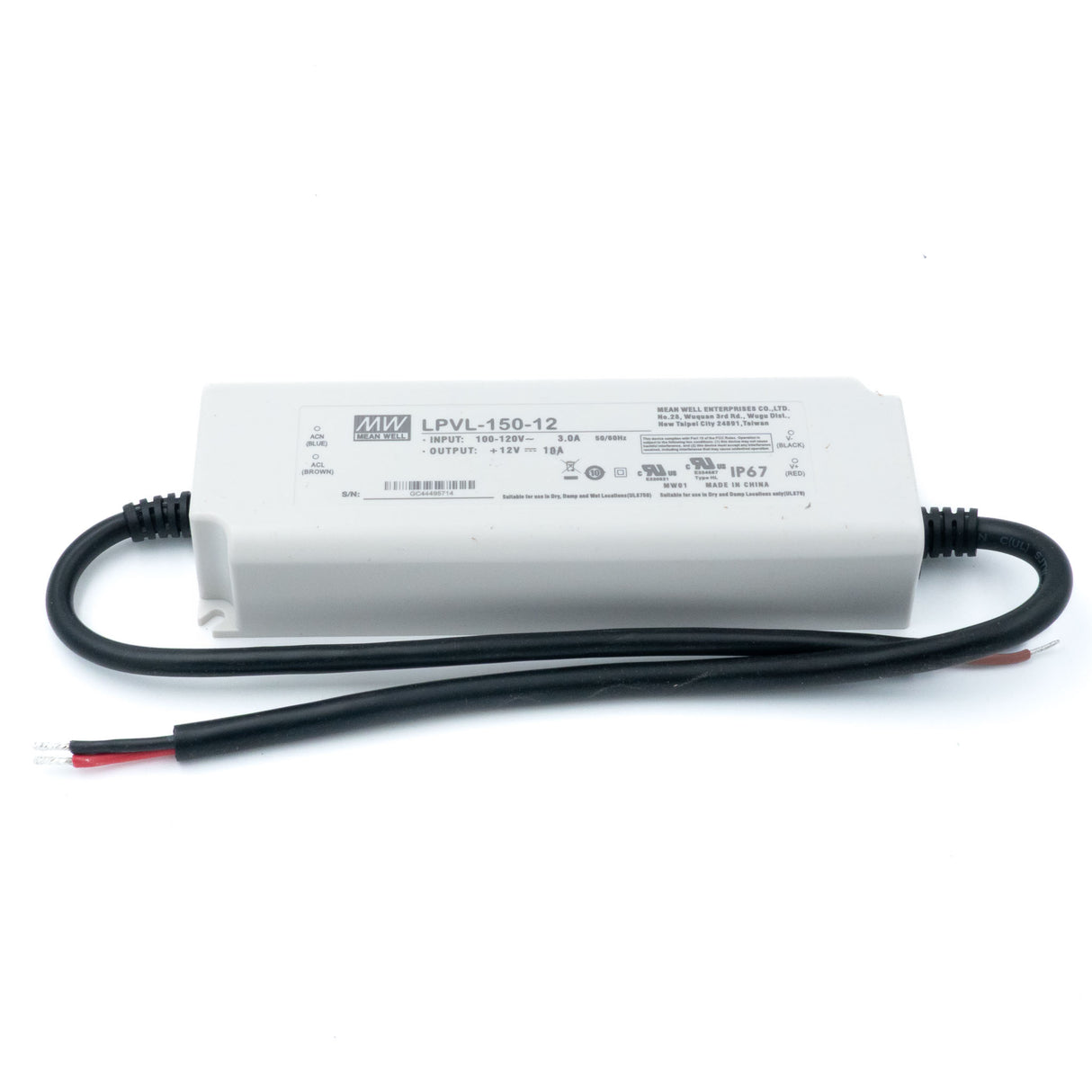

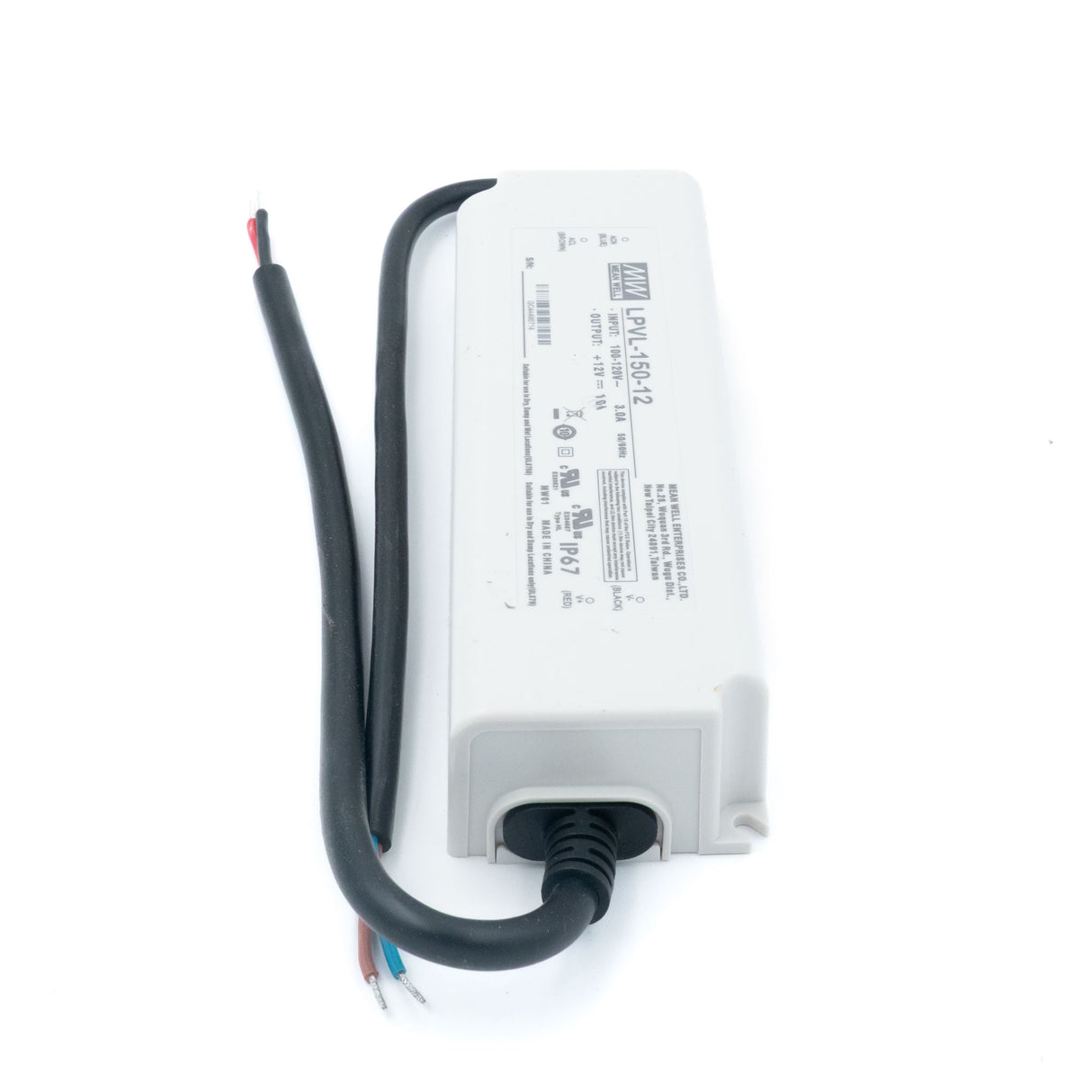

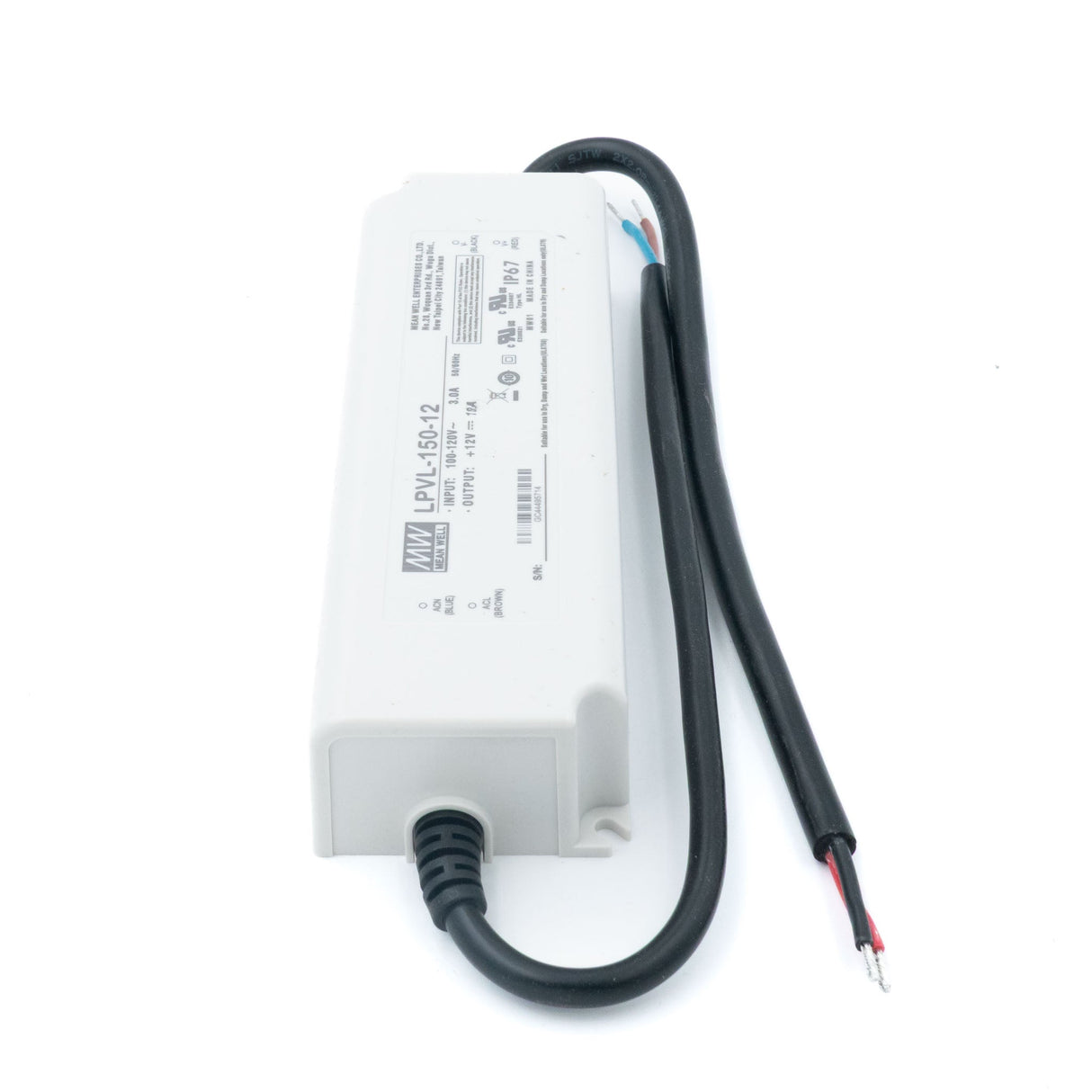

Mean Well LPVL-150-12 Power Supply 150W 12V 10A
The LPVL-150 is a 120W Mean Well AC-DC constant voltage LED driver (input: 90~132VAC, output: 12V, operating temperature: -25~+65°C).
Key Features
- ✓ Input voltage: 90~132VAC
- ✓ Output voltage: 12V
- ✓ Rated output current: 10A
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -25~+65°C
- ✓ Safety certifications: CE, EAC, FCC, UL
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesLP Series
-
Power Rating120 Watt
-
Output Voltage12 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~132V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~65°C
-
Warranty2 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.63 lb
::specification::
Frequently Asked Questions
Can I use the LPVL-150-12 for 12V LED strip lighting?
Yes, this is a 12V constant voltage LED driver, so it is intended for 12V LED strip lighting that matches its output voltage. Its maximum output is 120W at 10A, so the total strip load needs to stay within that rating.
Is the LPVL-150-12 suitable for 12V LED signage or channel letter lighting?
It can be used for 12V LED signage and channel letter lighting when the LEDs require constant voltage power. The driver provides 12V output with up to 120W total capacity, which is the key limit to check against the full sign load.
Can this power supply run 12V outdoor accent lighting?
Yes, it is rated IP67 waterproof, so it is suitable for outdoor or wet-location lighting use where a sealed driver is needed. It also has an operating temperature range of -25°C to +65°C, which helps for outdoor conditions within that range.
Can I use the LPVL-150-12 for 12V cabinet, display, or retail lighting?
Yes, it can be used for 12V cabinet, display, or retail lighting if the lighting system uses constant voltage power. The available output is 120W total at 12V, so the combined fixture or strip load must not exceed that rating.
How much 12V LED strip can the LPVL-150-12 power?
Use the strip power formula: 120W divided by your strip's rated power per meter equals the estimated maximum length. This driver can supply up to 120W total at 12V, but you should check your strip rated power per meter before sizing the run.
Is the LPVL-150-12 okay for outdoor or wet locations?
Yes, its IP67 waterproof rating means it is designed for environments where moisture and dust protection are important. Its operating temperature range is -25°C to +65°C, so the installation environment should stay within those limits.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPVL-150 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPVL-150-24 Power Supply 150W 24V 6.3A | 151.2W | 24V | 6.3A | IP67 | $34.24 | View |
