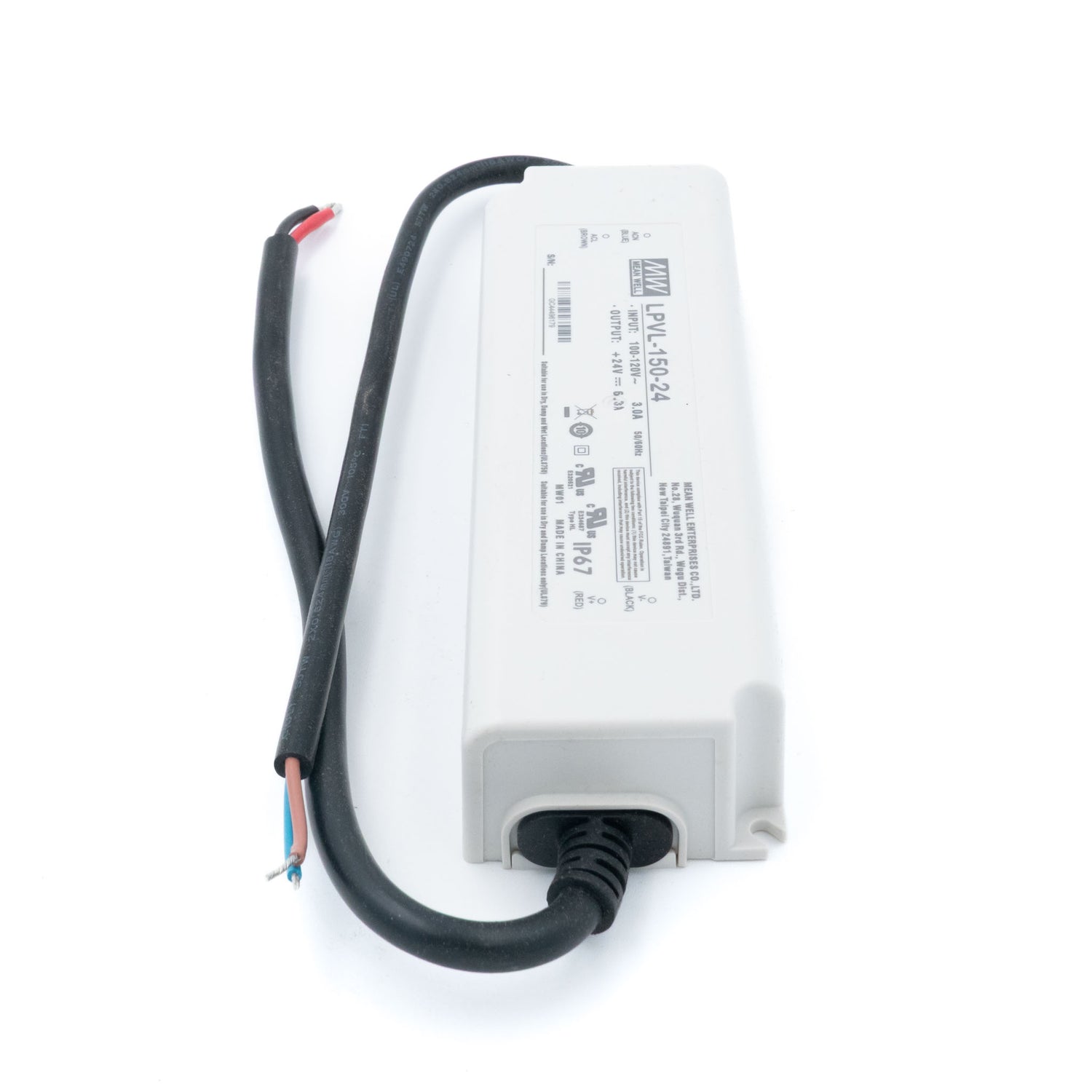

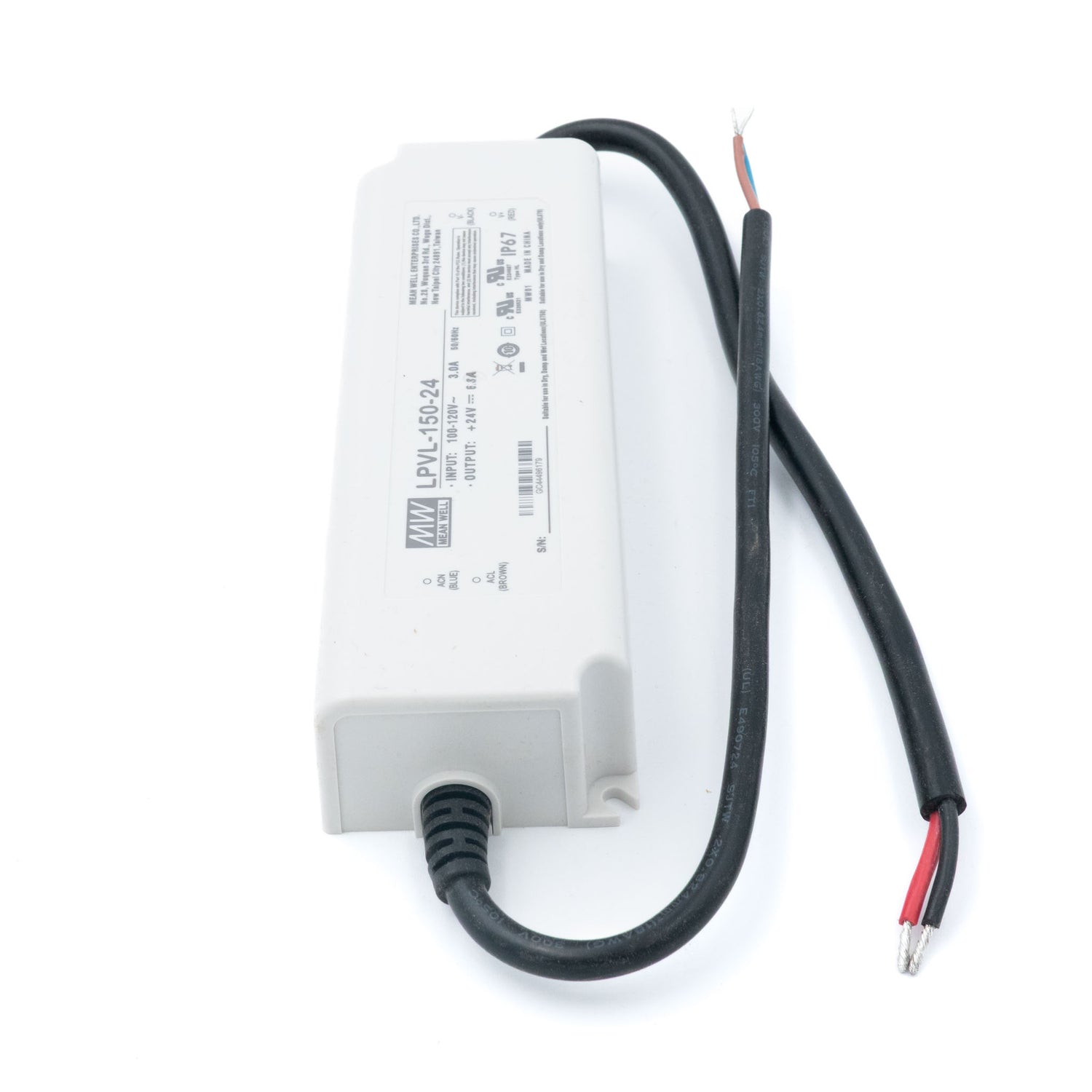

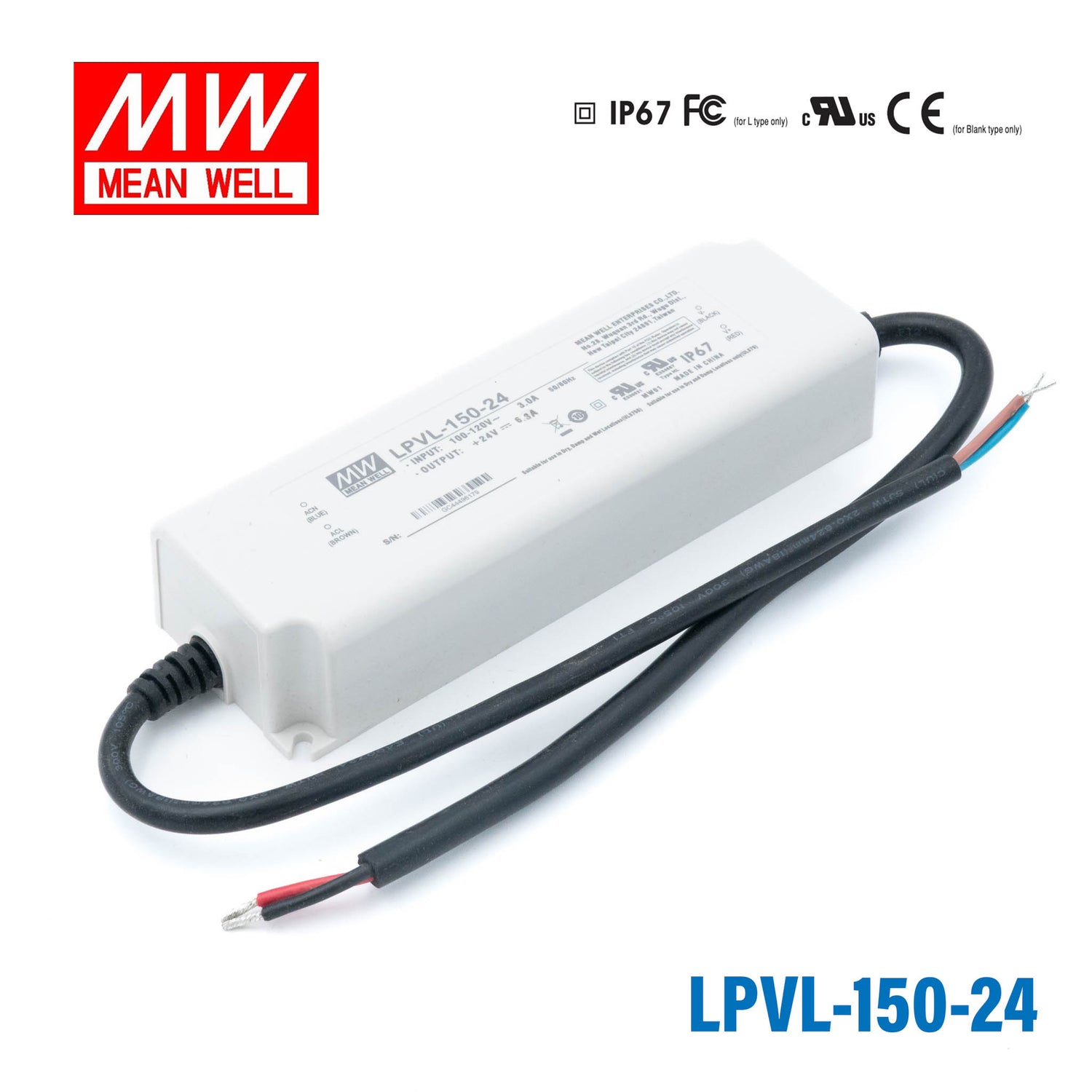

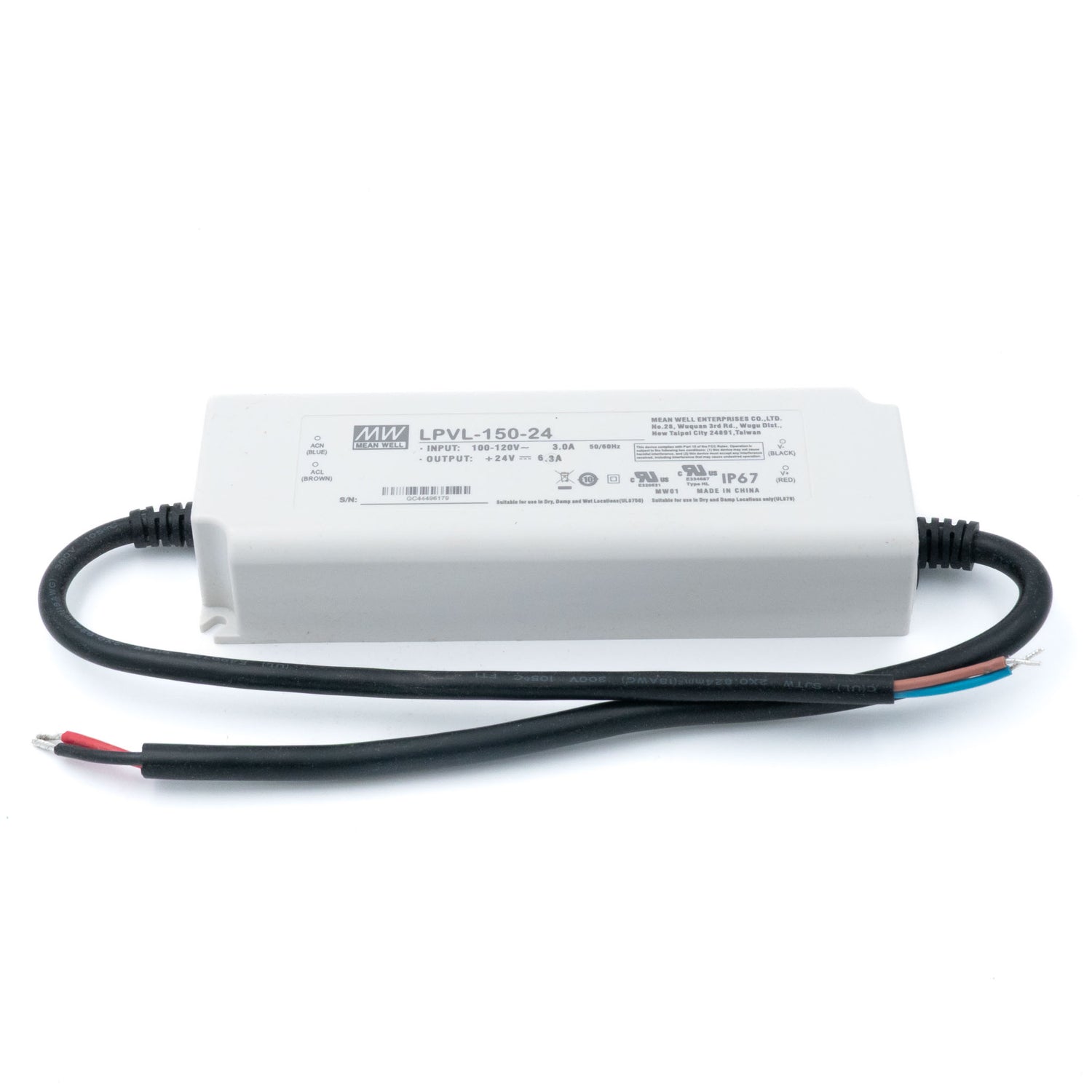

Mean Well LPVL-150-24 Power Supply 150W 24V 6.3A
Overview
LPVL-150-24 is the 24V output model of this series: rated current 6.3A, rated power 151.2W, typical efficiency 89%. Type L: AC input range 90~132VAC.
LPV-150 and LPVL-150 are 150W single output power supplies that specifically and perfectly work for LED related fixture or applianc e. As a class II power unit, these two series are housed with the UL 94V-0 rated flame retardant plastic enclosure. The IP67 design allows every model to fit the use at dry, damp and wet locations. Both series are constant voltage mode design that various models with 12V, 15V, 24V, 36V and 48V are offered for LPV-150 where as 12V and 24V are provided for LPVL-150.
Features
- Constant voltage design
- 90~132VAC input for LPVL-150 180~305VAC input for LPV-150
- Fully encapsulated with IP67 level (Note.7)
- ClassⅡpower unit, no FG
- Protections: Short circuit/Overload/Over voltage/ Over temperature
- Fully isolated plastic case
- Fanless design, cooling by free air convection
- 100% full load burn-in test
- Low cost, high reliability
- Listed in UL Sign Component Manual (SAM)
- Type "HL" for use in class I, Division 2 hazardous (Classified) location luminaires for LPVL-150
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 6.3A
- CURRENT RANGE
- 0 ~ 6.3A
- RATED POWER
- 151.2W
- RIPPLE & NOISE (max.)Note.2
- 200mVp-p
- VOLTAGE TOLERANCENote.3
- ±5.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±2.0%
- SETUP, RISE TIMENote.6
- LPV-150: 500ms, 50ms / 230VAC 500ms, 50ms / 277VAC; LPVL-150: 1500ms, 50ms / 115VAC
- HOLD UP TIME (Typ.)
- LPV-150: 18ms/230VAC 20ms/277VAC at full load; LPVL-150: 10ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- LPV-150: 180 ~ 305VAC 254 ~ 431VDC; LPVL-150: 90~132VAC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 89%
- AC CURRENT
- LPV-150: 1.7A/230VAC 1.5A/277VAC; LPVL-150: 3.0A/115VAC
- INRUSH CURRENT (Typ.) L type
- COLD START 75A(twidth=900μs measured at 50% Ipeak) at 115VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER L type
- 1 units (circuit breaker of type B) / 2 units (circuit breaker of type C) at 115VAC
- LEAKAGE CURRENT
- LPV-150: 0.25mA / 240VAC LPVL-150:0.25mA / 120VAC
PROTECTION
- OVERLOAD
- 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27 ~ 35V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +65℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 40℃ for LPV-150-12,15 and LPVL-150-12,24;0~50℃ for LPV-150-24,36,48)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS L type
- UL8750(type"HL"),CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION L type
- Compliance to FCC part 15
- EMC IMMUNITY Blank type
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020
- EMC IMMUNITY L type
- Design refer to IEC61000-4-2,3,4,5,6,8,11; light industry level
OTHERS
- MTBF
- 3361.2K hrs min. Telcordia SR-332 (Bellcore) ; 391.9Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 191*63*37.5mm (L*W*H)
- PACKING
- LPV-150: 0.79Kg;20pcs/17Kg/0.98CUFT; LPVL-150: 0.79Kg;20pcs/17Kg/0.98CUFT
MODEL ENCODING
- Blank
- AC input range 180~305VAC
- L (this model)
- AC input range 90~132VAC
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC(115VAC for LPVL) input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. Suitable for indoor use or outdoor use without direct sunlight exposure.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 10. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
Technical drawings
Typical applications
- Display devices for decorative & advertising accessories (Note.10)
- General purpose electronics operated in dusty or damp environments
Downloads
Datasheet1
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the LPVL-150-24 for 24V LED strip lights?
Yes, this is a 24V constant voltage LED driver made for 24V LED strip systems. It can supply up to 151.2W total at 6.3A, so the connected strip load must stay within that output capacity.
Will the LPVL-150-24 work for 24V LED sign lighting?
It can work for 24V LED sign lighting if the sign uses constant voltage components matched to 24V. The main sizing check is the total load, because this unit is rated for 151.2W output.
Is this driver a good match for 24V linear or cove lighting?
Yes, it is suitable for 24V linear or cove lighting systems that require constant voltage power. With 24V output and 151.2W maximum power, it fits longer or higher-load 24V lighting runs as long as the total wattage stays within spec.
Can I use the LPVL-150-24 for outdoor 24V landscape or architectural lighting?
Yes, it is an IP67 waterproof driver, so it is suited to outdoor or damp environments where a sealed power supply is required. Its operating temperature range is -25°C to +65°C, so site conditions should remain within that range.
How do I estimate the maximum 24V LED strip length this driver can support?
Use this sizing method: 151.2W divided by your strip's rated power per meter equals the estimated maximum length. This driver provides up to 151.2W total at 24V, but you should check your strip rated power per meter before choosing the run length.
What is the difference between the LPVL-150-24 and LPVL-150-12?
The LPVL-150-24 is rated at 24V, 6.3A, and 151.2W, while the LPVL-150-12 is rated at 12V, 10A, and 120W. Both share the same 191.0 × 63.0 × 37.5 mm dimensions, 0.79 kg weight, IP67 rating, 90-132VAC input, and -25°C to +65°C operating temperature range.
