Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

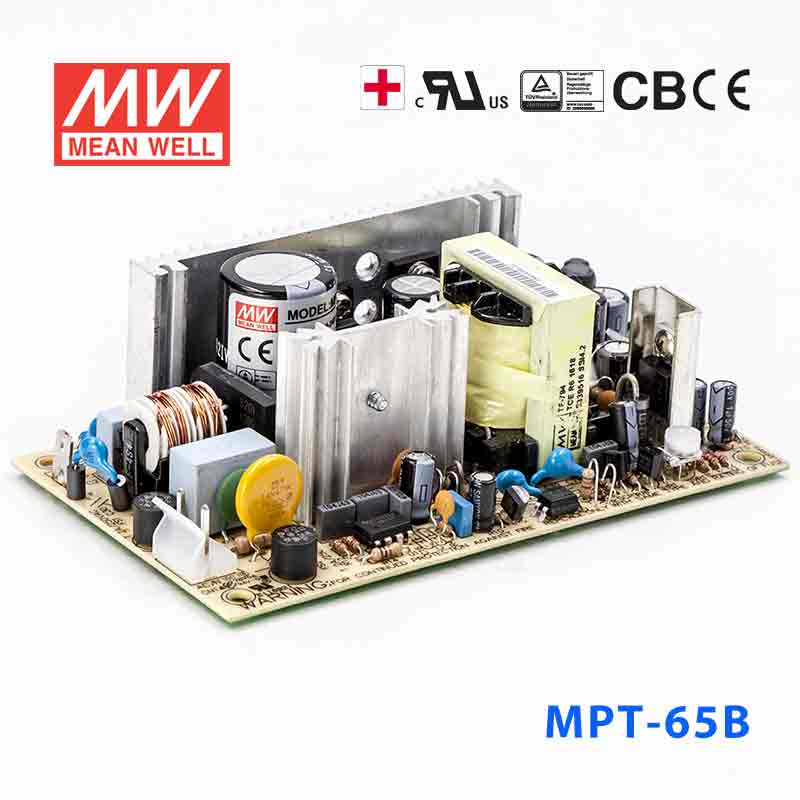

Mean Well MPT-65B Power Supply 65W 5V 12V -12V 5.5A
<0.75mA
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current<0.5mA
- ✓Protections: Short circuit/ Overload/ Over voltage
- ✓Cooling by free air convection
- ✓100% full load burn-in test
- ✓Fixed switching frequency at 65KHz
- ✓2 years warranty
-
BrandMean Well
-
SeriesMPT Series
-
Power Rating63.5 Watt
-
Output Voltage5 Volt
-
Rated Current5.5 Ampere
-
Input Voltage90V~264V
-
No of Output3
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~55°C
-
Warranty3 Year
-
Length5 in
-
Width2.99 in
-
Height1.65 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
Can I use the MPT-65B for a 5V control board with 12V and -12V analog sections?
Yes. This model combines constant-voltage 5V output with up to 5.5A and 63.5W total power, and the product name identifies 12V and -12V rails. That makes it a reasonable option for mixed digital and analog control electronics.
Is the MPT-65B suitable for data acquisition or signal-conditioning electronics?
It can be, especially where the assembly uses regulated 5V logic alongside 12V and -12V rails. The 63.5W rating gives it more overall capacity than the 40.5W, 42.6W, and 43.5W MPT-45 variants.
Can this power supply support a 5V industrial communications or interface module?
Yes, provided the module is designed for constant-voltage 5V input and stays within 5.5A output current and 63.5W total power. Its dimensions of 127.0 × 76.0 × 42.0 mm make it easier to place in enclosed equipment where board space is limited.
Would the MPT-65B fit an embedded system that needs stronger 5V output than a 3A model?
Yes. The 5V output is rated at 5.5A, compared with 3A on the MPT-45A, MPT-45B, and MPT-45C siblings. That extra current margin is useful for more heavily populated 5V boards.
Can the MPT-65B be used in exposed outdoor environments?
The listed temperature range is -10°C to +55°C, but no IP rating appears in the provided specifications. That suggests using it indoors or inside a protected enclosure rather than in direct outdoor exposure.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPT Series Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPT-65C Power Supply 65W 5V 15V -15V 5.5A | 65W | 5V | 5.5A | Indoor | $49.52 | View |
| Mean Well MPT-65A Power Supply 65W 5V 12V -5V 5.5A | 60W | 5V | 5.5A | Indoor | $49.52 | View |
| Mean Well MPT-45C Power Supply 45W 5V 15V -15V 3A | 43.5W | 5V | 3A | Indoor | $34.24 | View |
| Mean Well MPT-45B Power Supply 45W 5V 12V -12V 3A | 42.6W | 5V | 3A | Indoor | $44.83 | View |
| Mean Well MPT-45A Power Supply 45W 5V 12V -5V 3A | 40.5W | 5V | 3A | Indoor | $44.83 | View |
