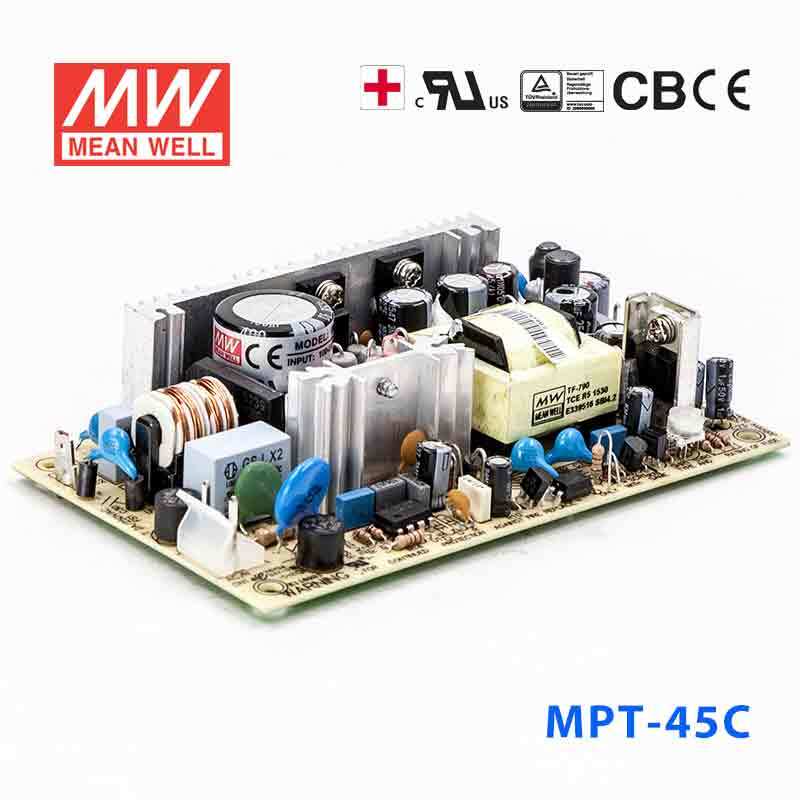

Mean Well MPT-45C Power Supply 45W 5V 15V -15V 3A
Overview
MPT-45C is the model of this series: rated power 43.5W, typical efficiency 75%.
Features
- Universal AC input / Full range
- Low leakage current <250μA
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Medical safety approved (2 x MOPP between primary to secondary)
- 100% full load burn-in test
- Fixed switching frequency at 45KHz
- 3 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 / CH2 / CH3
- DC VOLTAGE CH1
- 5V
- DC VOLTAGE CH2
- 15V
- DC VOLTAGE CH3
- -15V
- RATED CURRENT CH1
- 3A
- RATED CURRENT CH2
- 1.6A
- RATED CURRENT CH3
- 0.3A
- CURRENT RANGE CH1
- 0.4 ~ 5A
- CURRENT RANGE CH2
- 0.2 ~ 2.3A
- CURRENT RANGE CH3
- 0 ~ 0.5A
- RATED POWER
- 43.5W
- OUTPUT POWER (max.)
- 52W with 18CFM min. Forced air convection
- RIPPLE & NOISE (max.) CH1Note.2
- 60mVp-p
- RIPPLE & NOISE (max.) CH2Note.2
- 120mVp-p
- RIPPLE & NOISE (max.) CH3Note.2
- 100mVp-p
- VOLTAGE ADJ. RANGE
- CH1:4.5 ~ 5.5V
- VOLTAGE TOLERANCE CH1Note.3
- ±4.0%
- VOLTAGE TOLERANCE CH2Note.3
- ±7.0%
- VOLTAGE TOLERANCE CH3Note.3
- ±5.0%
- LINE REGULATION CH1
- ±1.0%
- LINE REGULATION CH2
- ±2.0%
- LINE REGULATION CH3
- ±1.0%
- LOAD REGULATION CH1
- ±3.0%
- LOAD REGULATION CH2
- ±4.0%
- LOAD REGULATION CH3
- ±1.0%
- SETUP, RISE TIME
- 800ms, 20ms/230VAC 800ms, 20ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 80ms/230VAC 12ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 75%
- AC CURRENT (Typ.)
- 1.2A/115VAC 0.7A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 20A/115VAC 40A/230VAC
- LEAKAGE CURRENTNote.7
- Earth leakage current < 250μA/264VAC , Touch current < 60μA/264VAC
PROTECTION
- OVERLOAD
- 53 ~ 75W rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.75 ~ 6.75VDC on CH1 Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.04%/℃ (0 ~ 50℃) on +5V output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved
- ISOLATION LEVEL
- Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC 1min.
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, medical level
OTHERS
- MTBF
- 2952.3K hrs min. Telcordia SR-332 (Bellcore) ; 402.8K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 127*76*28mm (L*W*H)
- PACKING
- 0.21Kg; 72pcs/18Kg/1.28CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
- 5. Mounting holes M1 and M2 should be grounded for EMI purposes.
- 6. Heat Sink HS1,HS2 can not be shorted.
- 7. Touch current was measured from primary input to DC output.
Technical drawings
Downloads
Catalogues1
FAQ
Can I use the MPT-45C for a 5V embedded controller with analog signal conditioning?
Yes. This model provides constant-voltage 5V output rated at 3A (0.4–5A current range) within 43.5W total rated power, and its product configuration includes 15V and -15V rails for mixed-signal boards. That makes it a practical fit for embedded control hardware that combines 5V logic with analog circuitry.
Is the MPT-45C suitable for industrial instrumentation or measurement electronics?
It can be a good match for instrumentation electronics that need regulated 5V logic power and use the 15V and -15V outputs shown in the product name. The constant-voltage design and 43.5W rating make it more appropriate for control and signal-processing assemblies than for higher-power 5V loads.
Can this power supply run a 5V automation control board inside a machine cabinet?
Yes, if the board is designed for constant-voltage 5V input and stays within the 5V output's 0.4–5A current range (3A rated) and 43.5W total rated power. Its compact 127 × 76 × 28 mm size also helps when space is limited inside a protected control enclosure.
Is the MPT-45C a good choice for low-power test or lab control electronics?
It is suitable for low-power electronic assemblies that need regulated 5V plus the 15V and -15V rails named for this model. With 43.5W total rated power and 3A rated on the 5V output, it fits lighter-duty control and analog support tasks better than larger 5V systems.
Can the MPT-45C be used in outdoor or harsh exposed locations?
The listed operating temperature is -10°C to +60°C (with derating per the derating curve), but no IP rating is provided in the specs. That points to indoor use or installation inside a protected enclosure rather than direct outdoor exposure.
How does the MPT-45C compare with nearby MPT 5V models?
Within the MPT-45 series, MPT-45A is 40.5W with 5V, 12V and -5V outputs, MPT-45B is 42.6W with 5V, 12V and -12V outputs, and MPT-45C is 43.5W with 5V, 15V and -15V outputs. All three rate the 5V output at 3A, so the main differences are the auxiliary rails and total rated power.
