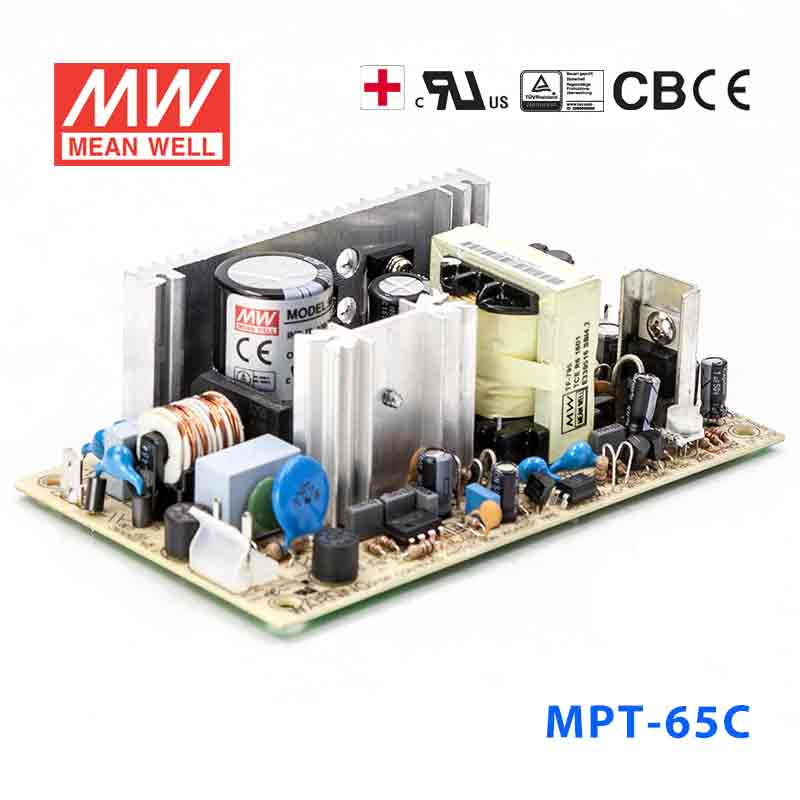

Mean Well MPT-65C Power Supply 65W 5V 15V -15V 5.5A
<0.75mA
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current<0.5mA
- ✓Protections: Short circuit/ Overload/ Over voltage
- ✓Cooling by free air convection
- ✓100% full load burn-in test
- ✓Fixed switching frequency at 65KHz
- ✓2 years warranty
-
BrandMean Well
-
SeriesMPT Series
-
Power Rating65 Watt
-
Output Voltage5 Volt
-
Rated Current5.5 Ampere
-
Input Voltage90V~264V
-
No of Output3
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~55°C
-
Warranty3 Year
-
Length5 in
-
Width2.99 in
-
Height1.65 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
Can I use the MPT-65C for a 5V embedded system with ±15V analog circuitry?
Yes. This model provides constant-voltage 5V output up to 5.5A with 65W total power, and the product name identifies 15V and -15V rails. That combination fits embedded and industrial electronics that mix 5V digital sections with analog stages.
Is the MPT-65C suitable for control and measurement equipment with op-amp or sensor-conditioning boards?
It can be a good fit for that type of electronics because the model is configured around 5V, 15V, and -15V outputs. With 65W total power, it offers more capacity than the 43.5W MPT-45C while keeping the same 5V family focus.
Can this supply power a 5V industrial processing board in a compact enclosure?
Yes, if the board is designed for constant-voltage 5V input and remains within 5.5A and 65W. The 127.0 × 76.0 × 42.0 mm housing is still relatively compact for enclosed equipment builds.
Would the MPT-65C be appropriate for bench or factory test electronics that need 5V plus ±15V rails?
Yes. The model name aligns with 5V, 15V, and -15V output needs, and the unit is rated for 65W total power. That makes it a stronger option than the 43.5W MPT-45C when the same rail style is needed with more available power.
Is the MPT-65C for indoor or outdoor use?
Its operating temperature range is -10°C to +55°C, but the specs provided do not include an IP rating. That means it is better suited to indoor equipment or protected enclosures than exposed outdoor locations.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPT Series Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPT-65B Power Supply 65W 5V 12V -12V 5.5A | 63.5W | 5V | 5.5A | Indoor | $49.52 | View |
| Mean Well MPT-65A Power Supply 65W 5V 12V -5V 5.5A | 60W | 5V | 5.5A | Indoor | $49.52 | View |
| Mean Well MPT-45C Power Supply 45W 5V 15V -15V 3A | 43.5W | 5V | 3A | Indoor | $34.24 | View |
| Mean Well MPT-45B Power Supply 45W 5V 12V -12V 3A | 42.6W | 5V | 3A | Indoor | $44.83 | View |
| Mean Well MPT-45A Power Supply 45W 5V 12V -5V 3A | 40.5W | 5V | 3A | Indoor | $44.83 | View |
