Can I use the UHP-350-24 for a 24V PLC, sensor, or industrial automation system?

Yes, this constant-voltage model delivers 24V at up to 14.6A, with 350.4W total output. That makes it a practical fit for 24V PLC systems, sensors, and general industrial automation equipment built for 24V DC.

Is the UHP-350-24 suitable for 24V control cabinets and machine control hardware?

It can be suitable for 24V control cabinets where the total DC load remains within 350.4W and 14.6A. The 220.0 × 62.0 × 31.0 mm low-profile body is also helpful where panel space is limited.

Can this model power 24V embedded systems or industrial I/O equipment?

Yes, the 24V constant-voltage output aligns with many embedded and industrial I/O systems that use a 24V DC bus. With 14.6A available, it sits above smaller 24V supplies while keeping the same slim, fanless UHP housing style.

Is the UHP-350-24 meant for outdoor environments?

The unit is specified for operation from -30°C to +70°C, but the provided specs do not include an IP rating. That means the temperature range is defined, while outdoor exposure resistance is not.

How does the UHP-350-24 compare with the other UHP-350 voltage options?

The listed UHP-350 models are 198W 3.3V 60A, 252W 4.2V 60A, 300W 5V 60A, 350.4W 12V 29.2A, 351W 15V 23.4A, 350.4W 24V 14.6A, 351W 36V 9.75A, and 350.4W 48V 7.3A. The UHP-350-24 sits in the same slim, fanless family, with the selection point mainly being the required output voltage and current.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

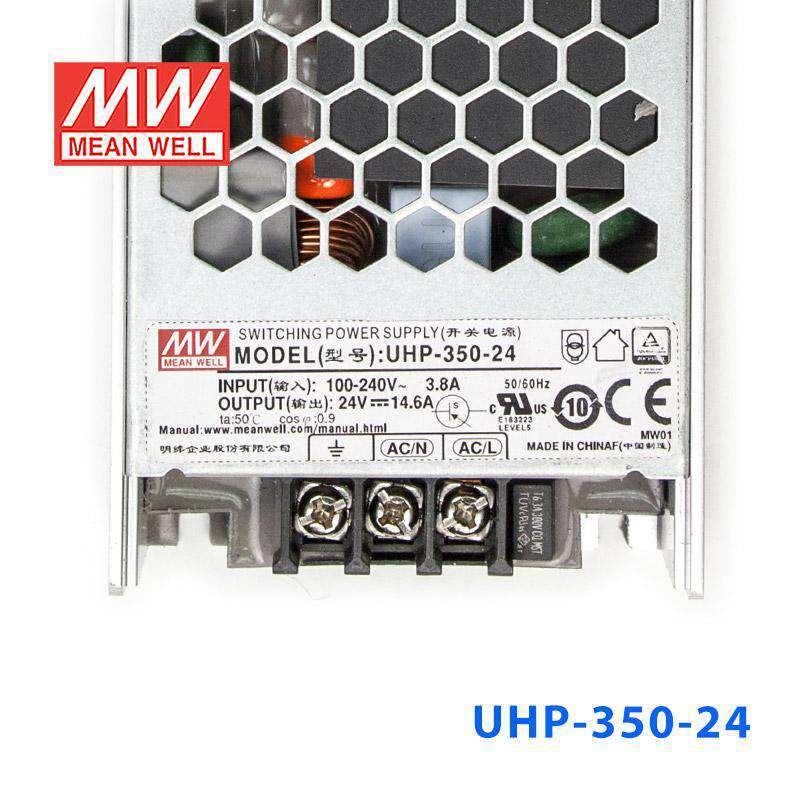

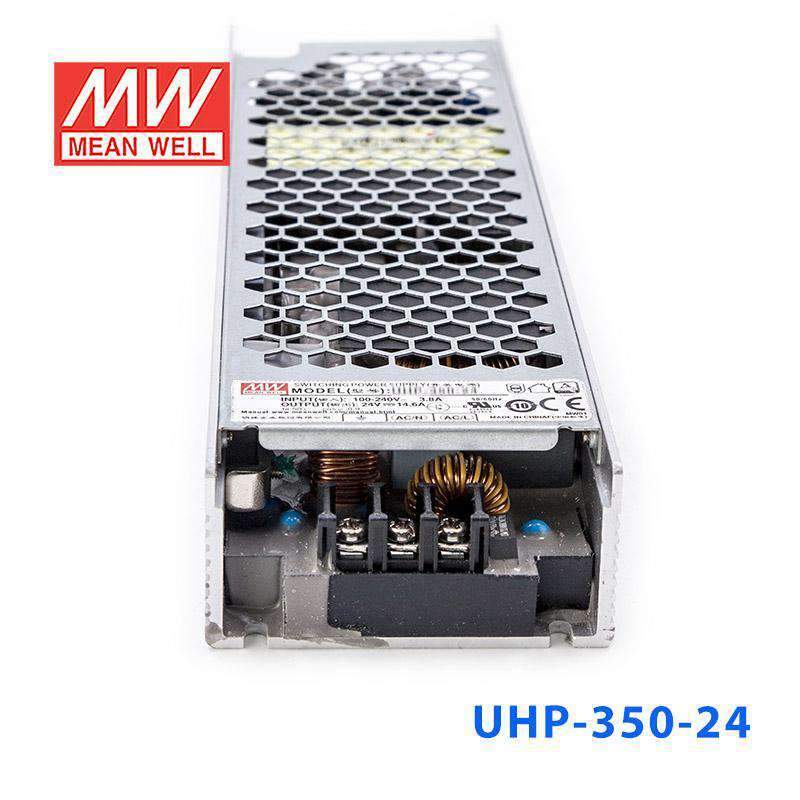

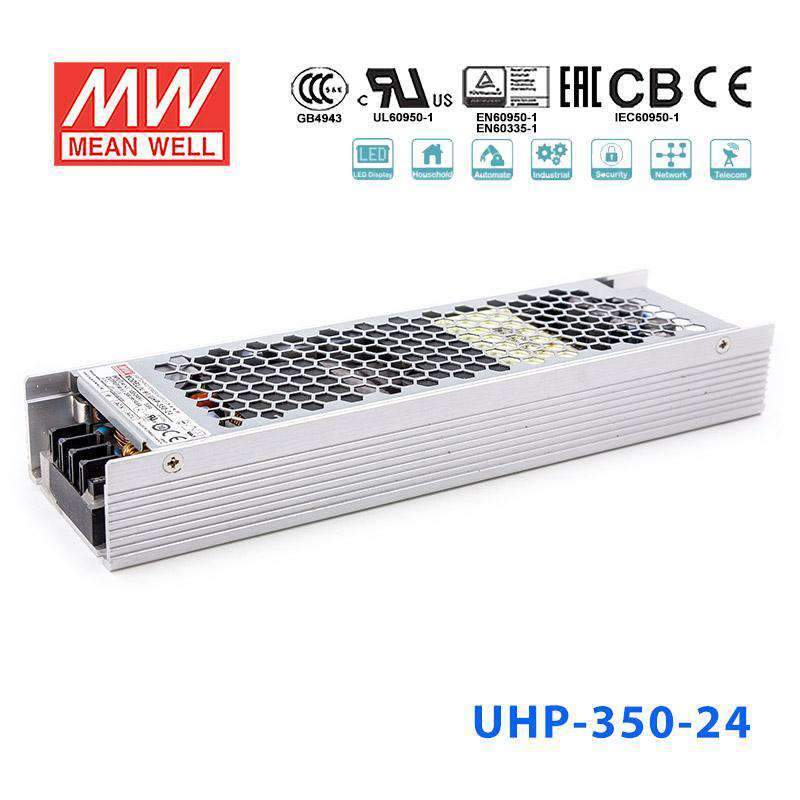

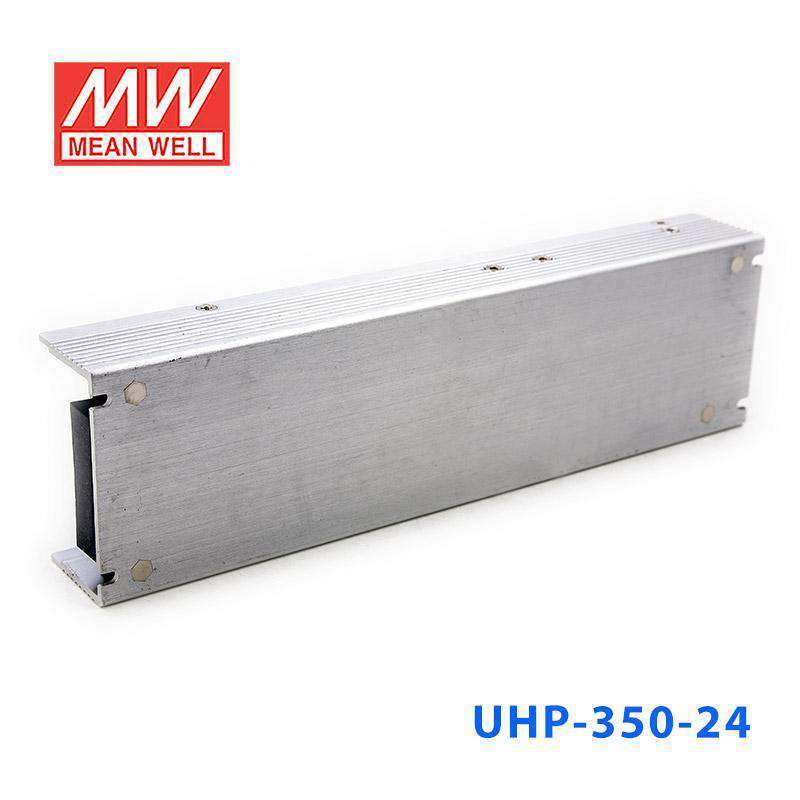

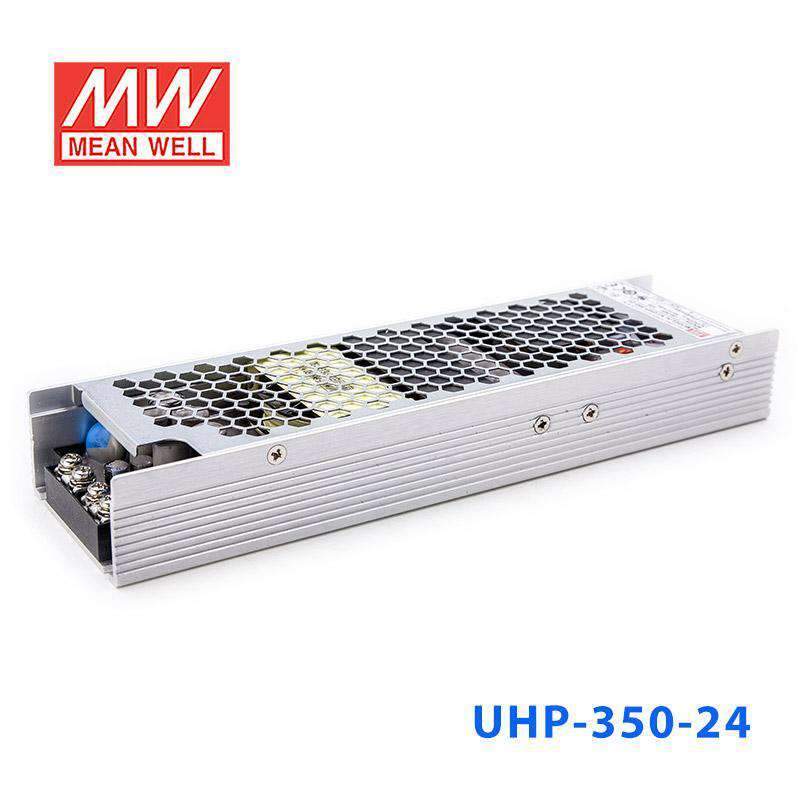

Mean Well UHP-350-24 Power Supply 350.4W 24V 14.6A

Name: Mean Well UHP-350-24 Power Supply 350.4W 24V 14.6A
Brand: Mean Well
SKU: UHP-350-24
Price: 75.33 USD
Availability: InStock

slim and low profilefanless design

SKU:

UHP-350-24

$75.33 USD

Shipping calculated at checkout.

Select model — 7 in this family

UHP-350-24

UHP-200-24 200W 24V In stock $54.50 USD

UHP-350-24 350W 24V In stock $75.33 USD

UHP-500-24 500W 24V In stock $106.64 USD

UHP-750-24 750W 24V In stock $191.90 USD

UHP-1000-24 1000W 24V Low stock $290.70 USD

UHP-1500-24 1500W 24V In stock $436.80 USD

UHP-2500-24 2500W 24V Backorder $649.48 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

The UHP-350 is a 350W Mean Well DIN rail power converter with a 220mm profile (input range: 90~264VAC, operating temperature: -30~+70℃).

Key Features

✓ 220mm width — DIN rail TS-35 compatible
✓ Input voltage range: 90~264VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Wide operating temperature: -30~+70℃
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ DC OK relay contact output
✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes UL 62368-1,TUV EN62368-1,EN60335-1,CCC GB4943,BSMI CNS14336-1,EAC TP TC 004
✓ 3 years warranty

Brand

Mean Well
Series

UHP Series
Power Rating

350.4 Watt
Output Voltage

24 Volt
Rated Current

14.6 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

BSMI,CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

8.66 in
Width

2.44 in
Height

1.22 in
Weight

1.5 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well UHP-350-12 Power Supply 350.4W 12V 29.2A	350.4W	12V	29.2A	Indoor	$69.42	View
Mean Well UHP-350-5 Power Supply 300W 5V 60A	300W	5V	60A	Indoor	$75.31	View
Mean Well UHP-350-48 Power Supply 350.4W 48V 7.3A	350.4W	48V	7.3A	Indoor	$75.33	View
Mean Well UHP-350-4.2 Power Supply 252W 4.2V 60A	252W	4.2V	60A	Indoor	$76.46	View
Mean Well UHP-350-36 Power Supply 351W 36V 9.75A	351W	36V	9.75A	Indoor	$75.33	View
Mean Well UHP-350-3.3 Power Supply 198W 3.3V 60A	198W	3.3V	60A	Indoor	$76.46	View
Mean Well UHP-350-15 Power Supply 351W 15V 23.4A	351W	15V	23.4A	Indoor	$75.33	View

Please log in to write a review.

Key Features

✓ 220mm width — DIN rail TS-35 compatible

✓ Input voltage range: 90~264VAC

✓ DC output voltage adjustable ±10%

✓ 3.75KVAC reinforced I/O isolation

✓ Cooling by free air convection

✓ Wide operating temperature: -30~+70℃

✓ Protections: Short circuit / Overload / Over voltage / Over temperature

✓ Active PFC — meets international energy efficiency regulations

✓ DC OK relay contact output

✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes UL 62368-1,TUV EN62368-1,EN60335-1,CCC GB4943,BSMI CNS14336-1,EAC TP TC 004

✓ 3 years warranty
