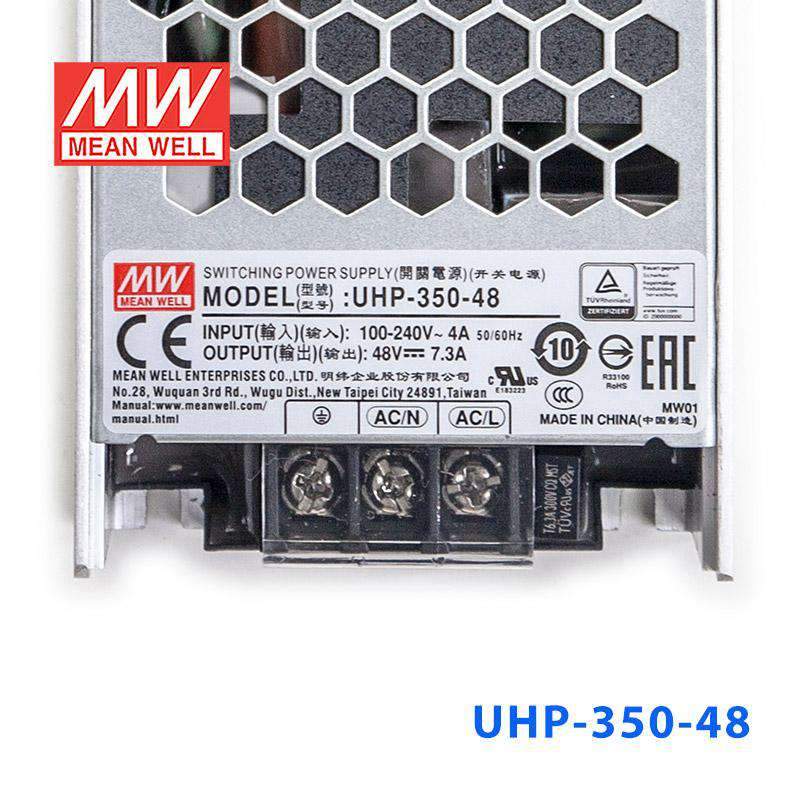

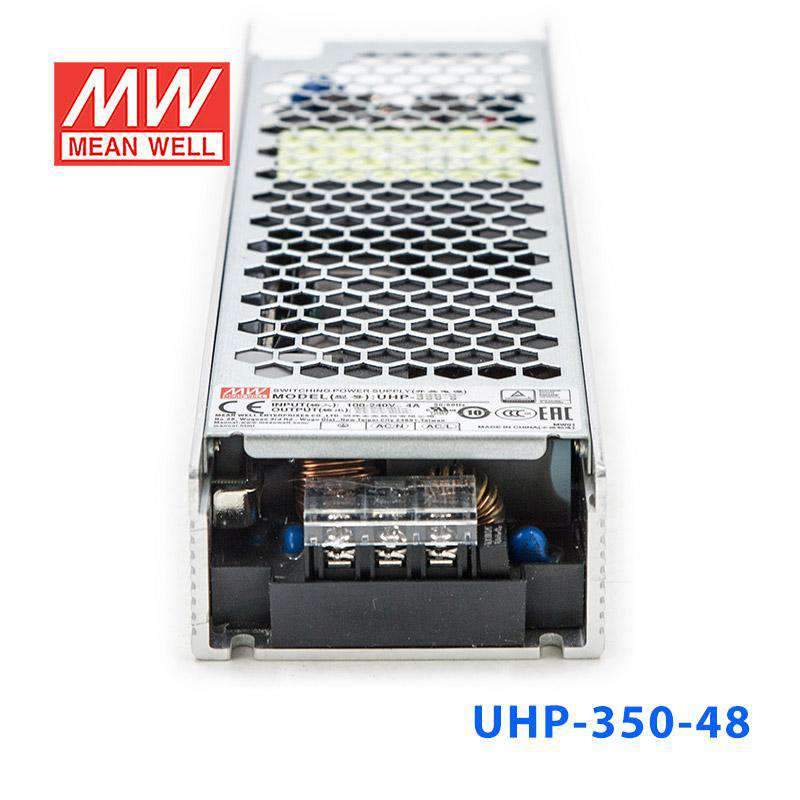

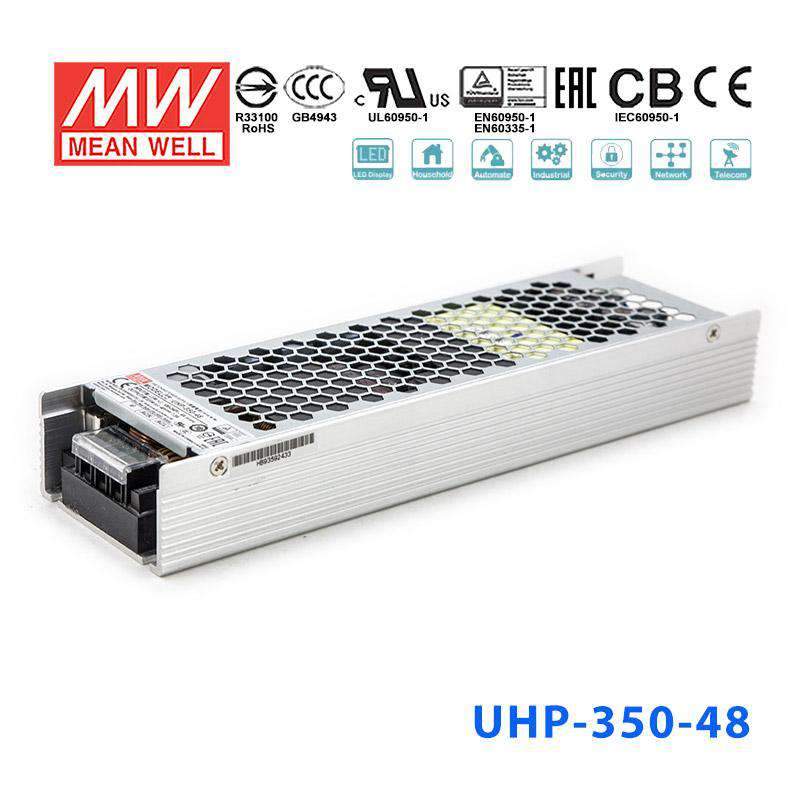

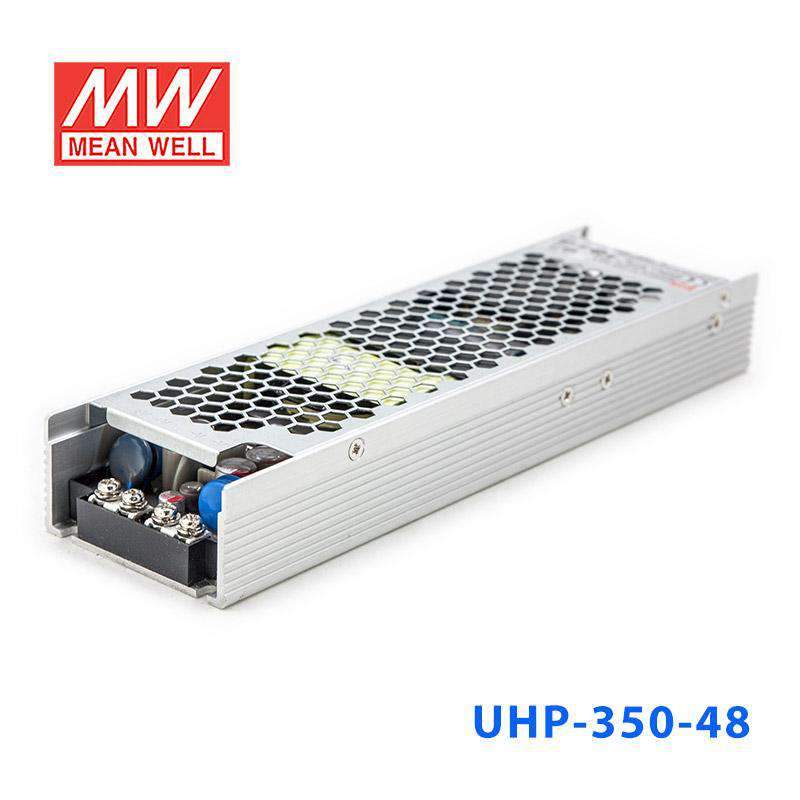

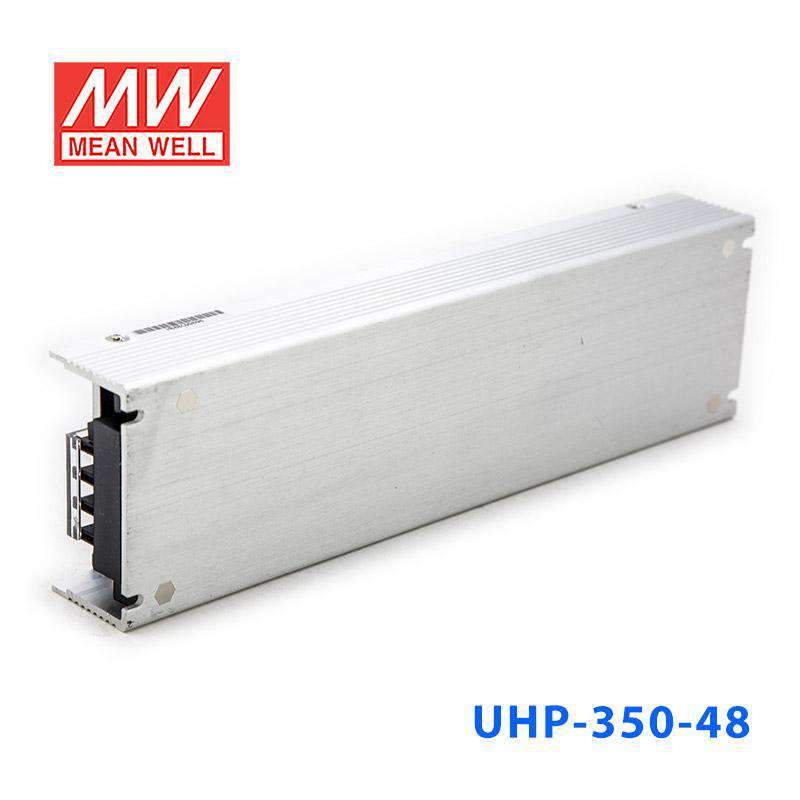

Mean Well UHP-350-48 Power Supply 350.4W 48V

slim and low profile, fanless design

SKU:

UHP-350-48

Model

200W 48V

$54.50 USD

SKU: UHP-200-48

350W 48V

$75.33 USD

SKU: UHP-350-48

500W 48V

$106.64 USD

SKU: UHP-500-48

750W 48V

$220.63 USD

SKU: UHP-750-48

1000W 48V

$290.70 USD

SKU: UHP-1000-48

1500W 48V

$436.87 USD

SKU: UHP-1500-48

2500W 48V

$649.48 USD

SKU: UHP-2500-48

Product variants

$75.33 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Slim and Low profile (31mm)

Fanless design, 350W convection

Withstand 300VAC surge input for 5 seconds

Built-in active PFC function

150% peak load capability(100ms)

-30~+70℃ working temperature

Protections: Short circuit / Overload / Over voltage / Over temperature

DC OK active signal and redundant function(option)

Operating altitude up to 5000 meter

Over voltage category Ⅲ

LED indicator for power on

3 years warranty

General Specification

AC input voltage range	90~264VAC 127~370VDC
AC inrush current	Cold start :30A/115VAC 60A/230VAC
Overload protection	110~140% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over voltage protection	12V:13.2~15.6V, 15V:16.5~19.5V, 24V:26.4~31.2V, 36V:39.6~46.8V, 48V:52.8~62.4V Protection type :Shut down O/P voltage, re-power on to recover
Setup, rise, hold up time	2000ms,80ms/230VAC/115VAC at full load; 10ms/115VAC, 230VAC
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC
Working temperature	-30~+70℃ (Refer to “Derating Curve)
Safety standards	UL60950-1, TUV EN60950-1, EN60335-1, CCC GB4943, EAC TP TC 004,BSMI CNS14336-1 approved, Design refer to EN61558-1,-2-16
EMC standards	Compliance to EN55032, GB9254, Class B, EN55014, EN61000-3-2,-3, EAC TP TC 020, BSMI CNS13438; Compliance to EN61000-4-2,3,4,5,6,8,11;EN61000-6-2 (EN50082-2), heavy industry level ,criterial A,EAC TP TC 020
Dimension (LxWxH)	220×62×31mm
Packing	0.68Kg;16pcs/11.88Kg

Specifications

Brand

Mean Well
Series

UHP Series
Power Rating

350.4 Watt
Output Voltage

48 Volt
Rated Current

7.3 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

BSMI,CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

8.66 in
Width

2.44 in
Height

1.22 in
Weight

1.5 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the UHP-350-48 for a 48V industrial automation or controls cabinet?

Yes, if the equipment is designed for a constant 48V input and the load remains within 7.3A and 350.4W. That makes it suitable for automation systems built around a 48V DC bus.

Is the UHP-350-48 a good fit for 48V industrial networking or telecom-style equipment?

It can be used for 48V equipment that needs a fixed DC source up to 350.4W. The available output current is 7.3A, so it is best matched to systems whose continuous demand fits within that limit.

Can this power supply support 48V sensors, controllers, or automation modules in a machine enclosure?

It is appropriate for 48V automation loads that need a constant-voltage supply and do not exceed 7.3A. The slim 220.0 × 62.0 × 31.0 mm form factor can also matter where panel space is limited.

Is the UHP-350-48 suitable for outdoor use or temperature-challenging indoor spaces?

The specified operating temperature range is -30°C to +70°C, which supports demanding indoor environments. However, no IP rating is listed in the provided specs, so outdoor suitability cannot be confirmed from these details alone.

How does the UHP-350-48 compare with the rest of the UHP-350 family?

The listed UHP-350 models are UHP-350-3.3 at 198W, 3.3V, 60A; UHP-350-4.2 at 252W, 4.2V, 60A; UHP-350-5 at 300W, 5V, 60A; UHP-350-12 at 350.4W, 12V, 29.2A; UHP-350-15 at 351W, 15V, 23.4A; UHP-350-24 at 350.4W, 24V, 14.6A; UHP-350-36 at 351W, 36V, 9.75A; and UHP-350-48 at 350.4W, 48V, 7.3A. UHP-350-55 is also listed as a sibling, but no detailed specs were provided for it here.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well UHP-350-24 Power Supply 350.4W 24V	350.4W	24V	14.6A	Indoor	$75.33	View
Mean Well UHP-350-12 Power Supply 350.4W 12V	350.4W	12V	29.2A	Indoor	$69.42	View
Mean Well UHP-350-5 Power Supply 300W 5V	300W	5V	60A	Indoor	$75.31	View
Mean Well UHP-350-4.2 Power Supply 252W 4.2V	252W	4.2V	60A	Indoor	$76.46	View
Mean Well UHP-350-36 Power Supply 351W 36V	351W	36V	9.75A	Indoor	$75.33	View
Mean Well UHP-350-3.3 Power Supply 198W 3.3V	198W	3.3V	60A	Indoor	$76.46	View
Mean Well UHP-350-15 Power Supply 351W 15V	351W	15V	23.4A	Indoor	$75.33	View
