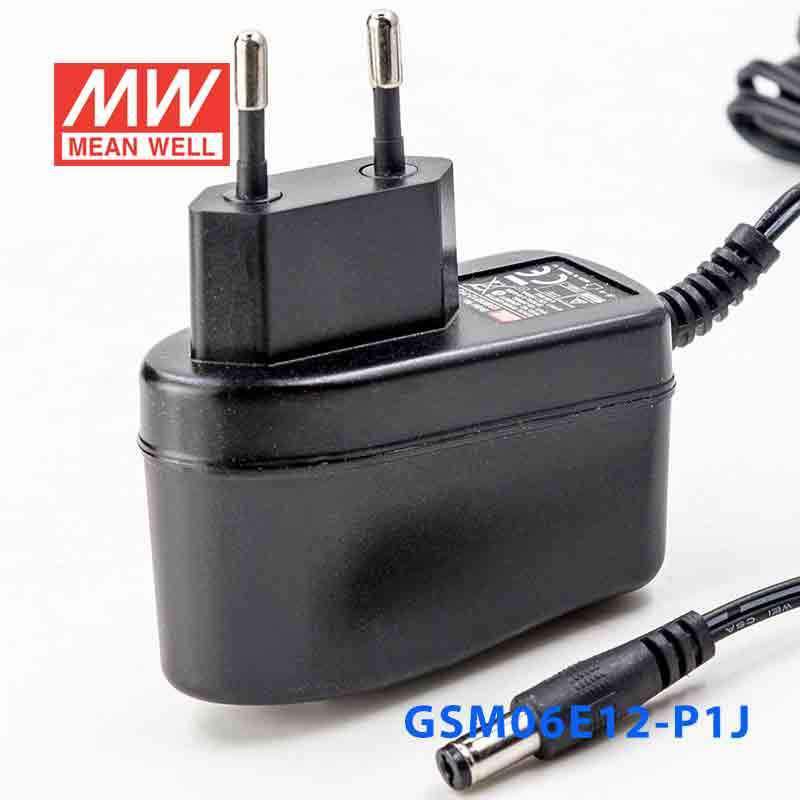

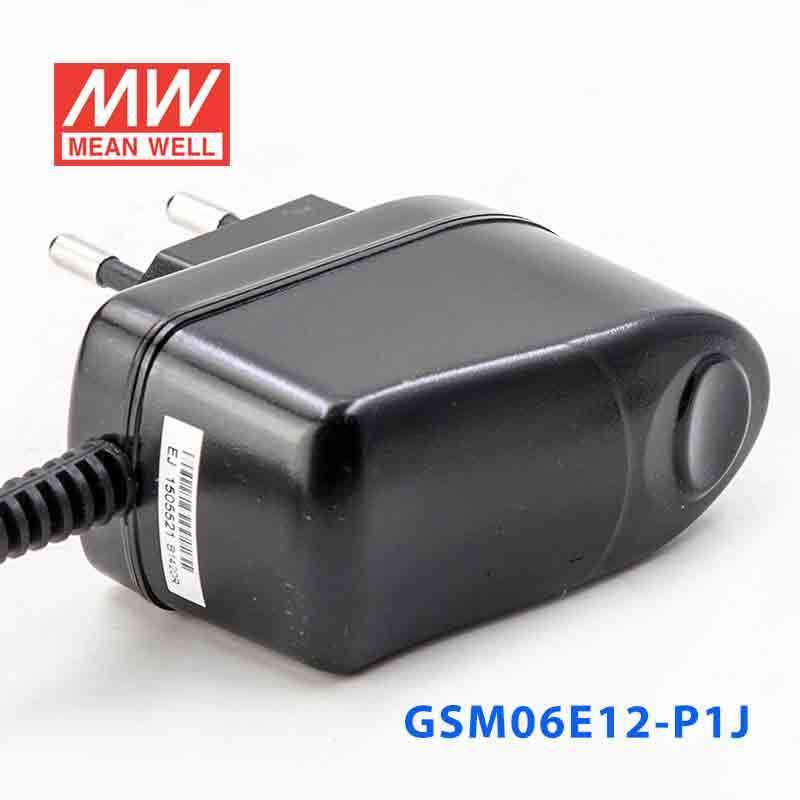

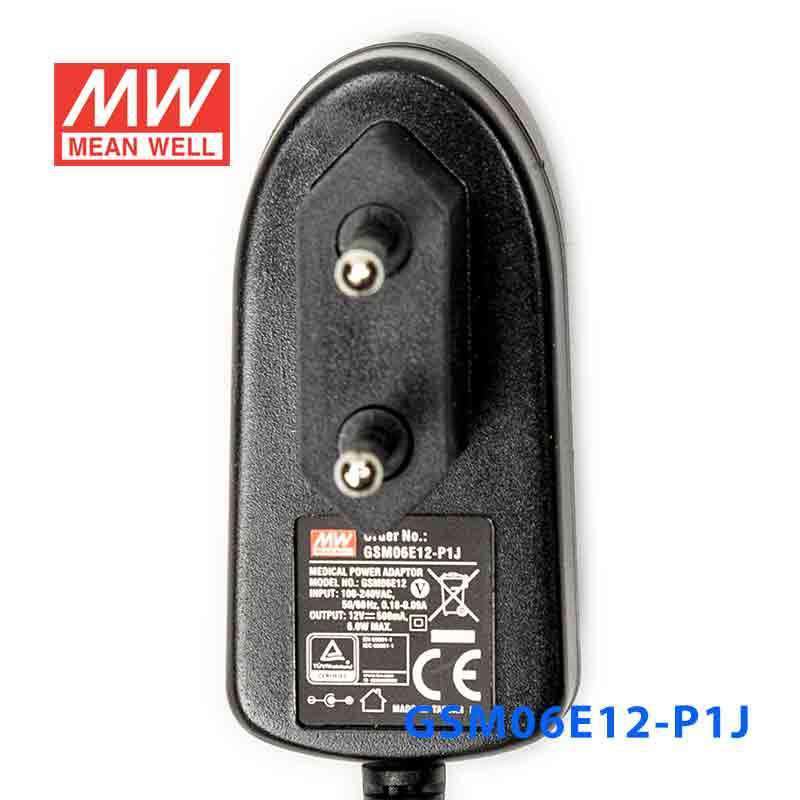

Mean Well GSM06E12-P1J Power Supply 06W 12V
The GSM06E12 is a 6W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating6 Watt
-
Output Voltage12 Volt
-
Rated Current0.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty3 Year
-
Length2.6 in
-
Width1.67 in
-
Height1.26 in
-
Weight0.22 lb
::specification::
Frequently Asked Questions
Can I use the GSM06E12-P1J for a 12V PLC accessory or small automation device?
It can fit a small automation device or PLC accessory that requires constant 12V DC and draws no more than 0.5A. The output is limited to 6W, so it is intended for low-power loads only. Its 85-264VAC input range is useful where the incoming AC supply may vary.
Is this 12V model a good match for embedded systems or control electronics?
Yes, it can be used with embedded systems or control electronics that need constant 12V DC up to 0.5A. Because the total power is 6W, it is best for compact boards, interfaces, and other light loads. It is not meant for 12V equipment that needs more than 0.5A.
Can the GSM06E12-P1J power a small 12V industrial networking or monitoring accessory?
It can support a small networking or monitoring accessory if the unit requires constant 12V DC and stays within 0.5A. The 6W output makes it suitable for low-power endpoints rather than larger communications gear. Buyers should confirm both voltage and current requirements against the device label.
Is this suitable for 12V test, measurement, or instrumentation devices?
It can suit compact test or instrumentation devices that are designed for constant 12V DC and need no more than 0.5A. The 6W rating keeps it in the low-power category, which is often appropriate for smaller electronic modules. It also accepts 85-264VAC input, which helps in different facility power environments.
Can I use the GSM06E12-P1J in an outdoor enclosure?
The operating temperature range is 0°C to +50°C, but no IP rating is listed in the provided specs. Without an IP rating, this model is better suited to indoor or protected enclosures rather than direct outdoor exposure. For dusty or wet conditions, the missing ingress-protection rating should be considered carefully.
