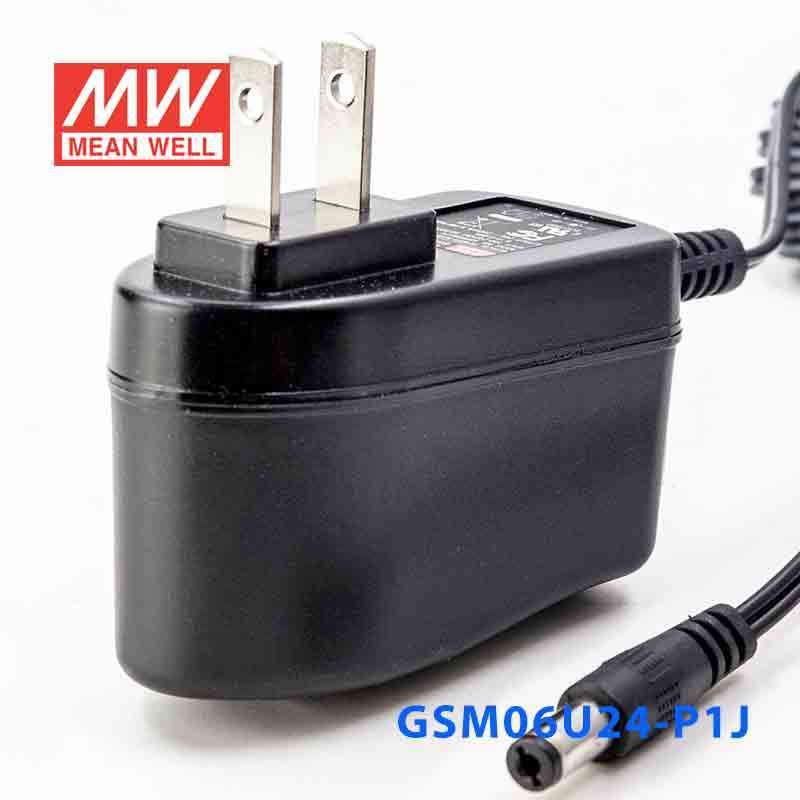

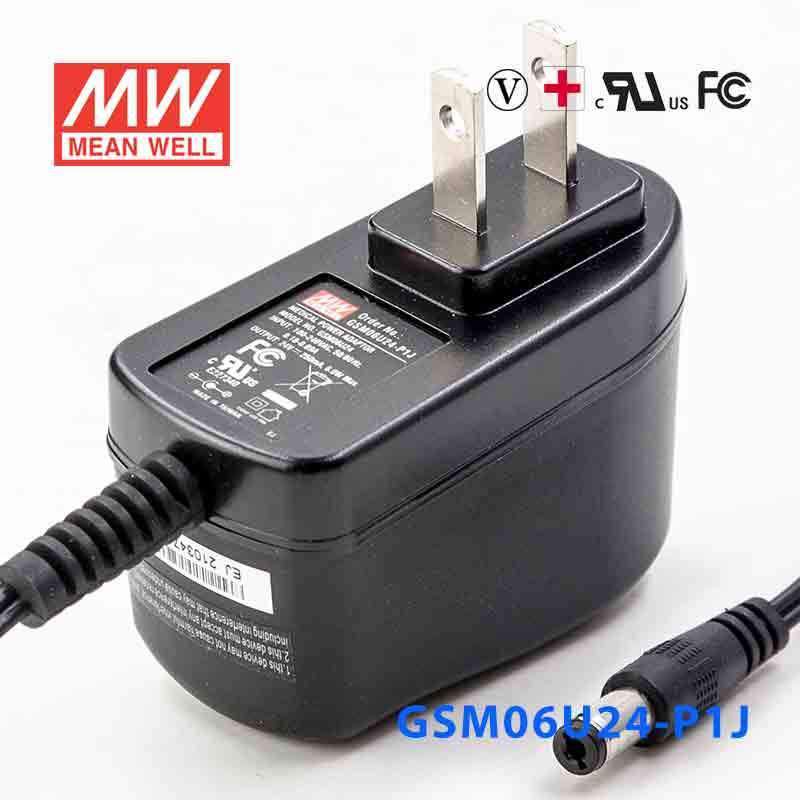

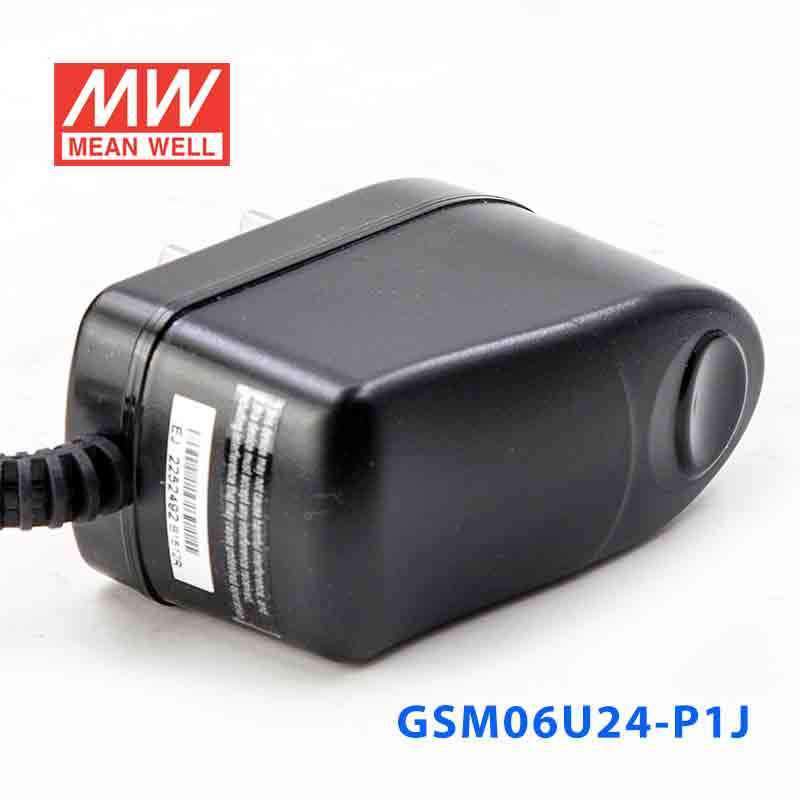

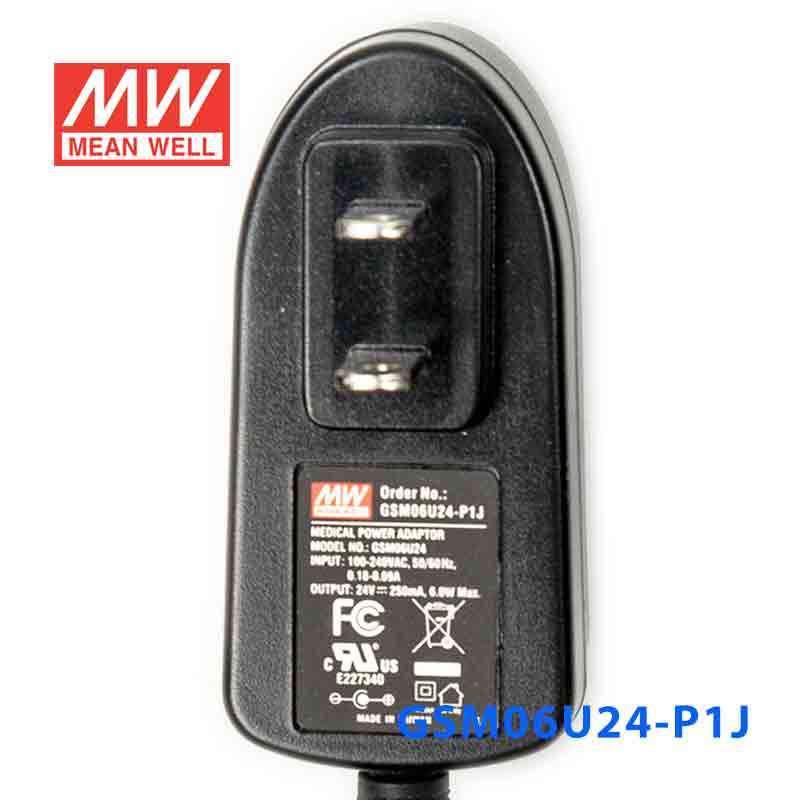

Mean Well GSM06U24-P1J Power Supply 06W 24V 250mA
Overview
GSM06U24-P1J is the 24V output model of this series: rated current 0.25A, rated power 6W, typical efficiency 82%. Type P1J: Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type.
GSM06U is a highly reliable, 6W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard USA AC power plug, adopting the input range from 85VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 24VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra low leakage current (<50μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 82% and the extreme low no-load power consumption below 0.3W. GSM06U is compliant with USA EISA 2007. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM06U is approved with the international medical safety certificates.
Features
- 2 pole USA AC plug, Class Ⅱ power unit
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1
- Extremely low leakage current
- No load power consumption< 0.3W
- Energy efficiency Level Ⅴ
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- Various DC plug quick adapter accessory available (Plug kit sold seperate, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GSM06U24
- DC VOLTAGENote.2
- 24V
- RATED CURRENT
- 0.25A
- CURRENT RANGE
- 0 ~ 0.25A
- RATED POWER
- 6W
- RIPPLE & NOISE (max.)Note.3
- 180mVp-p
- VOLTAGE TOLERANCENote.4
- ±4.0%
- LINE REGULATIONNote.5
- ±0.5%
- LOAD REGULATIONNote.6
- ±2.0%
- SETUP, RISE, HOLD UP TIME
- 1000ms, 50ms, 12ms at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 82%
- AC CURRENT
- 0.18A / 100VAC
- INRUSH CURRENT (max.)
- Cold start 15A / 115VAC 30A / 230VAC
- LEAKAGE CURRENT(max.)
- Touch current < 50μA/264VAC
PROTECTION
- OVERLOAD
- >105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- >120% rated output voltage Protection type : Clamp by zener diode
ENVIRONMENT
- WORKING TEMP.
- 0 ~ +50℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.04% / ℃ (0 ~ 40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- ANSI/AAMI ES60601-1(3.1 version),CAN/CSA-C22 NO. 60601-1 3rd edition, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:5656VDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission FCC PART 15 & 18 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B Radiated emission FCC PART 15 & 18 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B
OTHERS
- MTBF
- 500Khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 32*66*42.5mm (L*W*H)
- PACKING
- 100g; 110pcs/12Kg/CARTON
CONNECTOR
- PLUG
- See page 4~5 ; Other type available by customer requested
- CABLE
- See page 4~5 ; Other type available by customer requested
MODEL ENCODING
- P1J (this model)
- Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type
- Blank
- Other options available by customer requested (see Page 4~5)
Test conditions and notes7
- 1.All parameters are specified at 115VAC input, rated load, 25℃ 70% RH ambient.
- 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
- 4.Tolerance: includes set up tolerance, line regulation, load regulation.
- 5.Line regulation is measured from low line to high line at rated load.
- 6.Load regulation is measured from 10% to 100% rated load.
- 7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Technical drawings
Typical applications
- Blood glucose meter
- Blood pressure meter
- Nebulizer
- Inhaler
- Portable medical device
Downloads
Datasheet1
Certificates4
Test reports1
FAQ
Can I use the GSM06U24-P1J for a small 24V sensor, relay module, or interface board?
This is a constant-voltage 24V supply rated for 6W with a maximum output current of 0.25A. It is best suited to small 24V electronics such as low-current sensors, interface boards, or compact relay and control modules within that range.
Is this adapter suitable for compact 24V embedded or industrial electronics?
Yes, for equipment that needs regulated 24V output and draws no more than 0.25A. The compact 66.0 x 42.5 x 32.0 mm size also supports use in small embedded or OEM housings.
Can this model power a low-draw 24V automation accessory?
It can support a low-draw 24V automation accessory as long as the total load stays within 6W. Because the current limit is 0.25A, it is intended for lighter 24V devices rather than larger actuators or higher-power control hardware.
Is the wide AC input useful for equipment shipped to different regions?
The input range is 85-264VAC, so it supports a broad AC input span for internationally deployed equipment. The specs list ANSI/AAMI ES60601-1, CAN/CSA-C22 No. 60601-1 and EAC approvals, plus FCC Part 15 & 18 Class B emissions.
Is the GSM06U24-P1J rated for outdoor environments?
The listed operating temperature is 0°C to +50°C, but no IP rating is shown in the provided data. Based on these specs, temperature limits are defined, while outdoor or washdown exposure should not be assumed from this listing alone.
