Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

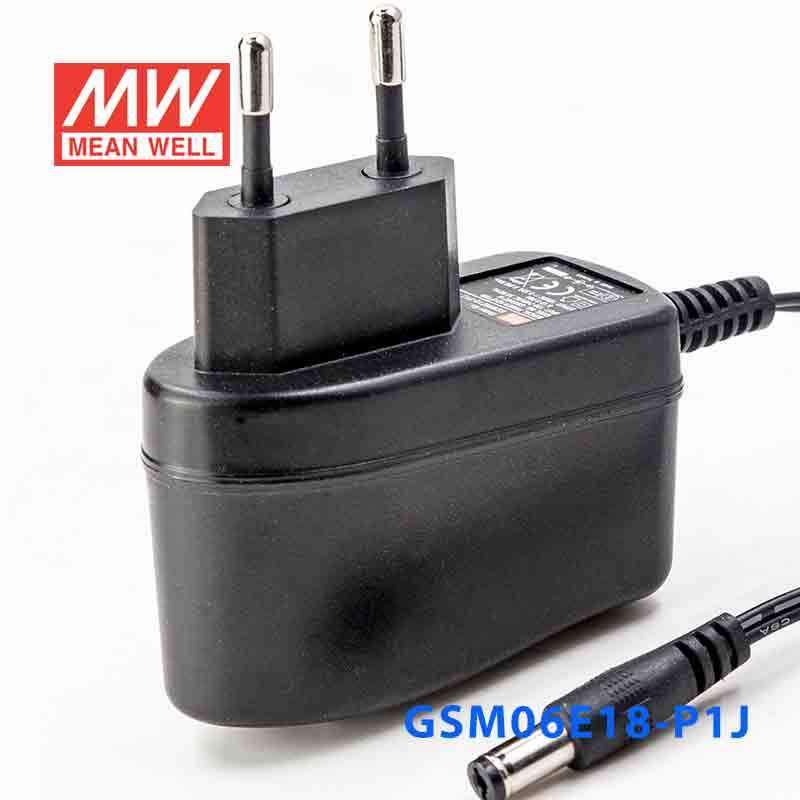

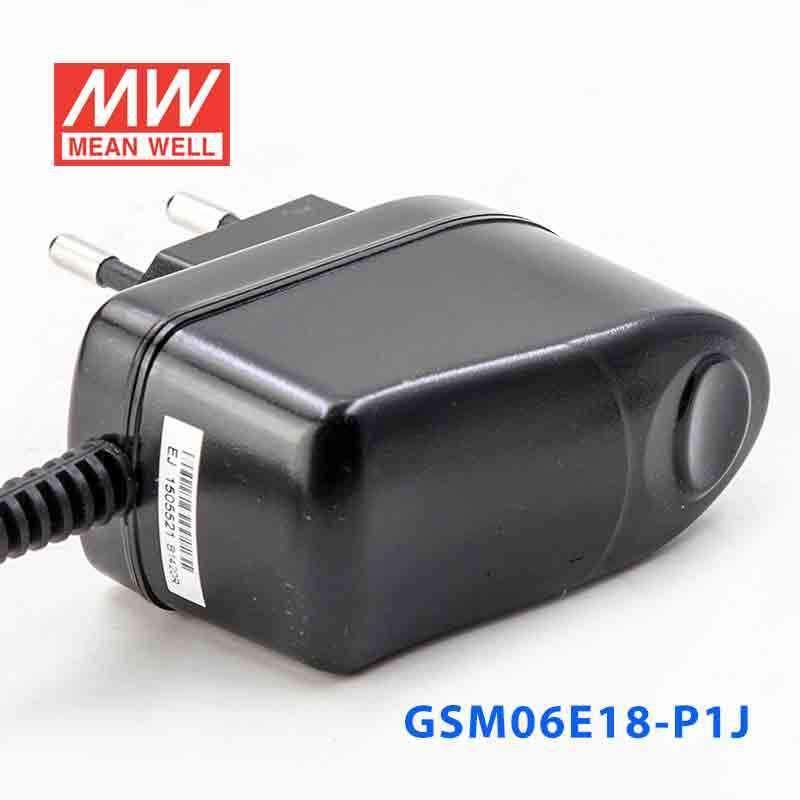

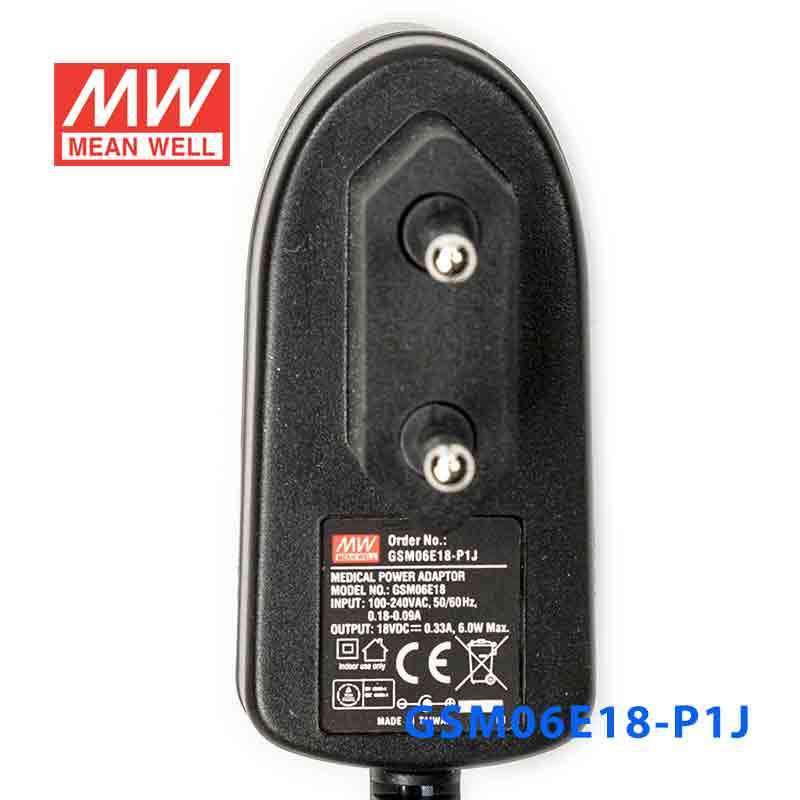

Mean Well GSM06E18-P1J Power Supply 06W 18V
The GSM06E18 is a 6W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating6 Watt
-
Output Voltage18 Volt
-
Rated Current0.33 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty3 Year
-
Length2.6 in
-
Width1.67 in
-
Height1.26 in
-
Weight0.22 lb
::specification::
Frequently Asked Questions
Can I use the GSM06E18-P1J for an 18V automation or industrial electronics load?
It can fit a low-power automation or industrial electronics load that requires constant 18V DC and draws no more than 0.33A. The available output power is 6W, so it is intended for smaller devices rather than heavier 18V loads. Its 85-264VAC input range supports operation from a wide AC input range.
Is this 18V model suitable for embedded systems or control accessories?
Yes, it can suit embedded systems or control accessories that need constant 18V DC up to 0.33A. Because the unit is rated at 6W, it is best used with compact low-power equipment. It is not sized for 18V devices with higher current demand.
Will the GSM06E18-P1J work for small measurement or monitoring equipment that runs on 18V?
It can work for small monitoring or measurement equipment if the device requires constant 18V DC and remains within 0.33A. The 6W output limit keeps it in the low-power category. Buyers should confirm the equipment's 18V requirement and current draw before selecting it.
Can this power supply be used for compact industrial communication or interface modules with 18V input?
It can be used where a compact module needs constant 18V DC and no more than 0.33A. With 6W total output, it is better for small interfaces and electronics than for larger communication hardware. The broad 85-264VAC input range can also simplify use across different facilities.
Is the GSM06E18-P1J suitable for indoor or outdoor conditions?
The specified operating temperature is 0°C to +50°C, and no IP rating is provided in the product data. That makes it a better fit for indoor or protected environments rather than direct outdoor exposure. Where moisture or dust protection is needed, the missing IP rating should be treated as a constraint.
