Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

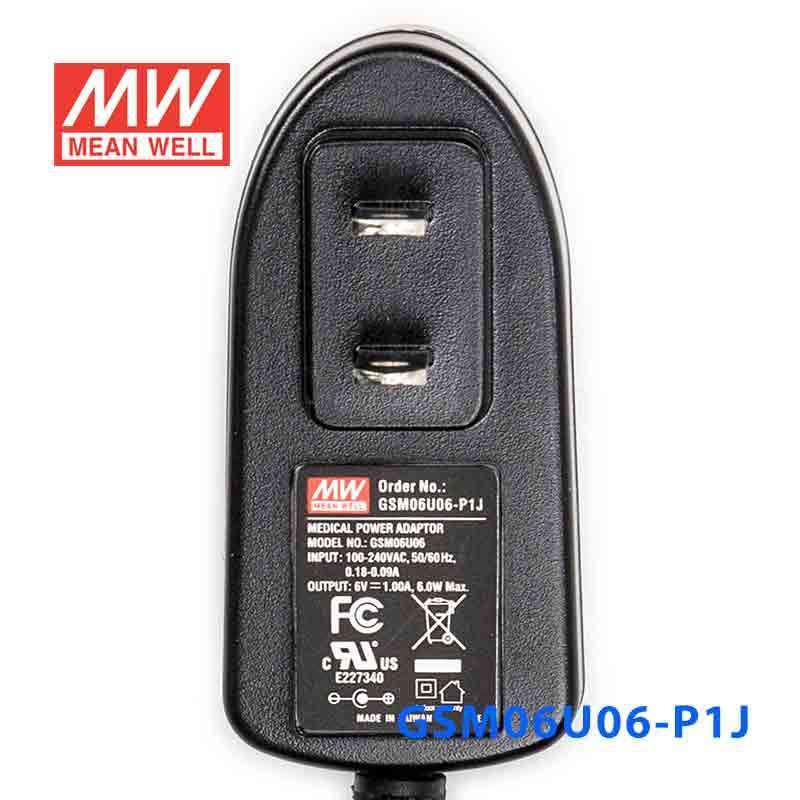

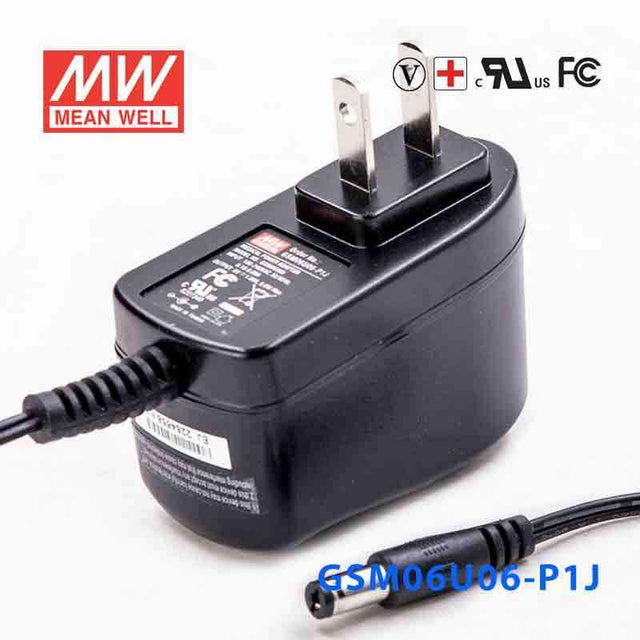

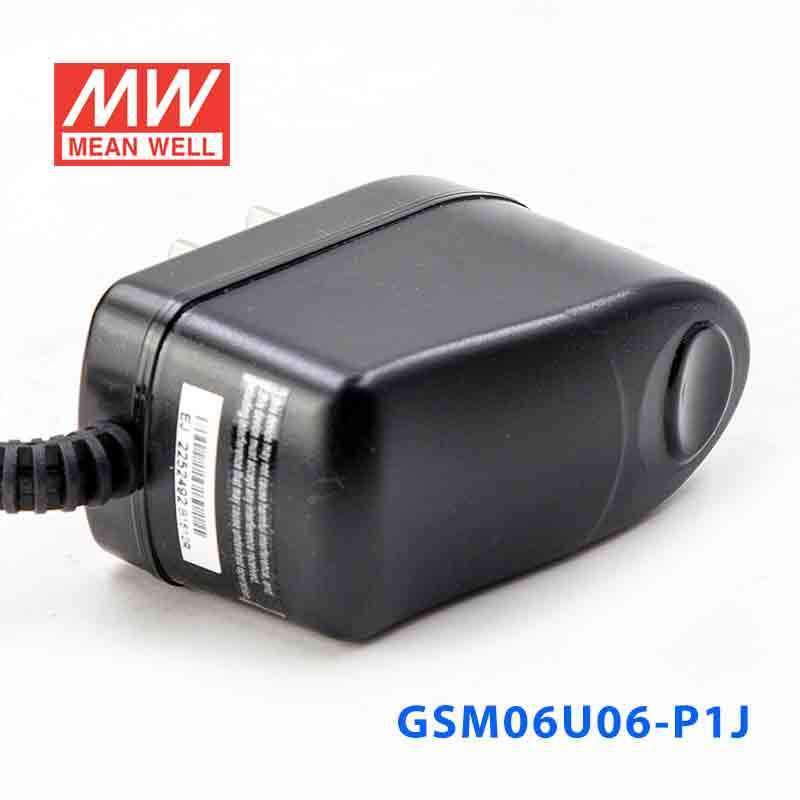

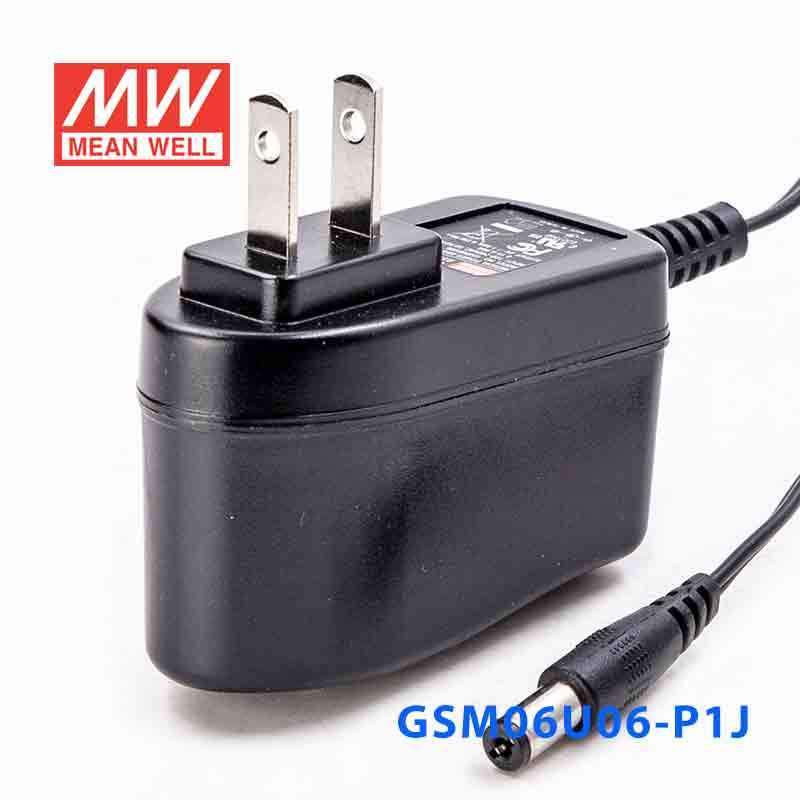

Mean Well GSM06U06-P1J Power Supply 06W 6V
The GSM06U06 is a 6W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ulation that effectively prevents electrical shock. GSM06U is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating6 Watt
-
Output Voltage6 Volt
-
Rated Current1 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty3 Year
-
Length2.6 in
-
Width1.67 in
-
Height1.26 in
-
Weight0.22 lb
::specification::
Frequently Asked Questions
Can I use the GSM06U06-P1J for a 6V embedded device or control module?
Yes, if the equipment requires constant voltage at 6V. The load must stay within 6W total output and draw no more than 1A.
Is this 6V adapter appropriate for a small industrial test instrument or handheld electronic device?
It can be suitable for low-power 6V instruments or electronics that need a constant voltage supply. The device must remain within the 1A output limit and the 6W maximum power rating.
Will this work for a compact 6V automation accessory or peripheral?
This model is designed for constant voltage output at 6V, so it can support compatible automation peripherals that use 6V input. Output capacity is limited to 1A and 6W, which makes it a low-power option.
Can I use this power supply with a 6V bench or lab device that runs continuously?
It can be used with a 6V constant voltage device as long as the demand does not exceed 6W or 1A. The specified operating temperature range is 0°C to +50°C, so the surrounding environment should stay within that range.
Is the GSM06U06-P1J meant for indoor or outdoor environments?
The provided specifications list an operating temperature range of 0°C to +50°C. Since no IP rating is listed in the supplied data, it should generally be considered for indoor or protected-use environments rather than exposed outdoor locations.
