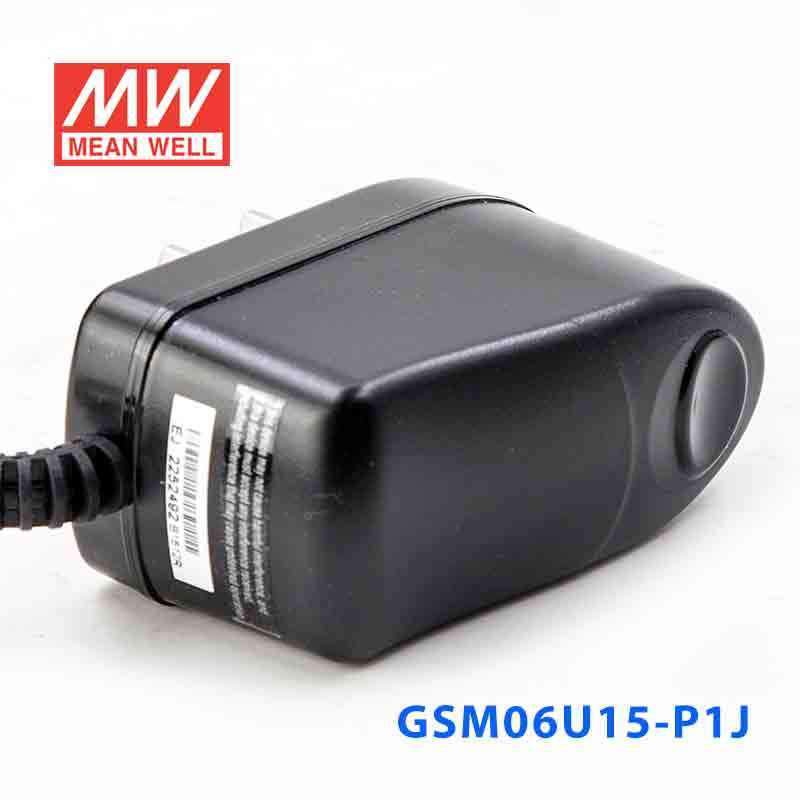

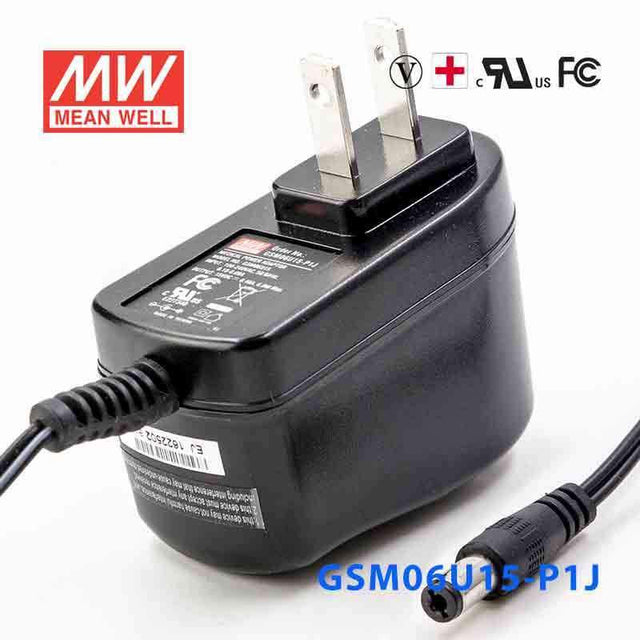

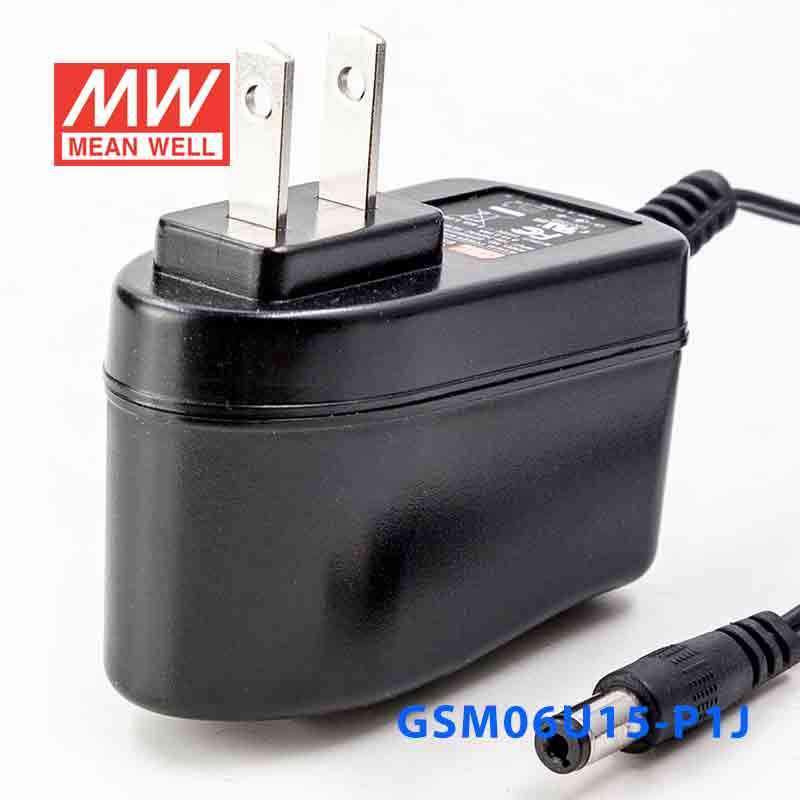

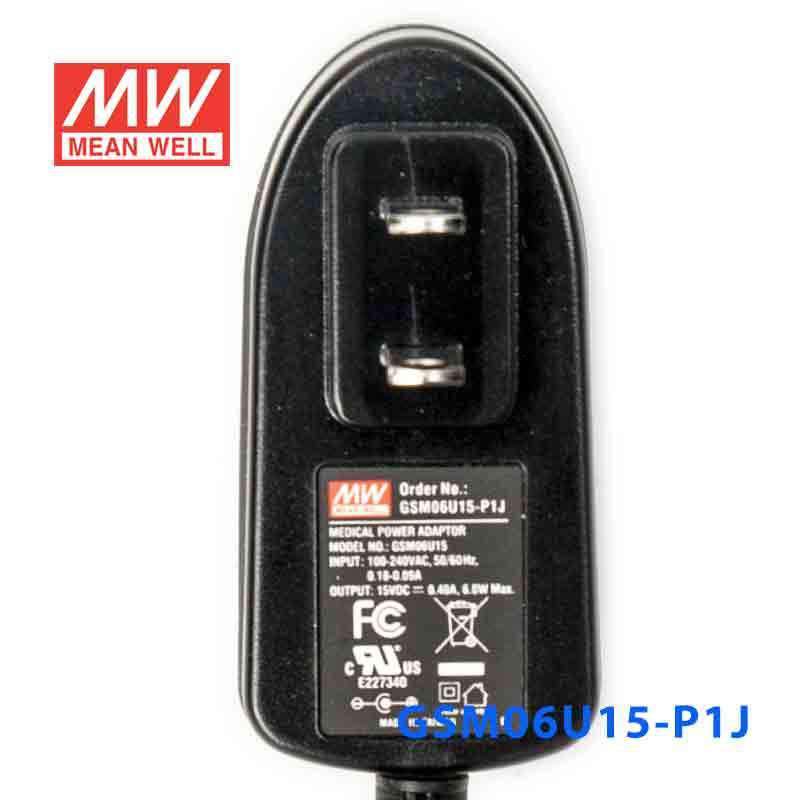

Mean Well GSM06U15-P1J Power Supply 06W 15V
The GSM06U15 is a 6W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ulation that effectively prevents electrical shock. GSM06U is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating6 Watt
-
Output Voltage15 Volt
-
Rated Current0.4 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty3 Year
-
Length2.6 in
-
Width1.67 in
-
Height1.26 in
-
Weight0.22 lb
::specification::
Frequently Asked Questions
Can I use the GSM06U15-P1J for a small 15V industrial sensor or controller?
This model is a constant-voltage 15V supply rated for 6W and 0.4A. It fits small 15V industrial sensors, compact controllers, or low-draw automation accessories that stay within that output rating.
Is this power supply suitable for embedded 15V electronics in a compact enclosure?
It can work for embedded 15V equipment that needs a constant-voltage source up to 0.4A. The housing is 66.0 x 42.5 x 32.0 mm, so it suits space-limited products better than larger desktop supplies.
Can I use this for a low-power 15V HMI, interface module, or test fixture?
Yes, if the load is a 15V constant-voltage device and the total demand does not exceed 6W or 0.4A. That makes it a reasonable fit for low-power interface modules, bench fixtures, and similar light-duty 15V electronics.
Is the GSM06U15-P1J a good choice for globally deployed equipment?
The input range is 85-264VAC, which supports a wide AC input span for equipment used in different regions. It also carries EAC, FCC, and UL certifications, which can help when matching supply requirements to compliant equipment.
Is this model intended for indoor or outdoor use?
The published specs list an operating temperature of 0°C to +50°C, but no IP rating is provided here. That means temperature suitability is defined, while outdoor exposure should be evaluated against the enclosure requirements of the final product.
