Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

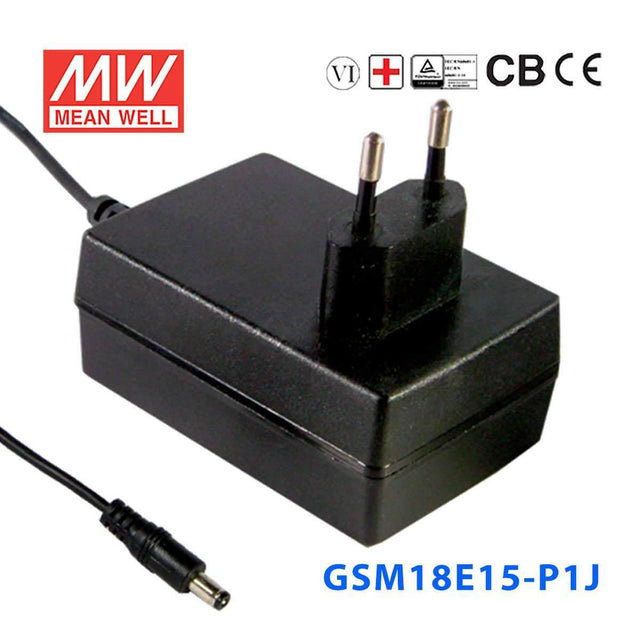

Mean Well GSM18E15-P1J Power Supply 18W 15V
The GSM18E15 is a 18W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating18 Watt
-
Output Voltage15 Volt
-
Rated Current1.2 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
Can I use the GSM18E15-P1J for 15V instrumentation or control electronics?
Yes, if the equipment is designed for constant 15V DC input and draws no more than 1.2A. This unit provides 18W total output, which suits smaller instrumentation, control, and signal-processing loads built around 15V input.
Is the GSM18E15-P1J suitable for a 15V analog module or test device?
It can be used for analog modules, test equipment, or support electronics that need regulated 15V DC and stay within the 1.2A output limit. Matching the exact 15V requirement is the main selection point.
Would this model work for a 15V industrial communications or interface unit?
Yes, it may be suitable for interface units or communications accessories that specify 15V DC input and remain below 18W. The wide 80-264VAC input range is useful where AC source conditions may vary.
Can the GSM18E15-P1J power a compact 15V embedded or automation subsystem?
It can, provided the subsystem requires constant 15V DC and its total demand does not exceed 1.2A. That makes it appropriate for smaller embedded and automation devices that are designed around a 15V DC rail.
Can the GSM18E15-P1J be used in cold or exposed environments?
The specified operating temperature range is -25°C to +60°C, so it supports use in applications that stay within those limits. An IP rating is not listed in the provided specs, so exposed outdoor or wet-area use should rely on the protection of the final enclosure rather than the power supply alone.
