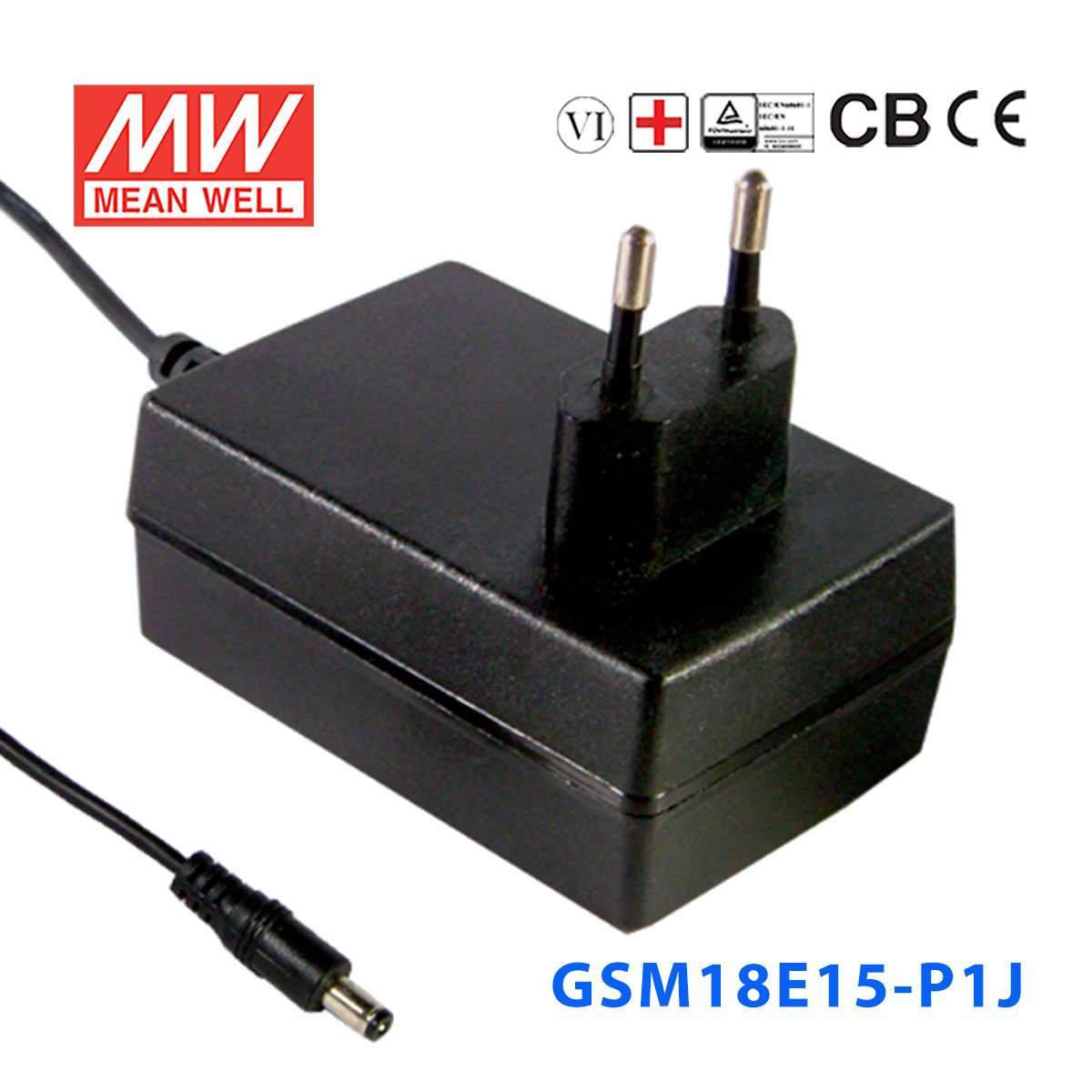

Mean Well GSM18E15-P1J Power Supply 18W 15V 1.2A
Overview
GSM18E15-P1J is the 15V output model of this series: rated current 1.2A, typical efficiency 85.5%. Type P1J: Plug for standard model, 2.1$\phi$ x 5.5$\phi$ x11mm, c+, tuning fork type.
GSM18E is a highly reliable, 18W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard European power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniaiture medical devices. The circuitry design meets the international medical standards (2 × MOPP), having an ultra low leakage current (<50 μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 88% and the extreme low no-load power consumption below 0.1W, GSM18E is compliant with EU ErP and meet Code of Conduct(CoC) Version 5; the supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM18E is approved with the international medical safety certificates.
Features
- 2 pole EURO plug , Class Ⅱ power unit
- Medical safety approved (2 × MOPP) according to EN60601-1/-1-11
- Extremely low leakage current
- No load power consumption<0.1W
- Energy efficiency Level Ⅵ and meet CoC version 5 ( except 5~9V for Level Ⅴ)
- -25~+60℃ wide range working temperature
- Protections: Short circuit / Overload / Over voltage
- LED indicator for power on
- Various DC plug quick adaptor accessory available (Plug kit sold seperate, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GSM18E15
- DC VOLTAGENote.2
- 15V
- RATED CURRENT
- 1.2A
- CURRENT RANGE
- 0 ~ 1.2A
- RATED POWER (max.)
- 18W
- RIPPLE & NOISE (max.)Note.3
- 120mVp-p
- VOLTAGE TOLERANCENote.4
- ±3.0%
- LINE REGULATIONNote.5
- ±1.0%
- LOAD REGULATION
- ±3.0%
- SETUP, RISE TIMENote.6
- 500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 16ms / 230VAC 16ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.7
- 80 ~ 264VAC 113 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 85.5%
- AC CURRENT (Typ.)
- 0.5A / 115VAC 0.25A / 230VAC
- INRUSH CURRENT (Typ.)
- 55A / 230VAC 30A / 115VAC
- LEAKAGE CURRENT(max.)
- Touch current < 50μA/264VAC
PROTECTION
- OVERLOAD
- 105 ~ 170% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 15.75 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0~40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note. 8)
- SAFETY STANDARDS
- IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1, TUV BS EN/ EN 60601-1:2006+A1+A12+A2; BS EN/ EN 60601-1-11:2015+A1, EAC TP TC 004 approved
- ISOLATION LEVEL
- Primary-Secondary: 2xMOPP
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission EN55011 (CISPR11) Class B Radiated emission EN55011 (CISPR11) Class B Harmonic current EN61000-3-2 Class A Voltage flicker EN61000-3-3 ----- - EMC IMMUNITY
-
EN60601-1-2, EN61204-3
Parameter Standard Test Level ESD EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact RF field susceptibility EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) EFT bursts EN61000-4-4 Level 3, 2KV Surge susceptibility EN61000-4-5 Level 3, 1KV/Line-Line Conducted susceptibility EN61000-4-6 Level 3, 10V Magnetic field immunity EN61000-4-8 Level 4, 30A/m Voltage dip, interruption EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods
OTHERS
- MTBF
- 3888.9K hrs min. Telcordia SR-332 (Bellcore) ; 794.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 79*54*33mm (L*W*H)
- PACKING
- 200g ; 60pcs / 13Kg / CARTON
CONNECTOR
- PLUG
- See page 4~5 ; Other type available by customer requested
- CABLE
- See page 4~5 ; Other type available by customer requested
MODEL ENCODING
- P1J (this model)
- Plug for standard model, 2.1$\phi$ x 5.5$\phi$ x11mm, c+, tuning fork type
- Blank
- Other options available by customer requested (see Page 4~5)
Test conditions and notes8
- 1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
- 4. Tolerance: includes set up tolerance, line regulation, load regulation.
- 5. Line regulation is measured from low line to high line at rated load.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. Derating may be needed under low input voltage. Please check the derating curve for more details.
- 8. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Blood glucose meter
- Blood pressure meter
- Nebulizer
- Inhaler
- Portable medical device
Downloads
Datasheet1
Certificates4
Test reports1
FAQ
Can I use the GSM18E15-P1J for 15V instrumentation or control electronics?
Yes, if the equipment is designed for constant 15V DC input and draws no more than 1.2A. This unit provides 18W total output, which suits smaller instrumentation, control, and signal-processing loads built around 15V input.
Is the GSM18E15-P1J suitable for a 15V analog module or test device?
It can be used for analog modules, test equipment, or support electronics that need regulated 15V DC and stay within the 1.2A output limit. Matching the exact 15V requirement is the main selection point.
Would this model work for a 15V industrial communications or interface unit?
Yes, it may be suitable for interface units or communications accessories that specify 15V DC input and remain below 18W. The wide 80-264VAC input range is useful where AC source conditions may vary.
Can the GSM18E15-P1J power a compact 15V embedded or automation subsystem?
It can, provided the subsystem requires constant 15V DC and its total demand does not exceed 1.2A. That makes it appropriate for smaller embedded and automation devices that are designed around a 15V DC rail.
Can the GSM18E15-P1J be used in cold or exposed environments?
The specified operating temperature range is -25°C to +60°C, so it supports use in applications that stay within those limits. An IP rating is not listed in the provided specs, so exposed outdoor or wet-area use should rely on the protection of the final enclosure rather than the power supply alone.
