Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

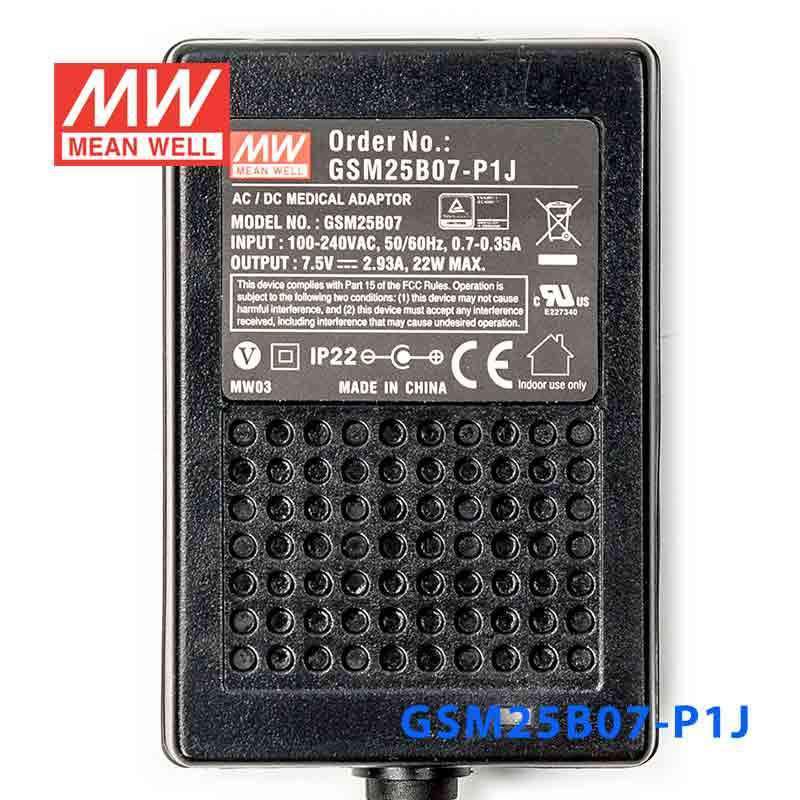

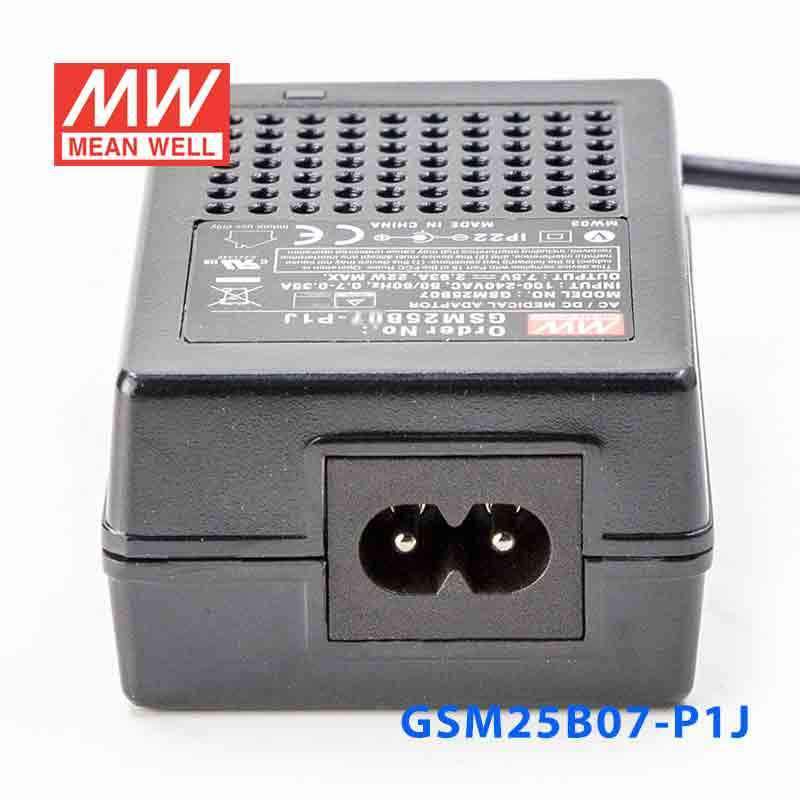

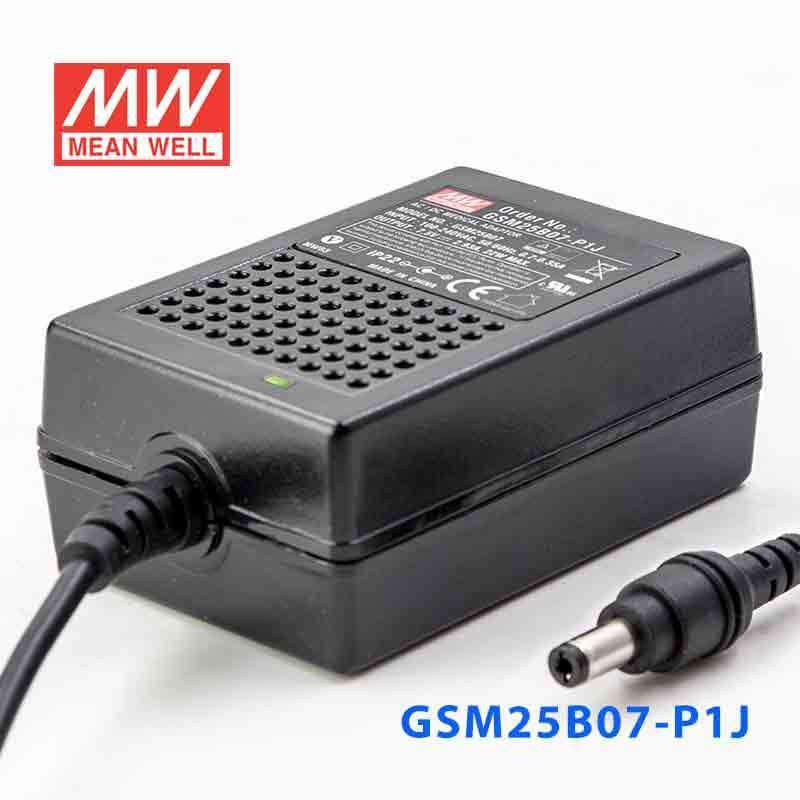

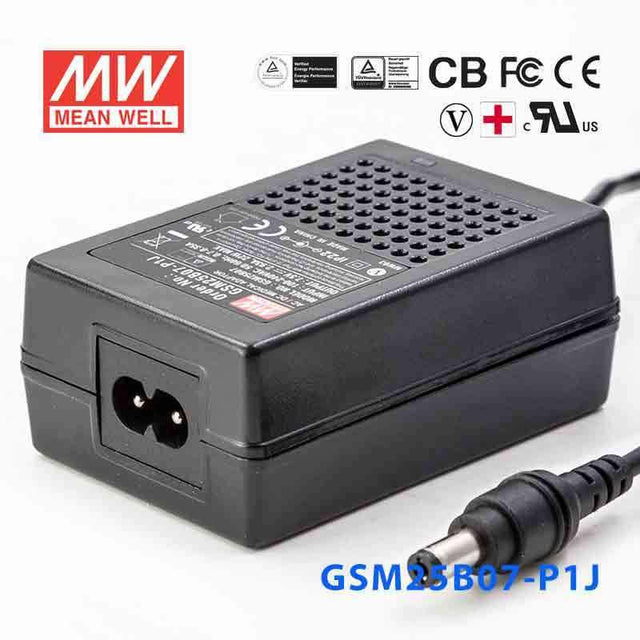

Mean Well GSM25B07-P1J Power Supply 22W 7.5V
The GSM25B07 is a 25W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating22 Watt
-
Output Voltage7.5 Volt
-
Rated Current2.93 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.52 lb
::specification::
Frequently Asked Questions
Can I use the GSM25B07-P1J for a 7.5V embedded device or compact controller?
Yes, this power supply is designed for constant voltage 7.5V output at up to 2.93A and 22W. It is a fit for embedded devices or compact controllers that specifically require 7.5V DC within that range.
Is this model suitable for 7.5V automation accessories or interface modules?
It can be used for automation accessories or interface modules that are built for 7.5V constant voltage input. Total load must stay within 2.93A and 22W.
Can the GSM25B07-P1J power 7.5V lab, test, or monitoring equipment?
It is appropriate for lab, test, or monitoring equipment that needs a fixed 7.5V DC supply and does not exceed 22W. The unit accepts 80-264VAC input, which helps when AC source voltage varies by site.
What kind of 7.5V load size is this power supply intended for?
This model supports 7.5V DC loads up to 2.93A, with a 22W maximum output rating. Any equipment that needs more than 2.93A or 22W is beyond its stated capacity.
Can I use this 7.5V power supply in outdoor or temperature-variable locations?
Its operating temperature range is -25°C to +60°C, so it is specified for temperature-variable environments within those limits. Because no IP rating is listed, the specs do not confirm suitability for outdoor exposure or wet locations.
