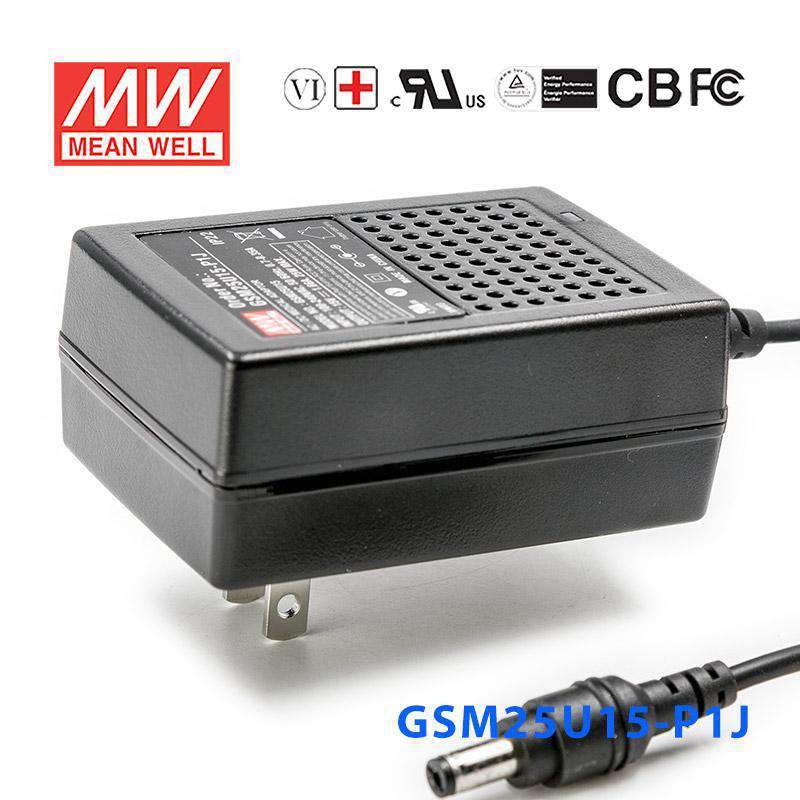

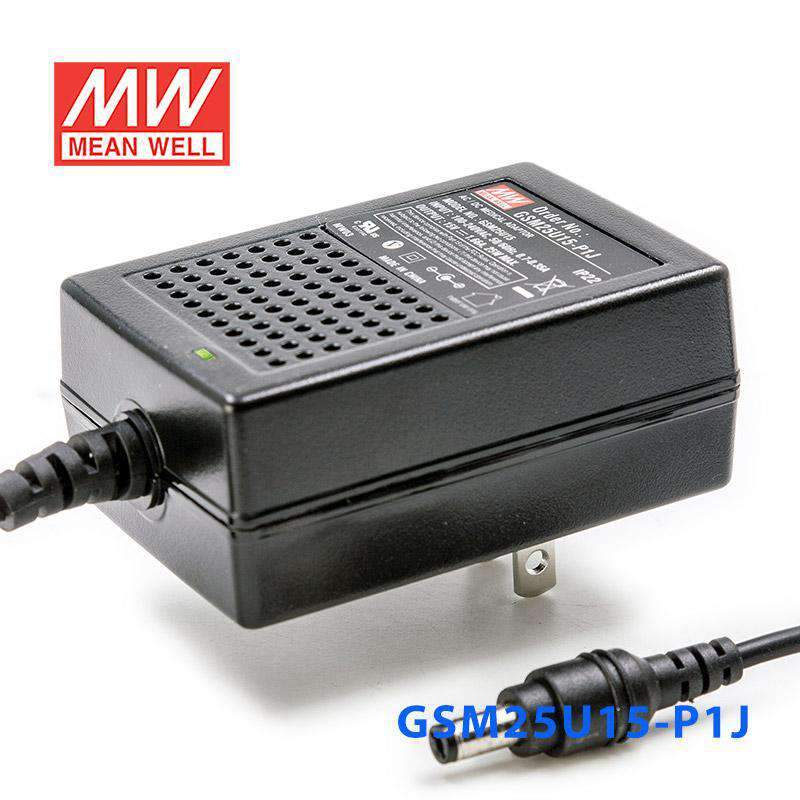

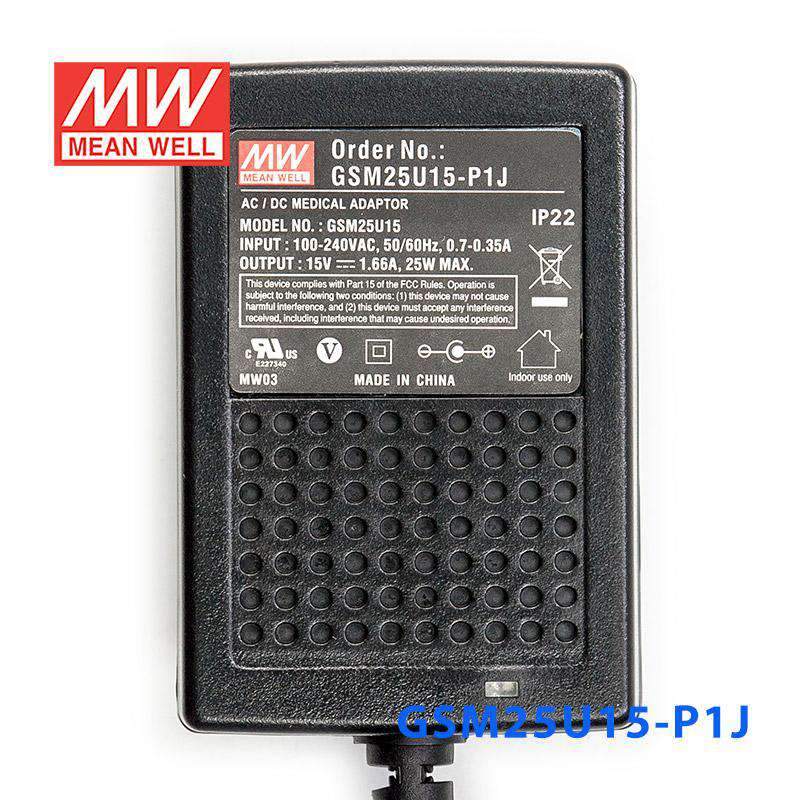

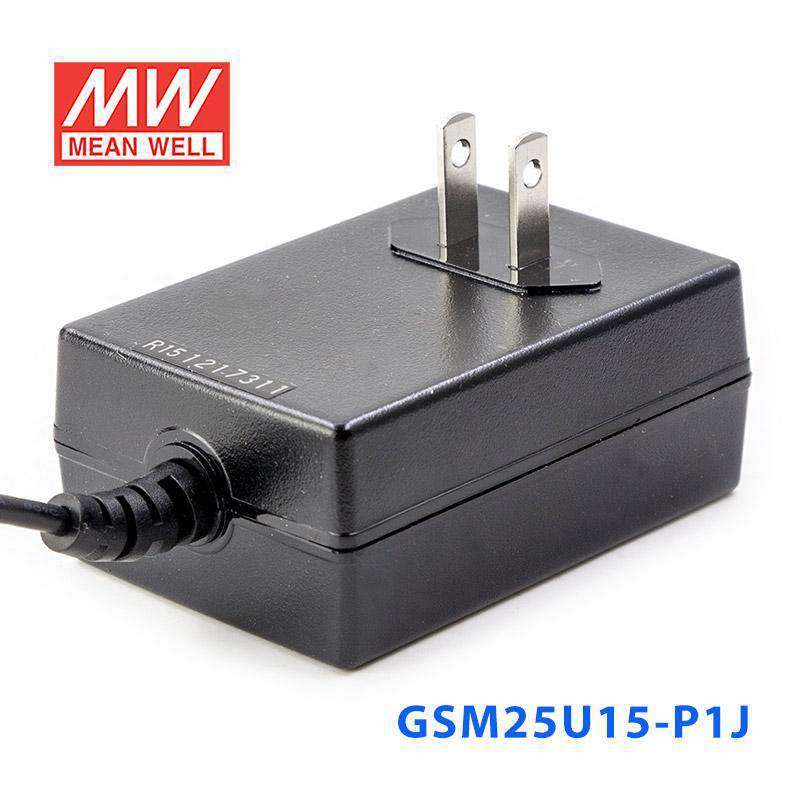

Mean Well GSM25U15-P1J Power Supply 25W 15V 1.66A
Overview
GSM25U15-P1J is the 15V output model of this series: rated current 1.66A, typical efficiency 87%.
GSM25U is a highly reliable, 25W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard USA AC power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniaturize medical devices. The circuitry design meets the international medical standards (2×MOPP), having an ultra low leakage current (<50 μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 88% and the extreme low no-load power consumption below 0.1W, GSM25U is compliant with USA EISA 2007/DoE and Canada NRCan; the superme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM25U is approved with the international medical safety certificates.
Features
- 2 pole USA plug, Class Ⅱ power unit
- Medical safety approved (2×MOPP) according to ANSI/AAMI ES60601-1/-1-11
- Extremely low leakage current
- No load power consumption<0.1W
- Energy efficiency Level Ⅵ ( except 5~9V for Level Ⅴ)
- -25~+60℃ wide range working temperature
- Protections: Short circuit / Overload / Over voltage
- LED indicator for power on
- Various DC plug quick adapter accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GSM25U15
- DC VOLTAGENote.2
- 15V
- RATED CURRENT
- 1.66A
- CURRENT RANGE
- 0 ~ 1.66A
- RATED POWER (max.)
- 25W
- RIPPLE & NOISE (max.)Note.3
- 120mVp-p
- VOLTAGE TOLERANCENote.4
- ±3.0%
- LINE REGULATIONNote.5
- ±1.0%
- LOAD REGULATION
- ±3.0%
- SETUP, RISE TIMENote.6
- 500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 16ms / 230VAC 16ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.7
- 80 ~ 264VAC 113 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 87%
- AC CURRENT (Typ.)
- 0.7A / 115VAC 0.35A / 230VAC
- INRUSH CURRENT (Typ.)
- 55A / 230VAC 30A / 115VAC
- LEAKAGE CURRENT(max.)
- Touch current < 50μA/264VAC
PROTECTION
- OVERLOAD
- 105 ~ 170% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 15.75 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0~40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note. 8)
- SAFETY STANDARDS
- IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1, ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1 CAN/CSA C22.2 No. 60601-1:2014+A2; CSA C22.2 NO. 60601-1-11:2015+A1, EAC TP TC 004 approved
- ISOLATION LEVEL
- Primary-Secondary: 2xMOPP
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission FCC PART 15 / CISPR22 Class B Radiated emission FCC PART 15 / CISPR22 Class B
OTHERS
- MTBF
- 3887.1K hrs min. Telcordia SR-332 (Bellcore) ; 791.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 79*54*33mm (L*W*H)
- PACKING
- 215g ; 60pcs / 13.9Kg / CARTON
CONNECTOR
- PLUG
- See page 4~5 ; Other type available by customer requested
- CABLE
- See page 4~5 ; Other type available by customer requested
Test conditions and notes8
- 1. All parameters are specified at 115VAC input, rated load, 25℃ 70% RH ambient.
- 2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
- 4. Tolerance: includes set up tolerance, line regulation, load regulation.
- 5. Line regulation is measured from low line to high line at rated load.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. Derating may be needed under low input voltage. Please check the derating curve for more details.
- 8. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Blood glucose meter
- Blood pressure meter
- Nebulizer
- Inhaler
- Portable medical device
Downloads
Datasheet1
Certificates5
Test reports1
FAQ
Can I use the GSM25U15-P1J for 15V instrumentation or measurement equipment?
Yes, this model provides constant-voltage 15V output up to 1.66A, with a 25W maximum. That makes it appropriate for 15V instrumentation, control, or measurement devices that fall within those electrical limits.
Is the GSM25U15-P1J suitable for industrial transmitters or signal-conditioning modules that need 15V DC?
It can be suitable when the equipment is specified for 15V DC constant-voltage input and does not exceed 1.66A. The supply is intended for lower-power 15V loads rather than equipment with higher power demand.
Can this power supply run a 15V embedded or control module in a panel or cabinet?
Yes, if the module requires 15V constant-voltage input and its total power stays within 25W. The 80-264VAC input range also makes it practical for deployment in different AC supply environments.
What should I check before pairing this with a 15V device?
The key checks are output type, voltage, current, and power. This unit is constant voltage at 15V, with a 1.66A maximum and 25W total capacity, so the connected device needs to fit all of those values.
Is the GSM25U15-P1J rated for outdoor conditions?
The product data gives an operating temperature range of -25°C to +60°C, which covers a wide span for protected operating locations. No IP rating is listed, so the published specs do not confirm resistance to rain, dust, or direct outdoor exposure.
